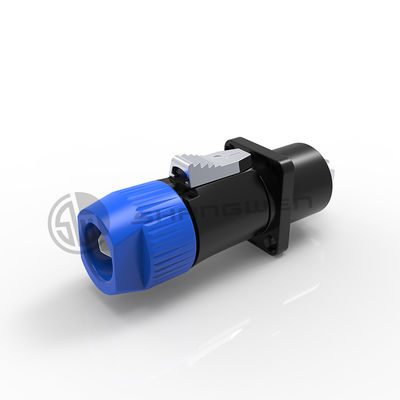

Chassis 4 Pin Speaker Male Connector Plastic D Shape Latch Lock

Place of Origin Guangdong, China
Brand Name SHANGWEN
Model Number SW4SMZ
Minimum Order Quantity 2 pieces
Price $3.00/pieces 2-99 pieces
Packaging Details 10pcs/sample bag<br>25pcs/Blister box(23cm x 23cm)<br>500pcs/carton (51cm x 26cm x 34cm)

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Loudspeaker Application Audio & Video
Gender Male Industrial Electronics Accessories
Highlight

Speaker Male Connector Plastic

,

Speaker Male Connector D Shape

,

Chassis 4 Pin Speaker Connector

Leave a Message
Product Description



D Shape Latch Lock Plastic 4pin Loudspeaker Chassis 4 Pins Male Speaker Connector

Products Description
4Pin Loudspeaker chassis -engineering plastics material

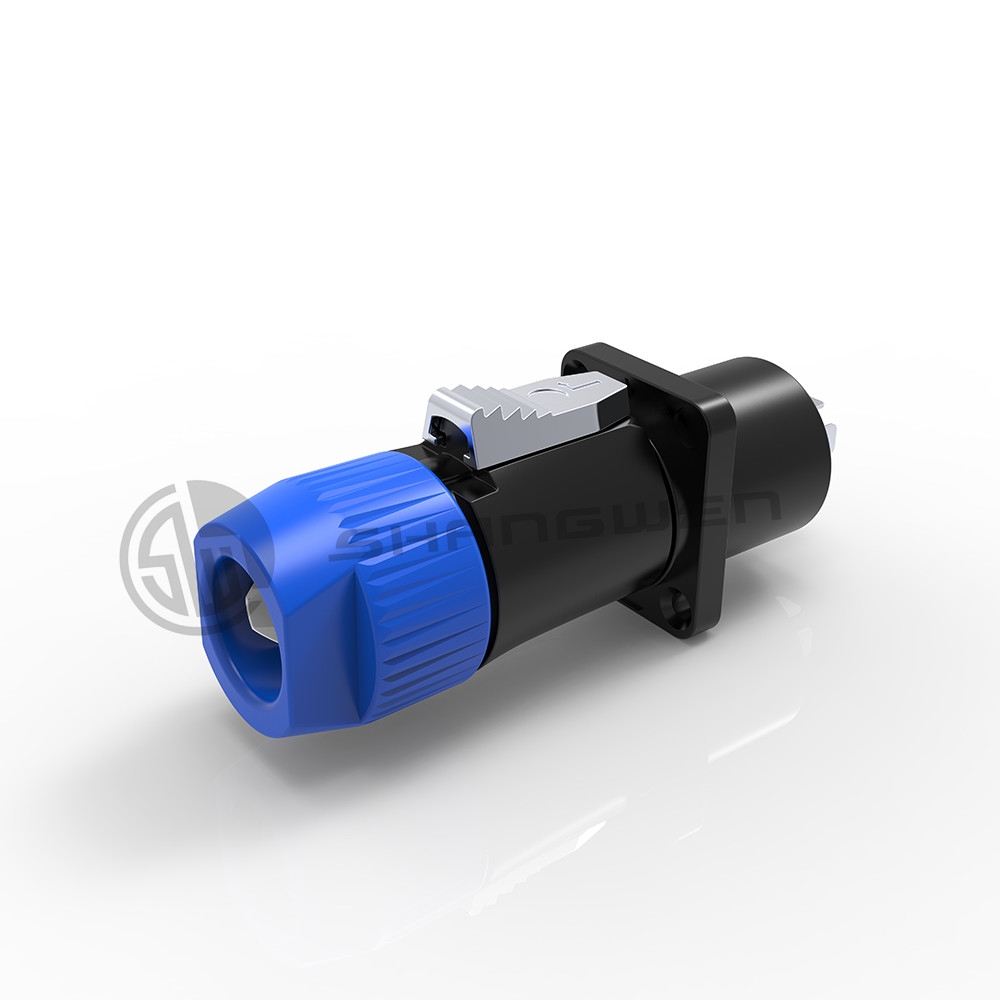

Chassis 4 Pin Speaker Male Connector Plastic D Shape Latch Lock 0
Model:SW4SMZ


Up to 30A rms current rating
Precise keyway for secure mating
Metal insert in locking area
Glass reinforced materials make it extremely robust and dependable Accurate twist lock latching system Airtight design - optimized for speaker applications

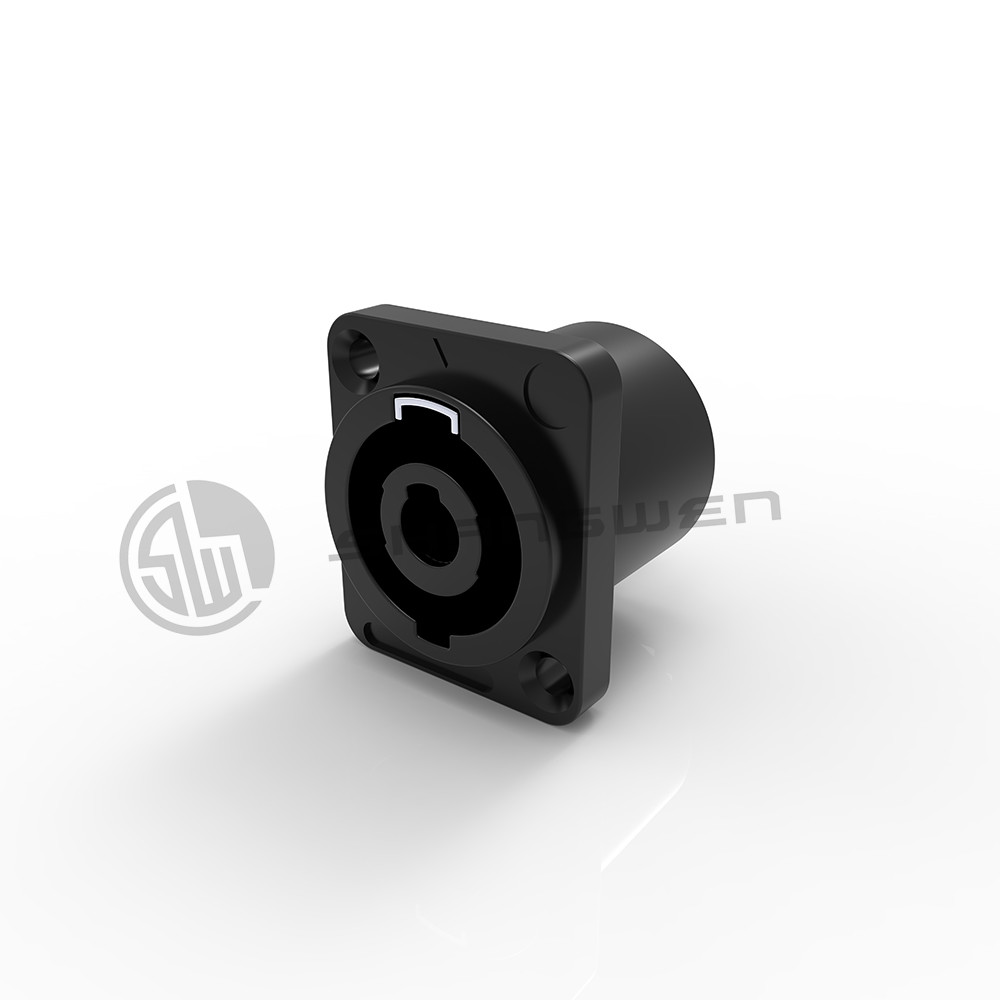

Chassis 4 Pin Speaker Male Connector Plastic D Shape Latch Lock 1

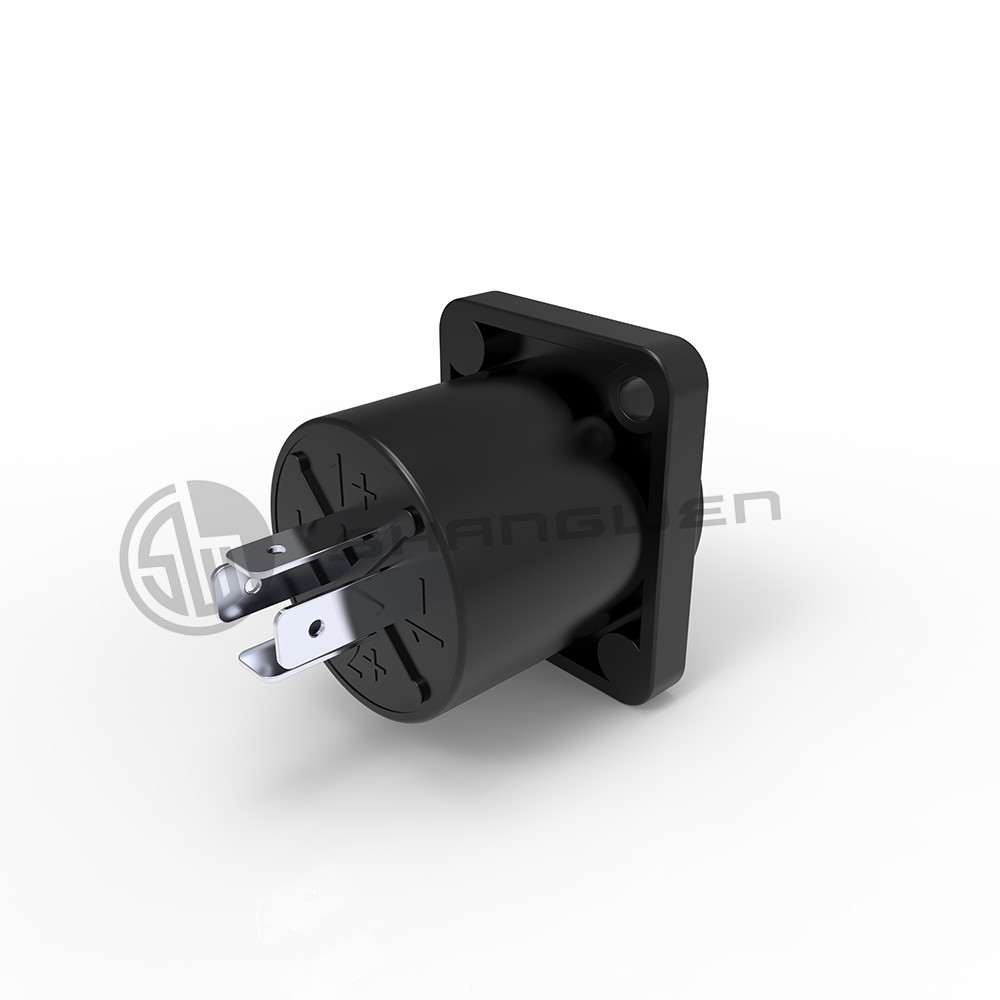

Chassis 4 Pin Speaker Male Connector Plastic D Shape Latch Lock 2
1.Product parameters
Connection Type
Speaker
Gender
Male
2.Electrical parameters
Contact resistance
≤3mΩ
Dielectric strength
4kVdc
Insulation resistance
> 1.0GΩ (initial)
Rated current per contact
30A
Rated voltage
250 V ac
3.Mechanical parameters
Service life
>5000 mating cycles
Chassis shape
D
Layout
two thru holes
Locking device
Latch lock
4.Material and environmental parameters
Contacts
Brass
Contact plating
Ag
Shell
Polyamide (PA 6 30 % GR)
Flame-retardant grade
UL 94 HB
Temperature range
-30℃to +80℃
5.Size reference (unit /mm)
Chassis 4 Pin Speaker Male Connector Plastic D Shape Latch Lock 3
6.Assembly reference

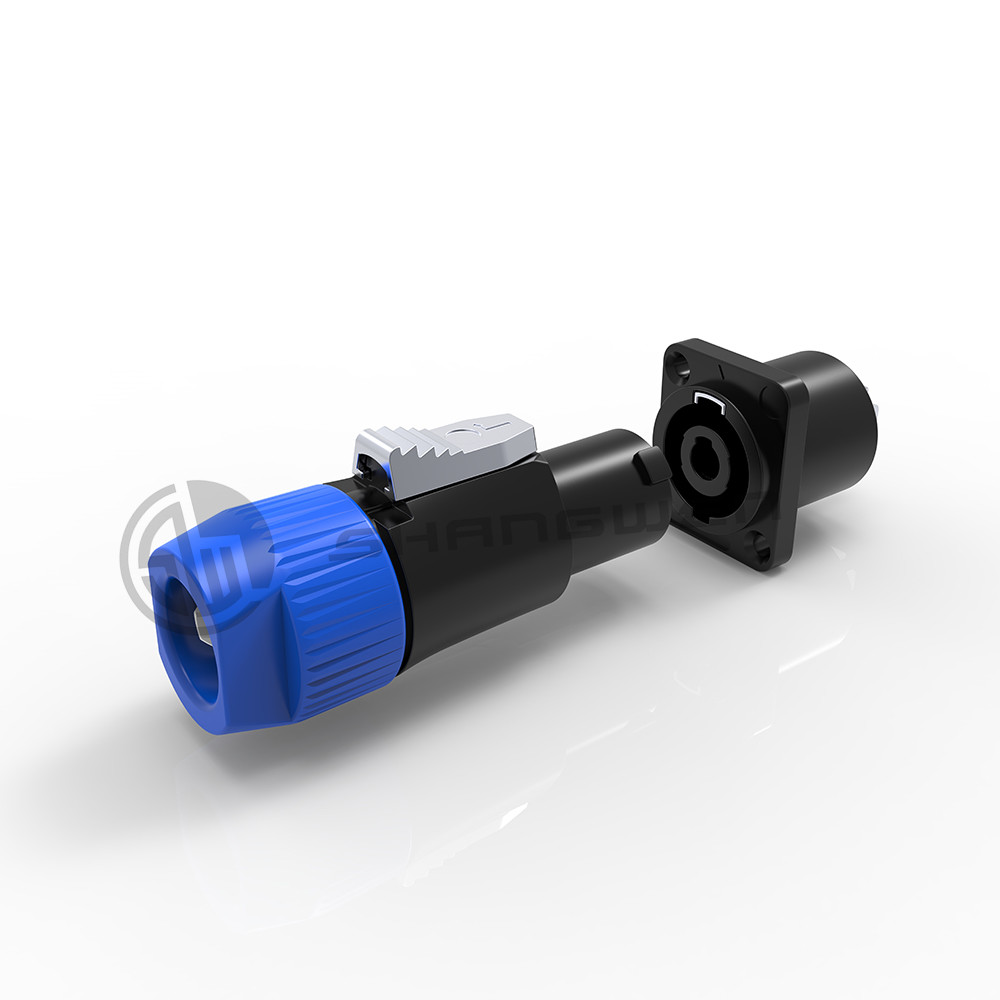

Chassis 4 Pin Speaker Male Connector Plastic D Shape Latch Lock 4

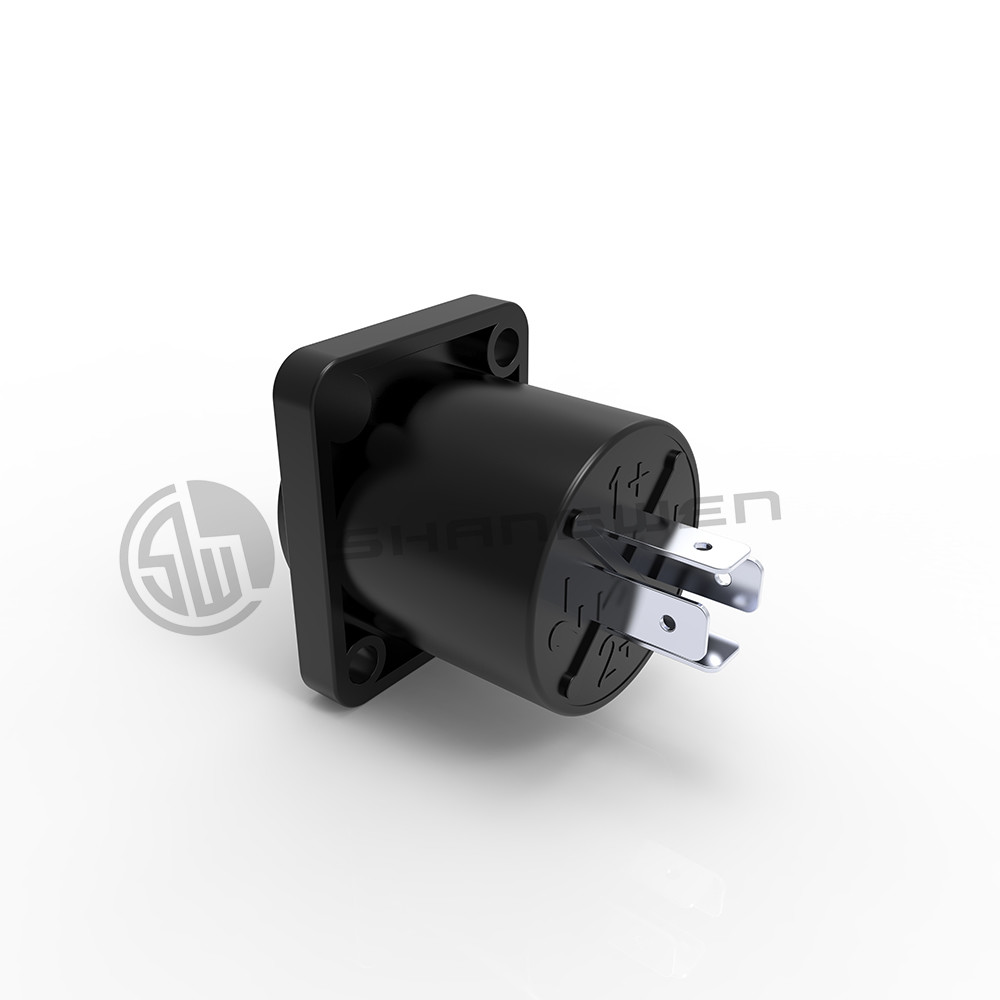

Chassis 4 Pin Speaker Male Connector Plastic D Shape Latch Lock 5

Application area
Chassis 4 Pin Speaker Male Connector Plastic D Shape Latch Lock 6
Company Information
Chassis 4 Pin Speaker Male Connector Plastic D Shape Latch Lock 7
Patent & Certification
Chassis 4 Pin Speaker Male Connector Plastic D Shape Latch Lock 8
Exhibition activities
Chassis 4 Pin Speaker Male Connector Plastic D Shape Latch Lock 9
Packaging reference
Chassis 4 Pin Speaker Male Connector Plastic D Shape Latch Lock 10
Payment and logistics
Chassis 4 Pin Speaker Male Connector Plastic D Shape Latch Lock 11
FAQ
Chassis 4 Pin Speaker Male Connector Plastic D Shape Latch Lock 12
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
