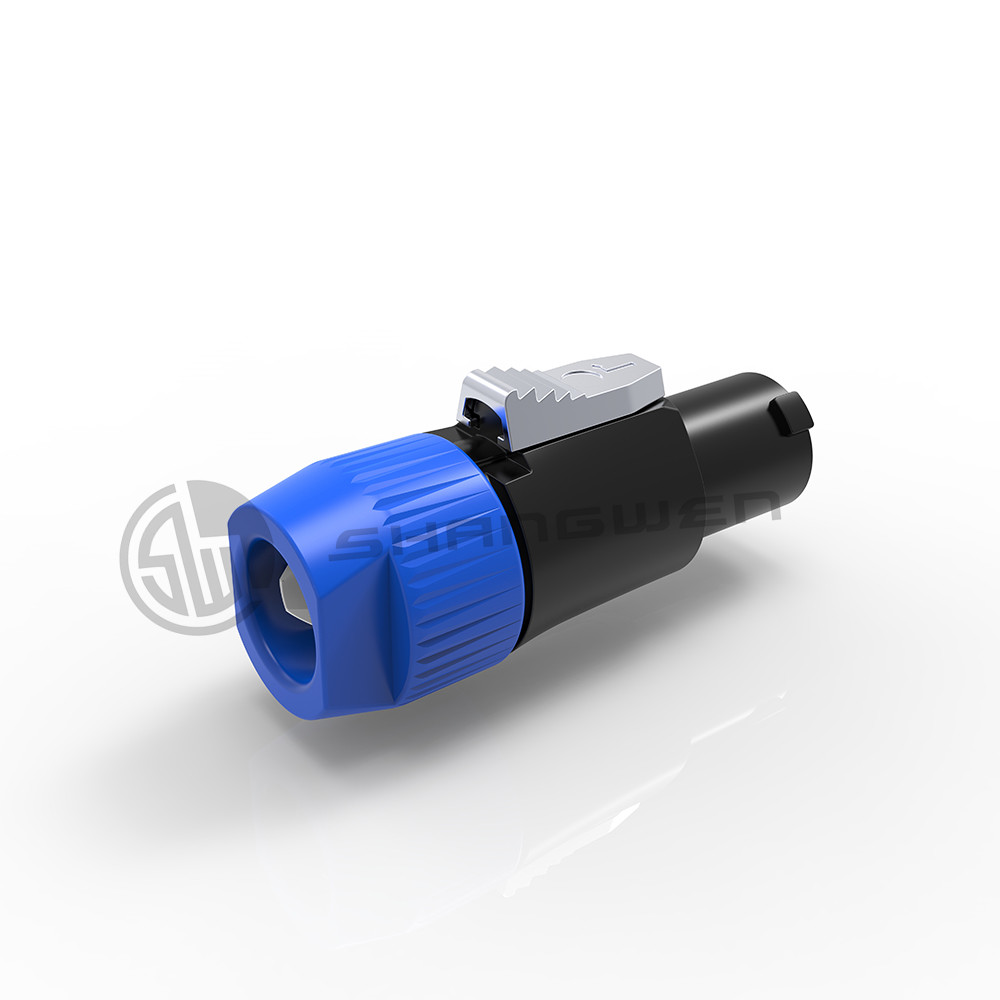

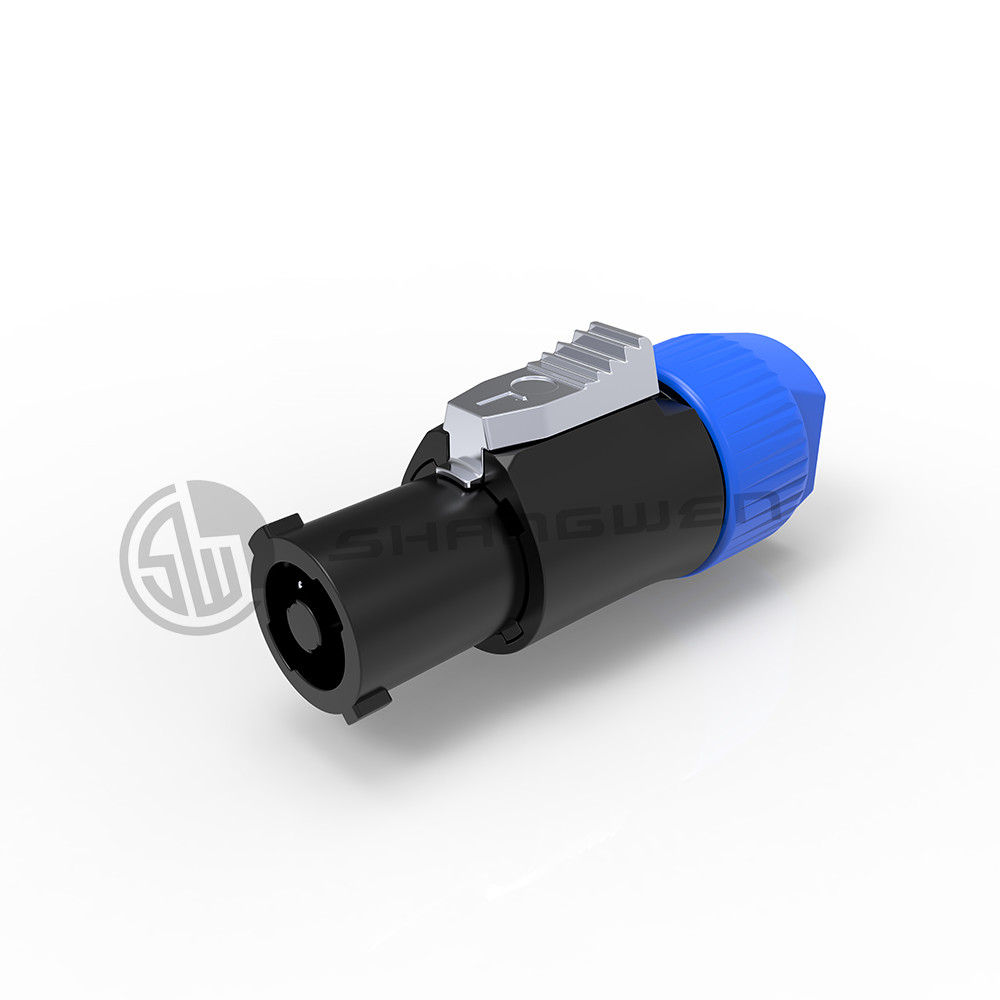

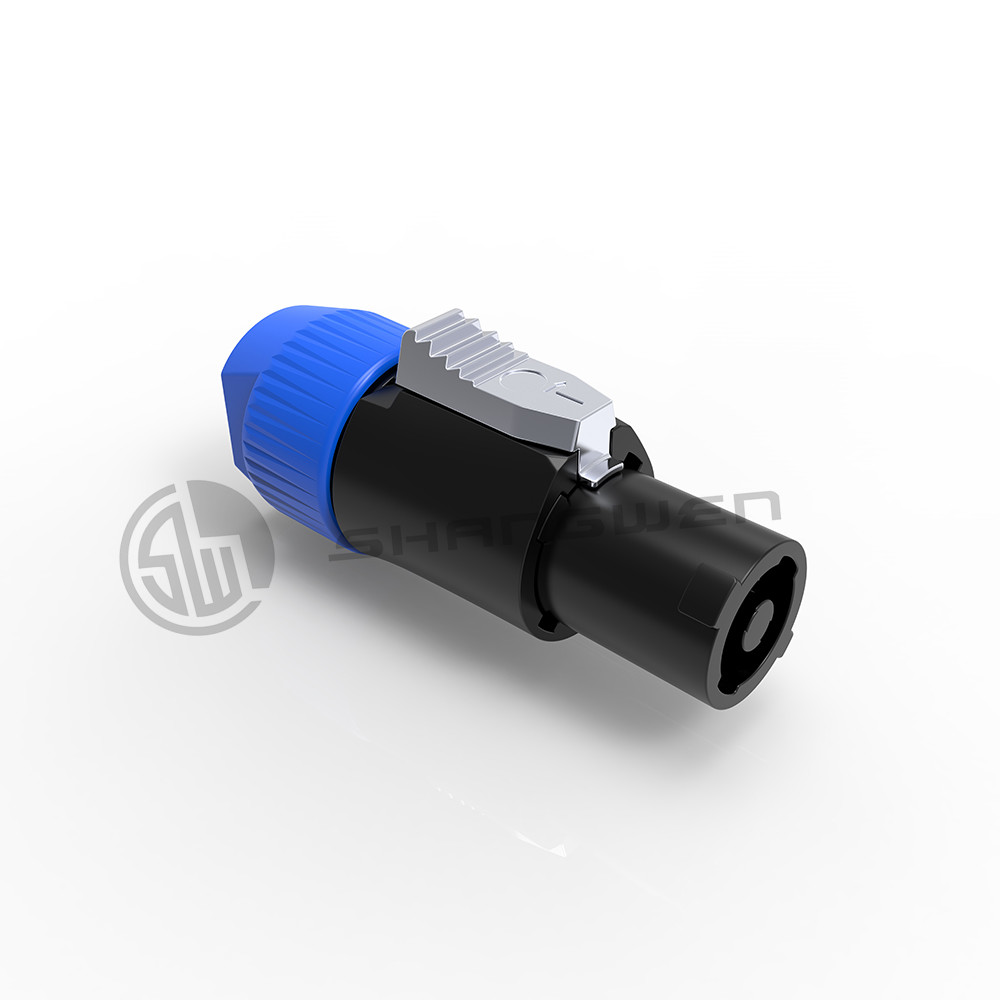

30A 4 Pin Female Speaker Cable Connector Electrical Glass Reinforced

Place of Origin Guangdong, China
Brand Name SHANGWEN
Model Number SW4SFT
Minimum Order Quantity 2 pieces
Price $3.00/pieces 2-99 pieces
Packaging Details 10pcs/sample bag<br>25pcs/Blister box(23cm x 23cm)<br>500pcs/carton (51cm x 26cm x 34cm)

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Loudspeaker Application Audio & Video
Gender Female Industrial Electronics Accessories
Highlight

4 Pin Female Speaker Connector

,

30A Female Speaker Connector

,

Speaker Cable Connector Electrical

Leave a Message
Product Description



Shenzhen Sales Glass Reinforced Material 4pin Female Speaker Connector For 6-15mm Cable

Products Description
4Pin Loudspeaker plug -engineering plastics material


30A 4 Pin Female Speaker Cable Connector Electrical Glass Reinforced 0
Model:SW4SFT


Up to 30A rms current rating
Cable strain relief for 6-15mm cable O.D.
Glass reinforced material for insert and housing,long-lasting and dependable
Reliable and robust, easy and fast to assemble Accurate and dependable twist lock latching system "Quick Lock" User friendly latch design for easy handling

30A 4 Pin Female Speaker Cable Connector Electrical Glass Reinforced 1
30A 4 Pin Female Speaker Cable Connector Electrical Glass Reinforced 2
1.Product parameters
Connection Type
Speaker
Gender
Female
2.Electrical parameters
Contact resistance
≤3mΩ
Dielectric strength
4kVdc
Insulation resistance
> 1.0GΩ (initial)
Rated current per contact
30A
Rated voltage
250 V ac
3.Mechanical parameters
Sign Cable O.D.
6-15mm
Cable retention
≥220N
Service life
>5000 mating cycles
Wire size
4 mm²
Wire size
12AWG
Locking device
Latch lock
4.Material and environmental parameters
Contacts
Brass
Contact plating
Ag
Insert
PBTP 20% GR
Shell
Polyamide (PA 6 30 % GR)
Strain relief
Polyacetal (POM)
Flame-retardant grade
UL 94 V-0
Temperature range
-30℃to +80℃
5.Size reference (unit /mm)
30A 4 Pin Female Speaker Cable Connector Electrical Glass Reinforced 3

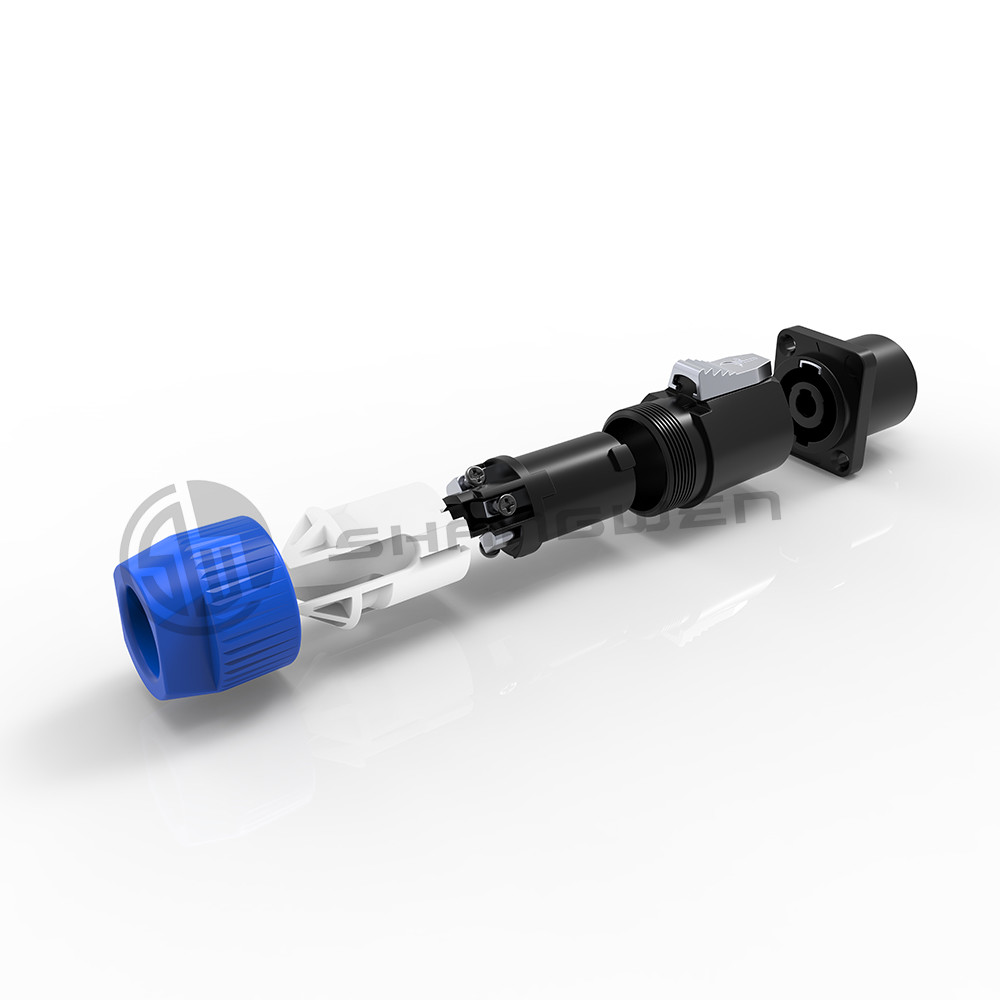

6.Assembly reference
30A 4 Pin Female Speaker Cable Connector Electrical Glass Reinforced 4

Application area
30A 4 Pin Female Speaker Cable Connector Electrical Glass Reinforced 5
Company Information
30A 4 Pin Female Speaker Cable Connector Electrical Glass Reinforced 6
Patent & Certification
30A 4 Pin Female Speaker Cable Connector Electrical Glass Reinforced 7
Exhibition activities
30A 4 Pin Female Speaker Cable Connector Electrical Glass Reinforced 8
Packaging reference
30A 4 Pin Female Speaker Cable Connector Electrical Glass Reinforced 9
Payment and logistics
30A 4 Pin Female Speaker Cable Connector Electrical Glass Reinforced 10
FAQ
30A 4 Pin Female Speaker Cable Connector Electrical Glass Reinforced 11
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
