Chassis Loudspeaker Connector Waterproof 4 Pin Male Connector

Place of Origin Guangdong, China
Brand Name SHANGWEN
Model Number SW4SMZ-M-2
Minimum Order Quantity 2 pieces
Price $3.20/pieces 2-99 pieces
Packaging Details 10pcs/sample bag<br>25pcs/Blister box(23cm x 23cm)<br>500pcs/carton (51cm x 26cm x 34cm)

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Loudspeaker Connector Gender Male
Industrial Electronics Accessories Feature Waterproof
Highlight

Chassis Loudspeaker Connector

,

Loudspeaker Connector Waterproof

,

Waterproof 4 Pin Male Connector

Leave a Message
Product Description



China Manufacture Square Shape Four Thru Holes Loudspeaker Connector 4 Pins Male Connector

Products Description
4Pin Loudspeaker chassis -Metal material

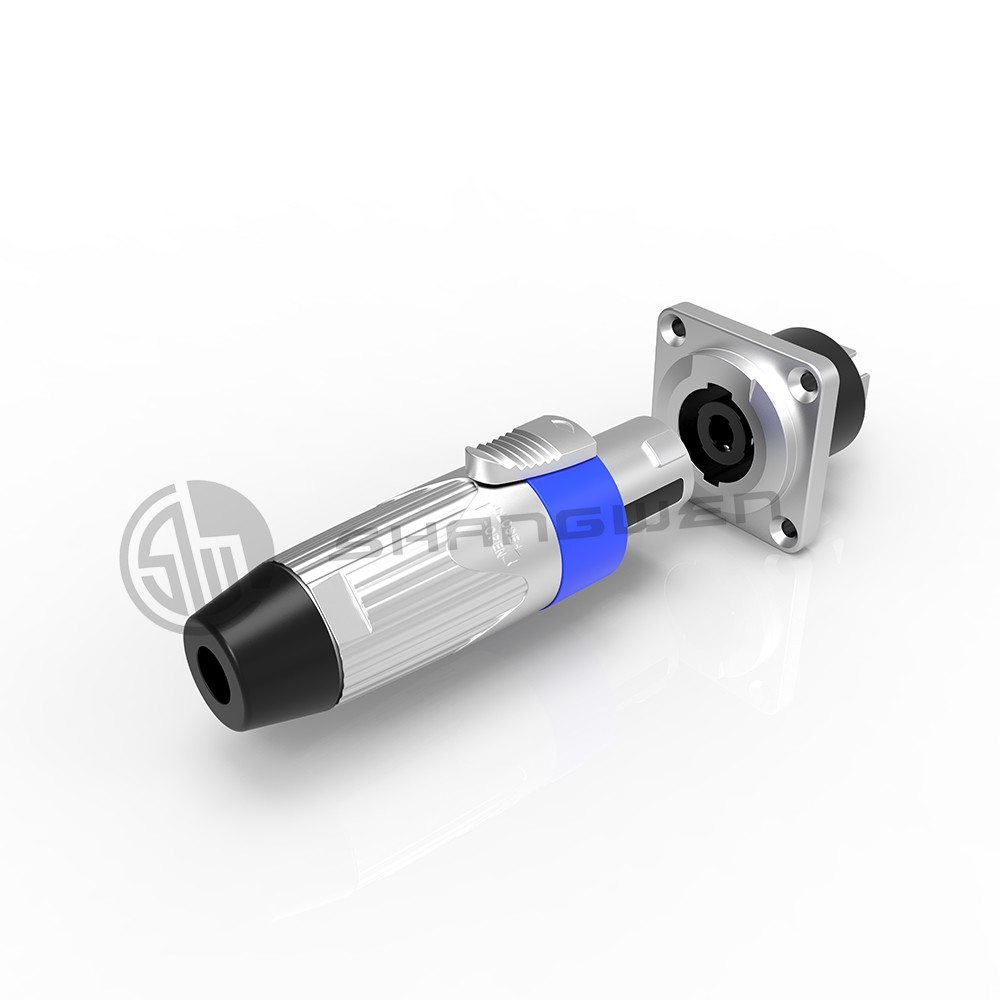

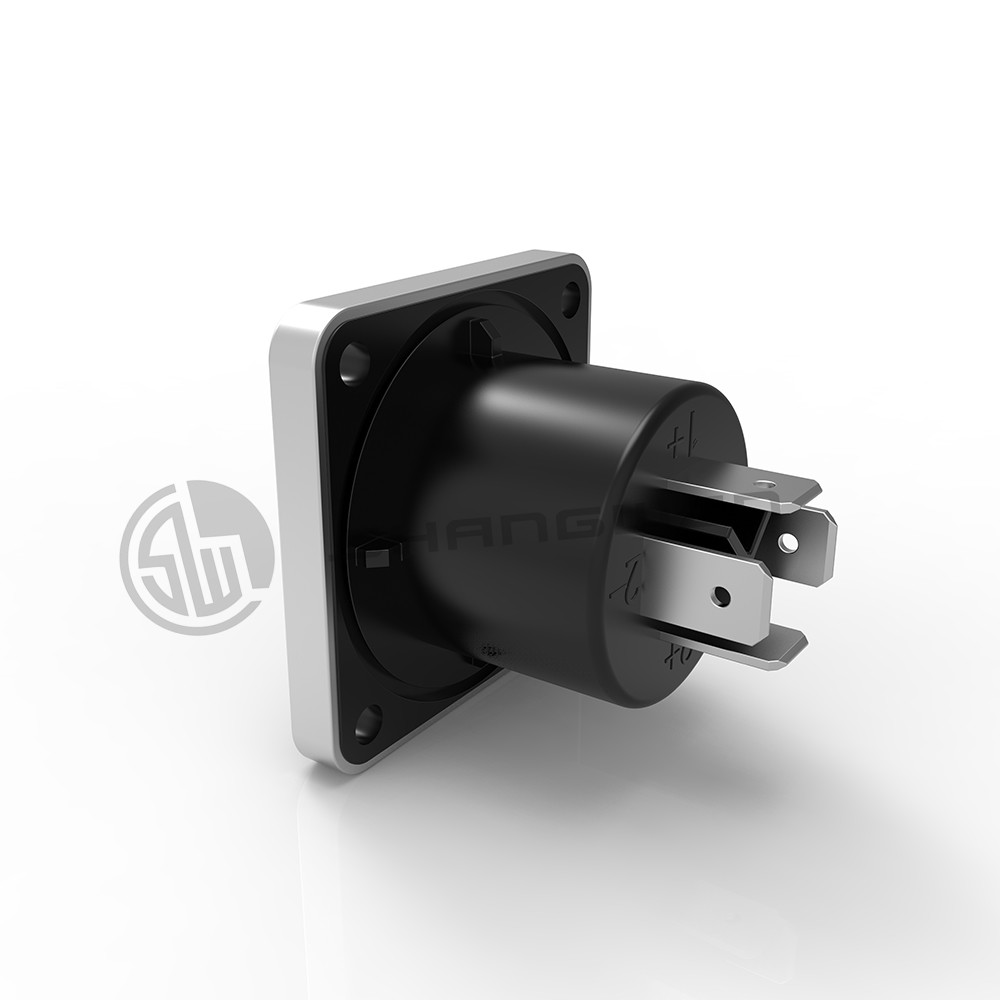

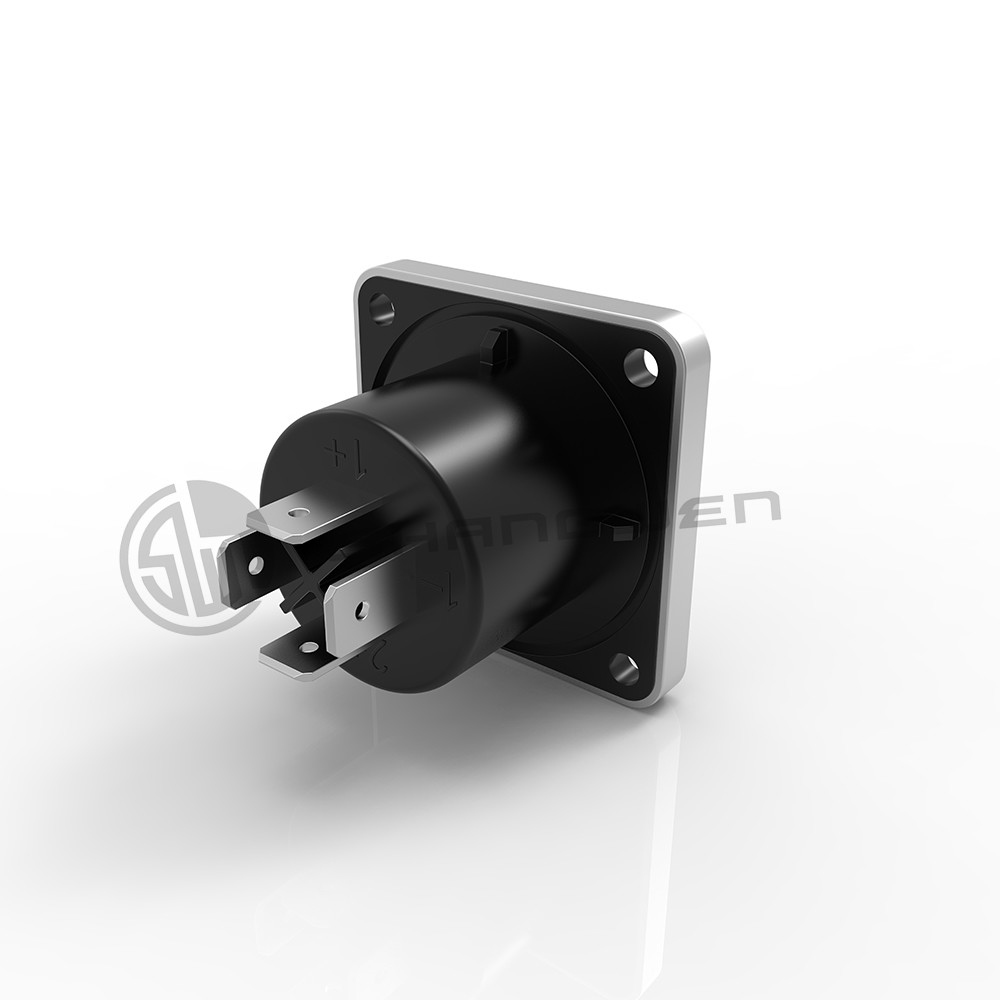

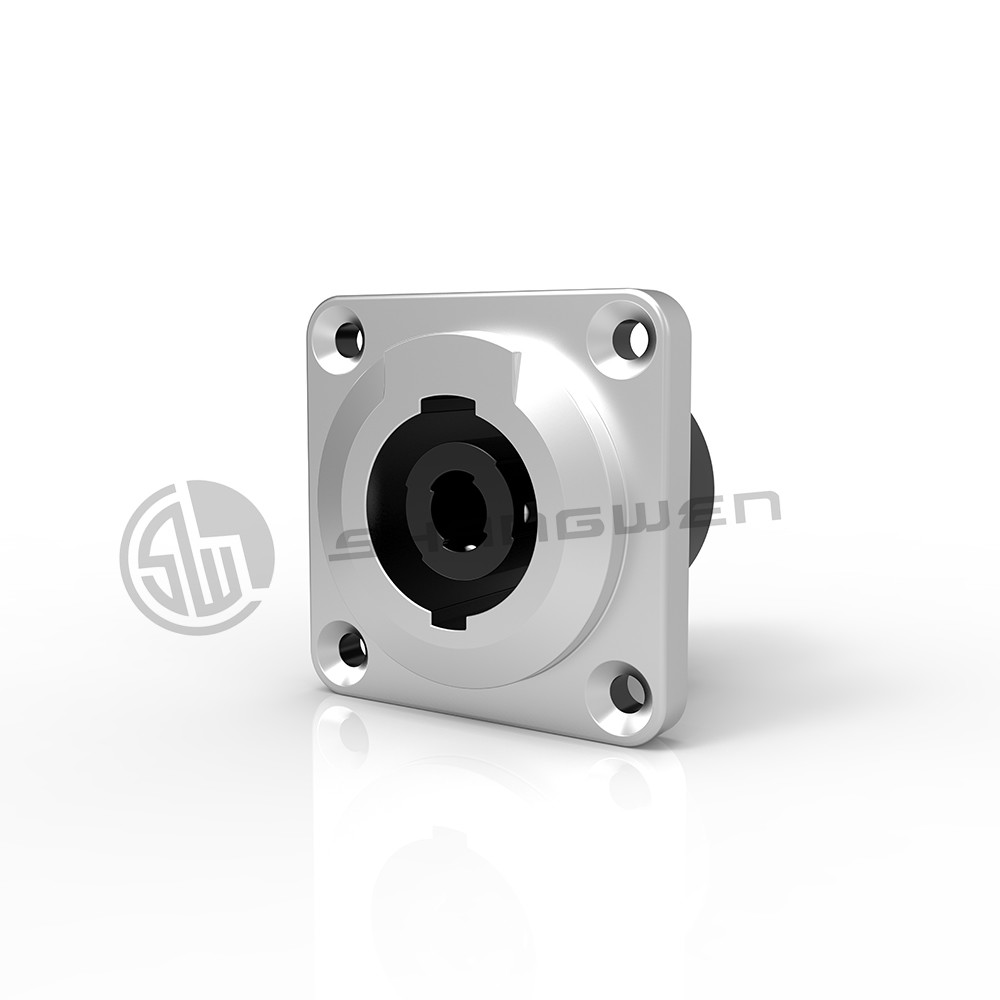

Chassis Loudspeaker Connector Waterproof 4 Pin Male Connector 0
Model:SW4SMZ-M-2


The extremely rugged metal case and fiberglass reinforced V-0 material inner core are designed for harsh environments
Sophisticated "quick lock" system
Airtight design - optimized for speaker applications
Equipped with internal gasket, protection class up to IP54 in connection state

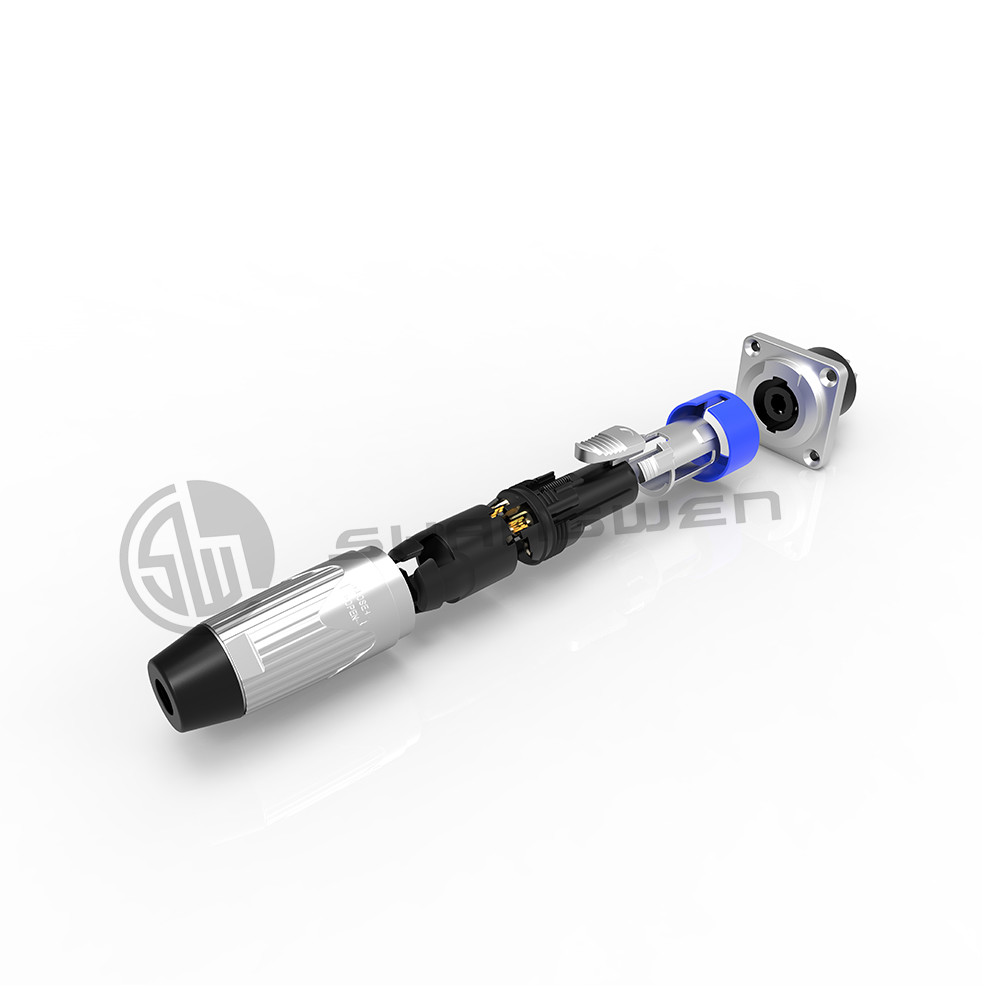

Chassis Loudspeaker Connector Waterproof 4 Pin Male Connector 1

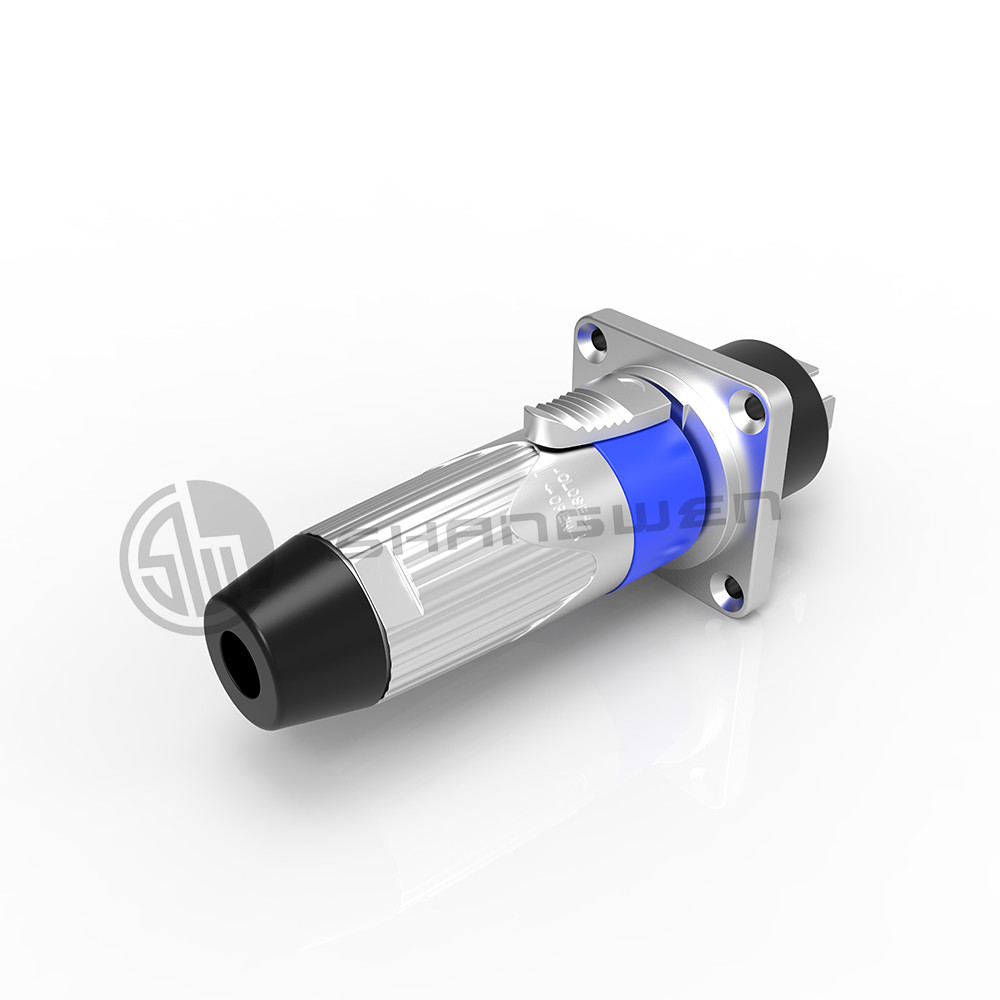

Chassis Loudspeaker Connector Waterproof 4 Pin Male Connector 2
1.Product parameters
Connection Type
Speaker
Gender
Male
2.Electrical parameters
Contact resistance
<2mΩ
Dielectric strength
2.8kVac
Insulation resistance
> 1.0GΩ (initial)
Rated current per contact
30A
Rated voltage
250 V ac
3.Mechanical parameters
Termination
¼ flat tabs
Service life
>5000 mating cycles
Mounting direction
Rear/Front mounting
Chassis shape
Square G-size flange
Locking device
Latch lock
Layout
four thru holes
4.Material and environmental parameters
Contacts
Cu alloy
Contact plating
Ag
Insert
Polyamide (PA 66 )
Shell
Zinc diecast,Nickel plating
Flame-retardant grade
UL 94 V-0
Protection class
IP54
Temperature range
-30℃to +80℃
5.Size reference (unit /mm)
Chassis Loudspeaker Connector Waterproof 4 Pin Male Connector 3
6.Assembly reference
Chassis Loudspeaker Connector Waterproof 4 Pin Male Connector 4
Chassis Loudspeaker Connector Waterproof 4 Pin Male Connector 5
Chassis Loudspeaker Connector Waterproof 4 Pin Male Connector 6

Application area
Chassis Loudspeaker Connector Waterproof 4 Pin Male Connector 7
Company Information
Chassis Loudspeaker Connector Waterproof 4 Pin Male Connector 8
Patent & Certification
Chassis Loudspeaker Connector Waterproof 4 Pin Male Connector 9
Exhibition activities
Chassis Loudspeaker Connector Waterproof 4 Pin Male Connector 10
Packaging reference
Chassis Loudspeaker Connector Waterproof 4 Pin Male Connector 11
Payment and logistics
Chassis Loudspeaker Connector Waterproof 4 Pin Male Connector 12
FAQ
Chassis Loudspeaker Connector Waterproof 4 Pin Male Connector 13
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
