Audio XLR Connector Outdoor Waterproof 5 Pin Connector Male Socket

Place of Origin Guangdong, China
Brand Name SHANGWEN
Model Number 5 pin male socket
Minimum Order Quantity 2 pieces
Price $2.22/pieces 2-99 pieces
Packaging Details 10pcs/sample bag<br>25pcs/Blister box(23cm x 23cm)<br>500pcs/carton (51cm x 26cm x 34cm)

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Audio XLR Connector Application Audio & Video
Gender Male Industrial Electronics Accessories
Feature Waterproof IP65 Wire Diameter Range 5-8mm
Highlight

Audio XLR Connector

,

XLR Connector Outdoor

,

Waterproof 5 Pin Connector Socket

Leave a Message
Product Description



China Manufacturer Outdoor Waterproof 5 Pins Connector XLR Audio Male Socket 5 Pin Connector









Products Description
Waterproof XLR connector-5 pin male socket




A waterproof XLR connector with a 5-pin male socket is primarily used for audio connections in environments that are damp or rainy. This type of waterproof connector is commonly found in outdoor audio equipment, stage lighting control systems, performance venues, and sports stadiums.



The design of the waterproof XLR connector aims to provide reliable protection, preventing water, moisture, and other liquids from infiltrating the interior of the connector and safeguarding the quality of audio transmission. It typically features specialized sealing rings and a waterproof socket design, ensuring stable operation even in harsh weather conditions.



The applications of this connector are widespread and can be found in outdoor music festivals, concerts, open-air theaters, and other settings that require water-resistant performance. It enables audio equipment to function properly in adverse weather conditions while maintaining clear and stable sound quality, providing users with an exceptional audio experience.



In summary, the primary purpose of a waterproof XLR connector is to offer reliable protection and high-quality audio transmission for environments that require audio connections in damp or rainy conditions.







Model:SW5XMZ-F-B (Black)

SW5XMZ-F(Silver)



☑Sealed rubber jacket is waterproof and dust-proof

☑Standard D mounting dimensions, fully matched to existing installation

☑Zinc alloy shell, contact point gold-plated

☑Can solve the fast connection requirement of input and output of DMX signal in outdoor conditions in the lighting industry

☑Waterproof IP65

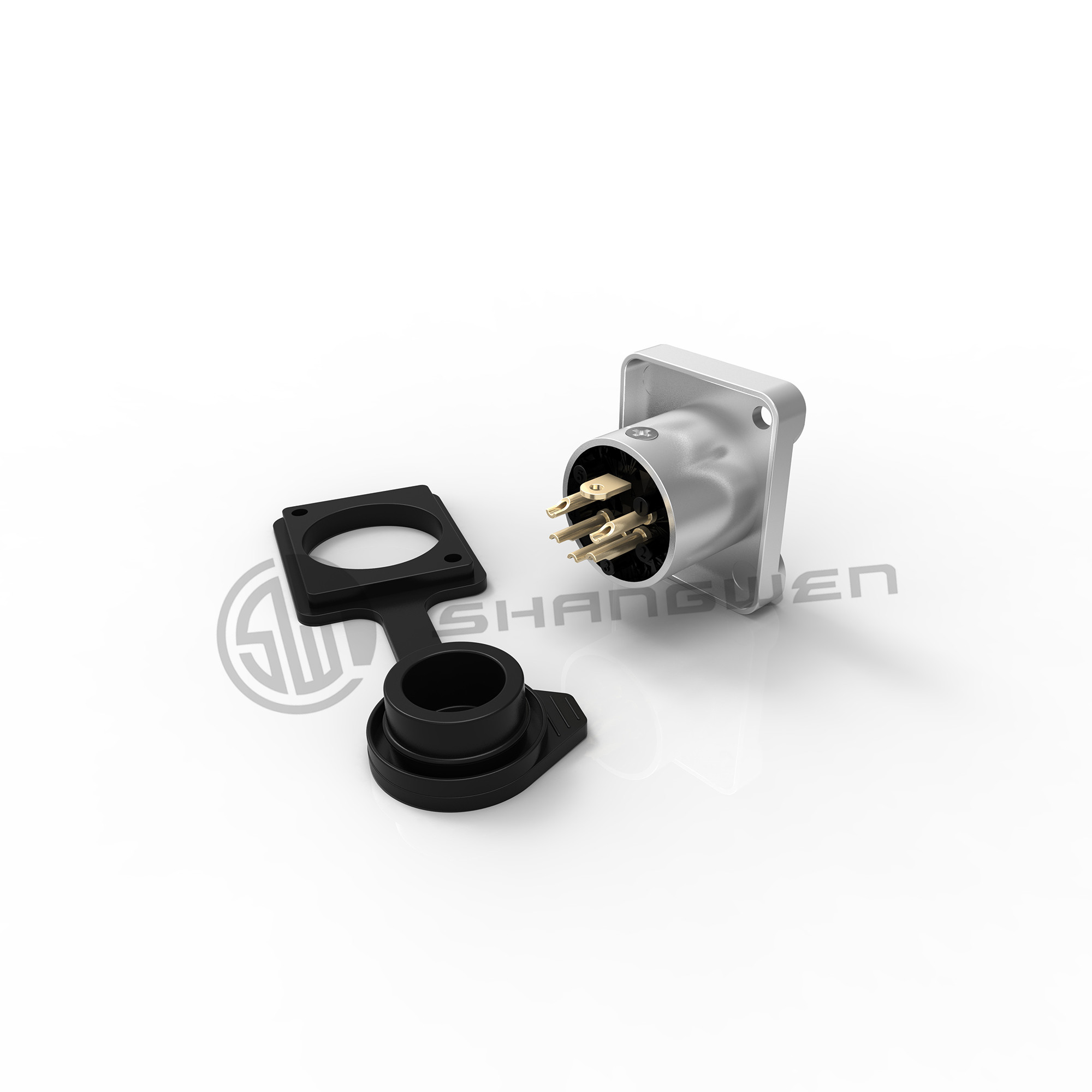

Audio XLR Connector Outdoor Waterproof 5 Pin Connector Male Socket 0

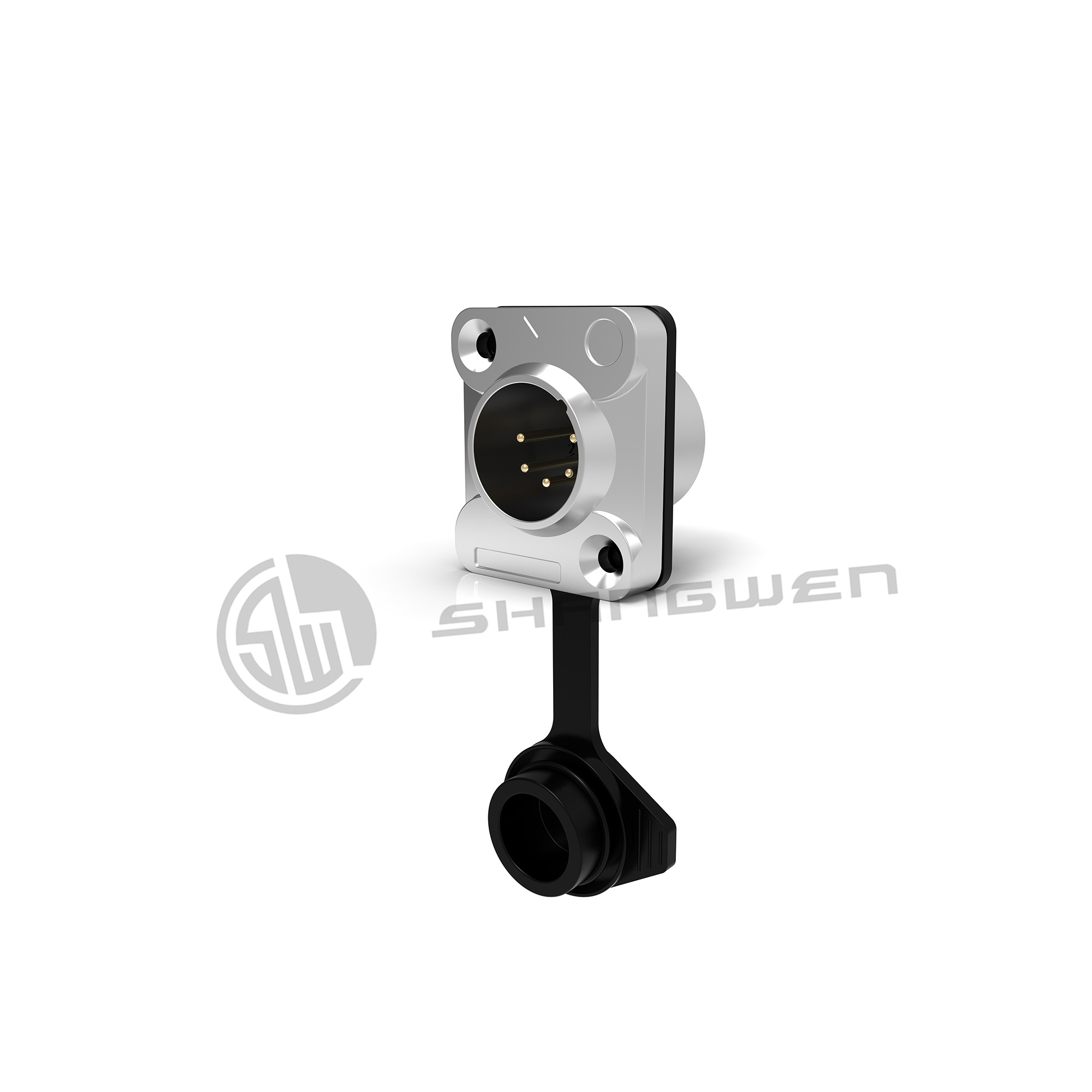

Audio XLR Connector Outdoor Waterproof 5 Pin Connector Male Socket 1

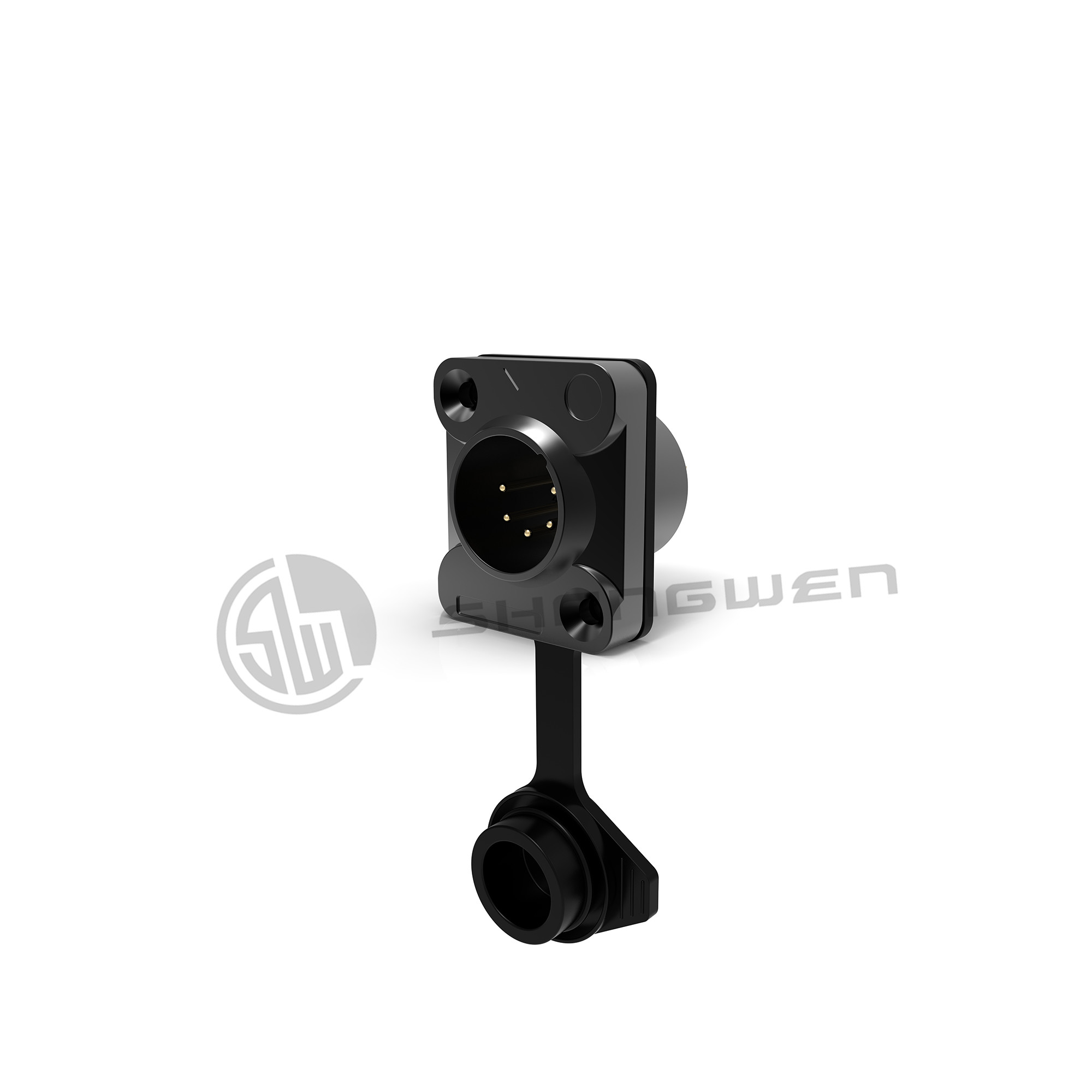

Audio XLR Connector Outdoor Waterproof 5 Pin Connector Male Socket 2

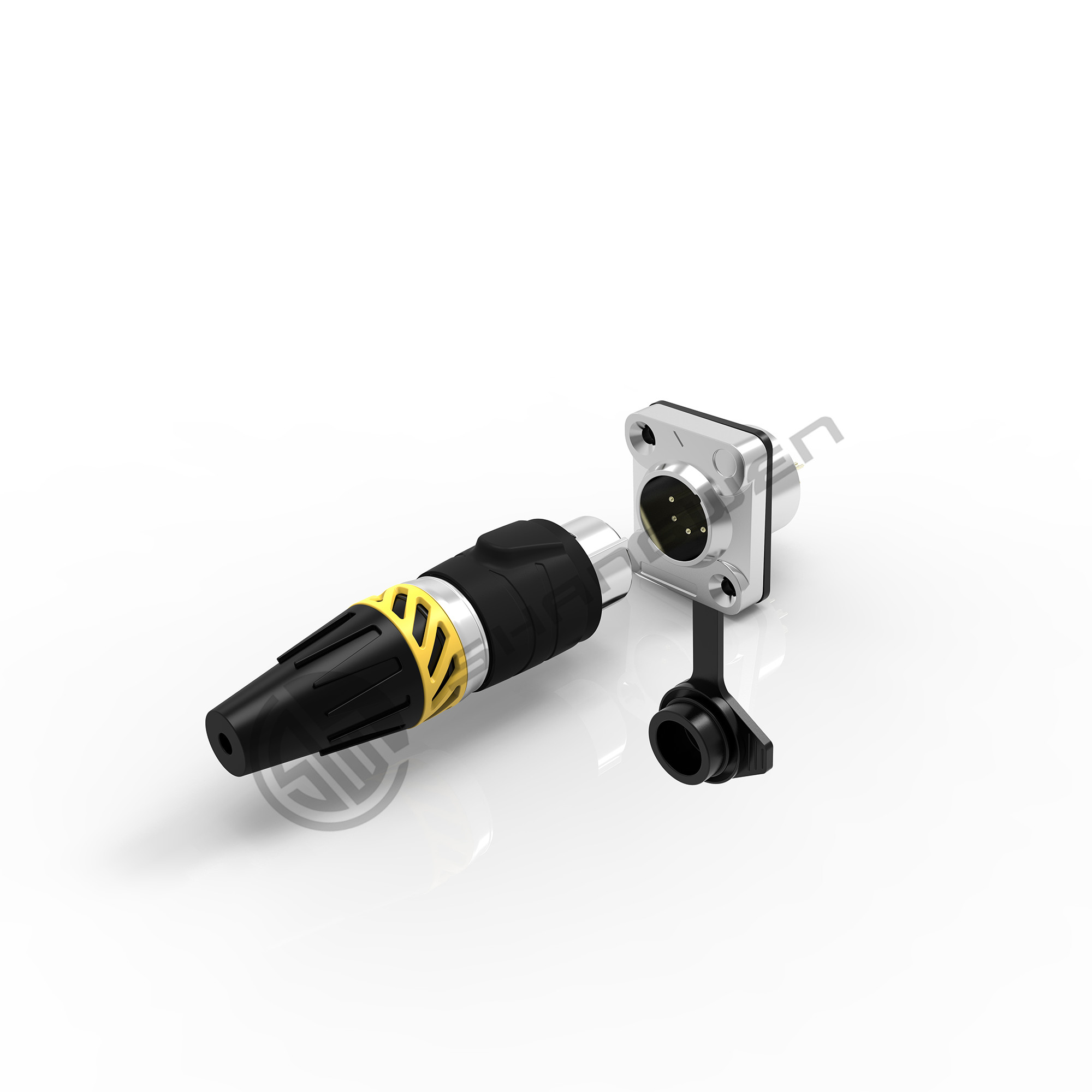

Audio XLR Connector Outdoor Waterproof 5 Pin Connector Male Socket 3

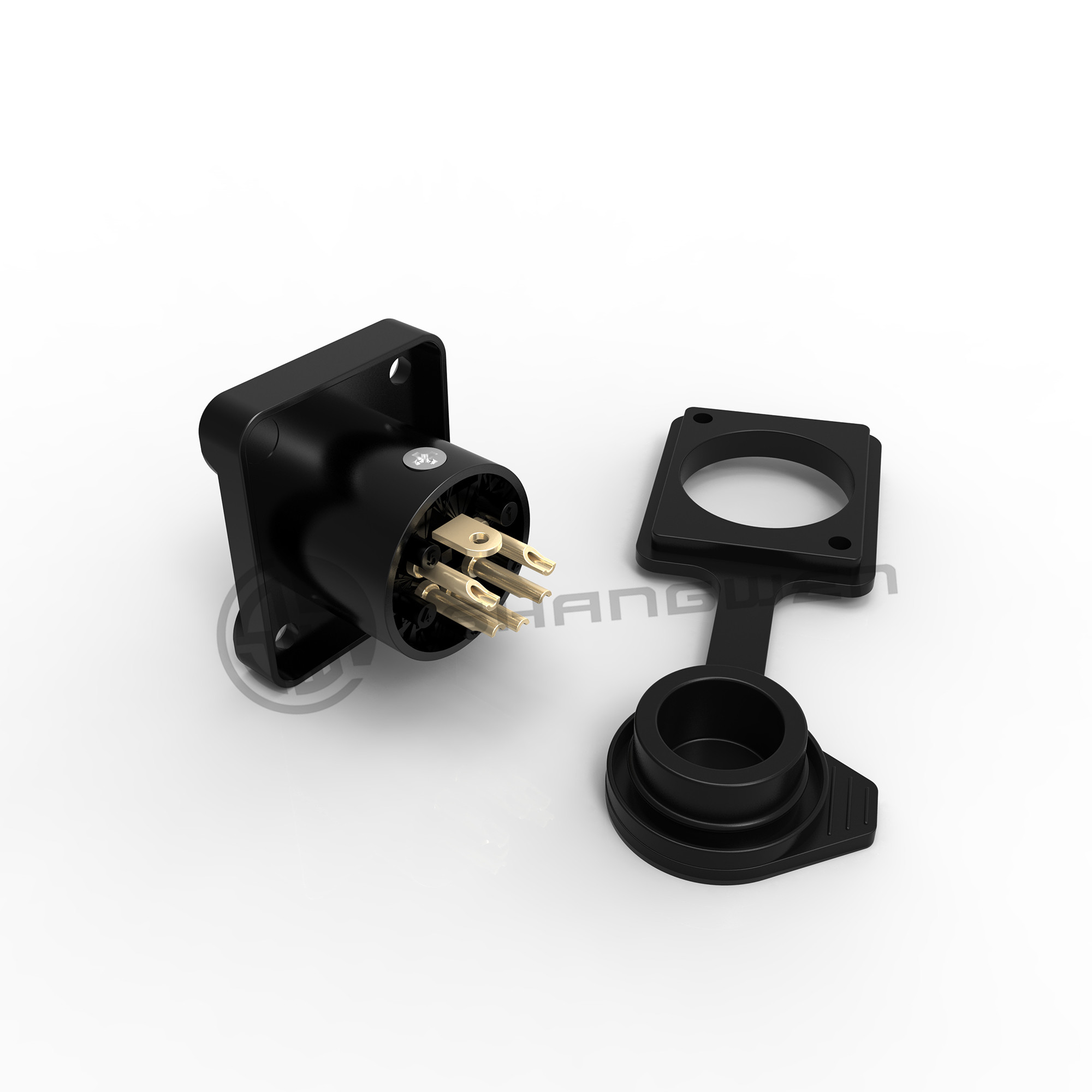

Audio XLR Connector Outdoor Waterproof 5 Pin Connector Male Socket 4

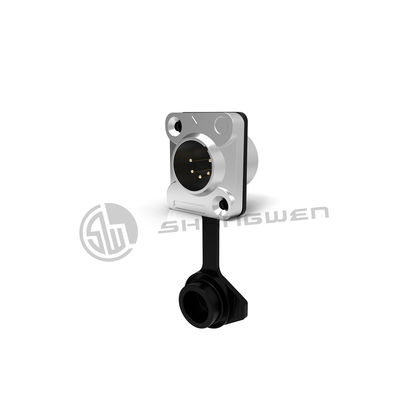

Audio XLR Connector Outdoor Waterproof 5 Pin Connector Male Socket 5
1.Product parameters
Connection Type
XLR
Gender
Male
2.Electrical parameters
Capacitance between contacts
≤7pF
Contact resistance
≤5mΩ
Dielectric strength
1.5kV DC
Insulation resistance
> 10GΩ (initial)
Rated current per contact
7.5A
Rated voltage
<50V
3.Mechanical parameters
Insertion force
≤ 20N
Withdrawal force
≤ 20N
Service life
>1000 mating cycles
Chassis shape
D type
4. Material and environmental parameters
Contacts
Cu alloy
Contact plating
Au
Insert
Polyamide (PA 66 +30 % GF)
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Cr
Solder ability
Complies with IEC 68-2-20
Flame-retardant grade
UL 94 HB
Protection class
IP65
Temperature range
-30℃to +80℃
5. Size reference (unit /mm)
Audio XLR Connector Outdoor Waterproof 5 Pin Connector Male Socket 6
Waterproof rubber(Unit:mm)
Audio XLR Connector Outdoor Waterproof 5 Pin Connector Male Socket 7
6. Assembly reference
Audio XLR Connector Outdoor Waterproof 5 Pin Connector Male Socket 8
Audio XLR Connector Outdoor Waterproof 5 Pin Connector Male Socket 9

Application area
Audio XLR Connector Outdoor Waterproof 5 Pin Connector Male Socket 10
Company Information
Audio XLR Connector Outdoor Waterproof 5 Pin Connector Male Socket 11
Patent & Certification
Audio XLR Connector Outdoor Waterproof 5 Pin Connector Male Socket 12
Exhibition activities
Audio XLR Connector Outdoor Waterproof 5 Pin Connector Male Socket 13
Packaging reference
Audio XLR Connector Outdoor Waterproof 5 Pin Connector Male Socket 14
Payment and logistics
Audio XLR Connector Outdoor Waterproof 5 Pin Connector Male Socket 15
FAQ
Audio XLR Connector Outdoor Waterproof 5 Pin Connector Male Socket 16
1. Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2. What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3. Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4. Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5. What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6. Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
