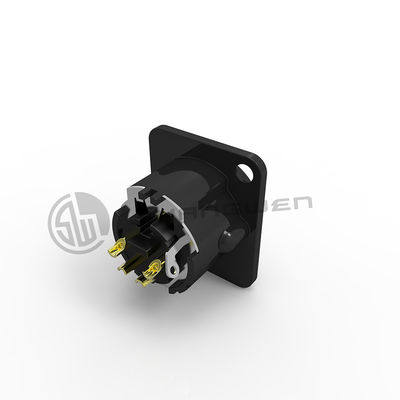

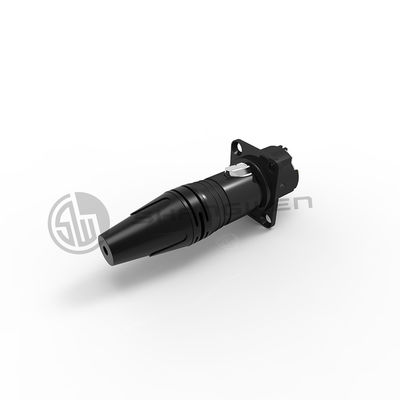

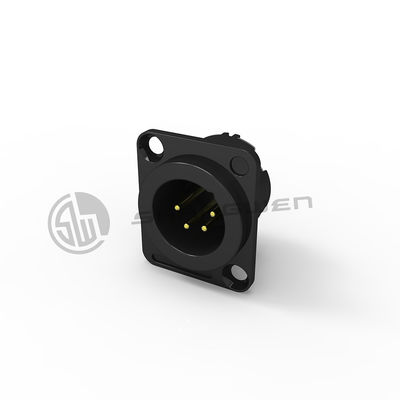

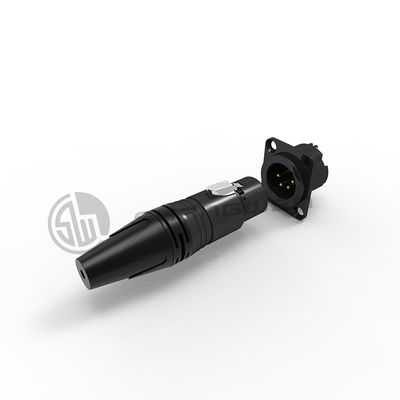

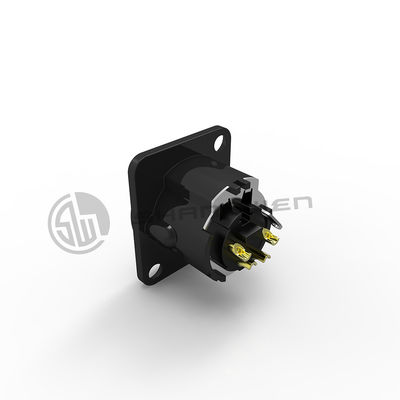

4 Pin XLR Connector Socket Male Electrical Connector D Type Shape

Place of Origin	Guangdong, China
Brand Name	SHANGWEN
Model Number	4 pin male socket
Minimum Order Quantity	10
Price	$1.20/pieces 2-99 pieces
Packaging Details	10pcs/sample bag<br>25pcs/Blister box(23cm x 23cm)<br>500pcs/carton (51cm x 26cm x 34cm)

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

XLR Connector

Application

Audio & Video

Gender

Industrial Electronics

Accessories

Highlight

4 Pin XLR Connector

XLR Connector Socket

Male Electrical Connector D Type

Leave a Message

Product Description

Indoor Black Zinc Alloy Shell D Type Shape 4 Pin Xlr Audio Male Socket Connector

Products Description

XLR connector-4 pin male socket

Model:SW4XMZ-B (Black)

☑Standard D mounting dimensions, fully matched to existing installation
☑Light size, can be installed front and back
☑Zinc alloy shell, contact point gold-plated
☑Can solve the fast connection requirement of input and output of DMX signal in outdoor conditions in the lighting industry
☑Protection class IP40

1.Product parameters

Connection Type	XLR
Gender	Male

2.Electrical parameters

Capacitance between contacts	≤7pF
Contact resistance	≤5mΩ
Dielectric strength	1.5kV DC
Insulation resistance	> 1.5GΩ (initial)
Rated current per contact	7.5A
Rated voltage	<50V

3.Mechanical parameters

Insertion force	≤ 40N
Withdrawal force	≤ 40N
Service life	＞1000 mating cycles
Chassis shape	D type

4.Material and environmental parameters

Contacts	Cu alloy
Contact plating	Au
Insert	Polyamide (PA 66 +30 % GF)
Shell	Zinc diecast (ZnAl4Cu1)
Shell plating	Cr black
Solder ability	Complies with IEC 68-2-20
Flame-retardant grade	UL 94 HB
Protection class	IP40
Temperature range	-20℃to +80℃

5.Size reference (unit /mm)

6.Assembly reference

Application area

Company Information

Patent & Certification

Exhibition activities

Packaging reference

Payment and logistics

FAQ

1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
