Indoor Custom XLR 4 Pin Male Female Connector Plug Socket Zinc Alloy Shell

Place of Origin	Guangdong, China
Brand Name	SHANGWEN
Model Number	4 pin male plug
Minimum Order Quantity	10
Price	$1.07/pieces 2-99 pieces
Packaging Details	10pcs/sample bag<br>25pcs/Blister box(23cm x 23cm)<br>500pcs/carton (51cm x 26cm x 34cm)

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Type	XLR 4 Pin Male Female Connector	Gender	Male
Industrial Electronics	Accessories	Feature	Waterproof IP65
Wire Diameter Range	5-8mm	Application	Audio & Video
Highlight	Custom XLR 4 Pin Connector , Indoor XLR 4 Pin Connector , 4 Pin Male Female Connector Plug

Leave a Message

Product Description

Wholesale Custom Indoor 3.5-8mm Wire Diameter Female Male Plug Socket Xlr 4 Pin Connector

Products Description

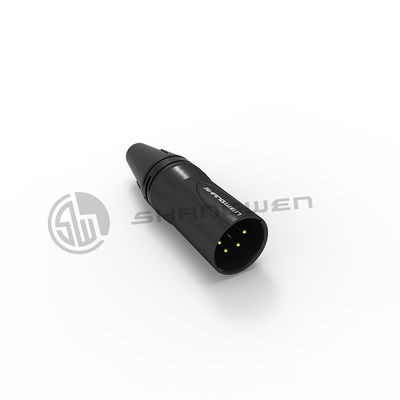

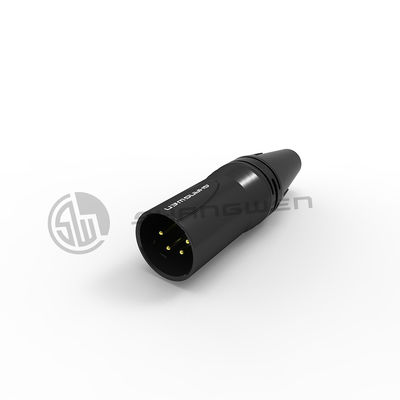

XLR connector-4 pin male plug

The 4-pin male XLR connector plug is a commonly used audio connector known for its robustness and versatility. Here are its key features:

Durable Construction: The connector is built with high-quality materials, typically featuring a sturdy metal shell that provides excellent durability and resistance to wear and tear.

Balanced Audio Transmission: The 4-pin XLR connector supports balanced audio signals, ensuring efficient and reliable transmission with reduced noise and interference.

Secure Connection: It features a locking mechanism that securely fastens the connector to the corresponding female socket, preventing accidental disconnections during use.

Versatile Application: This XLR connector is widely utilized in professional audio and sound reinforcement systems, including microphones, mixers, amplifiers, and audio interfaces.

Pin Configuration: The 4-pin male XLR connector has four pins arranged in a circular pattern within the connector body. These pins allow for the transmission of balanced audio signals, typically including two signal pins, a ground pin, and an additional pin that can be used for various purposes such as power supply or control signals.

Compatibility: The 4-pin male XLR connector is designed to be compatible with corresponding 4-pin female XLR connectors, ensuring seamless integration and compatibility within audio systems.

Reliable Signal Transfer: The connector's design and construction minimize signal loss and interference, enabling high-quality audio transmission even over long cable runs.

Model:SW4XMT-B (Black)

☑One hand can operation, push the button to pull it out
☑The contact pin is gold-plated,the shell plating black
☑Zinc alloy shell to ensure that it can withstand gravity in any field of use
☑Protection class IP40
☑Wire diameter range: 3.5-8mm

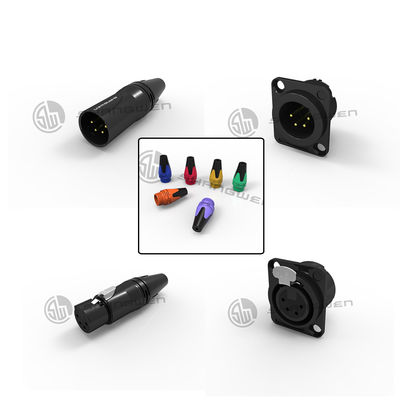

4 pin male socket

4 pin male socket

4 pin female plug

4 pin female plug

4 pin female socket

4 pin female socket

1.Product parameters

Connection Type	XLR
Gender	Male

2.Electrical parameters

Capacitance between contacts	≤7pF
Contact resistance	≤3mΩ
Dielectric strength	1.5kVdc
Insulation resistance	> 1.5GΩ (initial)
Rated current per contact	7.5A
Rated voltage	<50V

3.Mechanical parameters

Sign Cable O.D.	3.5-8mm
Insertion force	≤ 40N
Withdrawal force	≤ 40N
Service life	＞1000 mating cycles
Wire size	Max. 1.5 mm²
Wire size	Max. 16 AWG
Locking device	Latch lock

4.Material and environmental parameters

Boot	TPU
Contacts	Cu alloy
Contact plating	Au
Insert	Polyamide (PA 66 +30 % GF)
Shell	Zinc diecast (ZnAl4Cu1)
Shell plating	Cr Black
Strain relief	Polyacetal (POM)
Flame-retardant grade	UL 94 HB
Protection class	IP40
Temperature range	-20℃to +80℃
