Mini XLR 5 Pin Connector Outdoor Male And Female Plug Connector Waterproof

Place of Origin Guangdong, China
Brand Name SHANGWEN
Model Number 5 pin male plug
Minimum Order Quantity 2 pieces
Price $1.51/pieces 2-99 pieces
Packaging Details 10pcs/sample bag<br>25pcs/Blister box(23cm x 23cm)<br>500pcs/carton (51cm x 26cm x 34cm)

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type 5 Pin Male Plug Application Audio & Video
Industrial Electronics Accessories Feature Waterproof IP65
Gender Male Wire Diameter Range 5-8mm
Highlight

Mini XLR 5 Pin Connector

,

XLR 5 Pin Connector Outdoor

,

Male And Female Plug Connector Waterproof

Leave a Message
Product Description

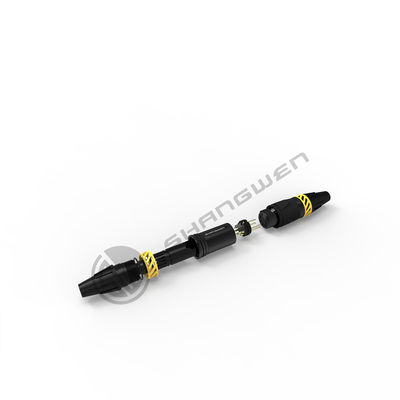

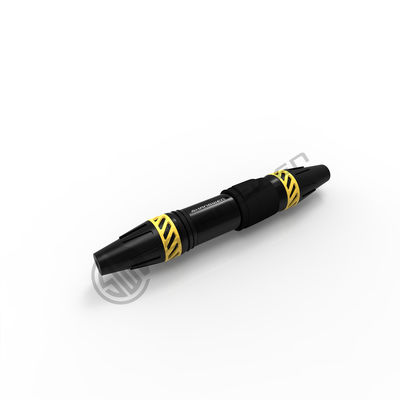

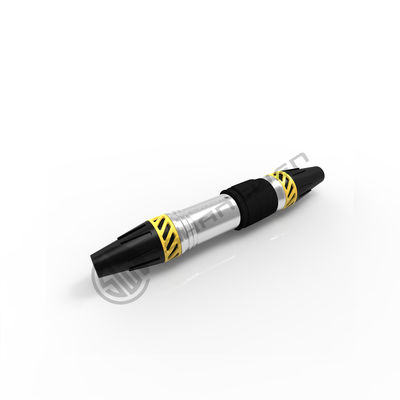

Wholesale Outdoor Female And Male Plug Socket Waterproof Mini 5 Pin Xlr Connector

Products Description
Waterproof XLR connector-5 pin male plug




The waterproof 5-pin male XLR connector plug is a specialized audio connector designed to provide reliable and secure connections in wet or outdoor environments. Here are its key features:



Waterproof Design: This connector is specifically engineered with a waterproof housing, seals, and gaskets to prevent water, moisture, and other liquids from entering the connector. It ensures the integrity of the connection and protects the audio signal transmission.



Robust Construction: The connector is constructed with durable materials, often featuring a rugged metal shell or a high-grade plastic housing, providing excellent resistance to impacts, corrosion, and harsh weather conditions.



Secure Locking Mechanism: It incorporates a reliable locking mechanism that securely fastens the connector to the corresponding female socket, ensuring a tight and stable connection that withstands vibrations and accidental disconnections.



Balanced Audio Transmission: The 5-pin XLR connector supports balanced audio signals, delivering high-quality audio transmission with improved noise rejection and interference cancellation.



Versatile Application: This waterproof XLR connector is commonly used in outdoor audio setups, live performances, stage productions, and other environments where moisture or water exposure is a concern.


Mini XLR 5 Pin Connector Outdoor Male And Female Plug Connector Waterproof 0
Model:SW5XMT-F-B (Black)
               SW5XMT-F(Silver)

One hand can operation, push the button to pull it out
The contact pin is gold-plated
Zinc alloy shell to ensure that it can withstand gravity in any field of use
Waterproof IP65
Wire diameter range: 5-8mm

Mini XLR 5 Pin Connector Outdoor Male And Female Plug Connector Waterproof 1
3 pin male plug
Mini XLR 5 Pin Connector Outdoor Male And Female Plug Connector Waterproof 2
3 pin male plug
Mini XLR 5 Pin Connector Outdoor Male And Female Plug Connector Waterproof 3
3 pin male socket
Mini XLR 5 Pin Connector Outdoor Male And Female Plug Connector Waterproof 4
3 pin male socket
Mini XLR 5 Pin Connector Outdoor Male And Female Plug Connector Waterproof 5
3 pin female plug
Mini XLR 5 Pin Connector Outdoor Male And Female Plug Connector Waterproof 6
3 pin female plug
Mini XLR 5 Pin Connector Outdoor Male And Female Plug Connector Waterproof 7
3 pin female socket
Mini XLR 5 Pin Connector Outdoor Male And Female Plug Connector Waterproof 8
3 pin female socket
Mini XLR 5 Pin Connector Outdoor Male And Female Plug Connector Waterproof 9

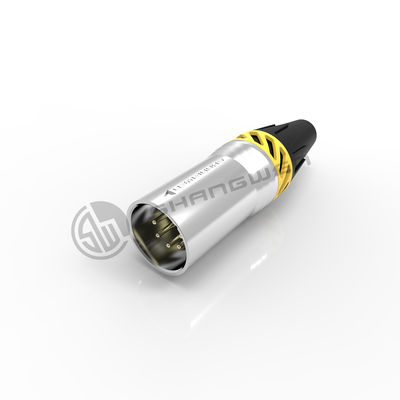

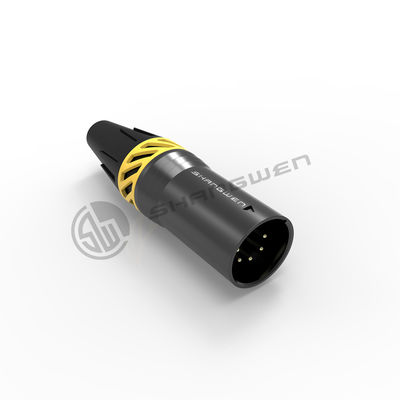

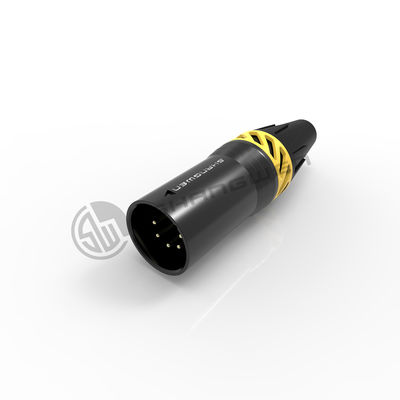

5 pin male plug
Mini XLR 5 Pin Connector Outdoor Male And Female Plug Connector Waterproof 10
5 pin male plug

Mini XLR 5 Pin Connector Outdoor Male And Female Plug Connector Waterproof 11
5 pin male socket
Mini XLR 5 Pin Connector Outdoor Male And Female Plug Connector Waterproof 12
5 pin male socket
Mini XLR 5 Pin Connector Outdoor Male And Female Plug Connector Waterproof 13
5 pin female plug
Mini XLR 5 Pin Connector Outdoor Male And Female Plug Connector Waterproof 14
5 pin female plug
Mini XLR 5 Pin Connector Outdoor Male And Female Plug Connector Waterproof 15
5 pin female socket
Mini XLR 5 Pin Connector Outdoor Male And Female Plug Connector Waterproof 16
5 pin female socket
1.Product parameters
Connection Type
XLR
Gender
Male
2.Electrical parameters
Capacitance between contacts
≤4pF
Contact resistance
≤3mΩ
Dielectric strength
1.5kVdc
Insulation resistance
> 10GΩ (initial)
Rated current per contact
16A
Rated voltage
<50V
3.Mechanical parameters
Sign Cable O.D.
5-8mm
Insertion force
≤ 20N
Withdrawal force
≤ 20N
Service life
>1000 mating cycles
Wire size
Max. 2.5 mm²
Wire size
Max. 14 AWG
Locking device
Latch lock
4.Material and environmental parameters
Boot
Polyurethan
Contacts
Cu alloy
Contact plating
Au
Insert
Polyamide (PA 66 +30 % GF)
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Cr
Strain relief
Polyacetal (POM)
Flame-retardant grade
UL 94 HB
Protection class
IP65
Temperature range
-30℃to +80℃
5.Size reference (unit /mm)
