Indoor XLR Connector Black Shell Plating 5 Pin Audio Connector Male Plug

Place of Origin Guangdong, China
Brand Name SHANGWEN
Model Number 5 pin male plug
Minimum Order Quantity 2 pieces
Price $1.14/pieces 2-99 pieces
Packaging Details 10pcs/sample bag<br>25pcs/Blister box(23cm x 23cm)<br>500pcs/carton (51cm x 26cm x 34cm)

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type 5 Pin Audio Connector Male Plug Application Audio & Video
Gender Male Industrial Electronics Accessories
Feature Waterproof IP65 Wire Diameter Range 5-8mm
Highlight

Indoor XLR Connector

,

XLR Connector Black

,

5 Pin Audio Connector Plug

Leave a Message
Product Description



Shenzhen Wholesale Indoor Shell Plating Black Male Plug 5 Pins Xlr Audio Connector

Products Description
XLR connector-5 pin male plug




The waterproof 5-pin male XLR connector plug is a specialized audio connector designed to provide reliable and secure connections in wet or outdoor environments. Here are its key features:



Balanced Audio Transmission: The 5-pin XLR connector supports balanced audio signals, delivering high-quality audio transmission with improved noise rejection and interference cancellation.



Versatile Application: This waterproof XLR connector is commonly used in outdoor audio setups, live performances, stage productions, and other environments where moisture or water exposure is a concern.



Pin Configuration: The 5-pin male XLR connector features five pins arranged in a circular pattern within the connector body, allowing for the transmission of balanced audio signals and additional control or data signals.



Compatibility: It is designed to be compatible with corresponding 5-pin female XLR connectors, ensuring seamless integration and compatibility within audio systems.



Reliable Signal Transfer: The connector's waterproof design, along with its balanced audio transmission capability, ensures reliable signal transfer even in challenging outdoor conditions, minimizing signal loss and maintaining audio quality.



In summary, the waterproof 5-pin male XLR connector plug offers a durable, secure, and waterproof solution for audio connections in wet or outdoor environments. Its waterproof design, robust construction, secure locking mechanism, and balanced audio transmission make it an ideal choice for reliable audio connectivity under challenging conditions.



Model:SW5XMT-B (Black)



☑One hand can operation, push the button to pull it out

☑Zinc alloy shell to ensure that it can withstand gravity in any field of use
☑Protection class IP40
☑The contact pin is gold-plated,the shell plating black
☑Wire diameter range: 3.5-8mm

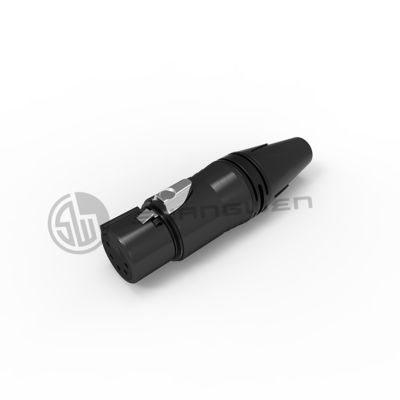

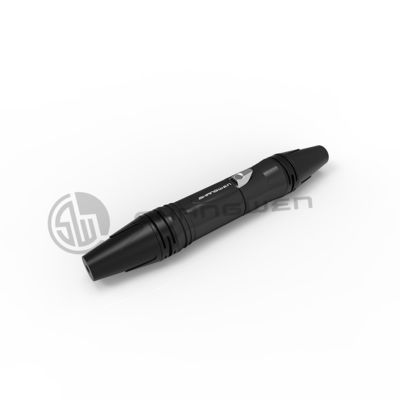

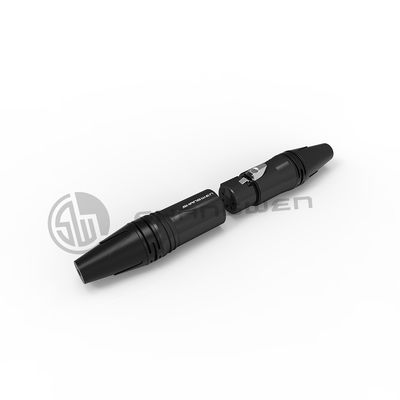

Indoor XLR Connector Black Shell Plating 5 Pin Audio Connector Male Plug 0




Indoor XLR Connector Black Shell Plating 5 Pin Audio Connector Male Plug 1
Indoor XLR Connector Black Shell Plating 5 Pin Audio Connector Male Plug 2
1.Product parameters
Connection Type
XLR
Gender
Male
2.Electrical parameters
Capacitance between contacts
≤7pF
Contact resistance
≤3mΩ
Dielectric strength
1.5kVdc
Insulation resistance
> 1.5GΩ (initial)
Rated current per contact
7.5A
Rated voltage
<50V
3.Mechanical parameters
Sign Cable O.D.
3.5-8mm
Insertion force
≤ 40N
Withdrawal force
≤ 40N
Service life
>1000 mating cycles
Wire size
Max. 1.0 mm²
Wire size
Max. 18 AWG
Locking device
Latch lock
4.Material and environmental parameters
Boot
TPU
Contacts
Cu alloy
Contact plating
Au
Insert
Polyamide (PA 66 +30 % GF)
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Cr Black
Strain relief
Polyacetal (POM)
Flame-retardant grade
UL 94 HB
Protection class
IP40
Temperature range
-20℃to +80℃
5.Size reference (unit /mm)
Indoor XLR Connector Black Shell Plating 5 Pin Audio Connector Male Plug 3

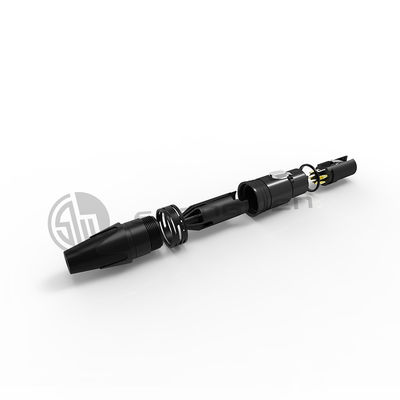

6.Assembly reference
Indoor XLR Connector Black Shell Plating 5 Pin Audio Connector Male Plug 4
Indoor XLR Connector Black Shell Plating 5 Pin Audio Connector Male Plug 5
Indoor XLR Connector Black Shell Plating 5 Pin Audio Connector Male Plug 6
Indoor XLR Connector Black Shell Plating 5 Pin Audio Connector Male Plug 7
Indoor XLR Connector Black Shell Plating 5 Pin Audio Connector Male Plug 8
Indoor XLR Connector Black Shell Plating 5 Pin Audio Connector Male Plug 9

Application area
Indoor XLR Connector Black Shell Plating 5 Pin Audio Connector Male Plug 10
Company Information
Indoor XLR Connector Black Shell Plating 5 Pin Audio Connector Male Plug 11
Patent & Certification
Indoor XLR Connector Black Shell Plating 5 Pin Audio Connector Male Plug 12
Exhibition activities
Indoor XLR Connector Black Shell Plating 5 Pin Audio Connector Male Plug 13
Packaging reference
Indoor XLR Connector Black Shell Plating 5 Pin Audio Connector Male Plug 14
Payment and logistics
Indoor XLR Connector Black Shell Plating 5 Pin Audio Connector Male Plug 15
FAQ
Indoor XLR Connector Black Shell Plating 5 Pin Audio Connector Male Plug 16
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
