3 Pin XLR Connector Custom Audio Female Connector Plug Professional
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | XLR Connector-3 Pin Female Plug | Application | Audio & Video |
|---|---|---|---|
| Gender | Female | Industrial Electronics | Accessories |
| Feature | Waterproof IP65 | Wire Diameter Range | 5-8mm |
| Highlight | 3 Pin XLR Connector,XLR Connector Custom,Audio Female Connector Plug |
||
Product Description
Professional Custom Indoor High Quality Female Plug 3 Pin Xlr Connector For Audio
Products Description

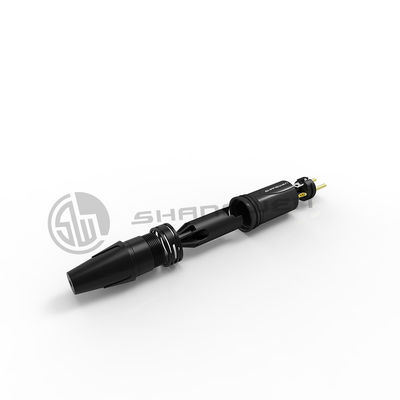

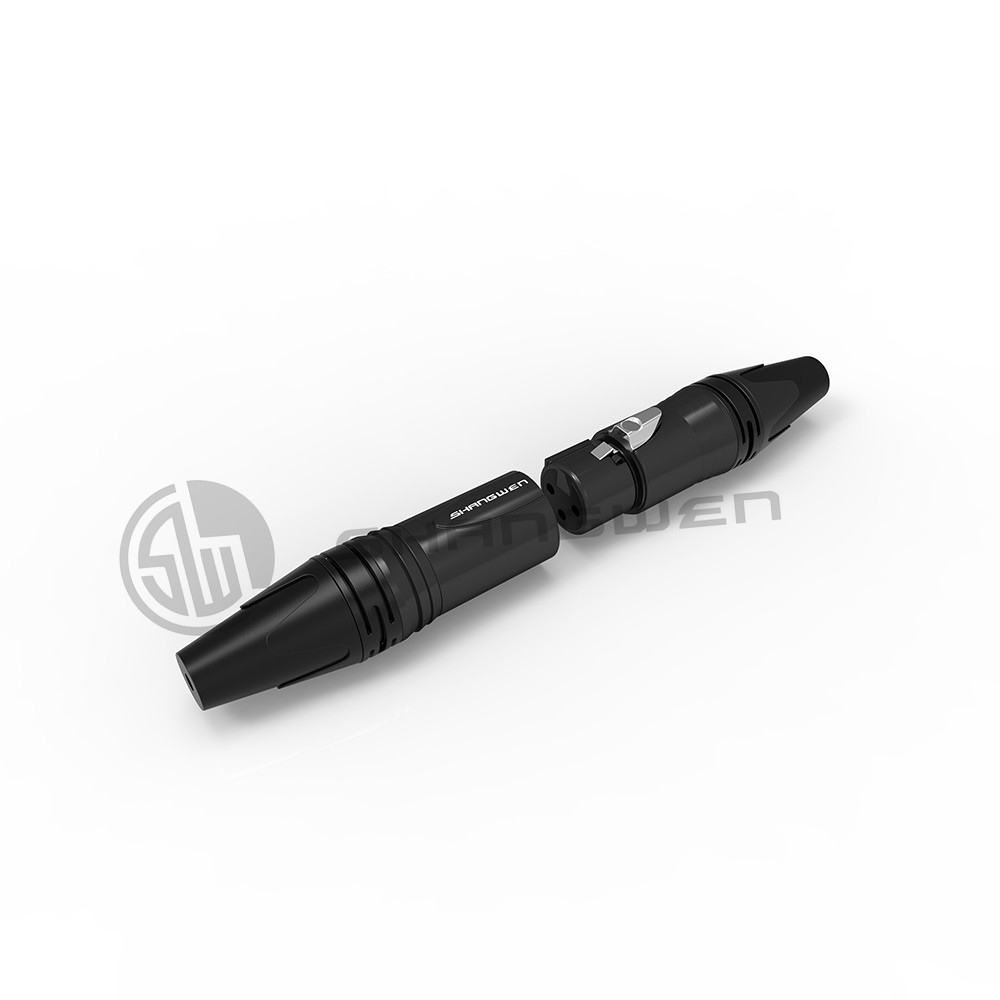

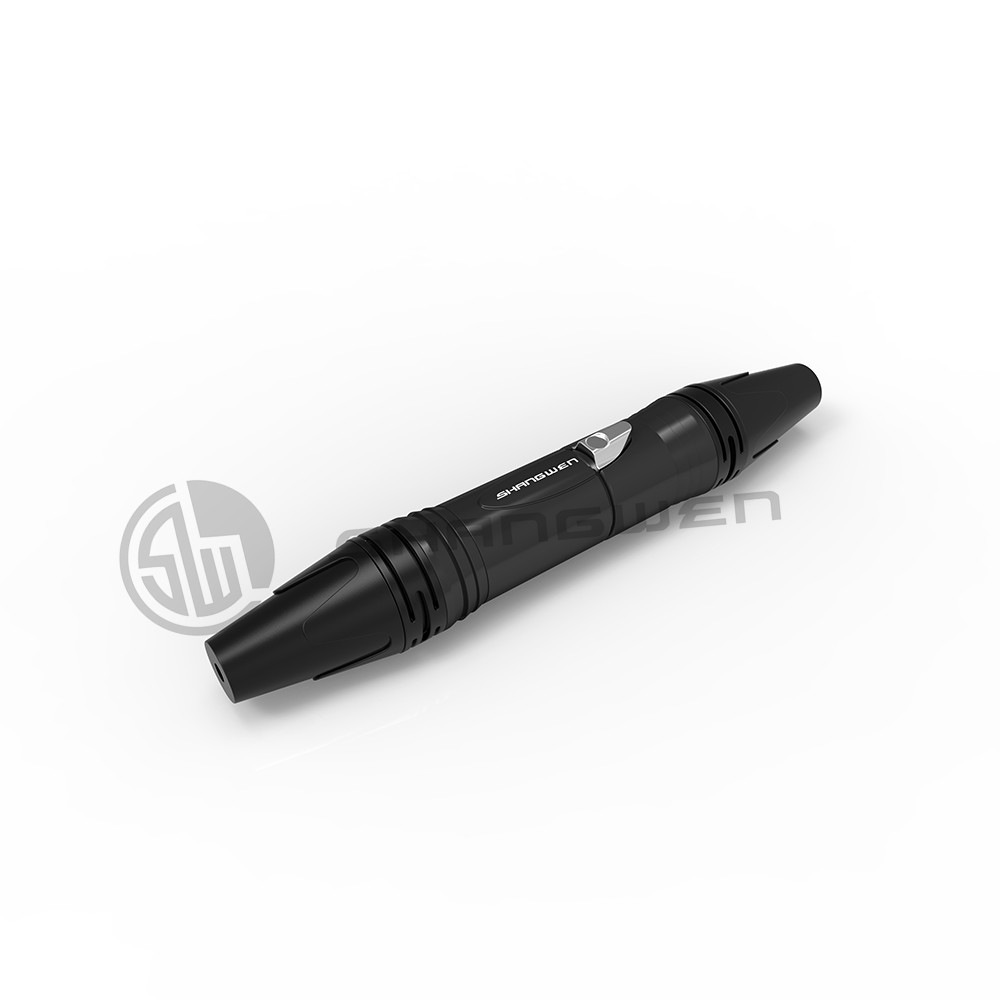

XLR connector-3 pin female plug
The 3-pin female XLR connector plug offers a reliable and versatile solution for audio connections in professional audio applications. Its balanced audio transmission, secure connection, durability, and compatibility make it an essential component for high-quality audio transmission and integration into audio systems.
Features:
1. Standard Audio Connector；
2. Balanced Audio Transmission；
3. Secure Connection；
4. Durable Construction；
5. Easy Integration；
6. Reliable Signal Transfer；
7. Versatile Compatibility
Model:SW3XFT-B (Black)
☑The contact pin is gold-plated,the shell plating black
☑Zinc alloy shell to ensure that it can withstand gravity in any field of use
☑Protection class IP40
☑Wire diameter range: 3.5-8mm
1.Product parameters
|
Connection Type
|
XLR
|
|
Gender
|
Female
|
2.Electrical parameters
|
Capacitance between contacts
|
≤4pF
|
|
Contact resistance
|
≤3mΩ
|
|
Dielectric strength
|
1.5kVdc
|
|
Insulation resistance
|
> 1.5GΩ (initial)
|
|
Rated current per contact
|
10A
|
|
Rated voltage
|
<50V
|
3.Mechanical parameters
|
Sign Cable O.D.
|
3.5-8mm
|
|
Insertion force
|
≤ 40N
|
|
Withdrawal force
|
≤ 40N
|
|
Service life
|
＞1000 mating cycles
|
|
Wire size
|
Max. 2.5 mm²
|
|
Wire size
|
Max. 14 AWG
|
|
Locking device
|
Latch lock
|
4.Material and environmental parameters
|
Boot
|
TPU
|
|
Contacts
|
Cu alloy
|
|
Contact plating
|
Au
|
|
Insert
|
Polyamide (PA 66 +30 % GF)
|
|
Shell
|
Zinc diecast (ZnAl4Cu1)
|
|
Shell plating
|
Cr Black
|
|
Strain relief
|
Polyacetal (POM)
|
|
Flame-retardant grade
|
UL 94 HB
|
|
Protection class
|
IP40
|
|
Temperature range
|
-20℃to +80℃
|
5.Size reference (unit /mm)
