Ip40 XLR Connector Mini Connector 5 Pin Female Socket For Audio

Place of Origin Guangdong, China
Brand Name SHANGWEN
Model Number 5 pin female socket
Minimum Order Quantity 2 pieces
Price $1.28/pieces 2-99 pieces
Packaging Details 10pcs/sample bag<br>25pcs/Blister box(23cm x 23cm)<br>500pcs/carton (51cm x 26cm x 34cm)

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type XLR Connector Application Audio & Video
Gender Female Industrial Electronics Accessories
Feature Waterproof IP65 Wire Diameter Range 5-8mm
Highlight

Ip40 XLR Connector

,

XLR Connector Mini

,

Connector 5 Pin Female Socket

Leave a Message
Product Description



High Quality Indoor Ip40 Mini 5 Pin Female Socket Audio Xlr 5pin Connector





Introducing the SW5XFZ-B (Black) model, a versatile and reliable solution for fast DMX signal connection in outdoor lighting applications. This model is specifically designed to meet the demanding needs of the lighting industry.

With its standard D mounting dimensions, the SW5XFZ-B seamlessly integrates into existing installations, making it a convenient choice for retrofitting or upgrading projects. Its compact size allows for flexible installation options, as it can be easily installed from both the front and back of the panel.

The SW5XFZ-B features a durable zinc alloy shell, ensuring robust protection against outdoor conditions. The contact points are gold-plated, offering excellent conductivity and minimizing signal loss, resulting in reliable and high-quality DMX signal transmission.

Designed to meet the fast connection requirements of the lighting industry, this model excels in outdoor conditions. With its IP40 protection class, it provides reliable protection against dust and foreign objects, making it suitable for various outdoor environments.

Whether you're involved in stage lighting, architectural lighting, or any other outdoor lighting application, the SW5XFZ-B model delivers a dependable solution for your DMX signal connection needs. Its compatibility with standard D mounting dimensions, compact size, durable construction, and IP40 protection class make it an ideal choice for professionals in the lighting industry.


Products Description

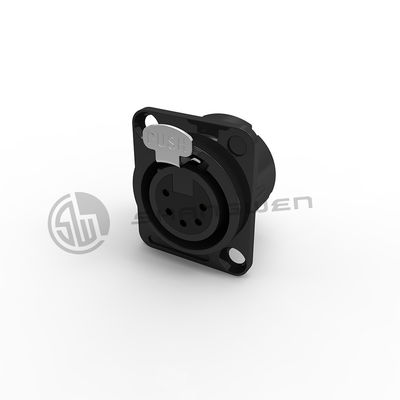

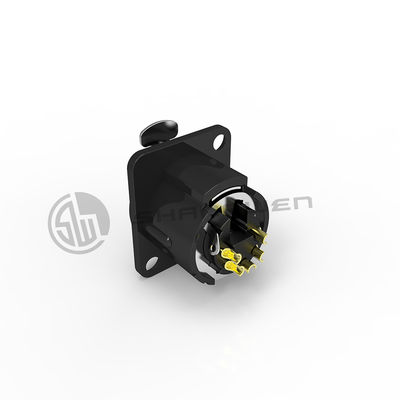

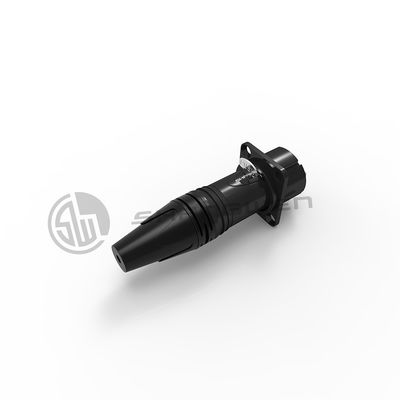

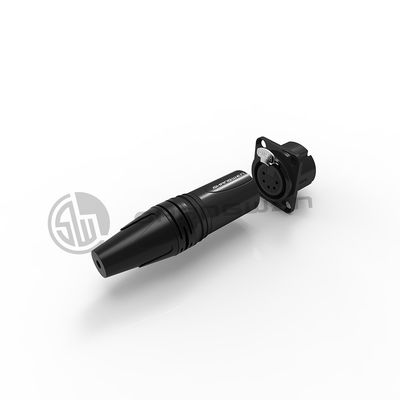

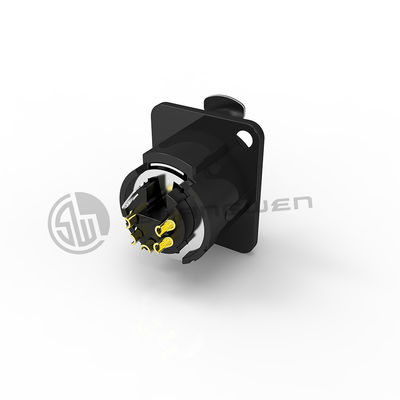

XLR connector-5 pin female socket


Ip40 XLR Connector Mini Connector 5 Pin Female Socket For Audio 0

Ip40 XLR Connector Mini Connector 5 Pin Female Socket For Audio 1
Ip40 XLR Connector Mini Connector 5 Pin Female Socket For Audio 2
1.Product parameters
Connection Type
XLR
Gender
Female
2. Electrical parameters
Capacitance between contacts
≤7pF
Contact resistance
≤5mΩ
Dielectric strength
1.5kV DC
Insulation resistance
> 1.5GΩ (initial)
Rated current per contact
7.5A
Rated voltage
<50V
3. Mechanical parameters
Insertion force
≤ 40N
Withdrawal force
≤ 40N
Service life
>1000 mating cycles
Chassis shape
D type
4. Material and environmental parameters
Contacts
Cu alloy
Contact plating
Au
Insert
Polyamide (PA 66 +30 % GF)
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Cr black
Solder ability
Complies with IEC 68-2-20
Flame-retardant grade
UL 94 HB
Protection class
IP40
Temperature range
-20℃to +80℃
5. Size reference (unit /mm)
Ip40 XLR Connector Mini Connector 5 Pin Female Socket For Audio 3
6. Assembly reference
Ip40 XLR Connector Mini Connector 5 Pin Female Socket For Audio 4
Ip40 XLR Connector Mini Connector 5 Pin Female Socket For Audio 5

Application area
Ip40 XLR Connector Mini Connector 5 Pin Female Socket For Audio 6
Company Information
Ip40 XLR Connector Mini Connector 5 Pin Female Socket For Audio 7
Patent & Certification
Ip40 XLR Connector Mini Connector 5 Pin Female Socket For Audio 8
Exhibition activities
Ip40 XLR Connector Mini Connector 5 Pin Female Socket For Audio 9
Packaging reference
Ip40 XLR Connector Mini Connector 5 Pin Female Socket For Audio 10
Payment and logistics
Ip40 XLR Connector Mini Connector 5 Pin Female Socket For Audio 11
FAQ
Ip40 XLR Connector Mini Connector 5 Pin Female Socket For Audio 12
1. Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2. What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3 .Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4. Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5. What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6. Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
