7.5A XLR Connector Electrical Black Audio 4 Pin Connector Male Plug

Place of Origin Guangdong, China
Brand Name SHANGWEN
Model Number 4 pin male plug
Minimum Order Quantity 2 pieces
Price $1.07/pieces 2-99 pieces
Packaging Details 10pcs/sample bag<br>25pcs/Blister box(23cm x 23cm)<br>500pcs/carton (51cm x 26cm x 34cm)

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type 7.5A XLR Connector Application Audio & Video
Industrial Electronics Accessories Feature Waterproof IP65
Gender Male Wire Diameter Range 5-8mm
Highlight

7.5A XLR Connector

,

XLR Connector Electrical

,

Black Audio 4 Pin Connector

Leave a Message
Product Description



Indoor Protection Class Ip40 3.5mm Black Male Plug Xlr 4 Pin Connector For Audio

Products Description
XLR connector-4 pin male plug


The 4-pin male XLR connector plug offers a durable, secure, and versatile solution for audio connections in professional audio setups. Its balanced audio transmission, secure connection, compatibility, and reliable signal transfer make it an essential component in the audio industry, ensuring high-quality audio signal transmission and integration into various audio systems.



The 4-pin male XLR connector plug is a robust and reliable audio connector designed to meet the demands of professional audio setups. It features a durable construction, typically with a sturdy metal or high-grade plastic housing, ensuring durability and longevity even in challenging environments.



This connector plug supports balanced audio transmission, allowing for high-fidelity audio reproduction with excellent noise rejection and interference cancellation. It ensures clear and accurate audio signals, making it ideal for critical audio applications where audio quality is paramount.

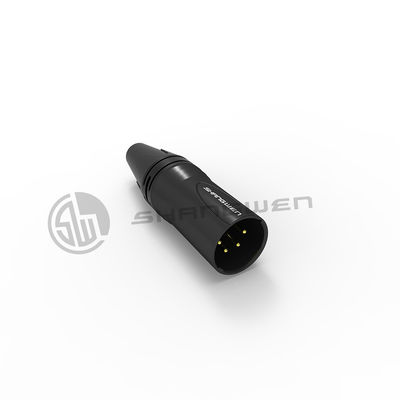

7.5A XLR Connector Electrical Black Audio 4 Pin Connector Male Plug 0
Model:SW4XMT-B (Black)


One hand can operation, push the button to pull it out
The contact pin is gold-plated,the shell plating black
Zinc alloy shell to ensure that it can withstand gravity in any field of use
Protection class IP40
Wire diameter range: 3.5-8mm

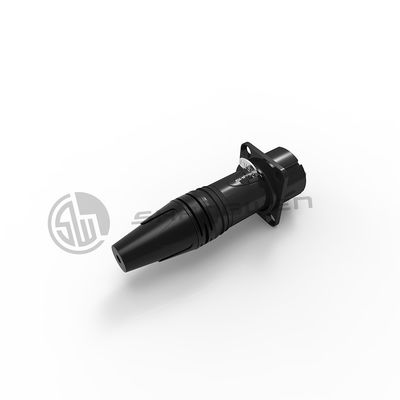

7.5A XLR Connector Electrical Black Audio 4 Pin Connector Male Plug 1

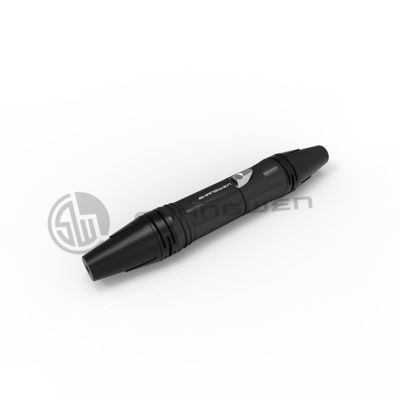

7.5A XLR Connector Electrical Black Audio 4 Pin Connector Male Plug 2
1.Product parameters
Connection Type
XLR
Gender
Male
2.Electrical parameters
Capacitance between contacts
≤7pF
Contact resistance
≤3mΩ
Dielectric strength
1.5kVdc
Insulation resistance
> 1.5GΩ (initial)
Rated current per contact
7.5A
Rated voltage
<50V
3.Mechanical parameters
Sign Cable O.D.
3.5-8mm
Insertion force
≤ 40N
Withdrawal force
≤ 40N
Service life
>1000 mating cycles
Wire size
Max. 1.5 mm²
Wire size
Max. 16 AWG
Locking device
Latch lock
4.Material and environmental parameters
Boot
TPU
Contacts
Cu alloy
Contact plating
Au
Insert
Polyamide (PA 66 +30 % GF)
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Cr Black
Strain relief
Polyacetal (POM)
Flame-retardant grade
UL 94 HB
Protection class
IP40
Temperature range
-20℃to +80℃
5.Size reference (unit /mm)

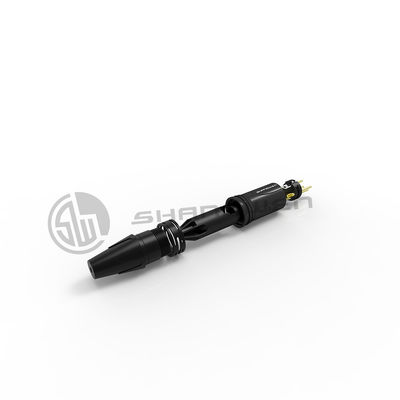

7.5A XLR Connector Electrical Black Audio 4 Pin Connector Male Plug 3
6.Assembly reference

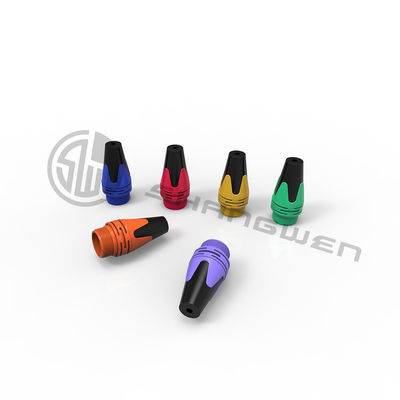

7.5A XLR Connector Electrical Black Audio 4 Pin Connector Male Plug 4

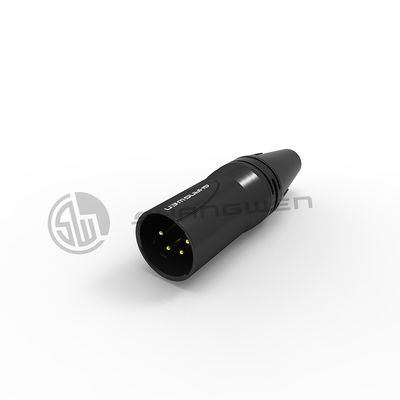

7.5A XLR Connector Electrical Black Audio 4 Pin Connector Male Plug 5
7.5A XLR Connector Electrical Black Audio 4 Pin Connector Male Plug 6
7.5A XLR Connector Electrical Black Audio 4 Pin Connector Male Plug 7
7.5A XLR Connector Electrical Black Audio 4 Pin Connector Male Plug 8
7.5A XLR Connector Electrical Black Audio 4 Pin Connector Male Plug 9

Application area
7.5A XLR Connector Electrical Black Audio 4 Pin Connector Male Plug 10
Company Information
7.5A XLR Connector Electrical Black Audio 4 Pin Connector Male Plug 11
Patent & Certification
7.5A XLR Connector Electrical Black Audio 4 Pin Connector Male Plug 12
Exhibition activities
7.5A XLR Connector Electrical Black Audio 4 Pin Connector Male Plug 13
Packaging reference
7.5A XLR Connector Electrical Black Audio 4 Pin Connector Male Plug 14
Payment and logistics
7.5A XLR Connector Electrical Black Audio 4 Pin Connector Male Plug 15
FAQ
7.5A XLR Connector Electrical Black Audio 4 Pin Connector Male Plug 16
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
