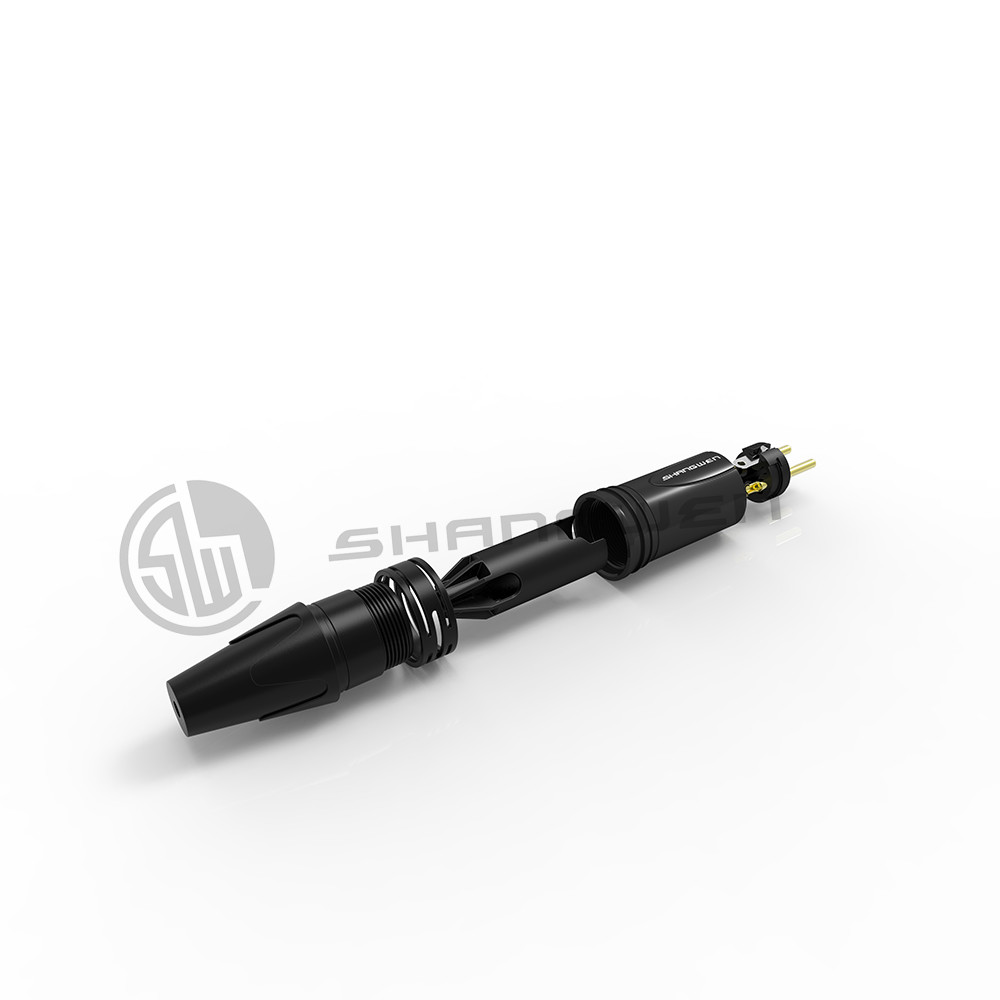

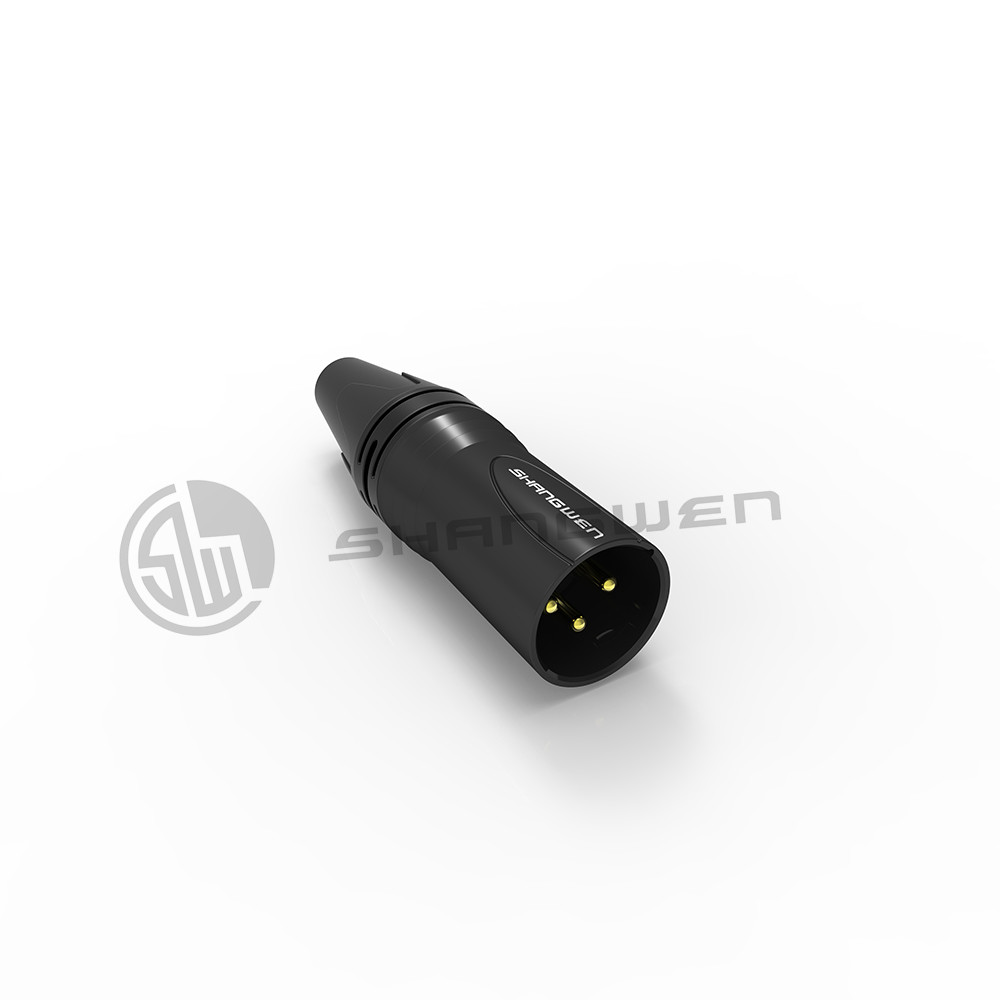

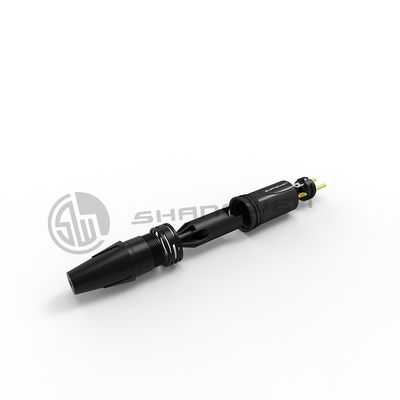

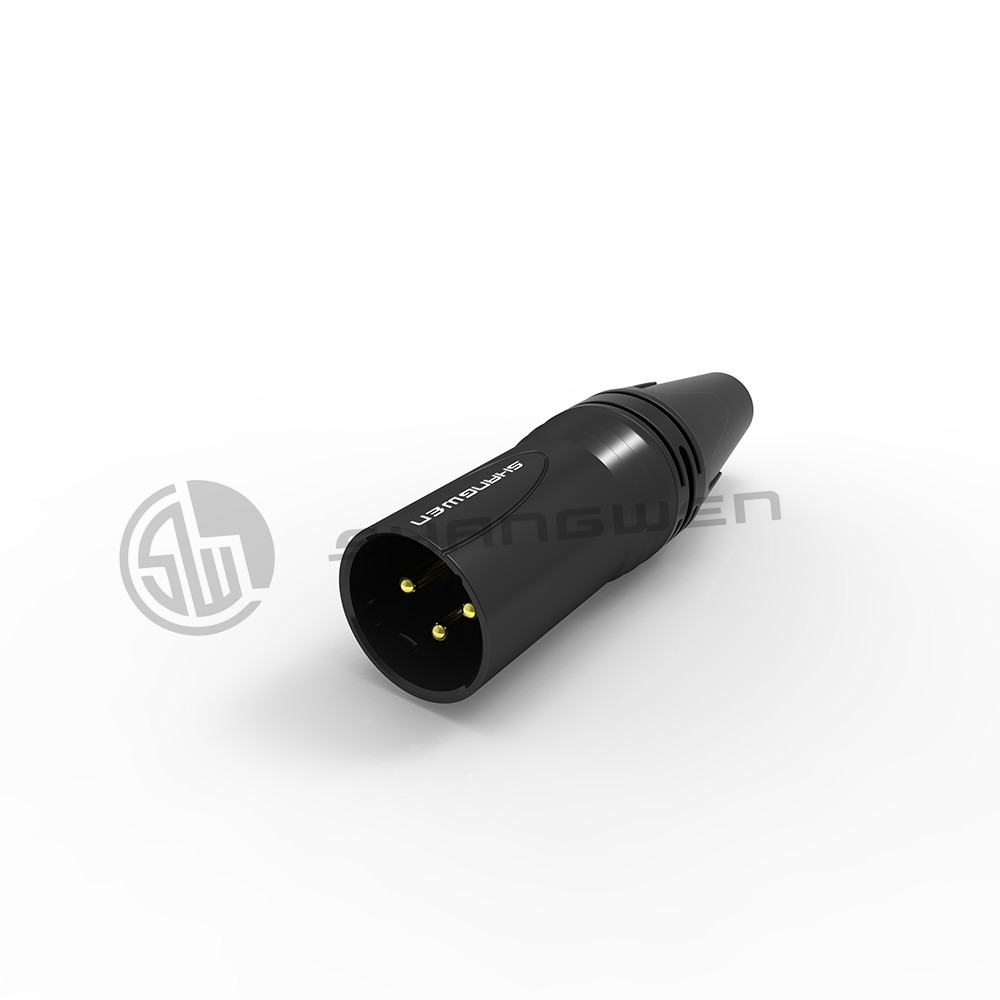

Mini 3 Pin Audio Connector Lightweight XLR Male Plug Connector
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | XLR Connector-3 Pin Male Plug | Application | Audio & Video |
|---|---|---|---|
| Gender | Male | Industrial Electronics | Accessories |
| Weight | Lightweight | Feature | Waterproof IP65 |
| Wire Diameter Range | 5-8mm | ||
| Highlight | Mini 3 Pin Audio Connector,3 Pin Audio Connector Lightweight,XLR Male Plug Connector |
||
Product Description
Indoor Protection Class Ip40 High Quality Mini XLR Audio Connector 3 Pin Male Plug
Model:SW3XMT-B (Black)
☑Zinc alloy shell to ensure that it can withstand gravity in any field of use
☑Protection class IP40
☑Wire diameter range: 3.5-8mm
☑One hand can operation, push the button to pull it out
☑The contact pin is gold-plated,the shell plating black
Products Description
XLR connector-3 pin male plug
The 3-pin male XLR connector plug is a durable audio connector known for its reliable performance. It features a secure locking mechanism for stable connections. It supports balanced audio transmission, reducing noise and interference. It is compatible with standard 3-pin female XLR connectors, making it versatile for various audio equipment. The plug is commonly used in professional audio applications, providing clear and accurate audio reproduction. Its standard dimensions allow for easy installation and integration into audio systems. Overall, the 3-pin male XLR connector plug offers durability, secure connections, balanced audio transmission, compatibility, and reliable performance.
1.Product parameters
|
Connection Type
|
XLR
|
|
Gender
|
Male
|
2.Electrical parameters
|
Capacitance between contacts
|
≤4pF
|
|
Contact resistance
|
≤3mΩ
|
|
Dielectric strength
|
1.5kVdc
|
|
Insulation resistance
|
> 1.5GΩ (initial)
|
|
Rated current per contact
|
10A
|
|
Rated voltage
|
<50V
|
3.Mechanical parameters
|
Sign Cable O.D.
|
3.5-8mm
|
|
Insertion force
|
≤ 40N
|
|
Withdrawal force
|
≤ 40N
|
|
Service life
|
＞1000 mating cycles
|
|
Wire size
|
Max. 2.5 mm²
|
|
Wire size
|
Max. 14 AWG
|
|
Locking device
|
Latch lock
|
4.Material and environmental parameters
|

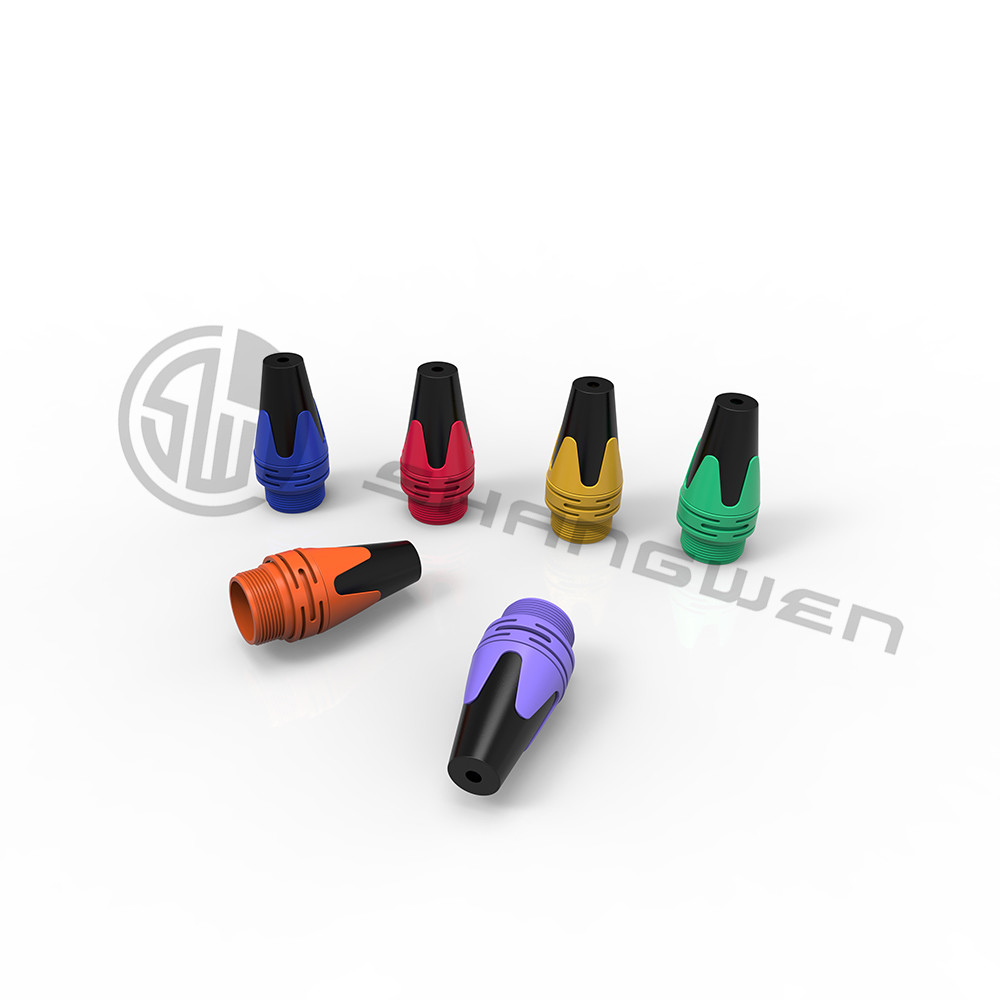

Boot
|
TPU
|
|
Contacts
|
Cu alloy
|
|
Contact plating
|
Au
|
|
Insert
|
Polyamide (PA 66 +30 % GF)
|
|
Shell
|
Zinc diecast (ZnAl4Cu1)
|
|
Shell plating
|
Cr Black
|
|
Strain relief
|
Polyacetal (POM)
|
|
Flame-retardant grade
|
UL 94 HB
|
|
Protection class
|
IP40
|
|
Temperature range
|
-20℃to +80℃
|
5.Size reference (unit /mm)
6.Assembly reference
Application area
