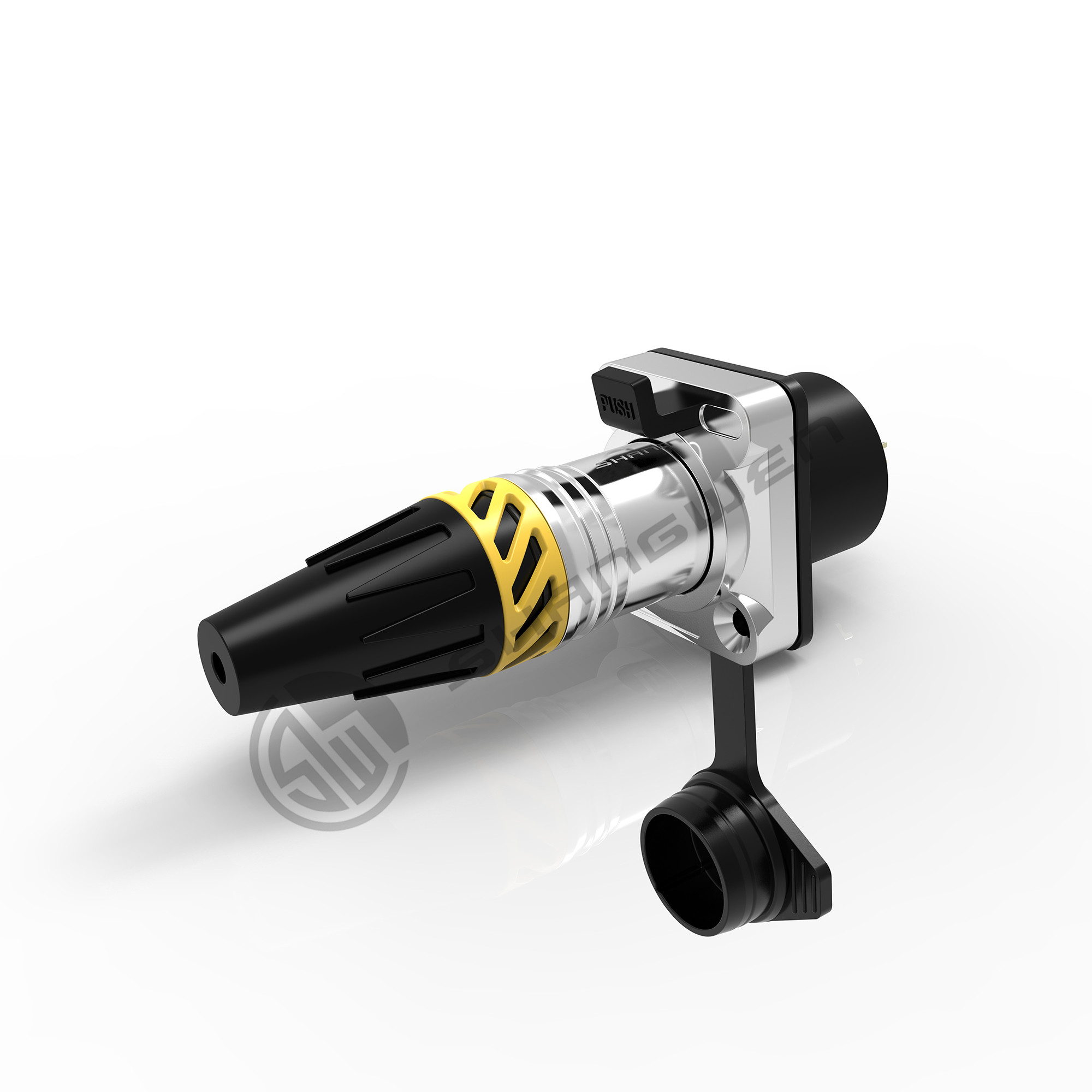

XLR Audio Power Waterproof Socket Connector 5 Pin Microphone IP65

Place of Origin	Guangdong, China
Brand Name	SHANGWEN
Model Number	5 pin female socket
Minimum Order Quantity	10
Price	$2.22/pieces 2-99 pieces
Packaging Details	10pcs/sample bag<br>25pcs/Blister box(23cm x 23cm)<br>500pcs/carton (51cm x 26cm x 34cm)

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Type	XLR Connector	Application	Power
Gender	Female	Industrial Electronics	Accessories
Weight	Lightweight
Highlight	Dustproof XLR Connector , XLR Connector Lightweight , IP65 Waterproof Connector 5 Pin

Leave a Message

Product Description

High Quality Sealed Rubber Jacket Xlr Waterproof 5 Pin Female Socket Connector For Outdoor Audio

Products Description

Waterproof XLR connector-5 pin female socket

The 5-pin female XLR connector socket is a versatile audio connector designed for professional audio applications. Here are its key features:

High-Quality Construction: The connector socket is constructed with precision and durability in mind, typically featuring a robust metal or high-grade plastic housing that ensures long-lasting performance and reliability.

Balanced Audio Transmission: The 5-pin XLR connector socket supports balanced audio signals, allowing for the transmission of high-quality audio with reduced noise and interference.

Secure Connection: It is designed with a reliable locking mechanism that ensures a secure and stable connection with the corresponding male plug, preventing accidental disconnections during use.

Versatile Compatibility: This XLR connector socket is widely compatible with various audio equipment, including microphones, mixers, amplifiers, and audio interfaces, making it suitable for a range of professional audio setups.

Pin Configuration: The 5-pin XLR connector socket features five pins arranged in a circular pattern within the connector, allowing for the transmission of balanced audio signals and additional control or data signals.

Easy Integration: The socket is designed to be easily integrated into existing audio systems, with standard mounting dimensions that facilitate seamless installation and connection.

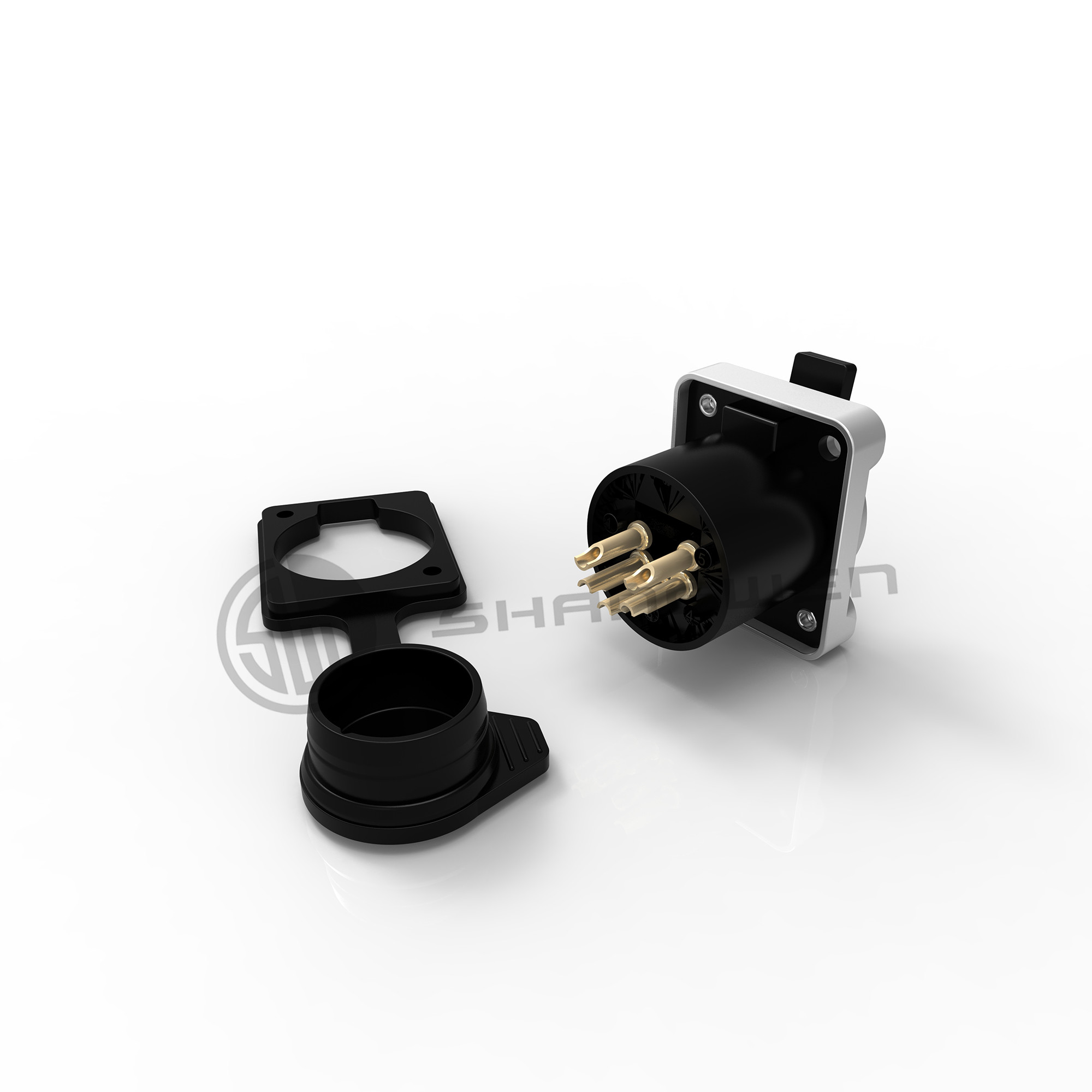

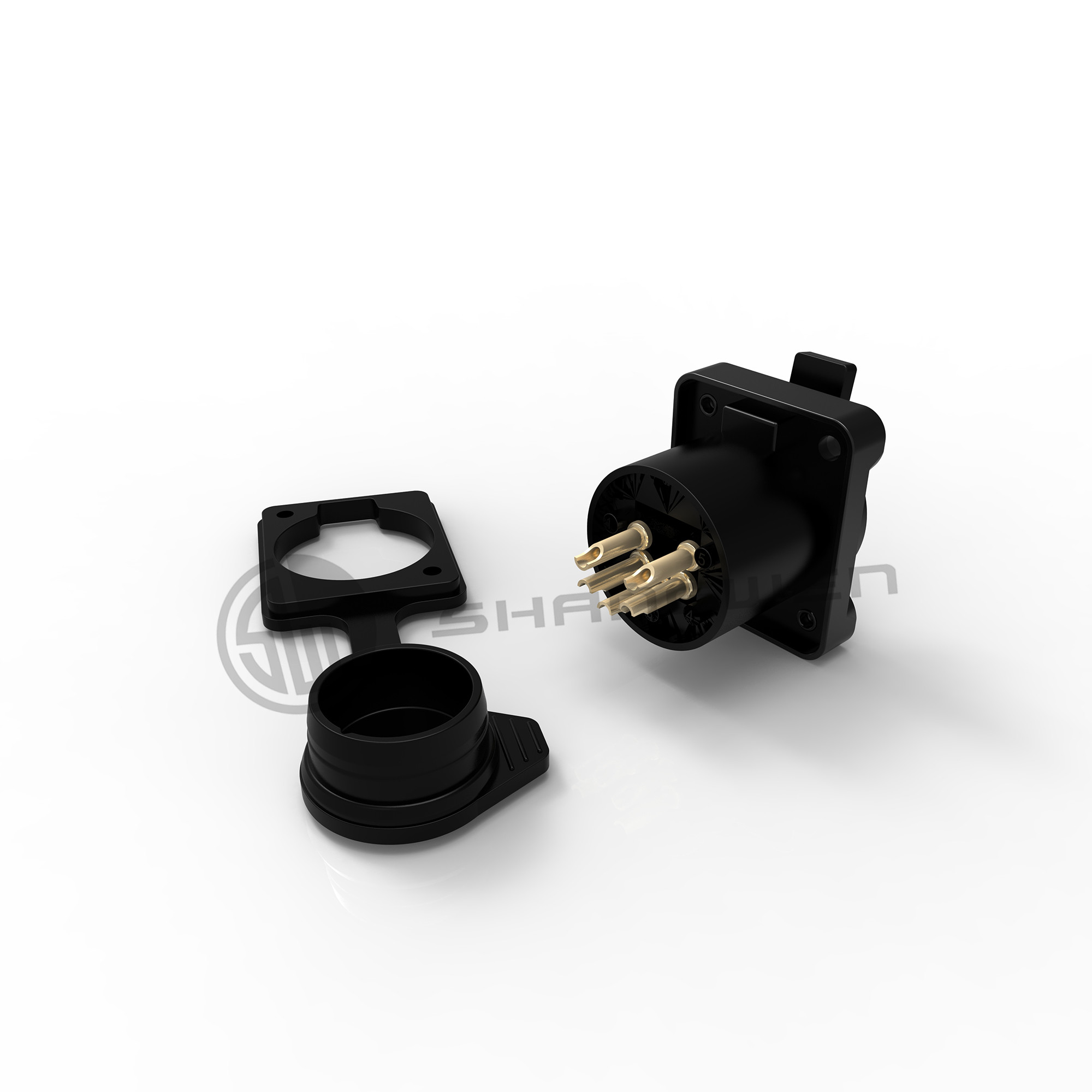

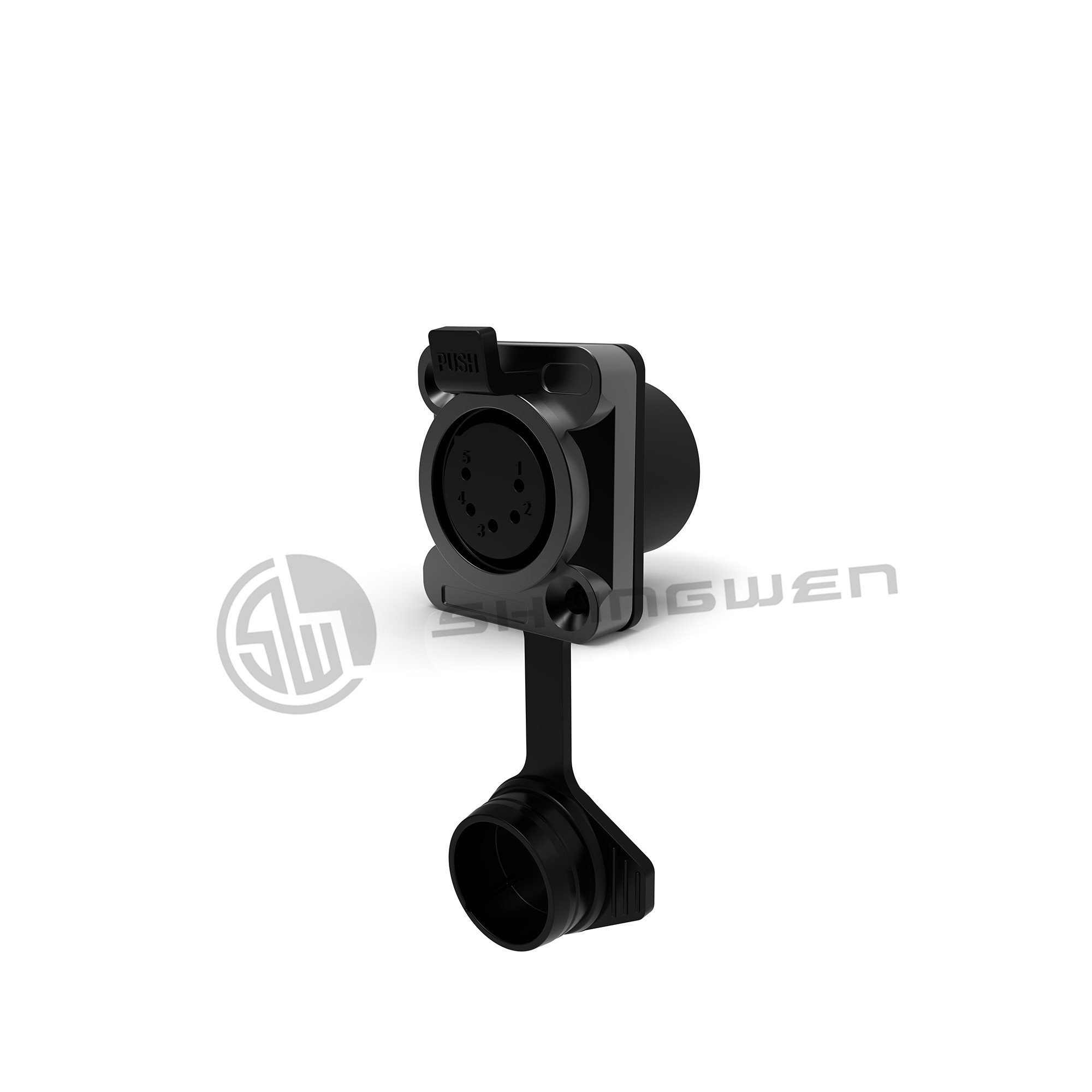

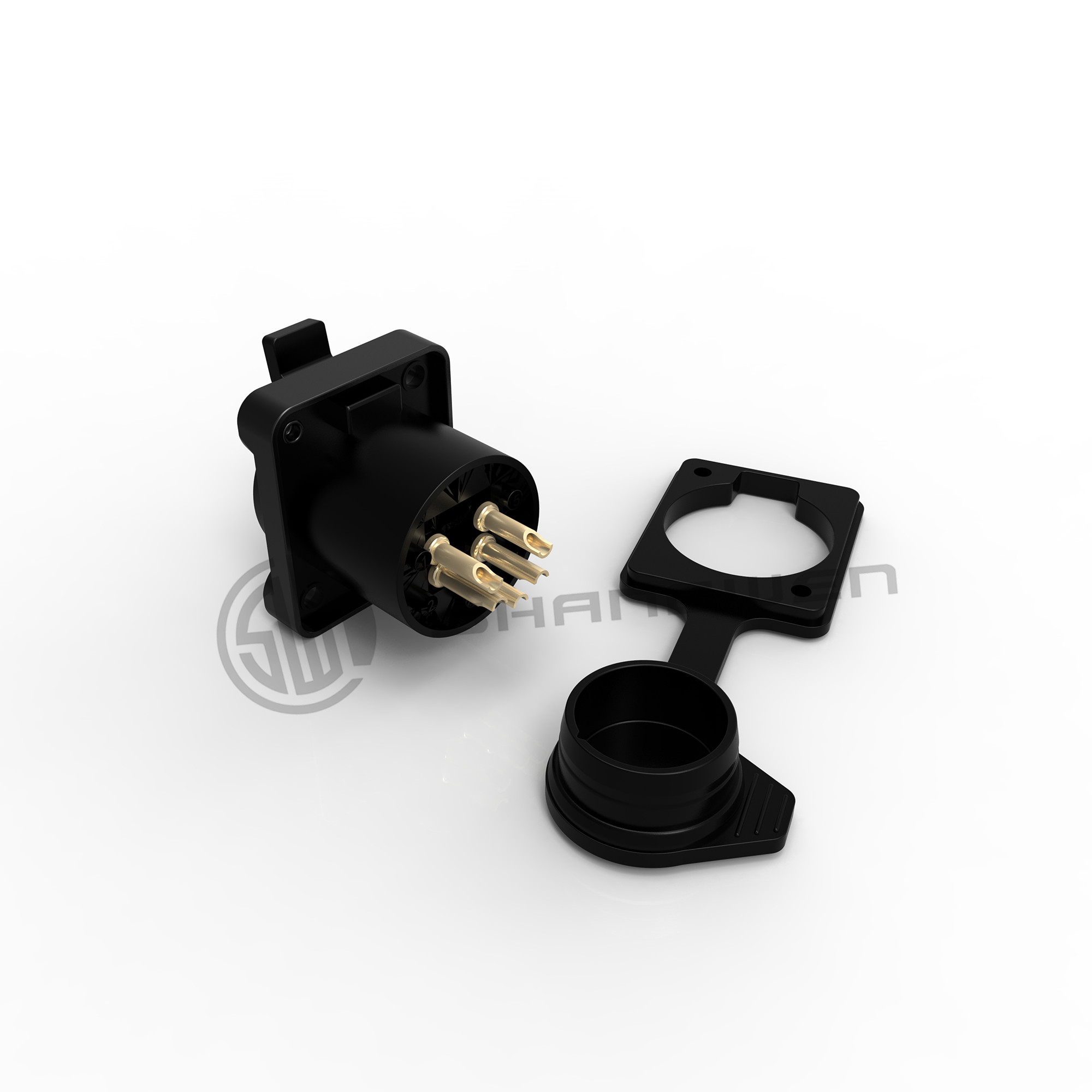

Model:SW5XFZ-F-B (Black)

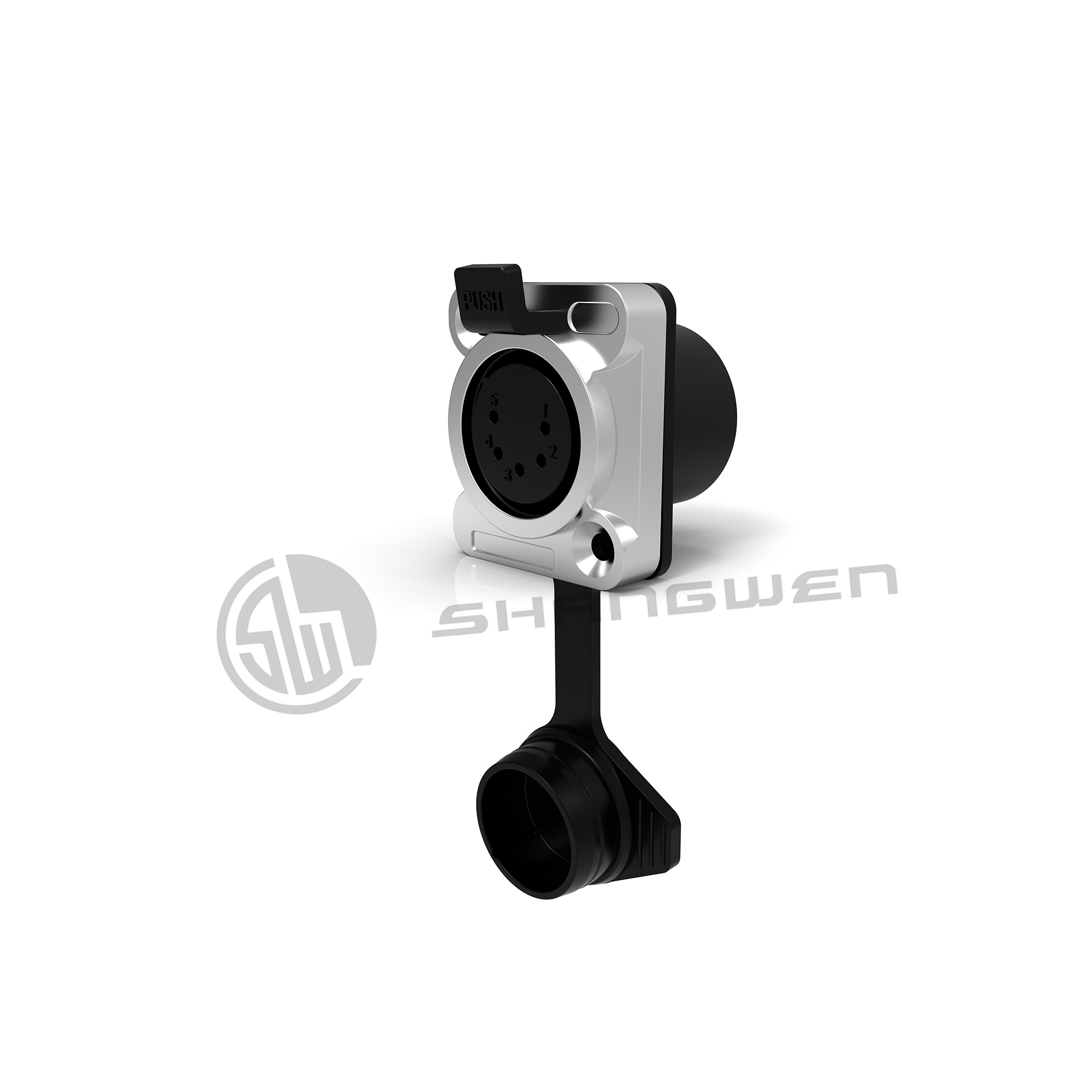

SW5XFZ-F(Silver)

☑Sealed rubber jacket is waterproof and dust-proof
☑Standard D mounting dimensions, fully matched to existing installation
☑Zinc alloy shell, contact point gold-plated
☑Can solve the fast connection requirement of input and output of DMX signal in outdoor conditions in the lighting industry
☑Waterproof IP65

1.Product parameters

Connection Type	XLR
Gender	Female

2.Electrical parameters

Capacitance between contacts	≤7pF
Contact resistance	≤5mΩ
Dielectric strength	1.5kV DC
Insulation resistance	> 10GΩ (initial)
Rated current per contact	7.5A
Rated voltage	<50V

3.Mechanical parameters

Insertion force	≤ 20N
Withdrawal force	≤ 20N
Service life	＞1000 mating cycles
Chassis shape	D type

4.Material and environmental parameters

Contacts	Cu alloy
Contact plating	Au
Insert	Polyamide (PA 66 +30 % GF)
Shell	Zinc diecast (ZnAl4Cu1)
Shell plating	Cr
Solder ability	Complies with IEC 68-2-20
Flame-retardant grade	UL 94 HB
Protection class	IP65
Temperature range	-30℃to +80℃
