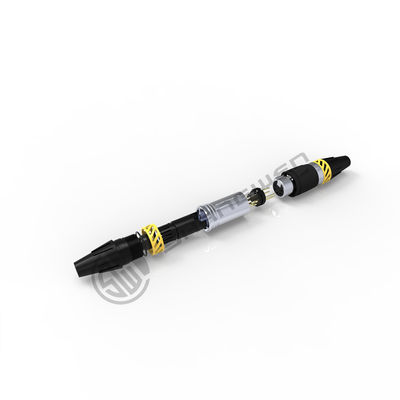

7.5A XLR Connector 5 Pin Waterproof IP65 Silver Male Plug For Audio

Place of Origin	Guangdong, China
Brand Name	SHANGWEN
Model Number	5 pin male plug
Minimum Order Quantity	2 pieces
Price	$1.84/pieces 2-99 pieces
Packaging Details	10pcs/sample bag<br>25pcs/Blister box(23cm x 23cm)<br>500pcs/carton (51cm x 26cm x 34cm)

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Type	Waterproof XLR Connector-5 Pin Male Plug	Application	Power
Gender	Male	Industrial Electronics	Accessories
Feature	Waterproof IP65	Wire Diameter Range	5-8mm
Highlight	7.5A XLR Connector , XLR Connector IP65 , Connector 5 Pin Waterproof

Leave a Message

Product Description

Outdoor 5-8mm Wire Diameter Ip65 Waterproof Silver Male Plug 5 Pin Xlr Audio Connector

Products Description

Waterproof XLR connector-5 pin male plug

Waterproof 5-pin male XLR connector plug offers a durable, secure, and waterproof solution for audio connections in wet or outdoor environments. Its waterproof design, robust construction, secure locking mechanism, and balanced audio transmission make it an ideal choice for reliable audio connectivity under challenging conditions.

1. Waterproof Design

2. Robust Construction

3. Secure Locking Mechanism

4. Balanced Audio Transmission

5. Versatile Application

6. Pin Configuration

7. Compatibility

8. Reliable Signal Transfer

Model:SW5XMT-F-B (Black)

SW5XMT-F(Silver)

☑One hand can operation, push the button to pull it out
☑The contact pin is gold-plated
☑Zinc alloy shell to ensure that it can withstand gravity in any field of use
☑Waterproof IP65
☑Wire diameter range: 5-8mm

1.Product parameters

Connection Type	XLR
Gender	Male

2.Electrical parameters

Capacitance between contacts	≤7pF
Contact resistance	≤3mΩ
Dielectric strength	1.5kVdc
Insulation resistance	> 10GΩ (initial)
Rated current per contact	7.5A
Rated voltage	<50V

3.Mechanical parameters

Sign Cable O.D.	5-8mm
Insertion force	≤ 20N
Withdrawal force	≤ 20N
Service life	＞1000 mating cycles
Wire size	Max. 1.0 mm²
Wire size	Max. 18 AWG
Locking device	Latch lock

4.Material and environmental parameters

Boot	Polyurethan
Contacts	Cu alloy
Contact plating	Au
Insert	Polyamide (PA 66 +30 % GF)
Shell	Zinc diecast (ZnAl4Cu1)
Shell plating	Cr
Strain relief	Polyacetal (POM)
Flame-retardant grade	UL 94 HB
Protection class	IP65
Temperature range	-30℃to +80℃

5.Size reference (unit /mm)

6.Assembly reference

Application area

Company Information

Patent & Certification

Exhibition activities

Packaging reference

Payment and logistics

FAQ

1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
