Mini XLR Female Connector Socket 3 Pin Connector Waterproof Outdoor

Place of Origin Guangdong, China
Brand Name SHANGWEN
Model Number 3 pin female socket
Minimum Order Quantity 2 pieces
Price $1.93/pieces 2-99 pieces
Packaging Details 10pcs/sample bag<br>25pcs/Blister box(23cm x 23cm)<br>500pcs/carton (51cm x 26cm x 34cm)

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type 3 Pin Connector Waterproof Outdoor Gender Female
Industrial Electronics Accessories Feature Waterproof IP65
Wire Diameter Range 5-8mm Application Power
Highlight

Mini XLR Female Connector

,

XLR Female Connector Socket

,

3 Pin Connector Waterproof Outdoor

Leave a Message
Product Description







China Wholesale Outdoor Waterproof Zinc Alloy Shell Mini 3 Pin Female Socket Xlr Connector

Products Description
Waterproof XLR connector-3 pin female socket


waterproof 3-pin female XLR connector socket offers a durable and secure solution for audio connections in wet or outdoor settings. Its waterproof design, durable construction, secure connection, and compatibility make it an ideal choice for reliable audio connectivity in challenging conditions.



Waterproof Design: This connector socket features a waterproof housing, seals, and gaskets that effectively prevent water, moisture, and other liquids from entering the connector. It ensures the integrity of the connection and protects the audio signal transmission even in challenging conditions.

Durable Construction: The connector socket is built with durability in mind, often featuring a rugged metal or high-grade plastic housing that can withstand impacts, corrosion, and harsh weather conditions.

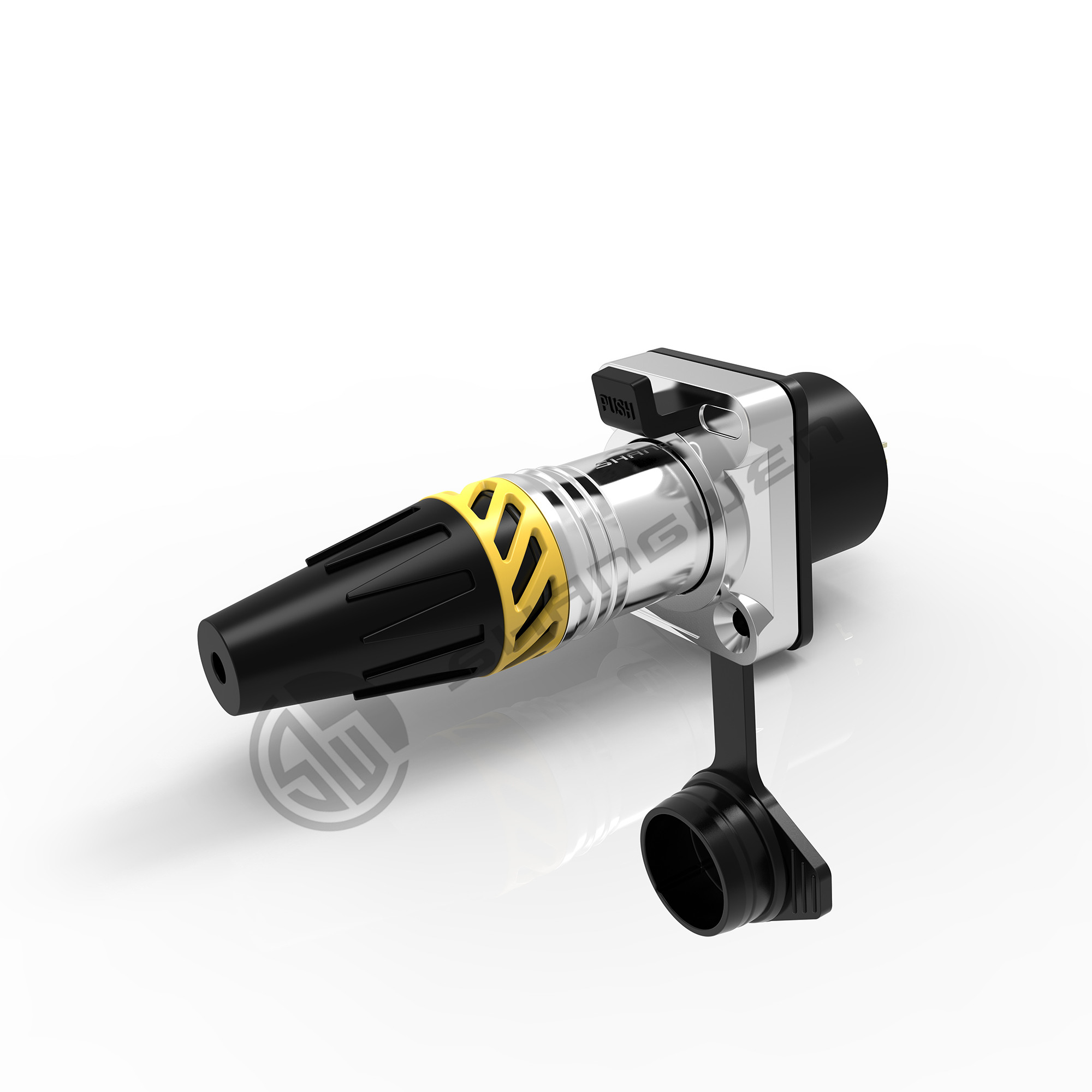

Mini XLR Female Connector Socket 3 Pin Connector Waterproof Outdoor 0

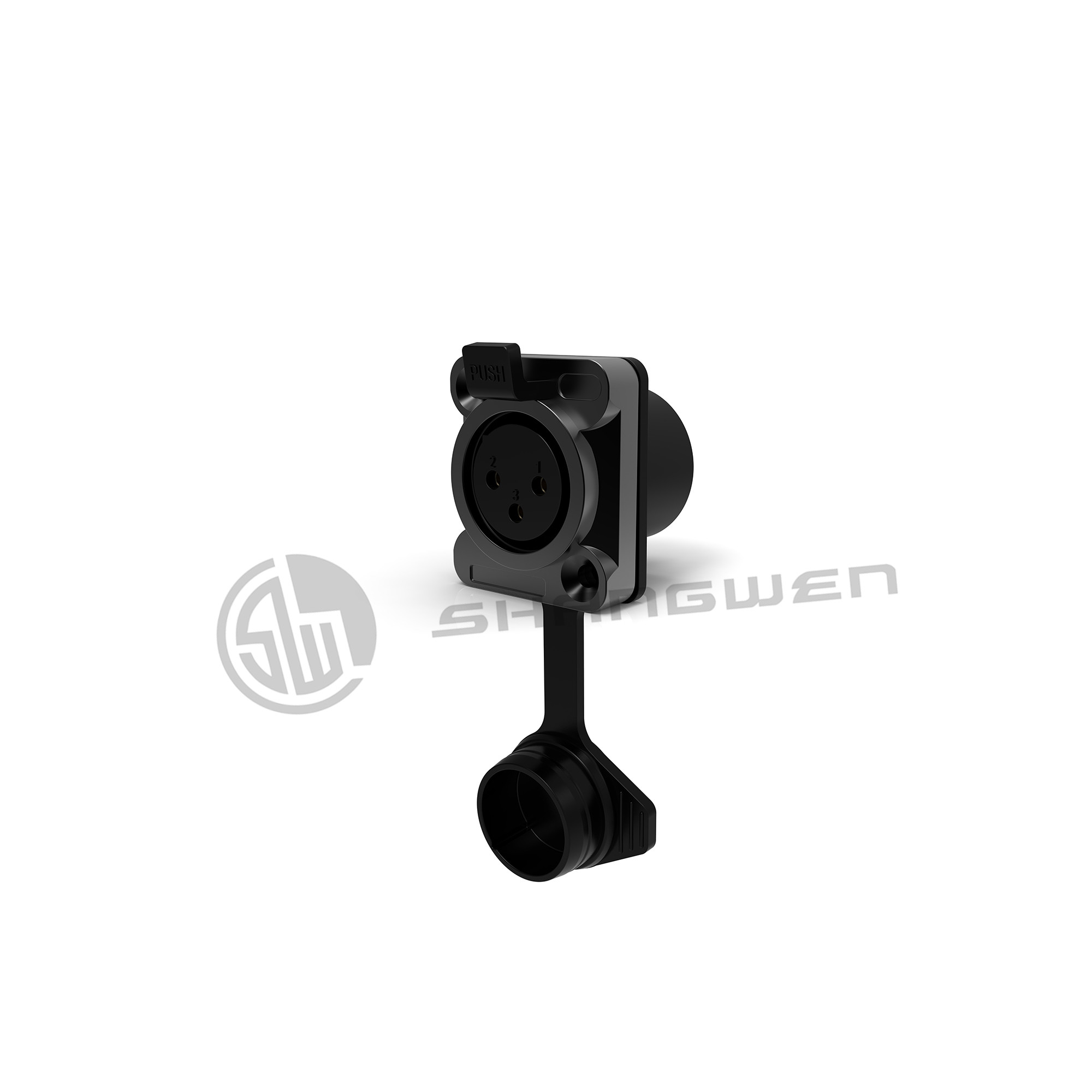

Model:SW3XFZ-F-B (Black)

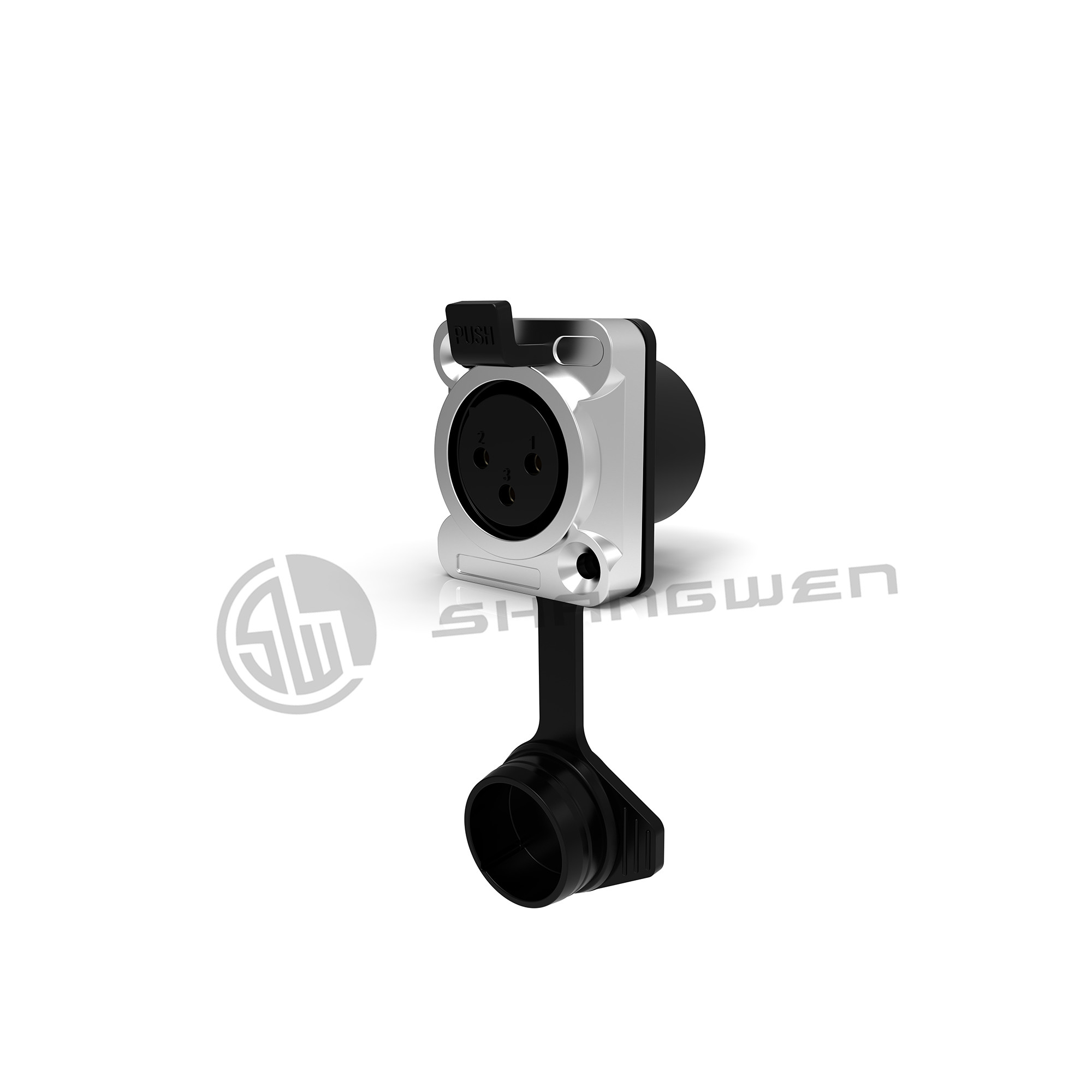

               SW3XFZ-F(Silver)


Sealed rubber jacket is waterproof and dust-proof
Standard D mounting dimensions, fully matched to existing installation
Zinc alloy shell, contact point gold-plated
Can solve the fast connection requirement of input and output of DMX signal in outdoor conditions in the lighting industry
Waterproof IP65

Mini XLR Female Connector Socket 3 Pin Connector Waterproof Outdoor 1
Mini XLR Female Connector Socket 3 Pin Connector Waterproof Outdoor 2
Mini XLR Female Connector Socket 3 Pin Connector Waterproof Outdoor 3
Mini XLR Female Connector Socket 3 Pin Connector Waterproof Outdoor 4
Mini XLR Female Connector Socket 3 Pin Connector Waterproof Outdoor 5
Mini XLR Female Connector Socket 3 Pin Connector Waterproof Outdoor 6
1.Product parameters
Connection Type
XLR
Gender
Female
2.Electrical parameters
Capacitance between contacts
≤4pF
Contact resistance
≤5mΩ
Dielectric strength
1.5kVdc
Insulation resistance
> 10GΩ (initial)
Rated current per contact
16A
Rated voltage
<50V
3.Mechanical parameters
Insertion force
≤ 20N
Withdrawal force
≤ 20N
Service life
>1000 mating cycles
Chassis shape
D type
4.Material and environmental parameters
Contacts
Cu alloy
Contact plating
Au
Insert
Polyamide (PA 66 +30 % GF)
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Cr
Solder ability
Complies with IEC 68-2-20
Flame-retardant grade
UL 94 HB
Protection class
IP65
Temperature range
-30℃to +80℃
5.Size reference (unit /mm)
Mini XLR Female Connector Socket 3 Pin Connector Waterproof Outdoor 7
Waterproof rubber(Unit:mm)
Mini XLR Female Connector Socket 3 Pin Connector Waterproof Outdoor 8
6.Assembly reference
Mini XLR Female Connector Socket 3 Pin Connector Waterproof Outdoor 9
Mini XLR Female Connector Socket 3 Pin Connector Waterproof Outdoor 10

Application area
Mini XLR Female Connector Socket 3 Pin Connector Waterproof Outdoor 11
Company Information
Mini XLR Female Connector Socket 3 Pin Connector Waterproof Outdoor 12
Patent & Certification
Mini XLR Female Connector Socket 3 Pin Connector Waterproof Outdoor 13
Exhibition activities
Mini XLR Female Connector Socket 3 Pin Connector Waterproof Outdoor 14
Packaging reference
Mini XLR Female Connector Socket 3 Pin Connector Waterproof Outdoor 15
Payment and logistics
Mini XLR Female Connector Socket 3 Pin Connector Waterproof Outdoor 16
FAQ
Mini XLR Female Connector Socket 3 Pin Connector Waterproof Outdoor 17
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
