Indoor Rj45 Ethernet Chassis Connector Socket D Shape Panel CAT5\6

Place of Origin Guangdong, China
Brand Name SHANGWEN
Model Number SW8FD-NGX
Minimum Order Quantity 2 pieces
Price $2.00/pieces
Packaging Details 10pcs/sample bag<br>25pcs/Blister box(23cm x 23cm)<br>500pcs/carton (51cm x 26cm x 34cm)

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type RJ45 Socket Application Ethernet
Gender Female Industrial Electronics Accessories
Name Ethernet Chassis Connector Feature Waterproof
Highlight

Rj45 Ethernet Chassis Connector

,

Indoor Ethernet Chassis Connector

,

Rj45 Chassis Connector

Leave a Message
Product Description

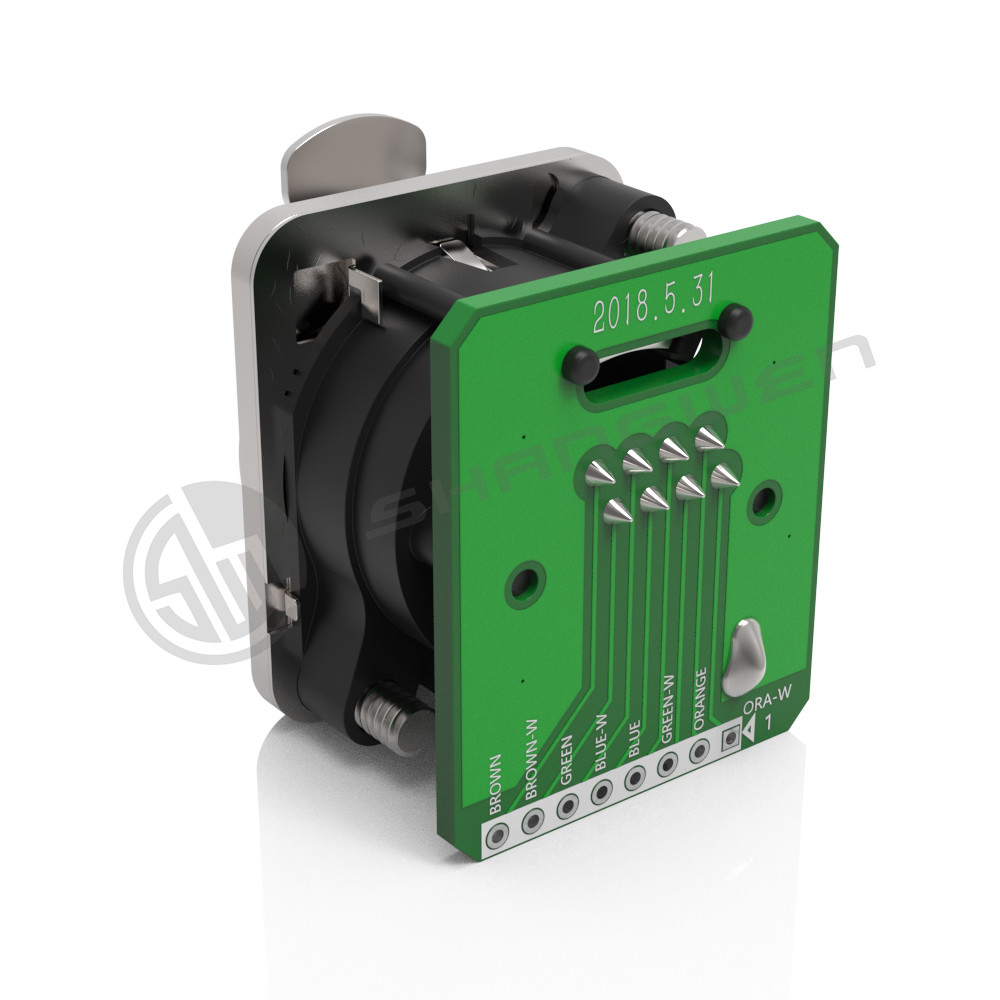

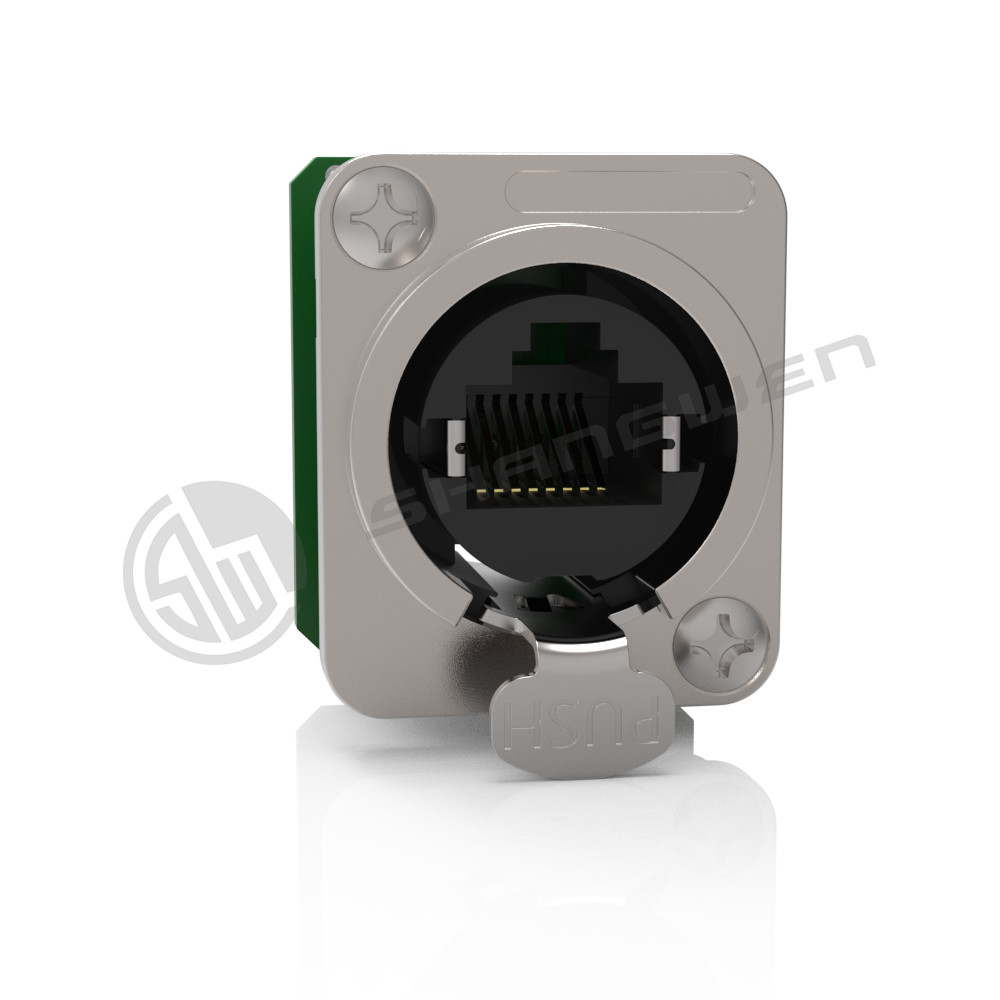

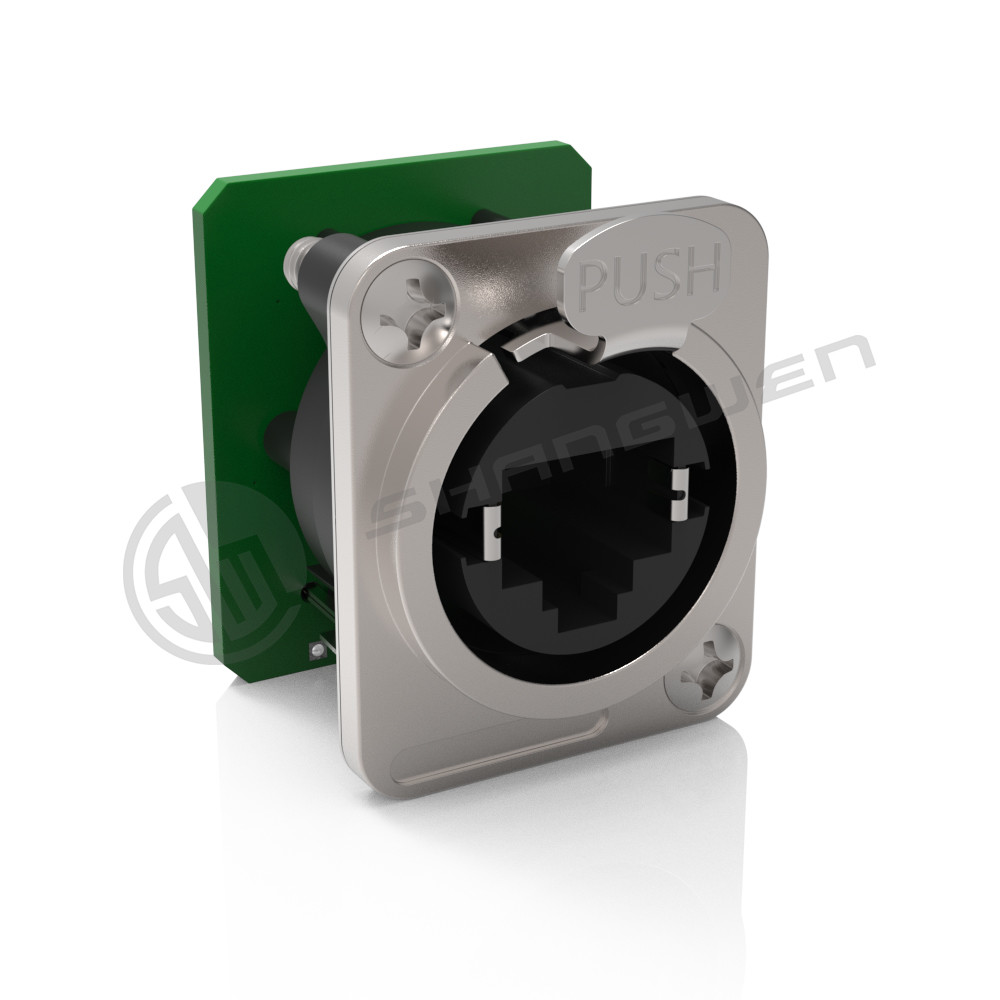

Indoor Use D-shape Panel Welding Way Cat 5e Chassis Socket Rj45 Signal Connector







Products Description

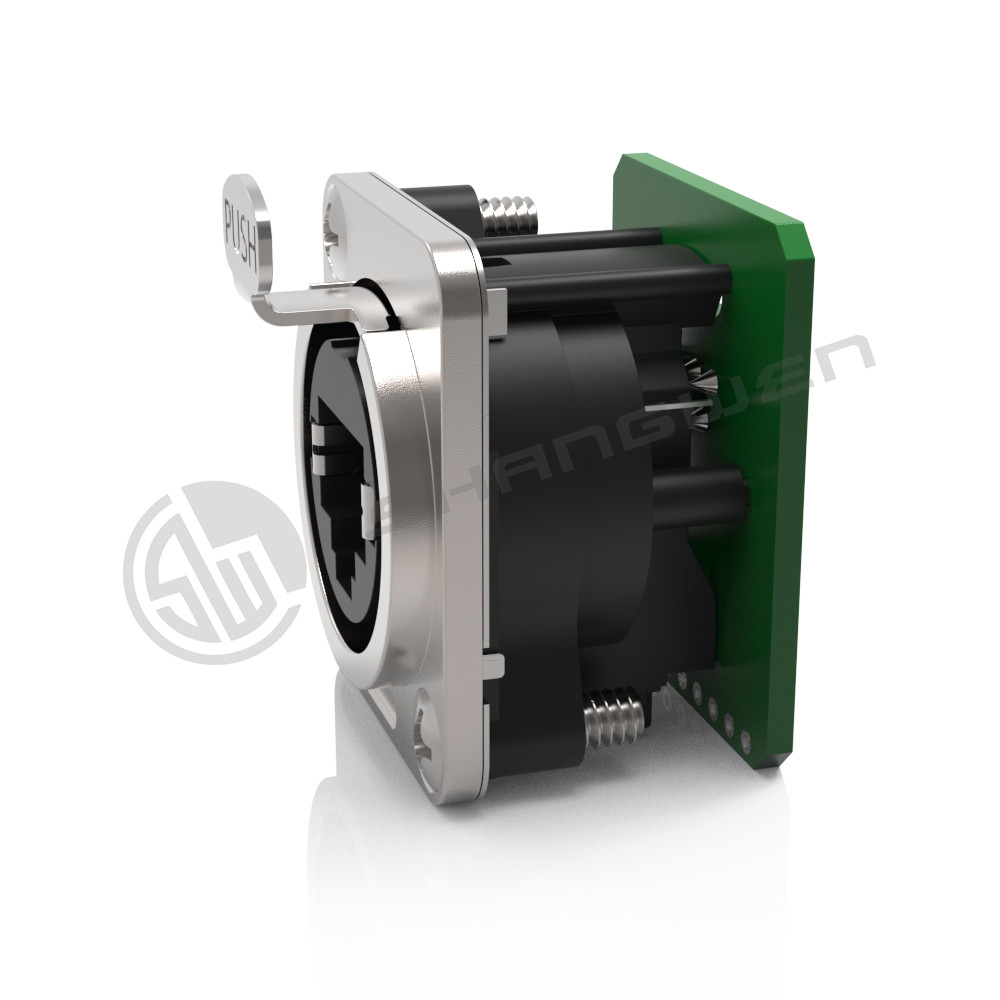

Introducing the SW8FD-NGH (indoor use) model, a high-quality panel connector designed with a D-shape and a uniform metal flange, adhering to standard D-style installation size.

This connector offers a convenient installation process as it can be easily mounted from the rear of the panel. With a feedthrough RJ45 at the rear end, it provides seamless connectivity for your networking needs.

One of the notable features of the SW8FD-NGH model is its versatility. It can be mounted either from the front or rear of the panel, providing flexibility in your installation setup. Additionally, this connector complies with CAT 5e standards according to TIA/EIA568B and ISO/IEC11801, ensuring reliable and efficient data transmission.

With its user-friendly design and adherence to industry standards, the SW8FD-NGH model offers a dependable and efficient solution for your indoor networking requirements. Its D-shape panel connector, uniform metal flange, and compatibility with CAT 5e standards make it a reliable choice for a wide range of applications.

Our Services:

To Be Your The Best Connection Expert

1)Low cost but good quality in ip65 waterproof in locked condition with ISO9001 management under efficient service

2) Provide free samples

3) Effective communication and rapid response

4) Early design-in capability,OEM, ODM are available

5) Globalization, localization of operation and management

6) long quality assurance.
