Signal Rj45 Female Connector Socket Indoor Use Latch Lock D Shape

Place of Origin Guangdong, China
Brand Name SHANGWEN
Model Number SW8FD-NGV
Minimum Order Quantity 2 pieces
Price $2.00/pieces
Packaging Details 10pcs/sample bag<br>25pcs/Blister box(23cm x 23cm)<br>500pcs/carton (51cm x 26cm x 34cm)

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type RJ45 Socket Name Rj45 Female Connector
Gender Female Industrial Electronics Accessories
Feature Waterproof Application Ethernet
Highlight

Signal Rj45 Female Connector Socket

,

Rj45 Female Connector Socket

,

Rj45 Connector Socket

Leave a Message
Product Description

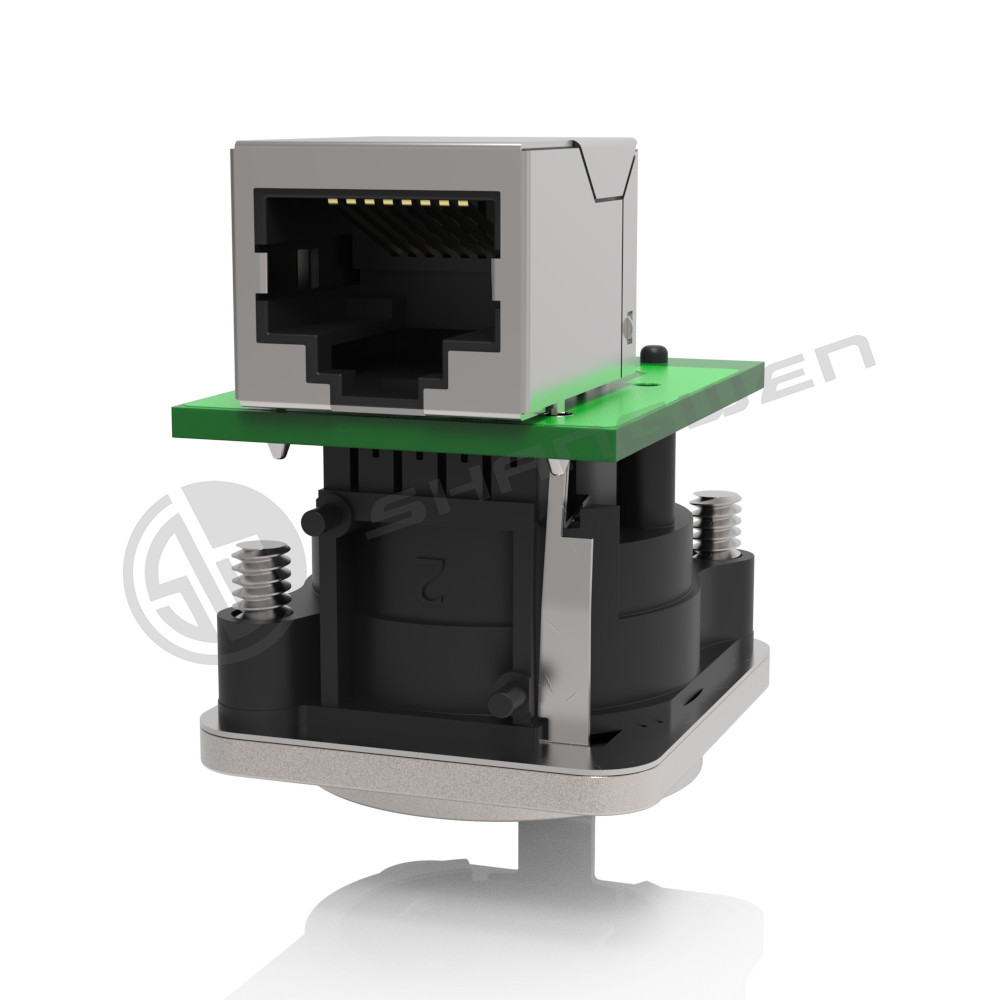

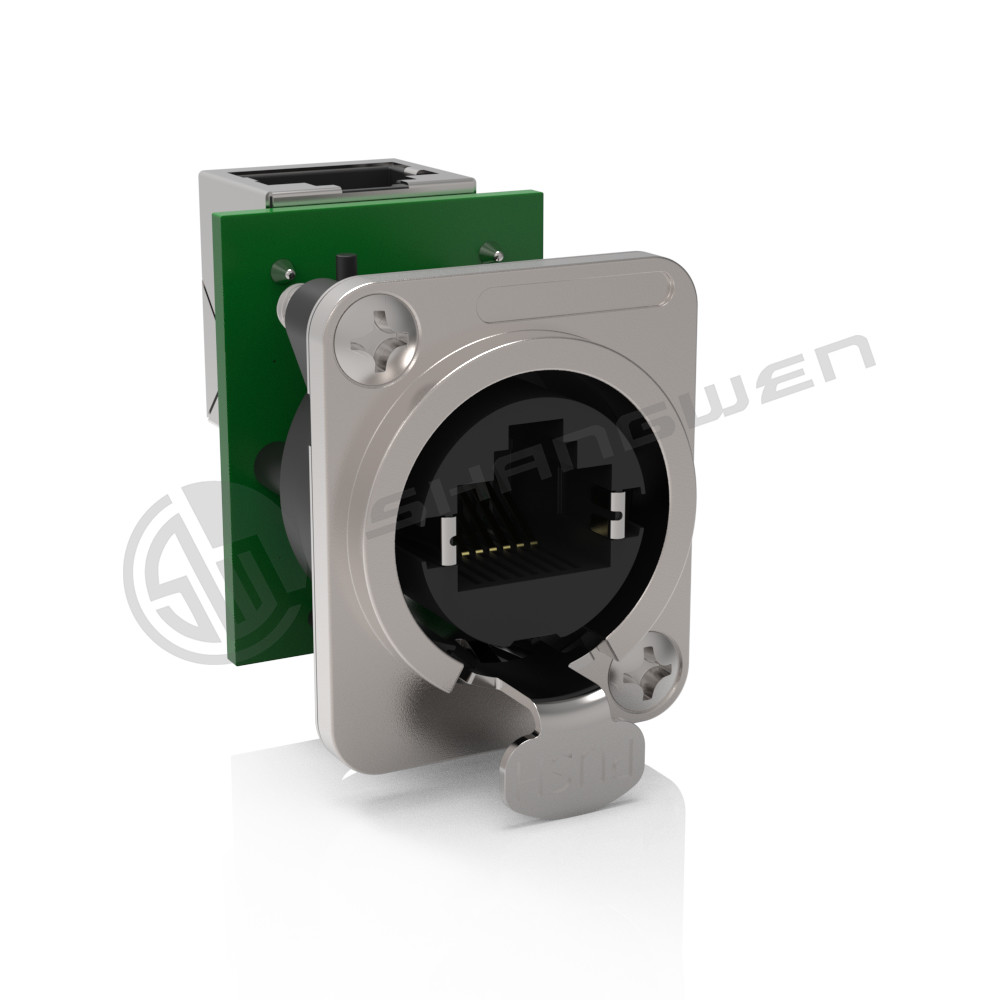

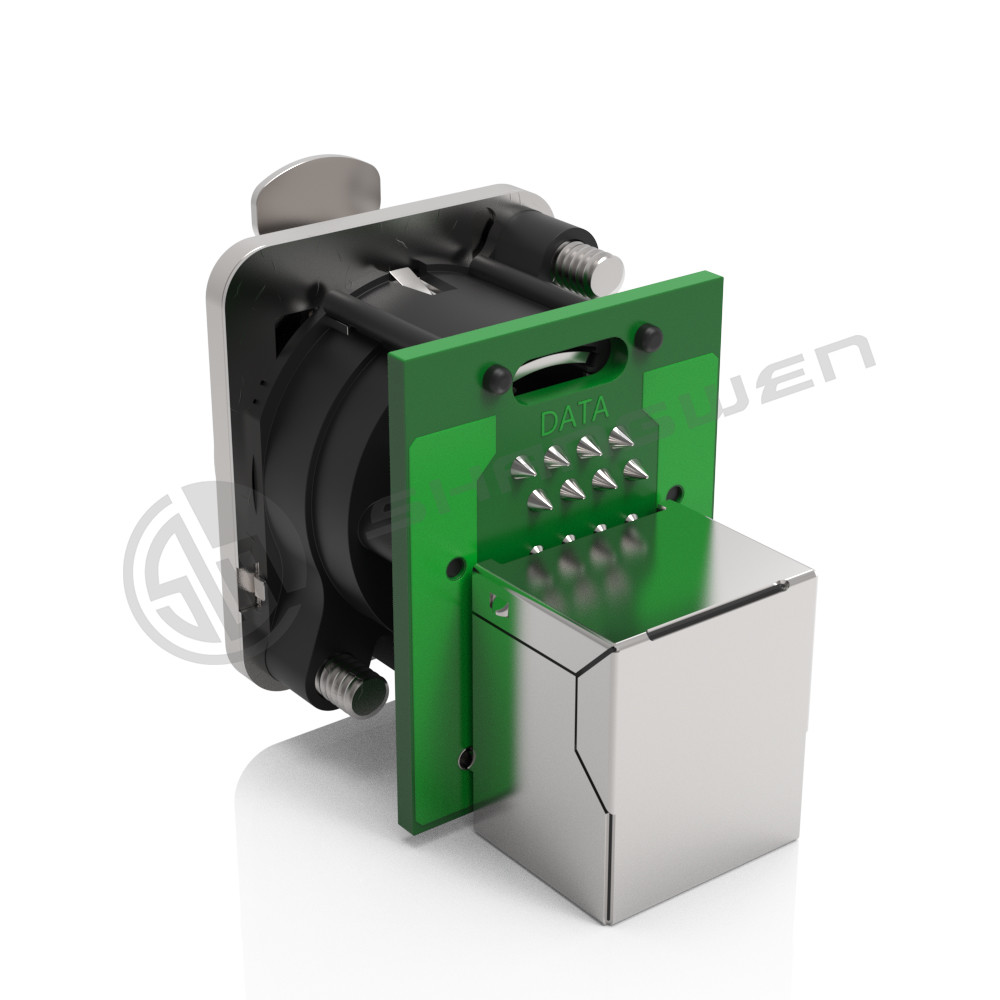

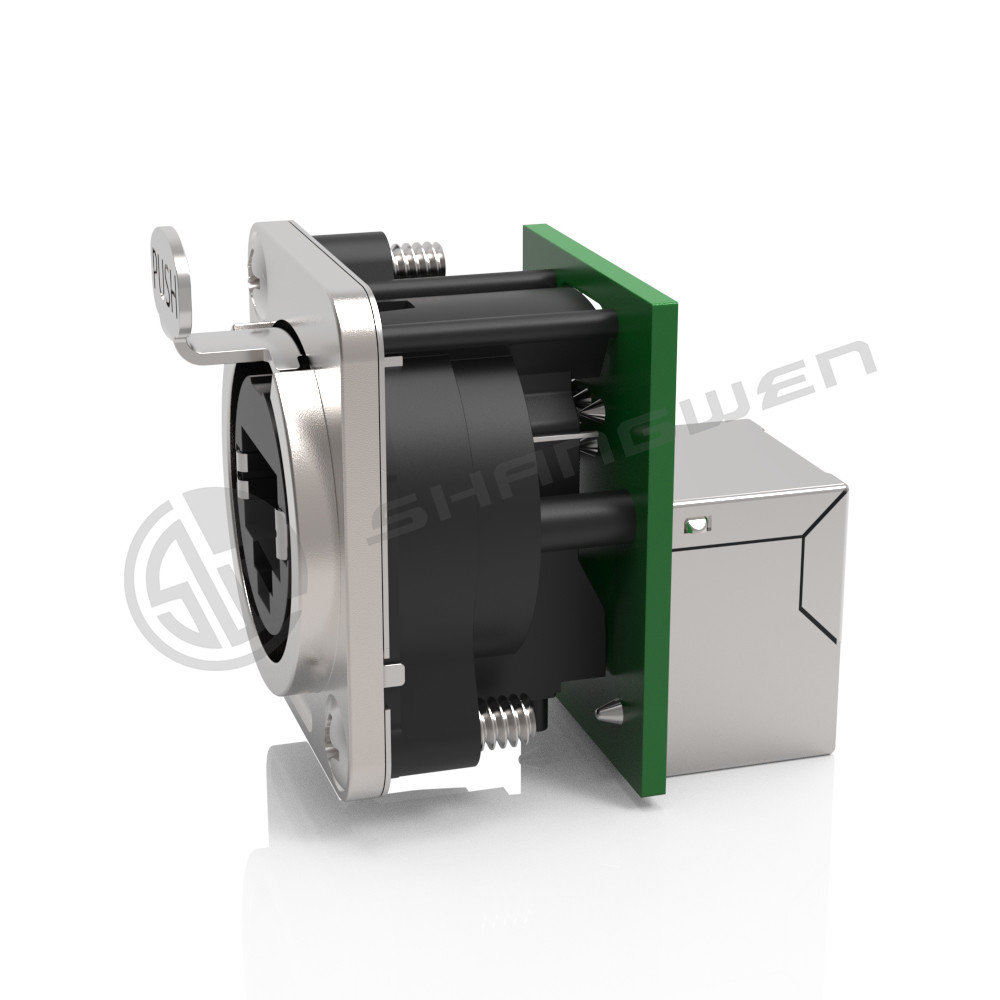

New Design Indoor Use Latch Lock D Shape Female Chassis Signal Rj45 Connector Socket

Products Description

Signal connector series-RJ45 connector

Based on a safety lock on the basis of RJ45 connection, is widely used in professional audio, video, lighting and other network equipment, the socket is designed to become the standard in the design of industrial equipment panel installation, this type D size design perfect match the panel installation, RJ45 this in general formula design with metal blank and locking system at the same time, Includes panel mounting screws.


Introducing the SW8FD-NGH (indoor use) model, a high-quality panel connector designed with a D-shape and a uniform metal flange, adhering to standard D-style installation size.

This connector offers a convenient installation process as it can be easily mounted from the rear of the panel. With a feedthrough RJ45 at the rear end, it provides seamless connectivity for your networking needs.

One of the notable features of the SW8FD-NGH model is its versatility. It can be mounted either from the front or rear of the panel, providing flexibility in your installation setup. Additionally, this connector complies with CAT 5e standards according to TIA/EIA568B and ISO/IEC11801, ensuring reliable and efficient data transmission.

With its user-friendly design and adherence to industry standards, the SW8FD-NGH model offers a dependable and efficient solution for your indoor networking requirements. Its D-shape panel connector, uniform metal flange, and compatibility with CAT 5e standards make it a reliable choice for a wide range of applications.
