Cat 5e Rj45 Ethernet Chassis Connector D Shape Panel Industrial

Place of Origin Guangdong, China
Brand Name SHANGWEN
Model Number SW8FD-NGH
Minimum Order Quantity 2 pieces
Price $2.00/pieces
Packaging Details 10pcs/sample bag<br>25pcs/Blister box(23cm x 23cm)<br>500pcs/carton (51cm x 26cm x 34cm)

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Cat 5e Rj45 Ethernet Chassis Connector Type RJ45 Socket
Application Ethernet Gender Female
Industrial Electronics Accessories Feature Waterproof
Highlight

Cat 5e Ethernet Chassis Connector

,

Ethernet Chassis Connector D Shape

,

Rj45 Ethernet Connector

Leave a Message
Product Description
China Wholesale Indoor Cat 5e Chassis D Shape Panel Rj45 Signal Connector For Network

Products Description

Signal connector series-RJ45 connector

One of the standout features of this safety lock is its ability to be seamlessly integrated with RJ45 bases, providing a highly convenient and efficient installation process. Unlike traditional locks, which often require specific mounting panels, this lock offers a versatile solution that can be easily incorporated into equipment of varying thicknesses, eliminating any limitations.



Not only does this safety lock excel in its practical functionality, but it also enhances the overall aesthetics of your setup. Its fashionable and stylish design adds a touch of sophistication to your professional equipment, making it stand out in any environment.



Whether you're in the audio, video, lighting, or other network-related industries, this safety lock offers a unique and distinctive solution that sets it apart from conventional locking mechanisms. With its rocket-inspired design, it brings a refreshing and innovative approach to equipment security, providing a reliable and visually striking option for safeguarding your valuable gear.

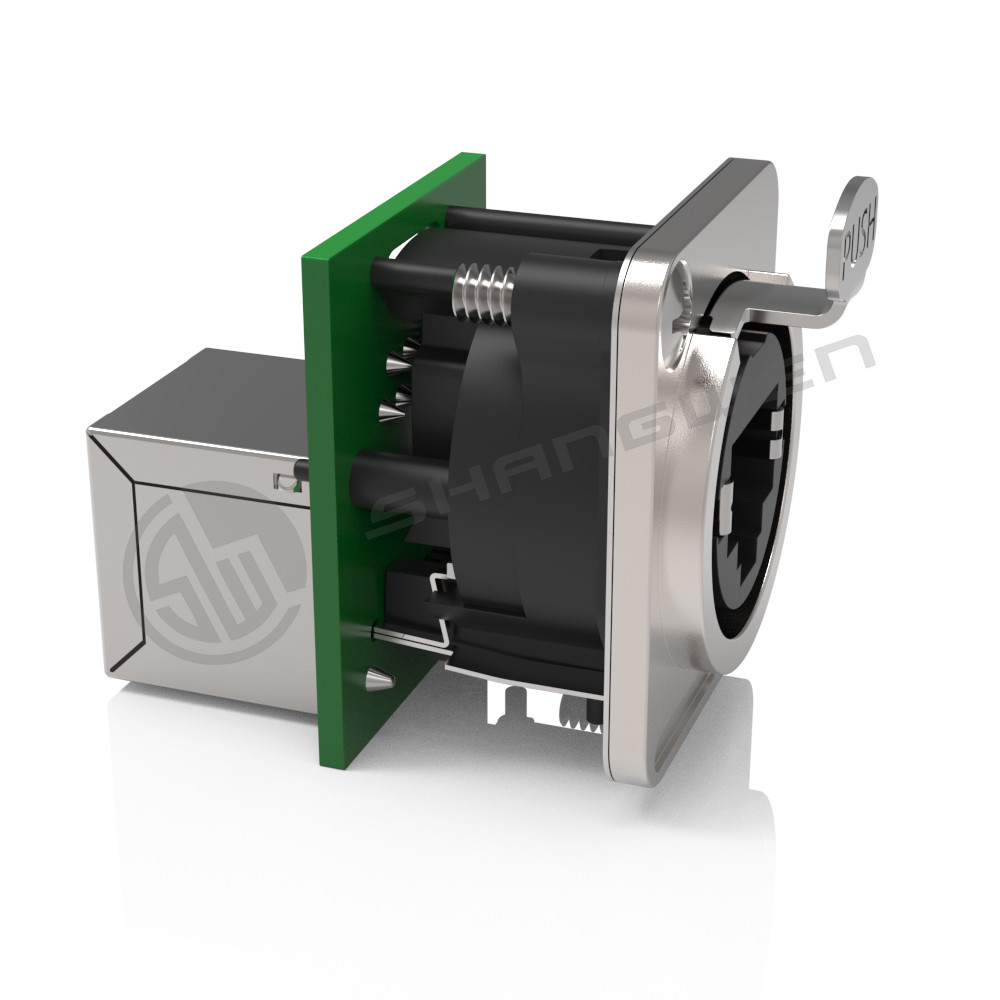

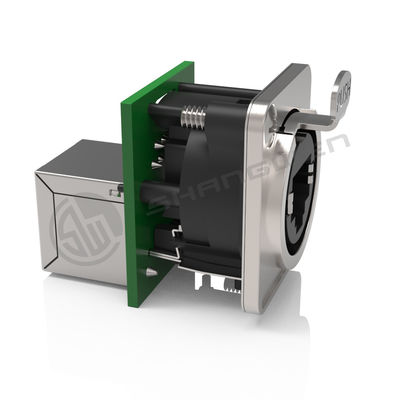

Cat 5e Rj45 Ethernet Chassis Connector D Shape Panel Industrial 0

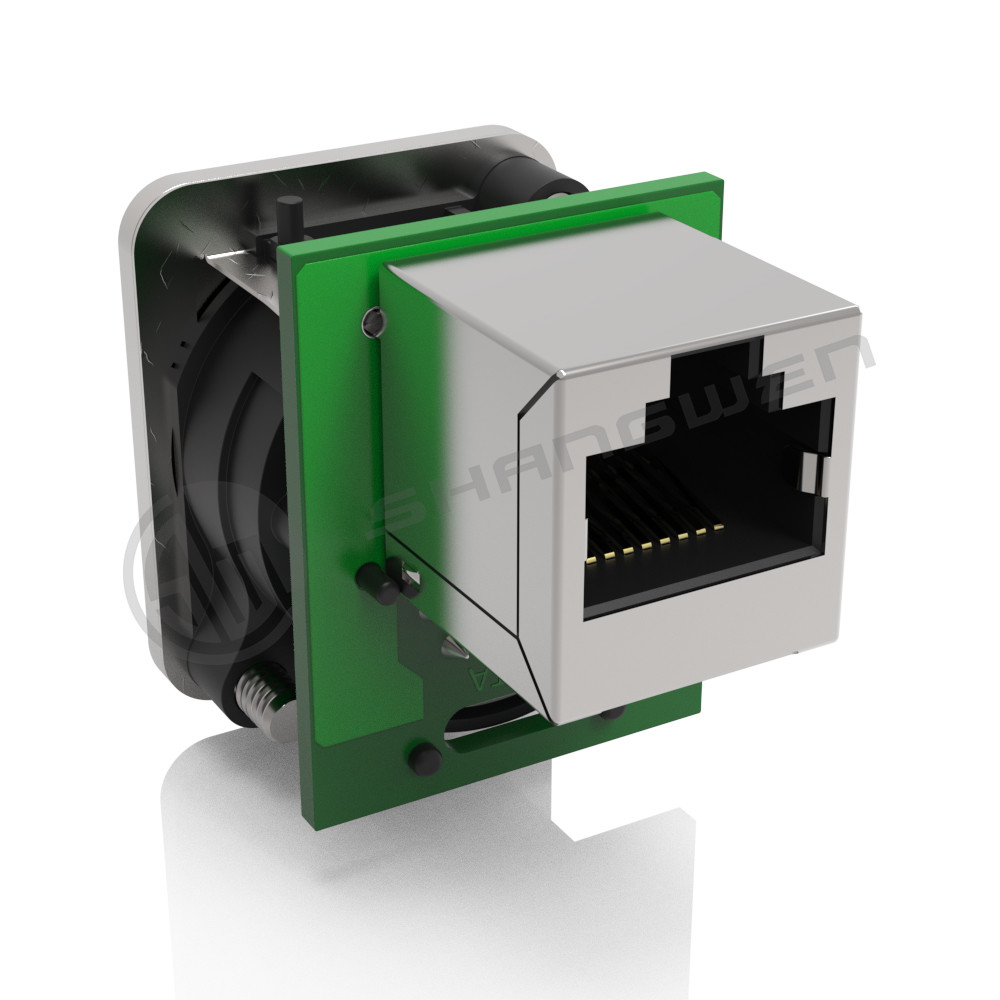

Cat 5e Rj45 Ethernet Chassis Connector D Shape Panel Industrial 1

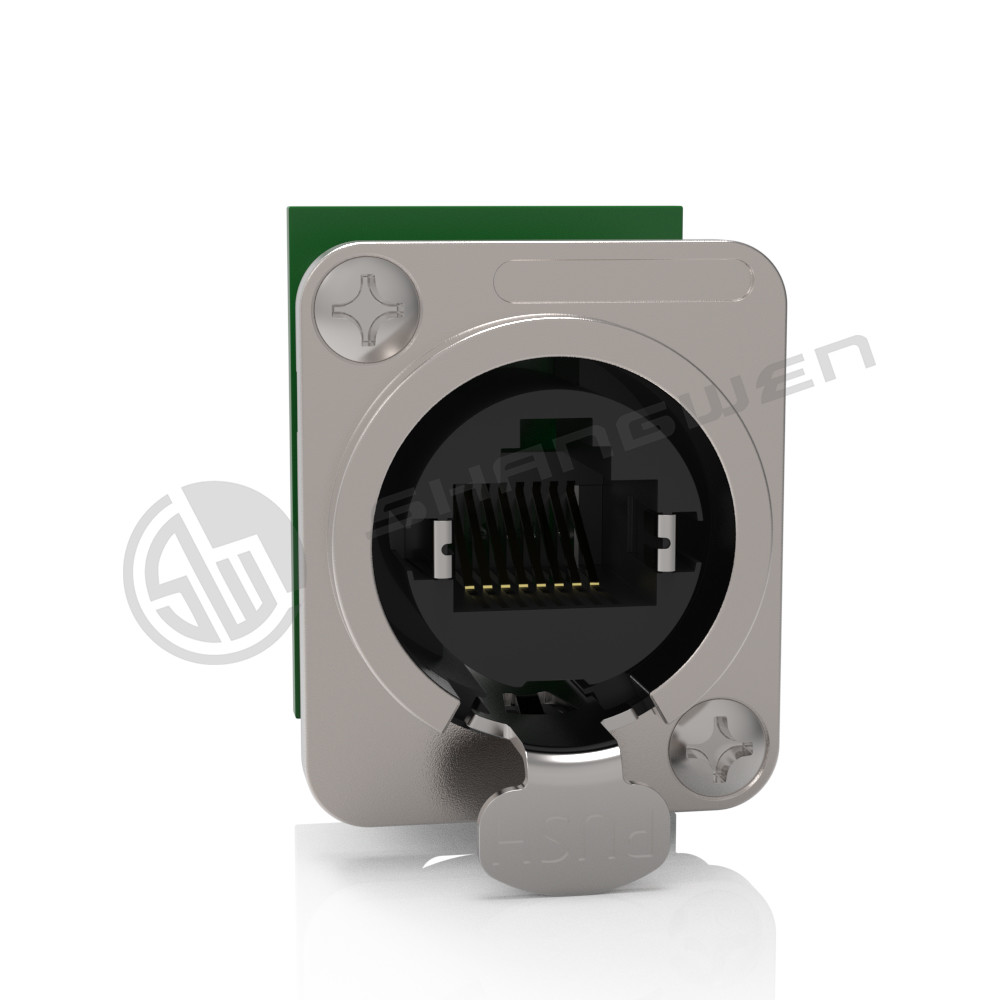

Cat 5e Rj45 Ethernet Chassis Connector D Shape Panel Industrial 2

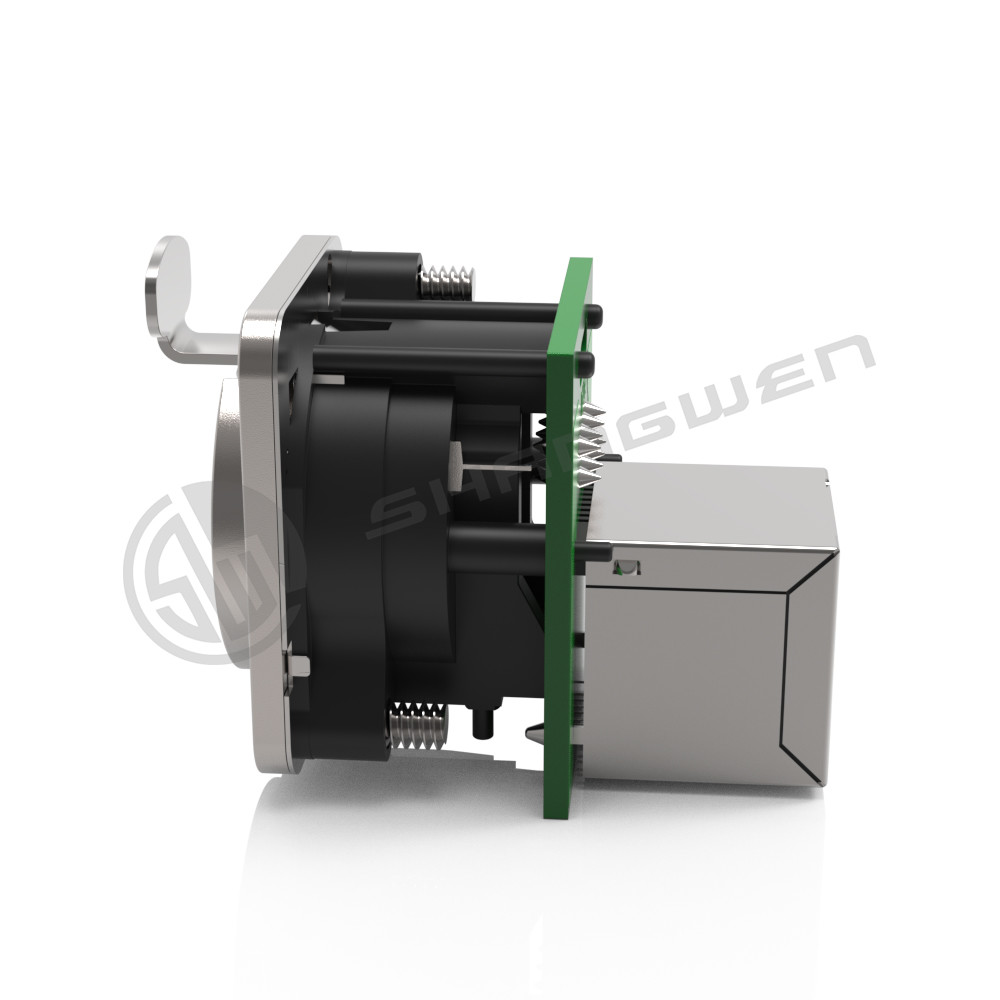

Cat 5e Rj45 Ethernet Chassis Connector D Shape Panel Industrial 3
1. Electrical parameters
Contact resistance
<10mΩ
Rated current
1.5 A
Rated voltage
50 V
Insulation resistance
≥0.5GΩ
Dielectric strength
1KV DC
Frequencyrange
1-100 MHz
Transmission performance
CAT 5e
2. Mechanical parameters
Service life
>1000 mating cycles
Insertion force
≤ 20 N
Locking device
latch lock
Chassis shape
D style
3. Material and environmental parameters
Shell
Zinc diecast
Contacts
Bronze
Insert
PBT
Contact surface
Au
Shell surface
Ni
Temperature range
-30℃to +80℃
4. Standard
Standard
TIA/EIA586B,IEC11801
4.Size reference (unit /mm)
Cat 5e Rj45 Ethernet Chassis Connector D Shape Panel Industrial 4
5.Internal structure reference
Cat 5e Rj45 Ethernet Chassis Connector D Shape Panel Industrial 5
6. Installation instructions with SW8MC-A plugs
Cat 5e Rj45 Ethernet Chassis Connector D Shape Panel Industrial 6

Application area
Cat 5e Rj45 Ethernet Chassis Connector D Shape Panel Industrial 7
