Rj45 Socket Outdoor 8 Pin Female Plug ethernet chassis connector CAT5\6

Place of Origin Guangdong, China
Brand Name SHANGWEN
Model Number SW8FDYE
Minimum Order Quantity 2 pieces
Price $2.50 - $3.60/pieces
Packaging Details 10pcs/sample bag<br>25pcs/Blister box(23cm x 23cm)<br>500pcs/carton (51cm x 26cm x 34cm)

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name 8 Pin Female Connector Type RJ45 Socket
Application Ethernet Industrial Electronics Accessories
Feature Waterproof Gender Female
Highlight

Outdoor 8 Pin Female Connector

,

8 Pin Female Connector Plug

,

Rj45 Socket Connector

Leave a Message
Product Description

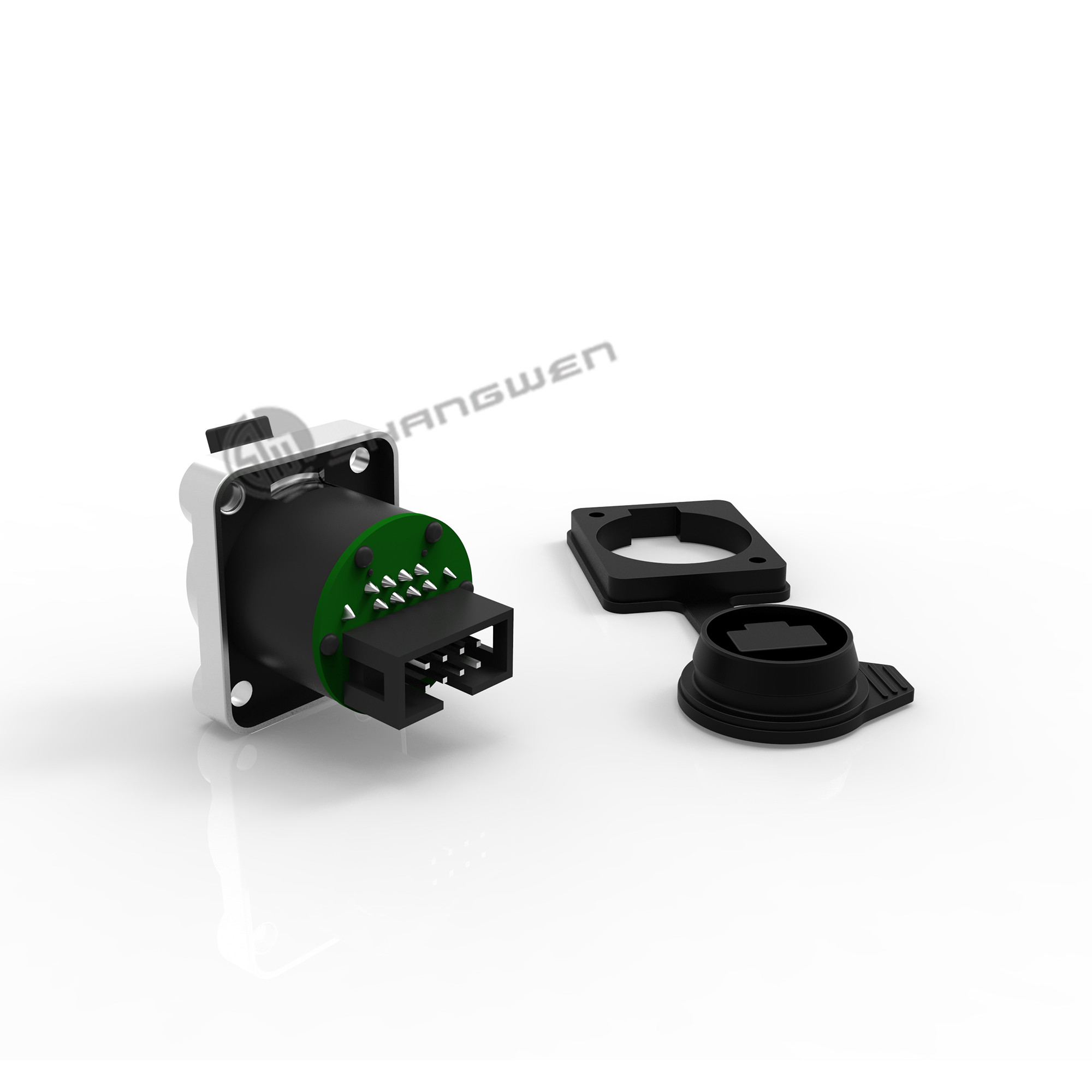

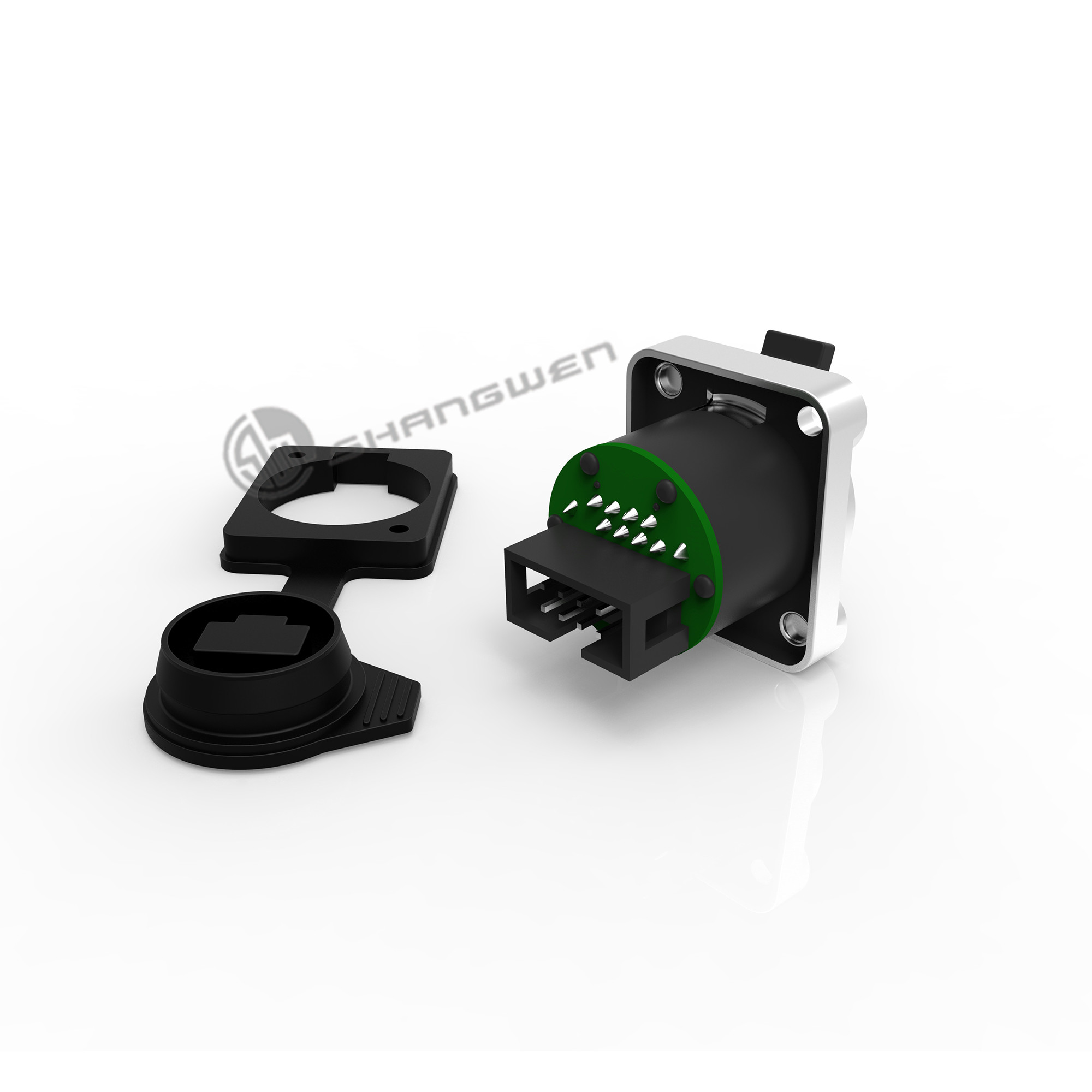

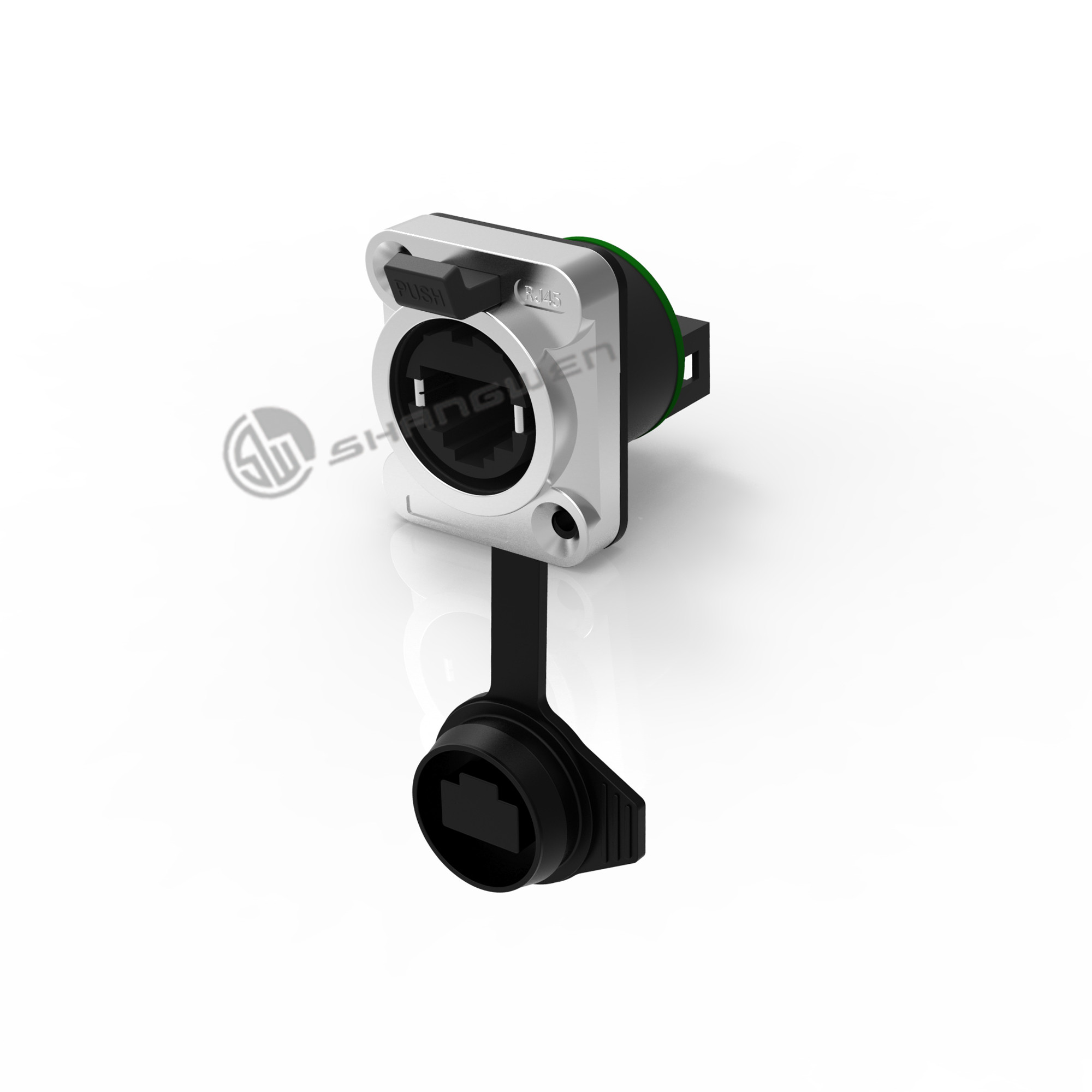

Outdoor Straight Plug 8p Horn Socket Ethernet Rj45 8 Pin Female Connector With Shielding Function



Product specifcations:
1. RJ45 ethernet connector waterproof
2, Waterproof Rating :IP67
3. Material comply with RoHs,UL, CE,
4. Cable: Cat.5E
5. convenient to use, OEM provided



Model:SW8FDYE(outdoor use)
*The rear end is a straight plug 8P horn, the opening direction is consistent with the direction of the button, IP65*
☑With shielding function
☑The transmission grade reaches CAT5e and is compatible with transmission grades below 5E
☑The back-end can be flexibly modified according to actual requirements
☑Sockets are rated D according to TIA/EIA568B and ISO/IEC11801 standards
☑All sockets are equipped with waterproof gaskets. With the installation of gaskets, the protection grade of IP65 can be reached, which can fully meet the durable and stable signal transmission under harsh outdoor conditions



Signal connector series-RJ45 connector
Based on a safety lock on the basis of RJ45 connection, is widely used in professional audio, video, lighting and other network equipment, the socket is designed to become the standard in the design of industrial equipment panel installation, this type D size design perfect match the panel installation, RJ45 this in general formula design with metal blank and locking system at the same time, Includes panel mounting screws.
Rj45 Socket Outdoor 8 Pin Female Plug ethernet chassis connector CAT5\6 0


Rj45 Socket Outdoor 8 Pin Female Plug ethernet chassis connector CAT5\6 1
Rj45 Socket Outdoor 8 Pin Female Plug ethernet chassis connector CAT5\6 2
1. Electrical parameters
Contact resistance
<10mΩ
Rated current
1.5 A
Rated voltage
50 V
Insulation resistance
≥0.5GΩ
Dielectric strength
1KV DC
Frequencyrange
1-100 MHz
Transmission performance
CAT 5e
2. Mechanical parameters
Service life
>1000 times
Insertion force
≤ 20 N
Locking device
latch lock
Chassis shape
D
3. Material and environmental parameters
Shell
Zinc diecast (ZnAl4Cu1)
Contacts
Bronze
Socket
PBT
Contact surface
Au
Shell surface
Pearl Cr
Temperature range
-30℃to +80℃
4.Size reference (unit /mm)
Rj45 Socket Outdoor 8 Pin Female Plug ethernet chassis connector CAT5\6 3
Rj45 Socket Outdoor 8 Pin Female Plug ethernet chassis connector CAT5\6 4
5.Internal structure reference
Rj45 Socket Outdoor 8 Pin Female Plug ethernet chassis connector CAT5\6 5

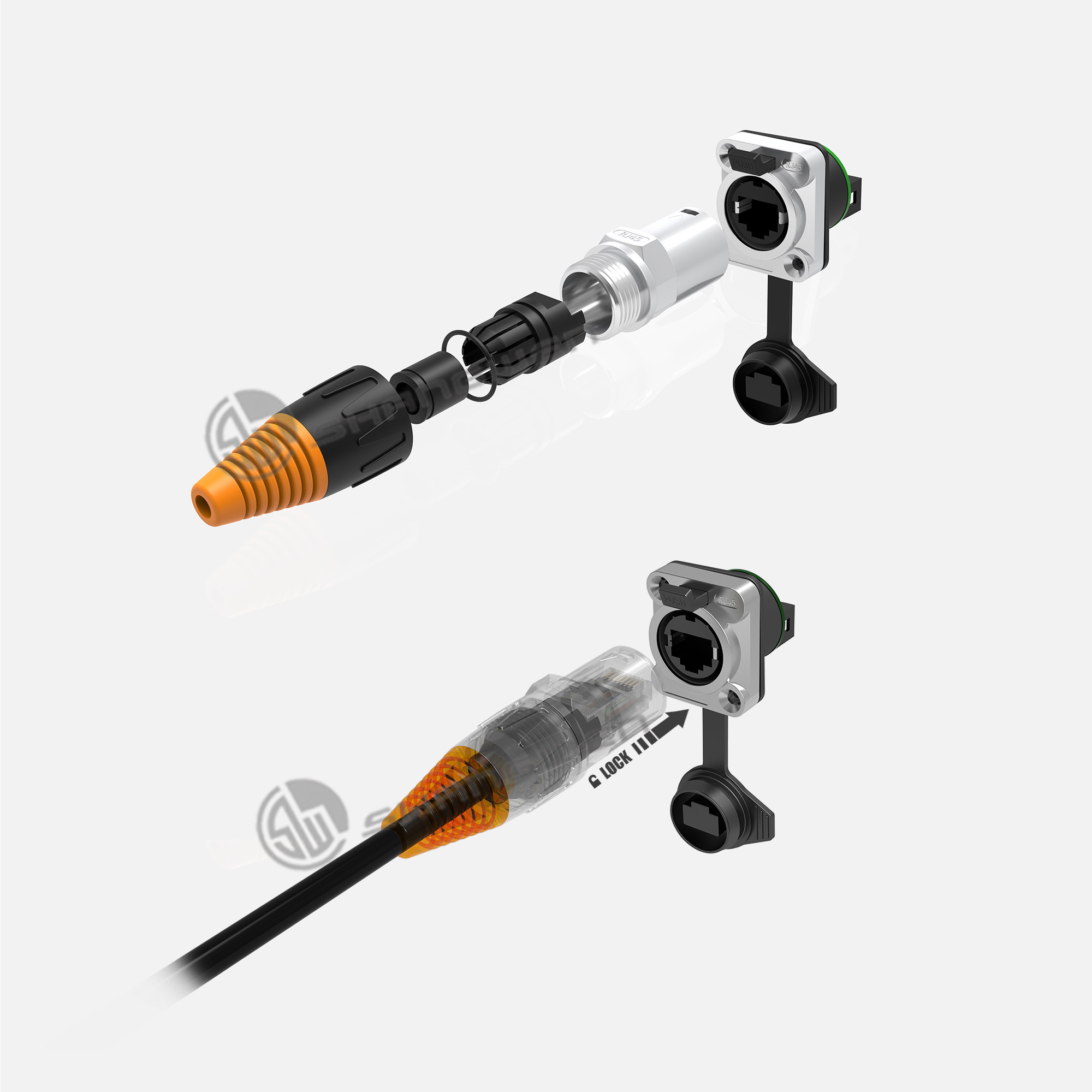

6. Installation instructions with SW8MC-B plugs
Rj45 Socket Outdoor 8 Pin Female Plug ethernet chassis connector CAT5\6 6

Application area
Rj45 Socket Outdoor 8 Pin Female Plug ethernet chassis connector CAT5\6 7
Company Information
Rj45 Socket Outdoor 8 Pin Female Plug ethernet chassis connector CAT5\6 8
Patent & Certification
Rj45 Socket Outdoor 8 Pin Female Plug ethernet chassis connector CAT5\6 9
Exhibition activities
Rj45 Socket Outdoor 8 Pin Female Plug ethernet chassis connector CAT5\6 10
Packaging reference
Rj45 Socket Outdoor 8 Pin Female Plug ethernet chassis connector CAT5\6 11
Payment and logistics
Rj45 Socket Outdoor 8 Pin Female Plug ethernet chassis connector CAT5\6 12
FAQ
Rj45 Socket Outdoor 8 Pin Female Plug ethernet chassis connector CAT5\6 13
1. Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2. What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3. Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4. Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.
