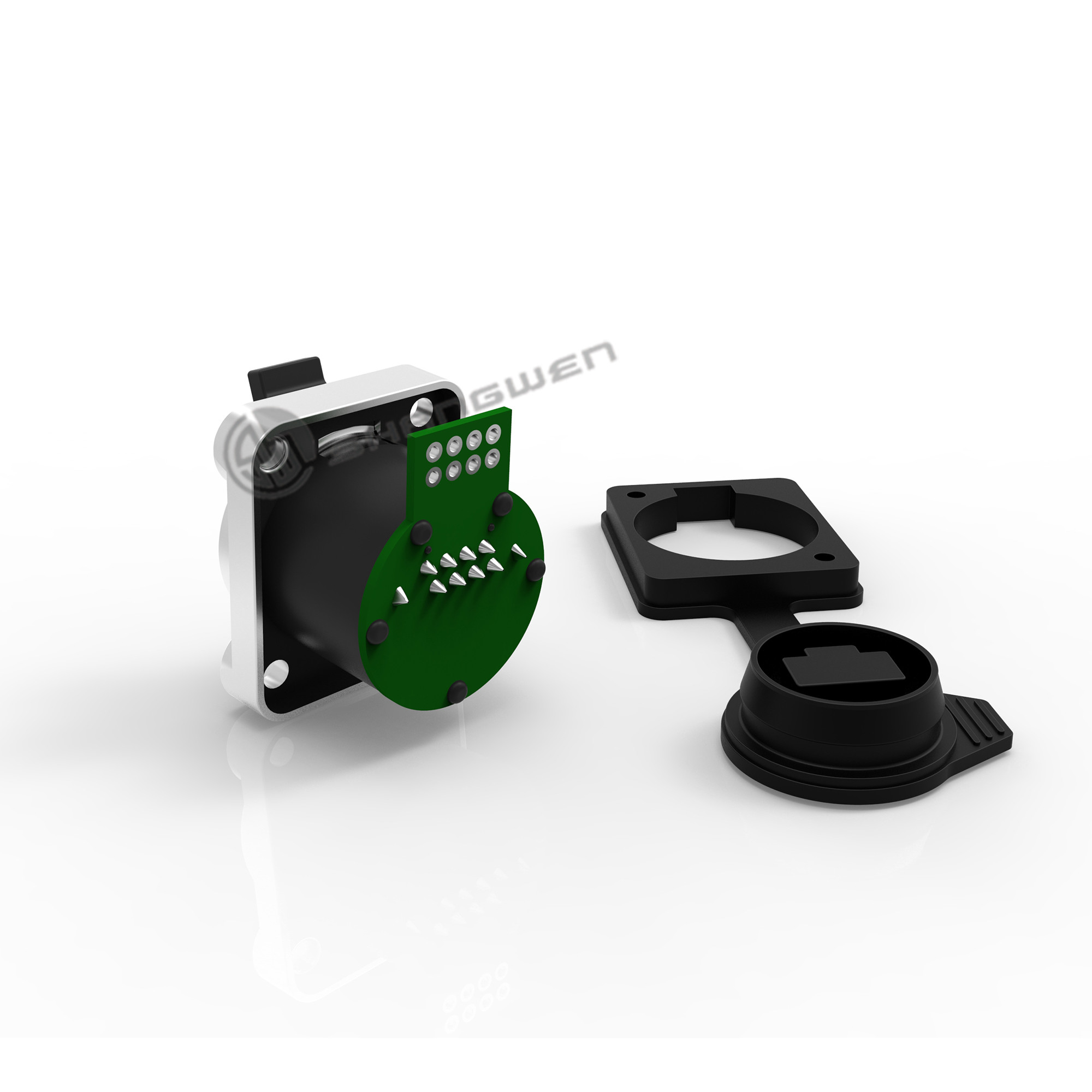

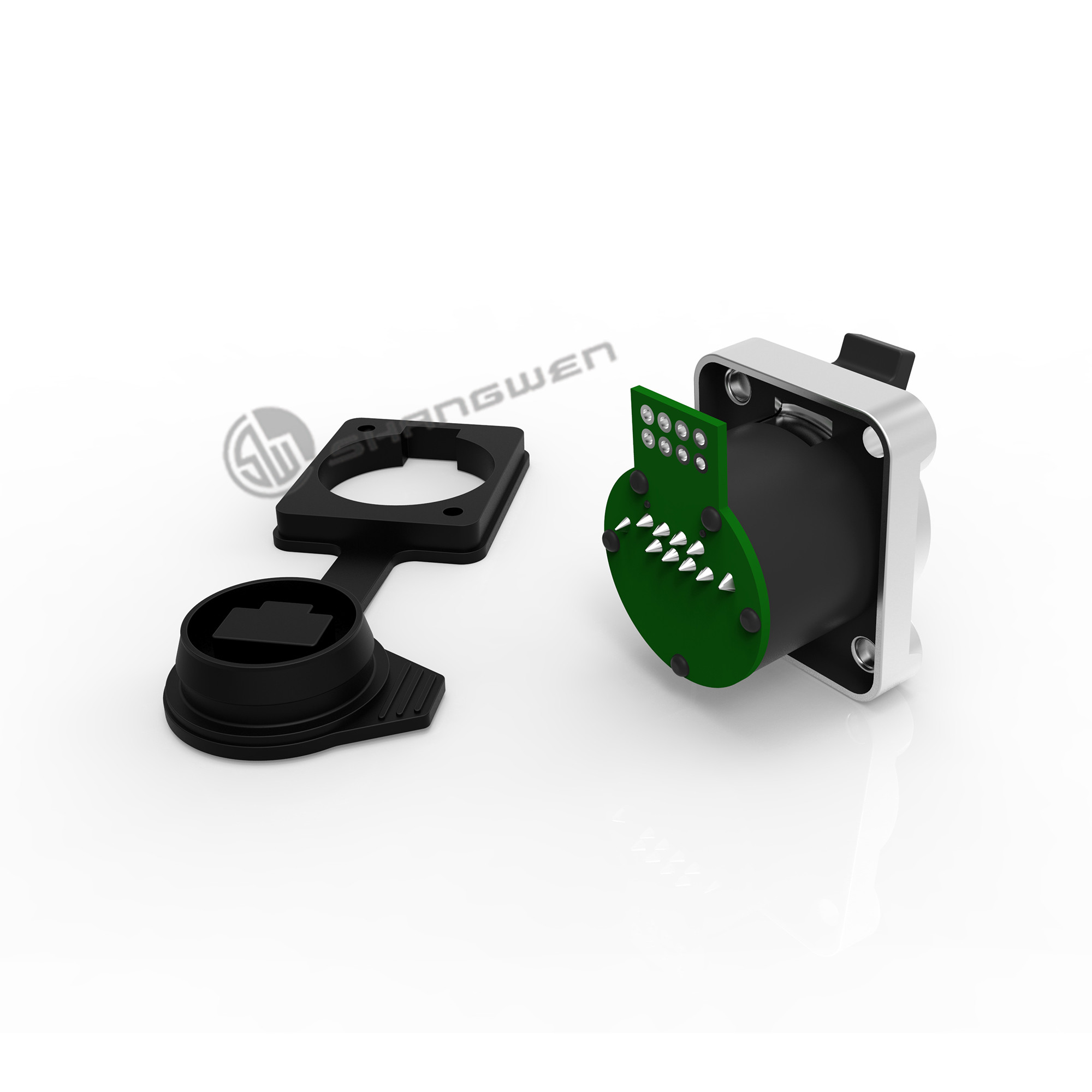

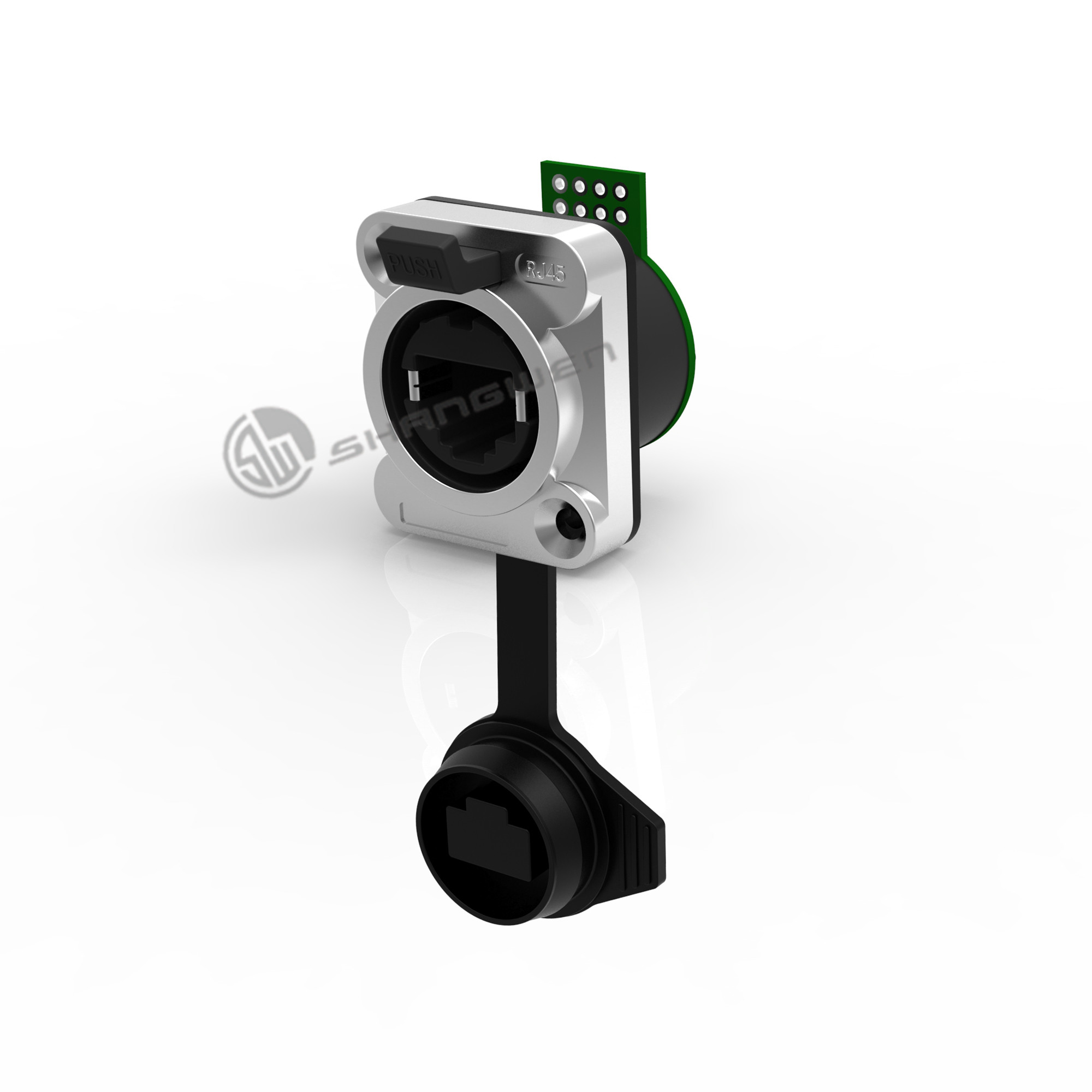

Custom Female Panel Mount Connector Industrial Rj45 IP65 Connector

Place of Origin	Guangdong, China
Brand Name	SHANGWEN
Model Number	SW8XLB-B-2
Minimum Order Quantity	10
Price	$2.50 - $3.60/pieces
Packaging Details	10pcs/sample bag<br>25pcs/Blister box(23cm x 23cm)<br>500pcs/carton (51cm x 26cm x 34cm)

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Type	RJ45 Socket	Application	Ethernet
Gender	Female	Industrial Electronics	Accessories
Name	Ethernet Chassis Connector	Feature	Waterproof
Highlight	Custom Female Panel Mount Connector , Female Panel Mount Connector Industrial , Rj45 IP65 Connector

Leave a Message

Product Description

Custom Industrial Ethernet Plug Ip65 Waterproof Rj45 Indoor Female Panel Mount Connectors row type

Products Description

Signal connector series-RJ45 connector

Product specifcations:

1. RJ45 ethernet connector waterproof

2, Waterproof Rating :IP67

3: Material comply with RoHs,UL, CE,

4: Cable: Cat.5E

5: convenient to use, OEM provided

Model:SW8XLB-B-2(outdoor use)

*The rear end is double row type, IP65*

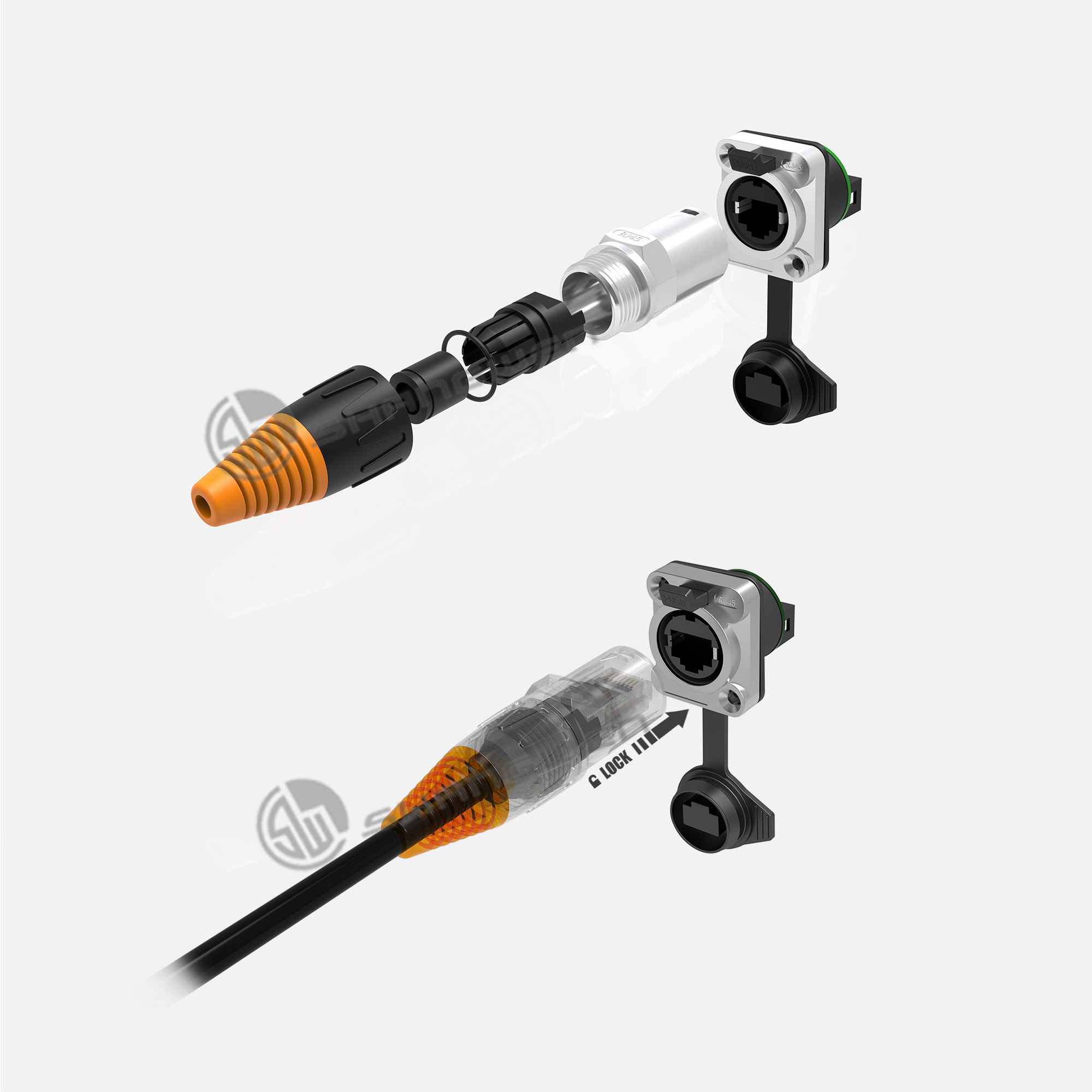

☑Can be compatible with SW8MC-B or any standard RJ45 connector

☑D style with uniform metal flange, standard D mounting size

☑All sockets are equipped with waterproof gaskets. With the installation of gaskets, the protection grade of IP65 can be reached, which can fully meet the durable and stable signal transmission under harsh outdoor conditions

☑The back-end can be flexibly modified according to actual requirements

☑Sockets are rated D according to TIA/EIA568B and ISO/IEC11801 standards

☑D style, can be mounted from front or rear panel

☑The transmission grade reaches CAT5e and is compatible with transmission grades below 5E

☑With shielding function

Our Services:

To Be Your The Best Connection Expert

1)Low cost but good quality in ip65 waterproof in locked condition with ISO9001 management under efficient service

2) Provide free samples

3) Effective communication and rapid response

4) Early design-in capability,OEM, ODM are available

5) Globalization, localization of operation and management

6) long quality assurance.

1. Electrical parameters

Contact resistance	＜10mΩ
Rated current	1.5 A
Rated voltage	50 V
Insulation resistance	≥0.5GΩ
Dielectric strength	1KV DC
Frequencyrange	1-100 MHz
Transmission performance	CAT 5e

2. Mechanical parameters

Service life	＞1000 times
Insertion force	≤ 20 N
Locking device	latch lock
Chassis shape	D

3. Material and environmental parameters

Shell	Zinc diecast (ZnAl4Cu1)
Contacts	Bronze
Socket	PBT
Contact surface	Au
Shell surface	Pearl Cr
Temperature range	-30℃to +80℃

4.Size reference (unit /mm)

5.Internal structure reference

Company Information

Patent & Certification

Exhibition activities

Packaging reference

Payment and logistics

1. Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2. What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3. Can your products pass CE/ROHS certificate?
A: Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4. Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5. What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6. Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
