IP44 Indoor Circular Power Connector Male Plug Powercon Electrical

Place of Origin Guangdong, China
Brand Name SHANGWEN
Model Number SW3FCA
Minimum Order Quantity 2 pieces
Price $1.10 - $2.00/pieces
Packaging Details 10pcs/sample bag<br>25pcs/Blister box(23cm x 23cm)<br>500pcs/carton (51cm x 26cm x 34cm)

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Indoor Circular Power Connector Type Led Display Connector
Application Power Gender Male
Industrial Electronics Accessories
Highlight

Ip44 Circular Power Connector

,

Indoor Circular Power Connector

,

Male Plug Powercon

Leave a Message
Product Description





China Sales Lockable Triple Core Input Port Ip44 Indoor Powercon Male Plug Power Connector





Application

Applied to space, aviation, navigation, field operations, combat vehicles, automotive power, post and telecommunications, railway command system and other electrical and electronic connections



IP44 Indoor Circular Power Connector Male Plug Powercon Electrical 0

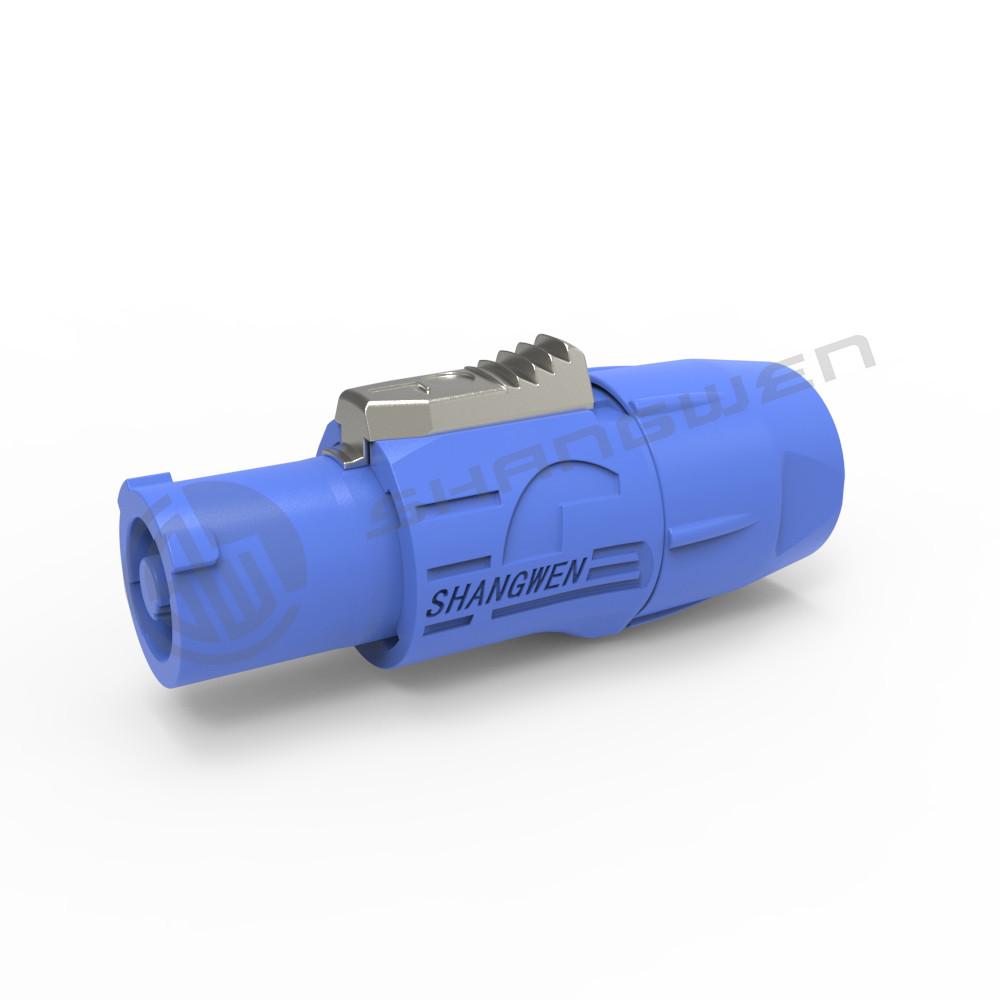

Model: SW3FCA(indoor use/blue input)



☑Use different color design to distinguish signal input and output, blue input, white output

☑Using left and right positioning connection design, can effectively prevent short circuit caused by misplug

☑ Lockable triple core equipment (AC) connectors with contacts for straight, neutral and pre-adapted safety grounding ☑high current capacity, rated at 20A/250V AC ☑ Quick and simple locking system, the keys are firm and do not fall off

☑Quick, simple locking system

☑Connect reliably

☑The inner core is designed to prevent the copper needle from withdrawing from the inner core due to excessive pulling force



☑ Connection mode:

1. Screw clamping and welding

2. Lock the cable with screws

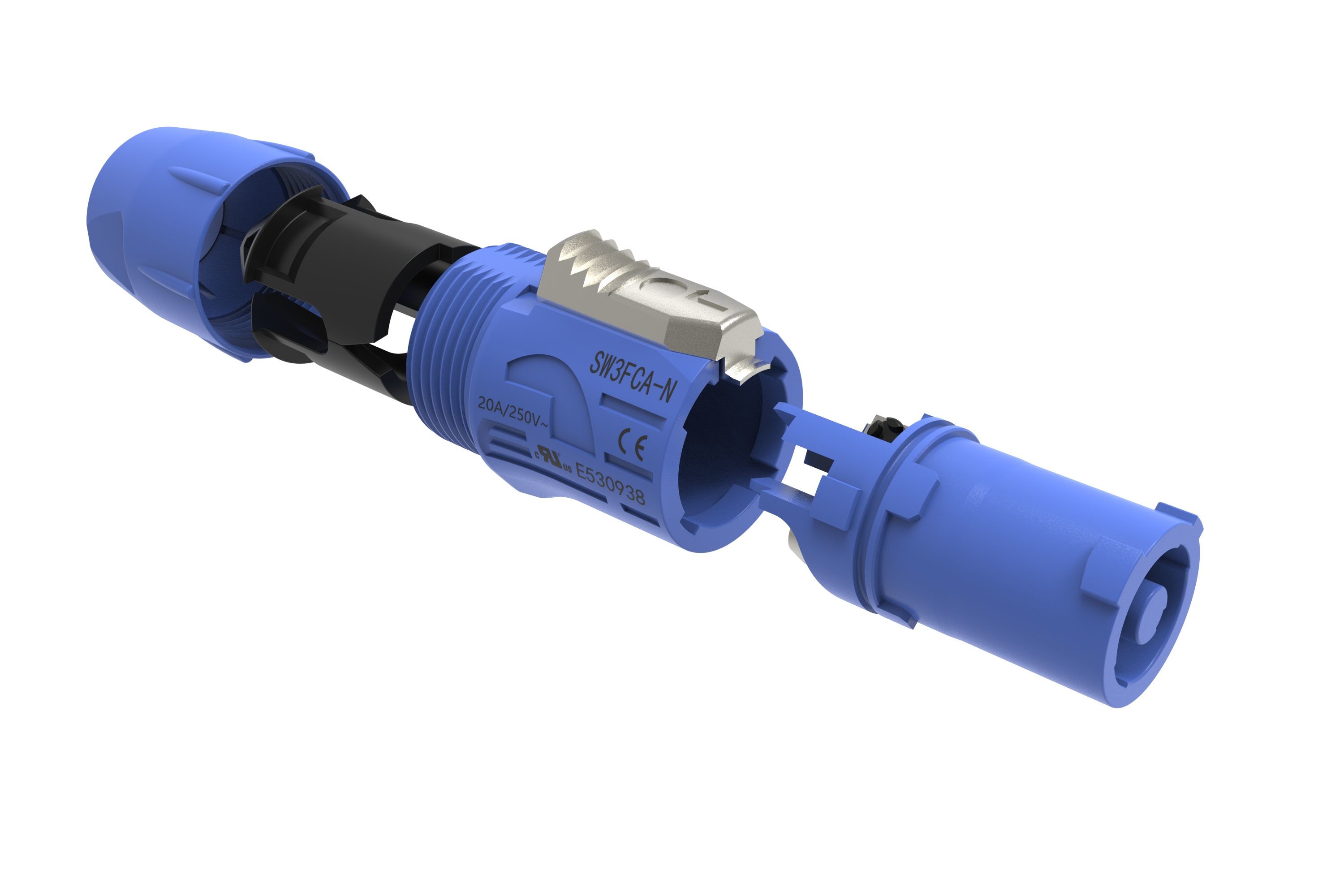

IP44 Indoor Circular Power Connector Male Plug Powercon Electrical 1







SW3FCB

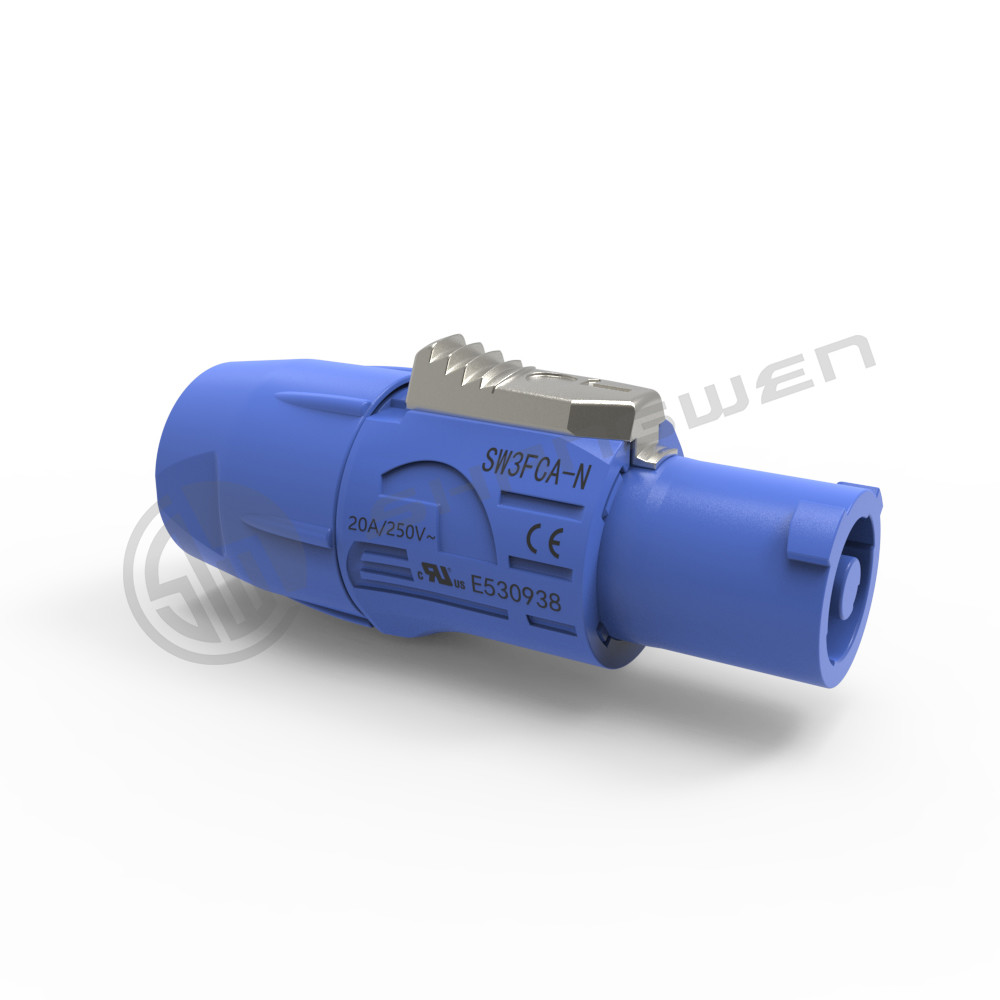

IP44 Indoor Circular Power Connector Male Plug Powercon Electrical 2

SW3FCB

1. Electrical parameters





Contacts NO. 2+PE
Rated current 20A
Rated voltage 250V AC
Contact resistance ≤5mΩ
Dielectric strength 4000V DC
Insulation resistance >1000MΩ





2 .Mechanical parameters





Service life >1000 times
Power line 2.5mm²(8mm - 12mm)
Wire stripping length 7-8mm
Type of teminals Screw type clamping units solder termination







3. Material and environmental parameters




Shell PA
Contacts Cu alloy
Contact surface Ag
Flame-retardant grade UL94-V0
Protection grade IP44
Temperature range -30°C to +80°C


4. Size reference

IP44 Indoor Circular Power Connector Male Plug Powercon Electrical 3

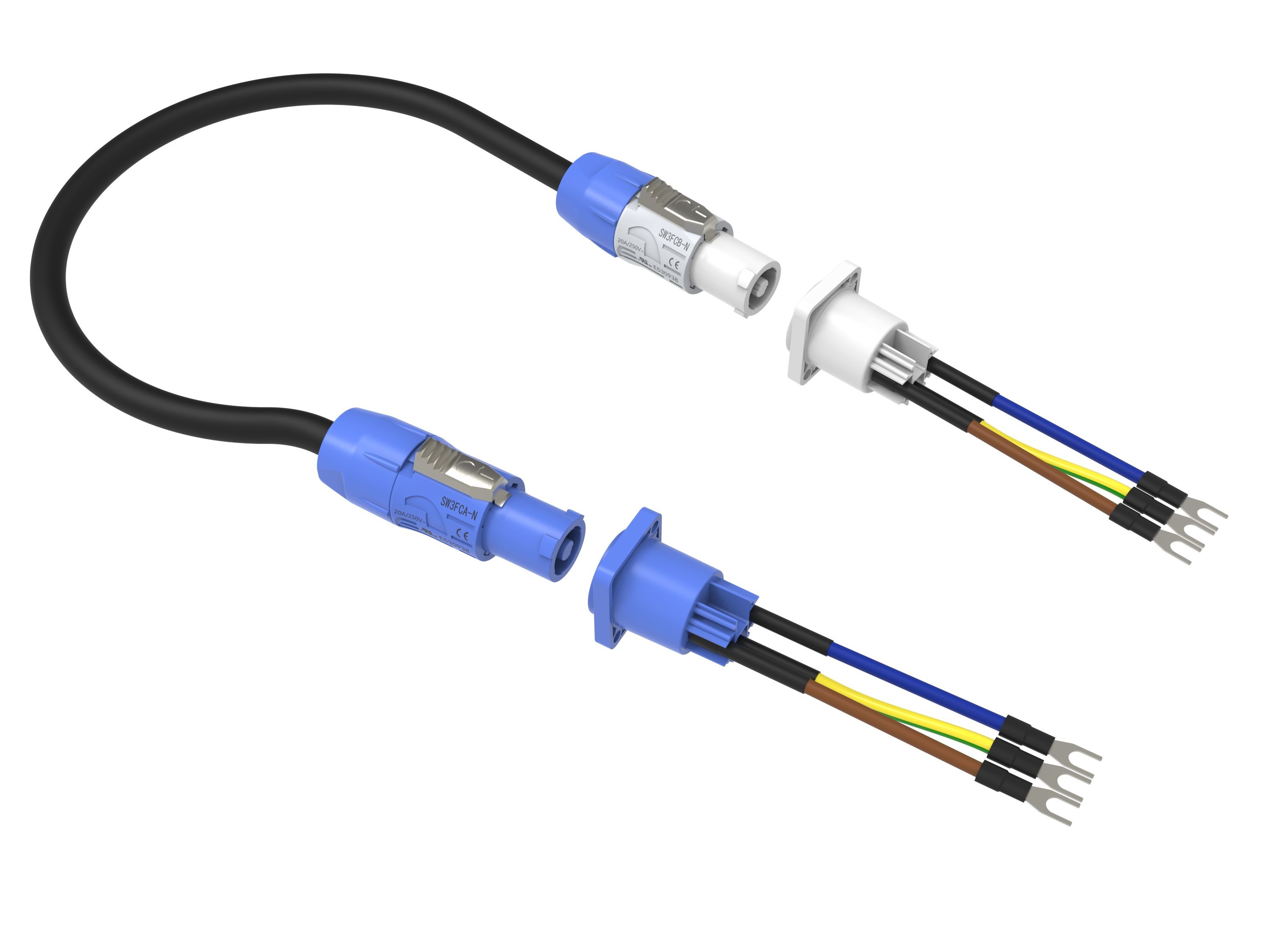

5. Installation reference drawing

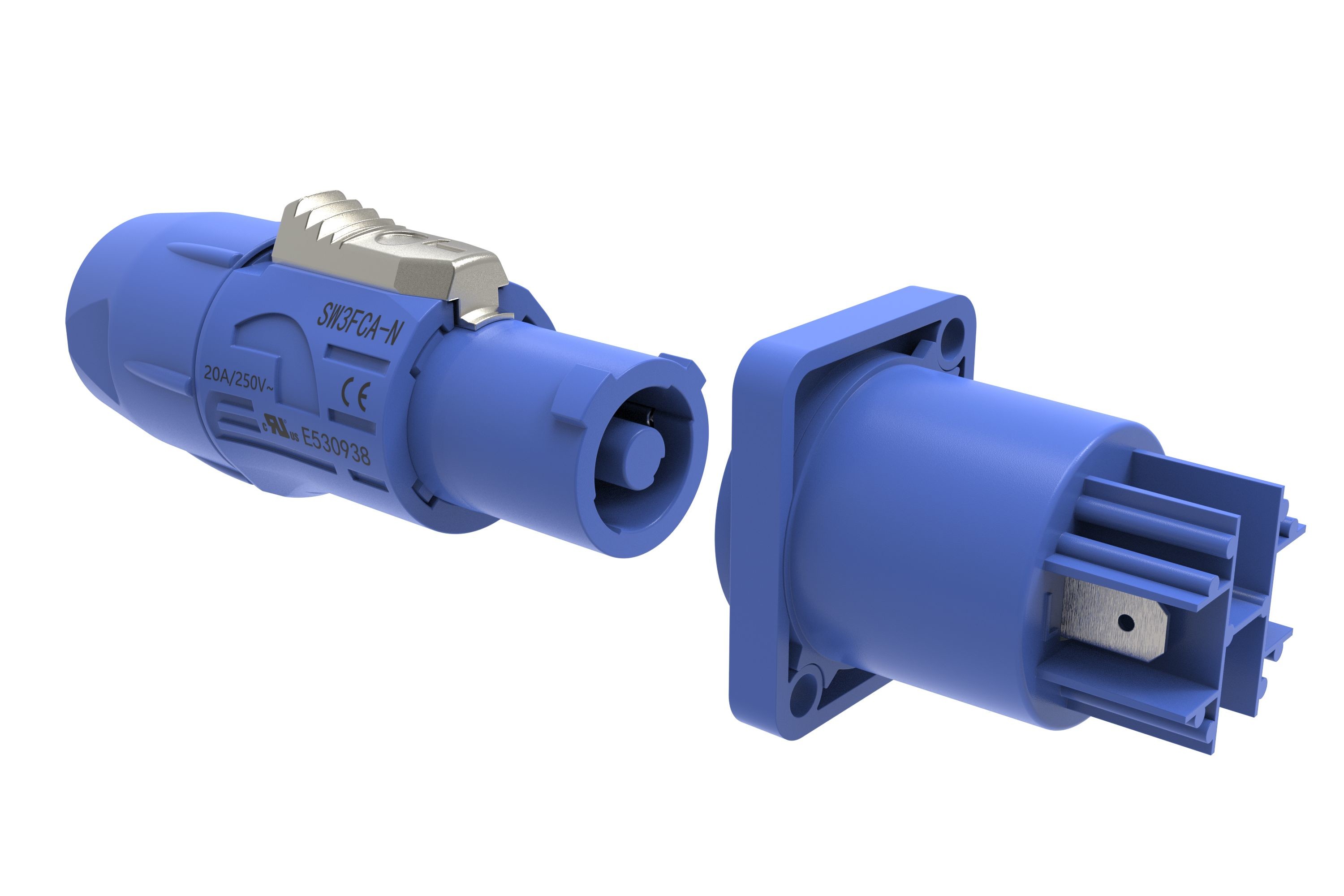

IP44 Indoor Circular Power Connector Male Plug Powercon Electrical 4

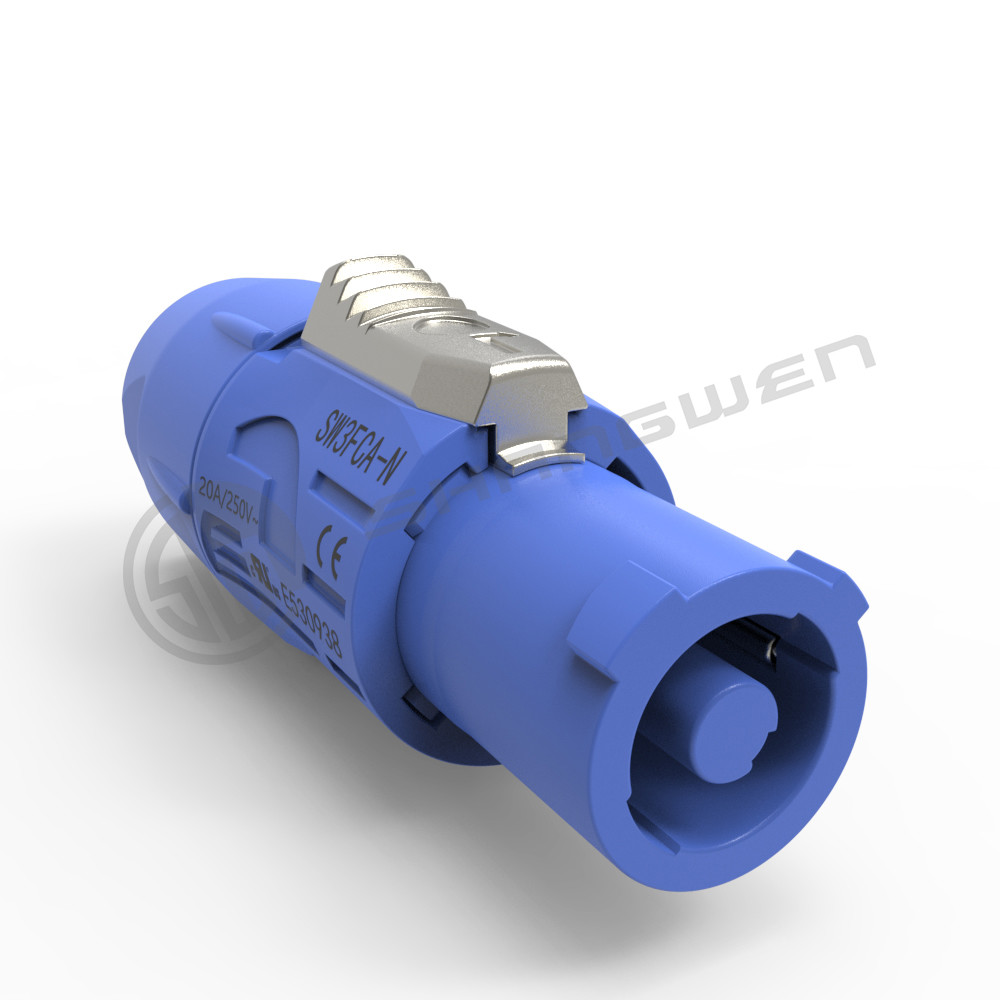

IP44 Indoor Circular Power Connector Male Plug Powercon Electrical 5



Application area

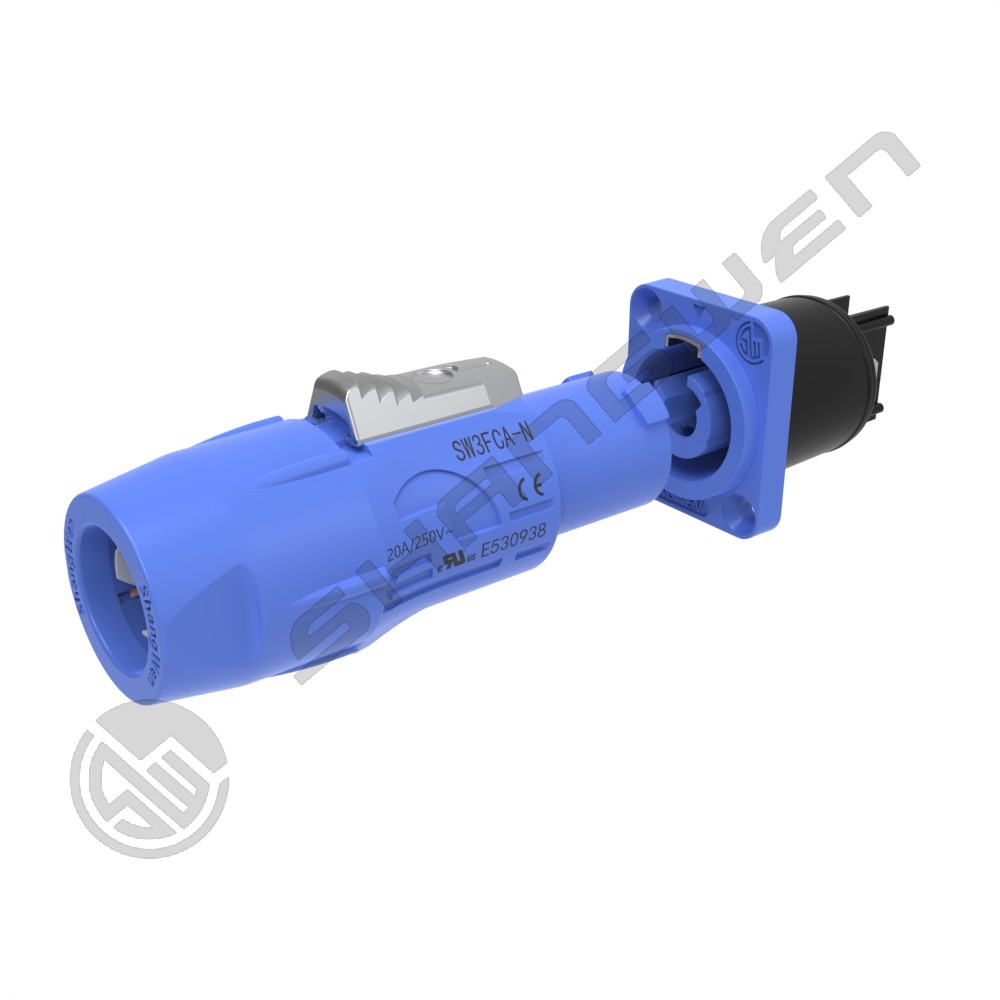

IP44 Indoor Circular Power Connector Male Plug Powercon Electrical 6
