Ip65 Electrical Waterproof Power Connector Female Chassis Connector

Place of Origin Guangdong, China
Brand Name SHANGWEN
Model Number SW3MF-Z
Minimum Order Quantity 2 pieces
Price $2.90/pieces
Packaging Details 10pcs/sample bag<br>25pcs/Blister box(23cm x 23cm)<br>500pcs/carton (51cm x 26cm x 34cm)

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Waterproof Power Connector Type Led Display Connector
Gender Female Application Power
Model SW3MF-Z Industrial Electronics Accessories
Highlight

Electrical Waterproof Power Connector

,

Waterproof Power Connector Female

,

Ip65 Electrical Power Connector

Leave a Message
Product Description

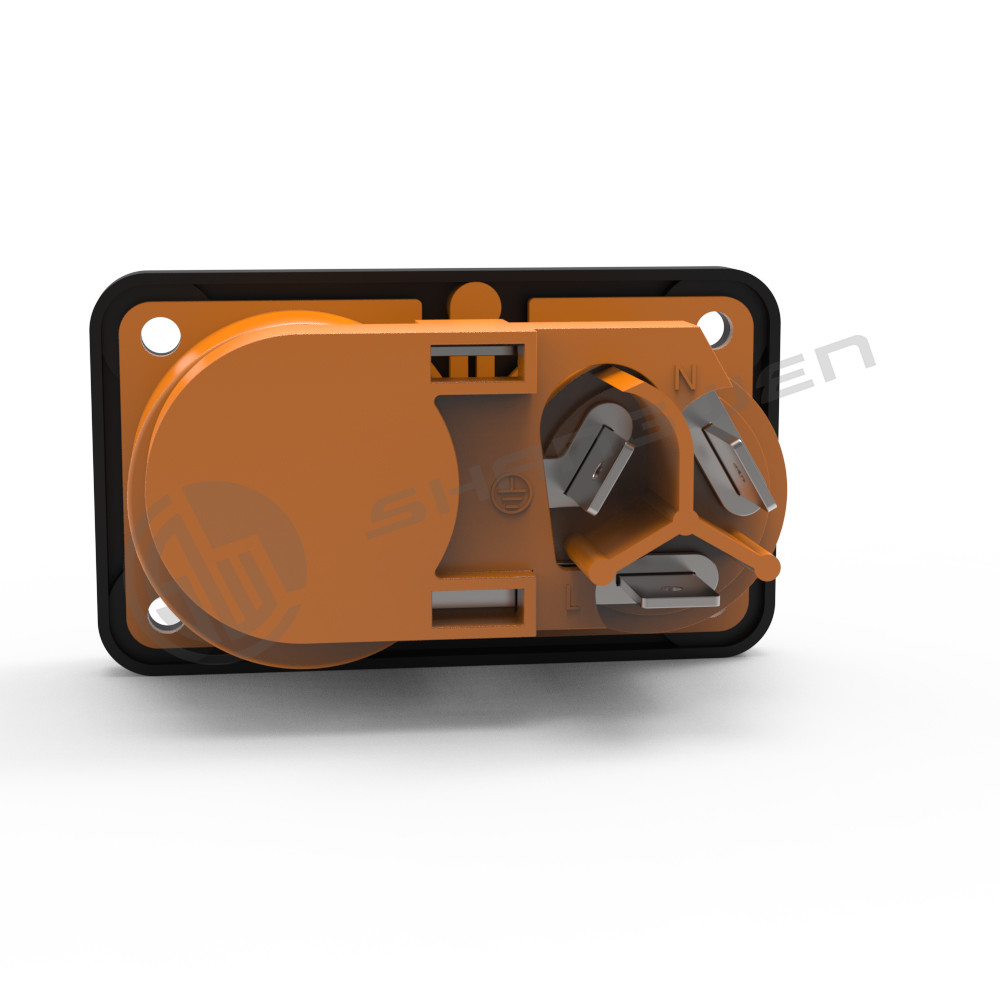

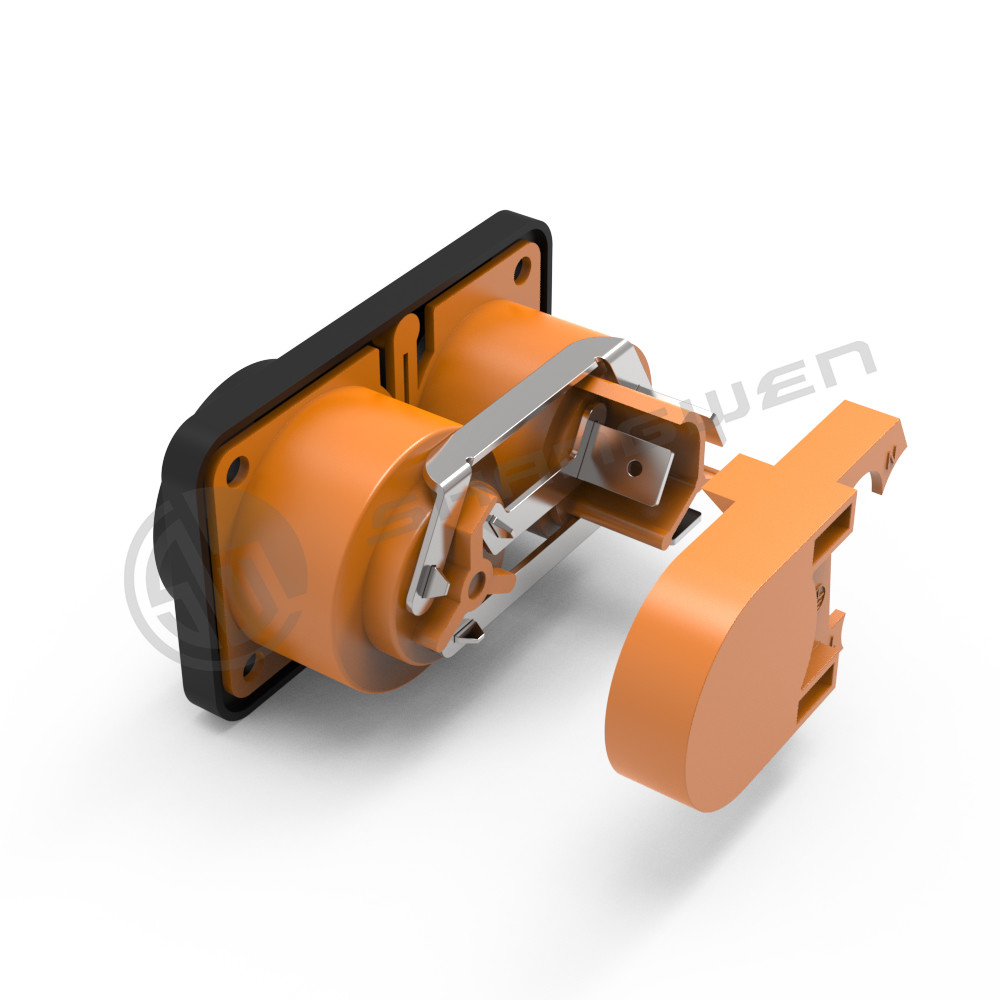

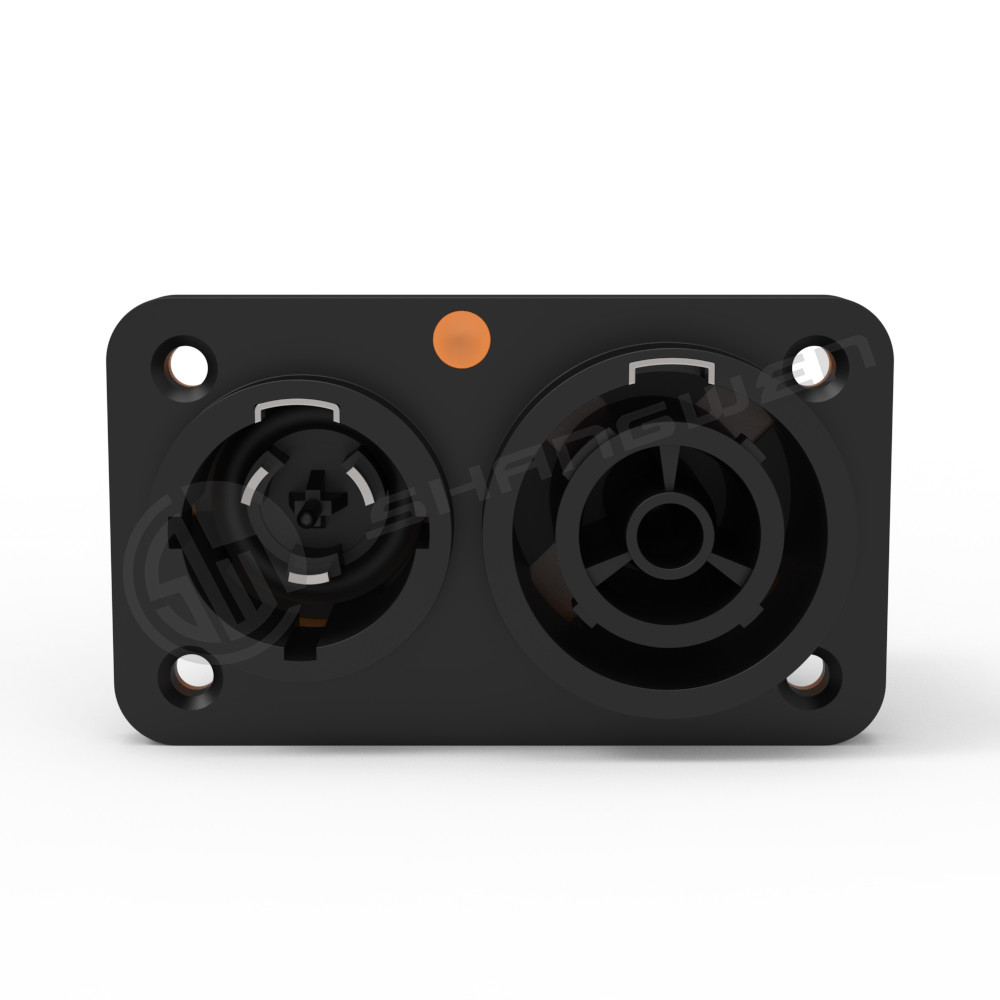

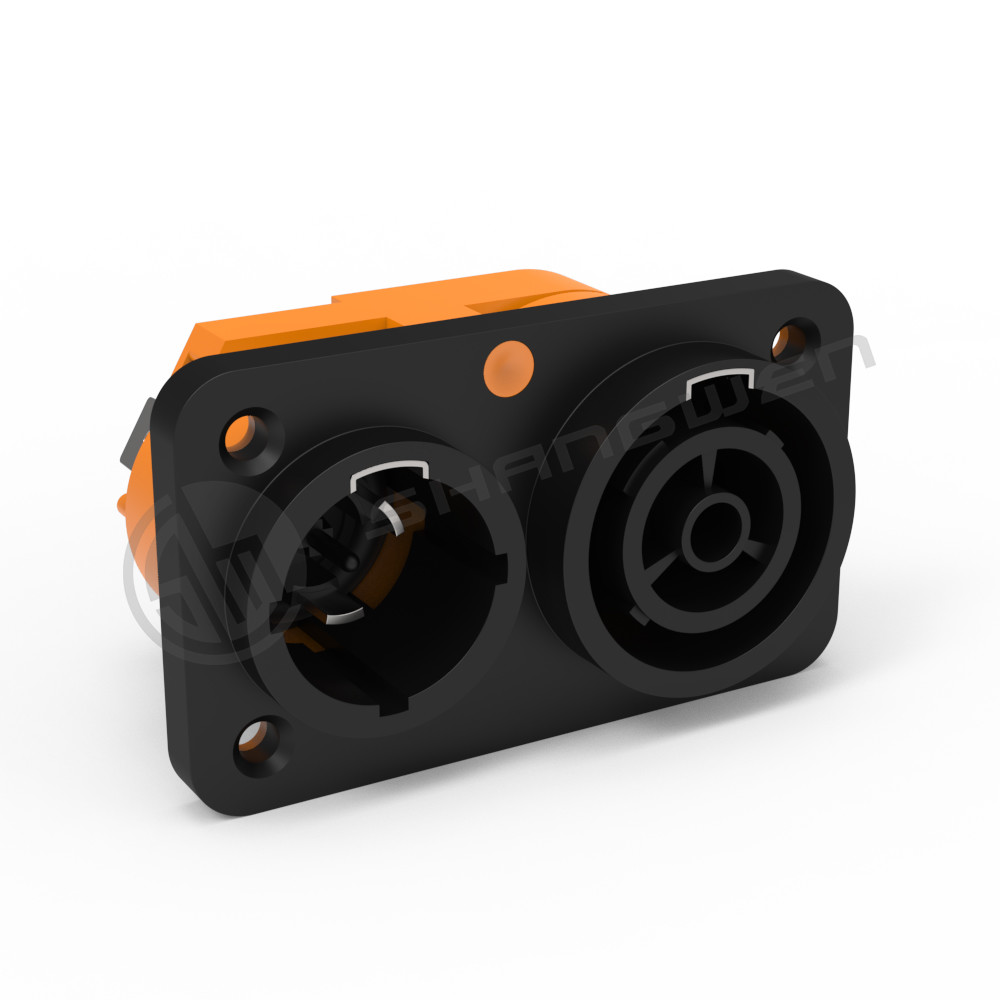

p65 Outdoor Lockable Triple Core 2 In 1 Power Female Chassis Connector For Electrical Connection



Products Description
Power connector series-female powercon(output port)


This series is widely used in outdoor rental LED display power connection.
The new upgraded model not only supports male and female inserts, but also supports male plug and male plug inserts
The plastic part is made of PA6 material, with stable electrical performance, good pressure resistance, high temperature
resistance, explosion resistance and corrosion resistance.
The copper needle is made of beryllium copper material imported from the United States and plated with silver, which has strong contact stability and can strengthen the control of temperature rise.
Using rotary locking design, easy to operate, stable and reliable !



Model : SW3MF-Z( outdoor use/output port )



☑The product is a new upgraded generation of power connectors, widely used in outdoor conditions for electrical connection
☑Lockable triple core equipment (AC) connectors with contacts for straight, neutral and pre-adapted safety grounding
☑High current capacity, rated at 20A/250V AC
☑Quick and simple locking system, the keys are firm and do not fall off
☑Connection mode:

1. Screw clamping and welding
2. Lock the cable with screws
☑Protection level: used in outdoor scenes, protection level up to IP65
☑Connect reliably
☑Use different color design to distinguish signal input and output, yellow input, black output
☑Using left and right positioning connection design, can effectively prevent short circuit caused by misplug
☑The inner core is designed to prevent the copper needle from withdrawing from the inner core due to excessive pulling force




1. Electrical parameters

Contacts NO.
2+PE
Rated current
20A
Rated voltage
250V AC
Contact resistance
≤5mΩ
Dielectric strength
4000V DC
Insulation resistance
>1000MΩ
2. Mechanical parameters
Service life
>1000 times
Power line
2.5mm²(8mm - 12mm)
Wire stripping length
7-8mm
Type of teminals
Screw type clamping units solder termination

3. Material and environmental parameters
Shell
PA
Contacts
Cu alloy
Contact surface
Ag
Flame-retardant grade
UL94-V0
Protection grade
IP65
Temperature range
-30°C to +80°C
4. Size reference (unit /mm)
