Male 3 Pin Waterproof Power Connector Outdoor With Black Output

Place of Origin	Guangdong, China
Brand Name	SHANGWEN
Model Number	SW3FCB-WN
Minimum Order Quantity	10
Price	$1.40 - $2.60/pieces
Packaging Details	10pcs/sample bag<br>25pcs/Blister box(23cm x 23cm)<br>500pcs/carton (51cm x 26cm x 34cm)

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Type

Led Display Connector

Application

Power

Gender

Male

Industrial Electronics

Accessories

Highlight

Male Waterproof Power Connector

Waterproof Power Connector Outdoor

3 Pin Power Connector Black

Leave a Message

Product Description

Shangwen Outdoor Use Powercon Ip65 Connectors Black Output 3 Pin Male Power Connector

Ip65 Outdoor Triple Core Waterproof AC Power Adaptor Lockable Plastic and Alloy Male and Female Connectors for LED Display

Products Description

Power connector series-male powercon(output port)

This series is widely used in outdoor rental LED display power connection.
The plastic part is made of PA6 material, with stable electrical performance, good pressure resistance, high temperature
resistance, explosion resistance and corrosion resistance.
The copper needle is made of beryllium copper material imported from the United States and plated with silver, which has strong contact stability and can strengthen the control of temperature rise.
Using rotary locking design, easy to operate, stable and reliable !

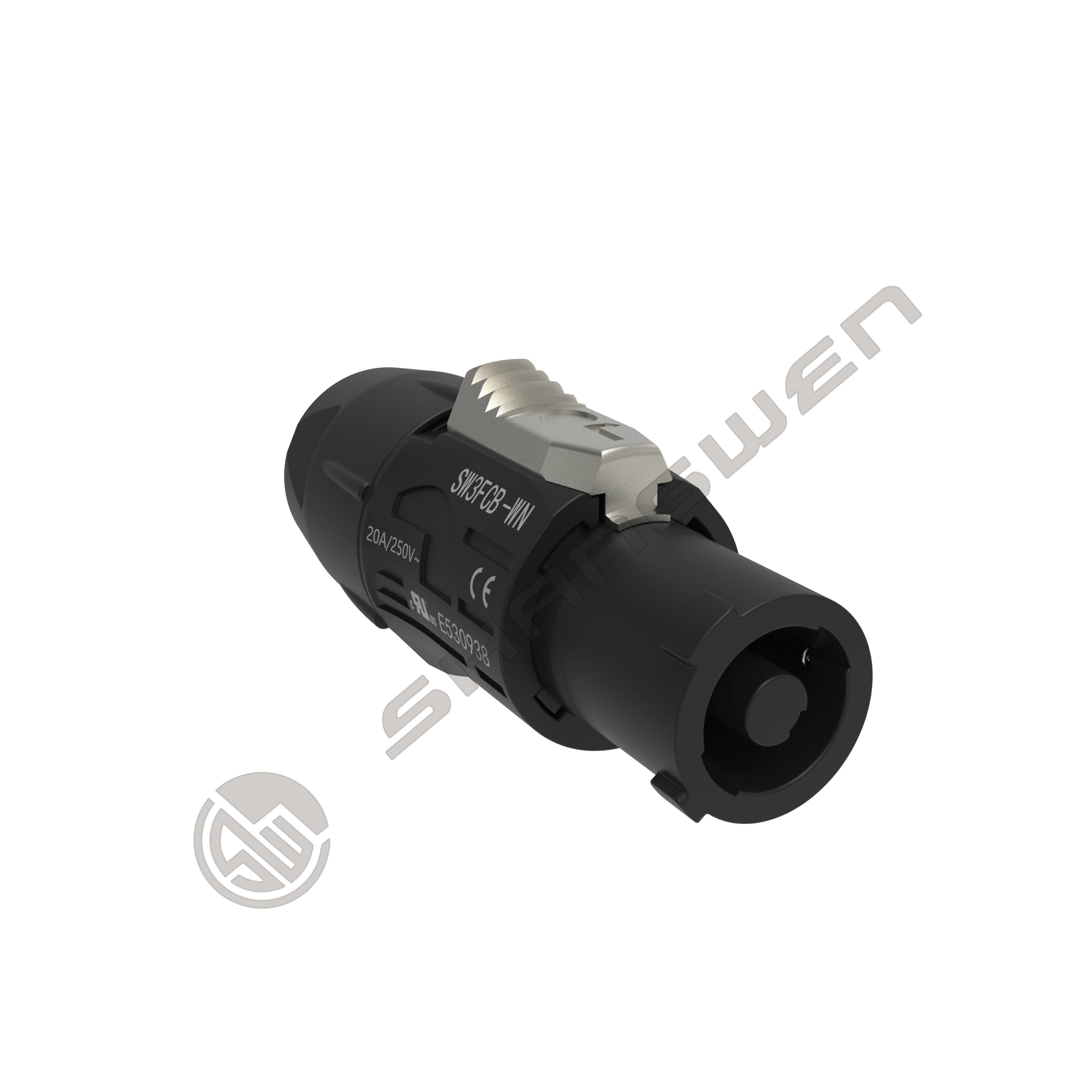

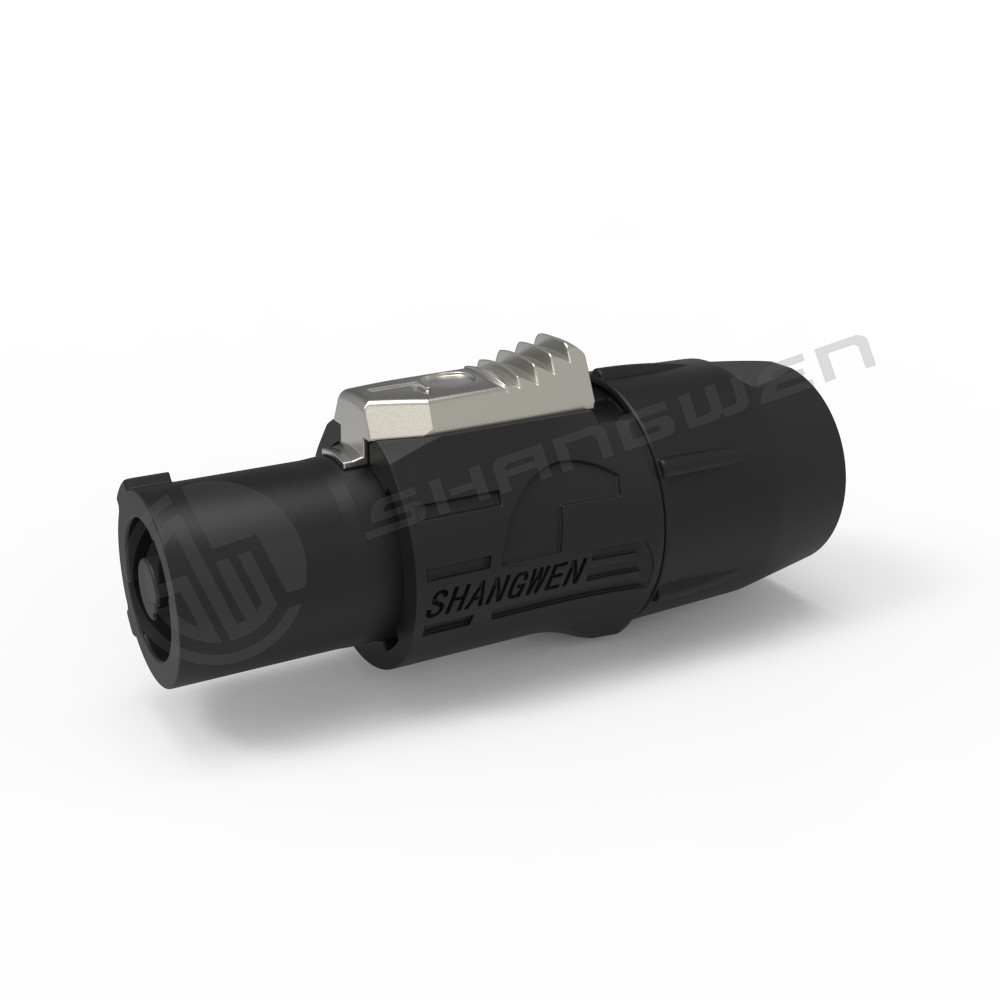

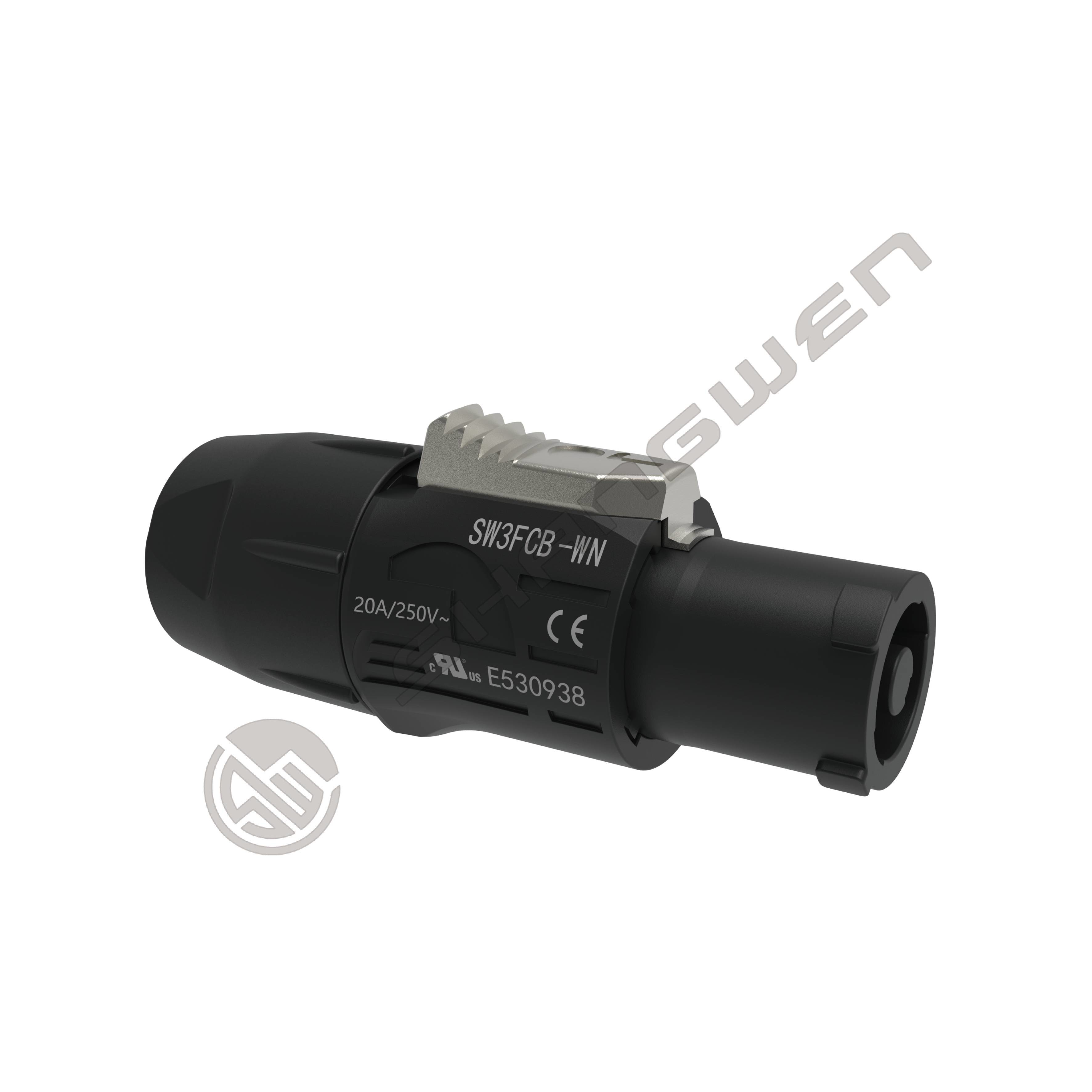

Model : SW3FCB1-W ( outdoor use/black output )

☑high current capacity, rated at 20A/250V AC
☑Quick and simple locking system, the keys are firm and do not fall off

☑Lockable triple core equipment (AC) connectors with contacts for straight, neutral and pre-adapted safety grounding
☑Connection mode:

1. Screw clamping and welding
2. Lock the cable with screws

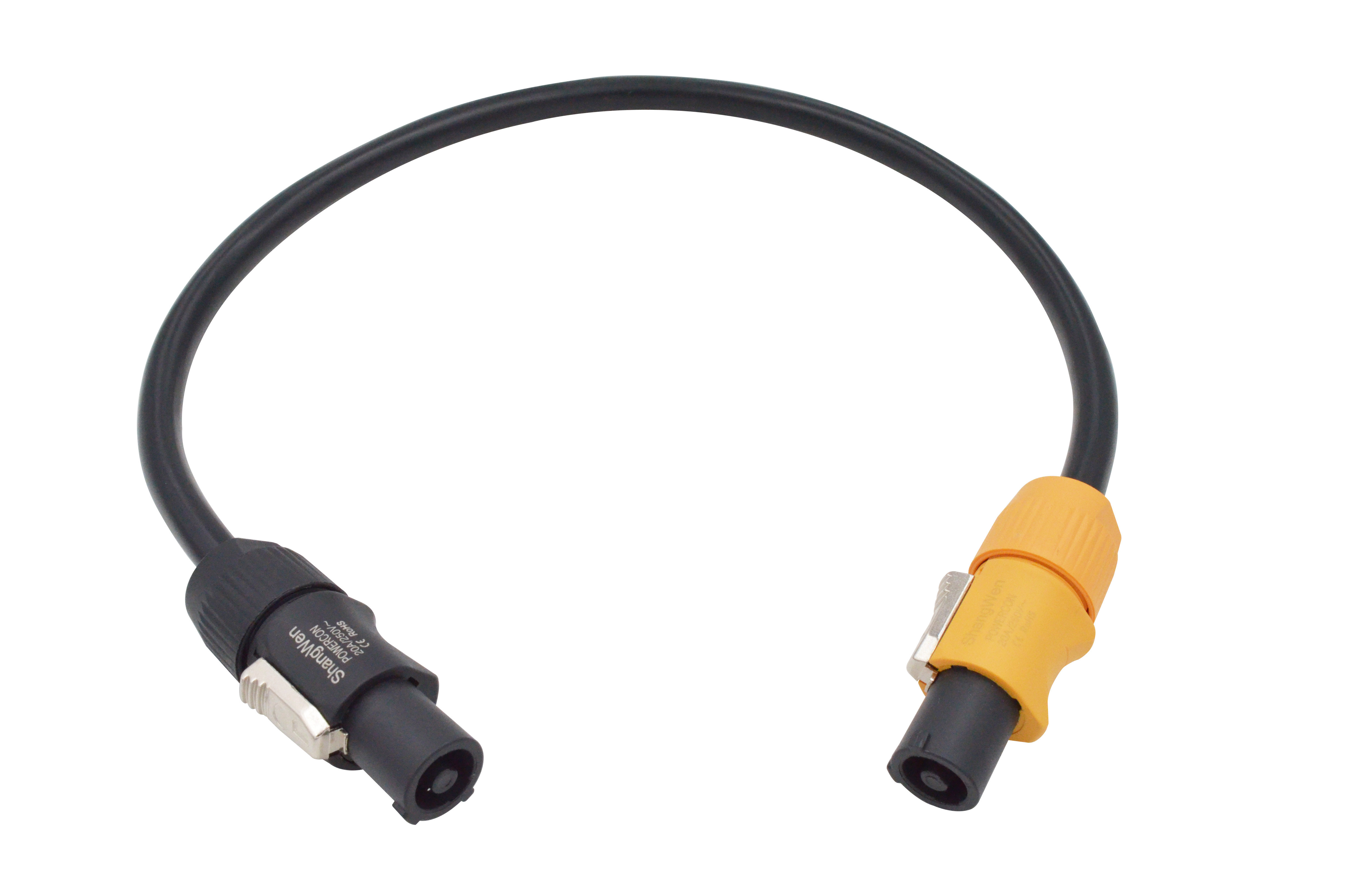

☑Use different color design to distinguish signal input and output, yellow input, black output
☑Using left and right positioning connection design, can effectively prevent short circuit caused by misplug

☑Quick, simple locking system
☑Connect reliably
☑The inner core is designed to prevent the copper needle from withdrawing from the inner core due to excessive pulling force

Male 3 Pin Waterproof Power Connector Outdoor With Black Output 0

FAQ

1. What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

2. Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

3. Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

4. Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.

5. What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

6. Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.
