Sealed IP65 Waterproof Power Connector 3 Conductor Male Plug Powercon

Place of Origin China
Brand Name Shang Wen
Certification Rohs UL
Model Number SW3MX-W
Minimum Order Quantity 100pcs
Price Negotiable
Packaging Details Internal blister box 23x23cm External carton 51x26x34cm
Delivery Time 5-8 working days
Payment Terms T/T
Supply Ability 100000+pcs+per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Contacts 3pin Application For Power Connection
Gender Male/Power-out Shell Material Polyamide
Conductor Material Cu Alloy Type Of Terminals Screw Type
Connecting Mode Fast Rotating Connection IP Grade IP65
Highlight

Sealed Waterproof Power Connector

,

Waterproof Power Connector 3 Conductor

,

IP65 Power Connector

Leave a Message
Product Description

Outdoor IP65 Waterproof Powercon Male Plug 3 Conductor 20A 250V Power-Out Screw Terminals For Led Screen Cabinet





Product features

 Three connect methods:male plug to female plug,male plug to female chassis,female plug to male chassis

☑ Connect reliably



 Small size of product

 High current capacity,rated at 20A/250V AC
 Color coded for easy identification,powercon offers power-in(blue) and power-out(white) versions with different keying to avoid the possibility of intermating
IP65 waterproof grade

 Secure,quick, simple locking system
 Lockable 3 conductor equipment(AC) connector with contacts for line,neutral and pre-mating ground



SW3MX-W is widely used in outdoor LED display power connection.

With the continuous development of the entertainment industry, the demand for products with connected systems is also increasing.
The sealed connector that can be adapted for outdoor use came into being.
To this end, Shangwen has developed a new series of outdoor connectors, which includes power connectors, signal connectors and audio connectors. These rugged, sealed connectors are IP65 rated for outdoor protection.
The shell part is made of PA6 material, with stable electrical performance, good pressure resistance, high temperature resistance, explosion resistance and corrosion resistance.
The contact part is made of beryllium copper material imported from the US and plated with silver, which has strong contact stability and can strengthen the control of temperature rise.



Using rotary locking design, easy to operate, stable and reliable !

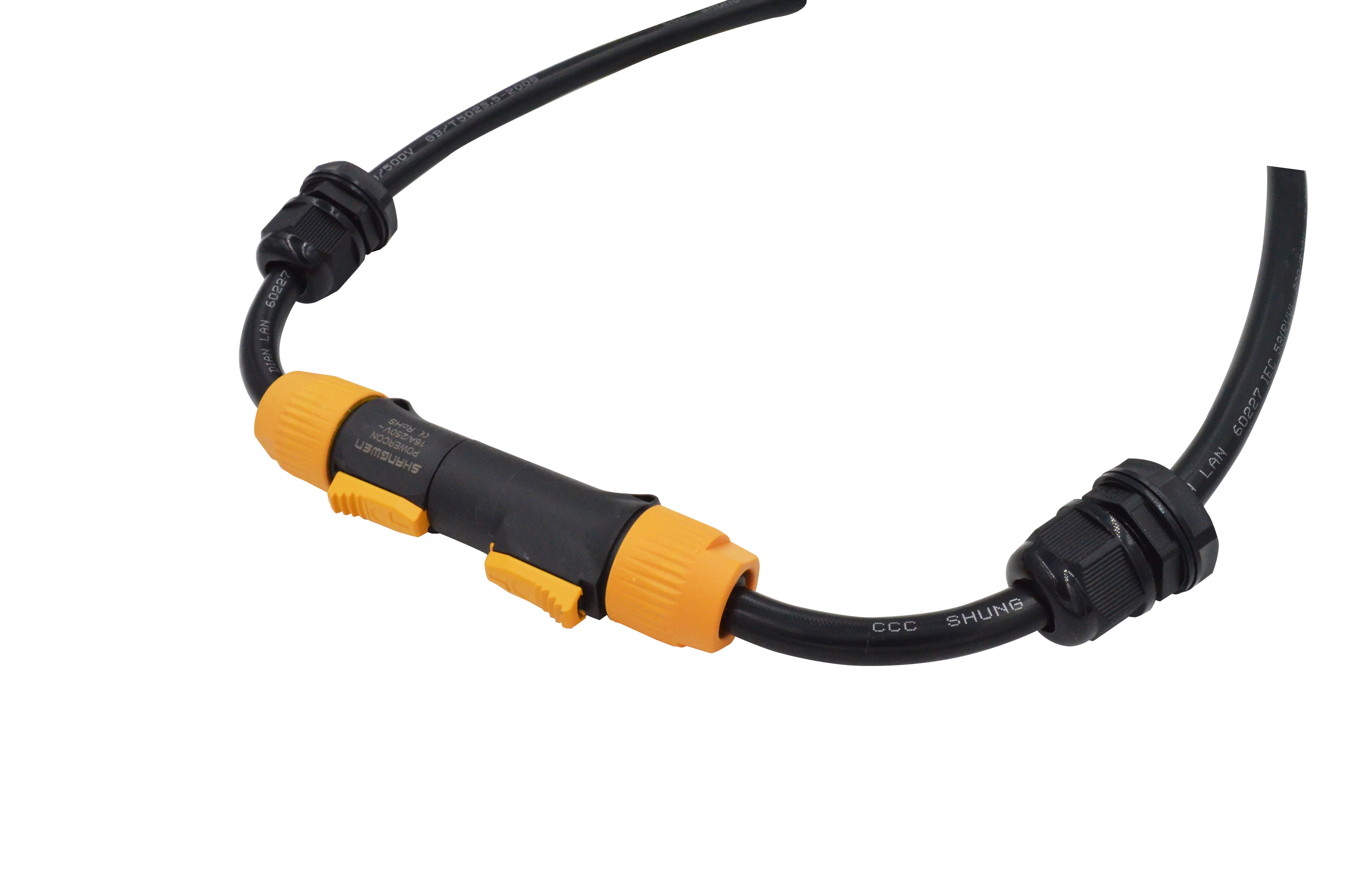

Sealed IP65 Waterproof Power Connector 3 Conductor Male Plug Powercon 0

Technical parameters

-Electrical parameters




Contacts No.                3
Rated current 20A
Rated voltage 250V AC
Contact resistance ≤5mΩ
Dielectric strength

4000V DC

Insulation resistance

>1000MΩ

- Mechanical parameters

Service life >1000 times
Power line 2.5mm²(8mm-12mm)
Wire stripping length 7-8mm
Type of terminals Screw type terminals



- Material and environmental parameters

Shell  PA
Conductor Cu alloy
Conductor surface Ag
Flame-retardant grade UL94-V0
Temperature range -30°C~+80°C
IP grade IP65



Product Profile

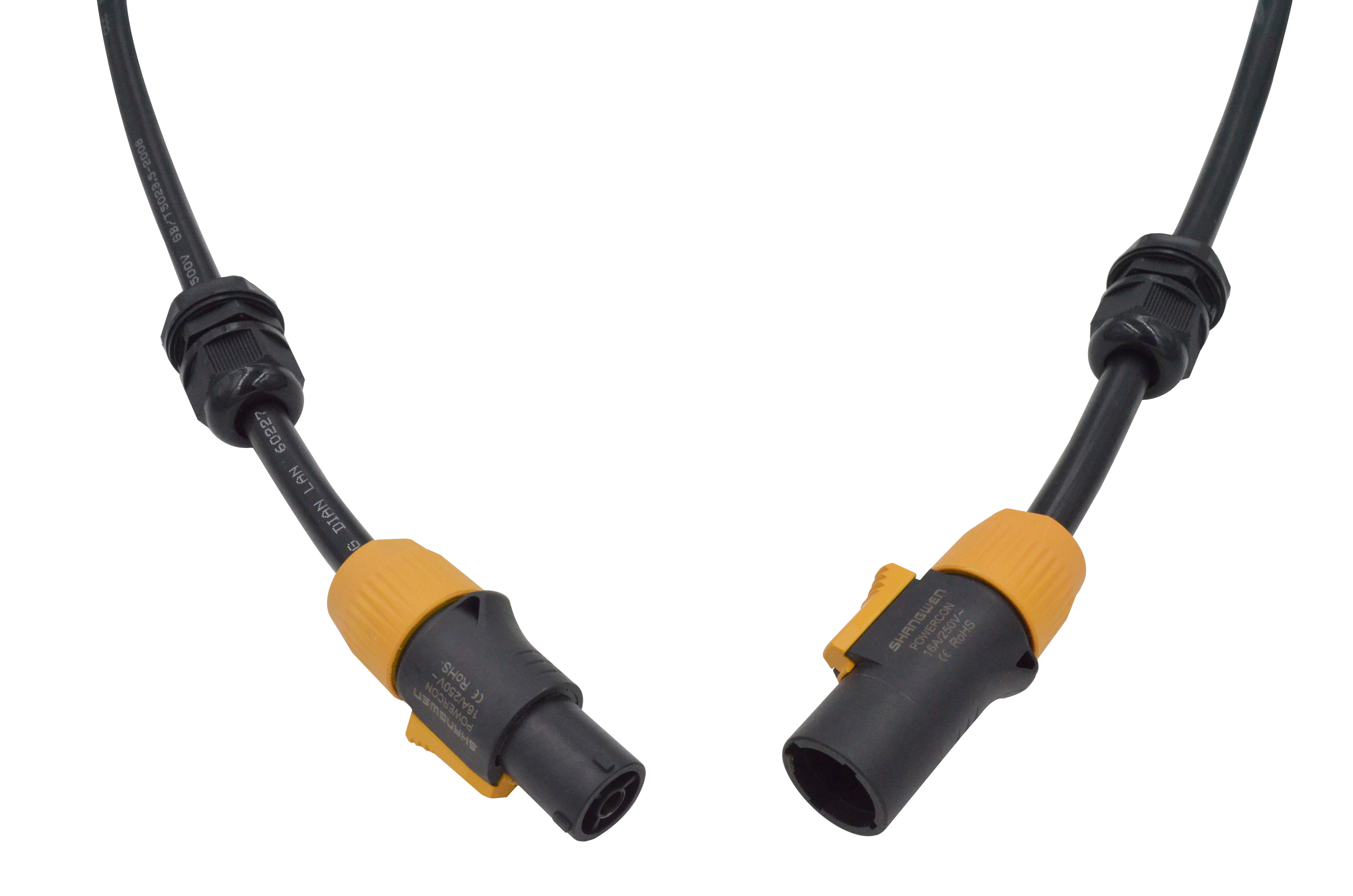

Sealed IP65 Waterproof Power Connector 3 Conductor Male Plug Powercon 1

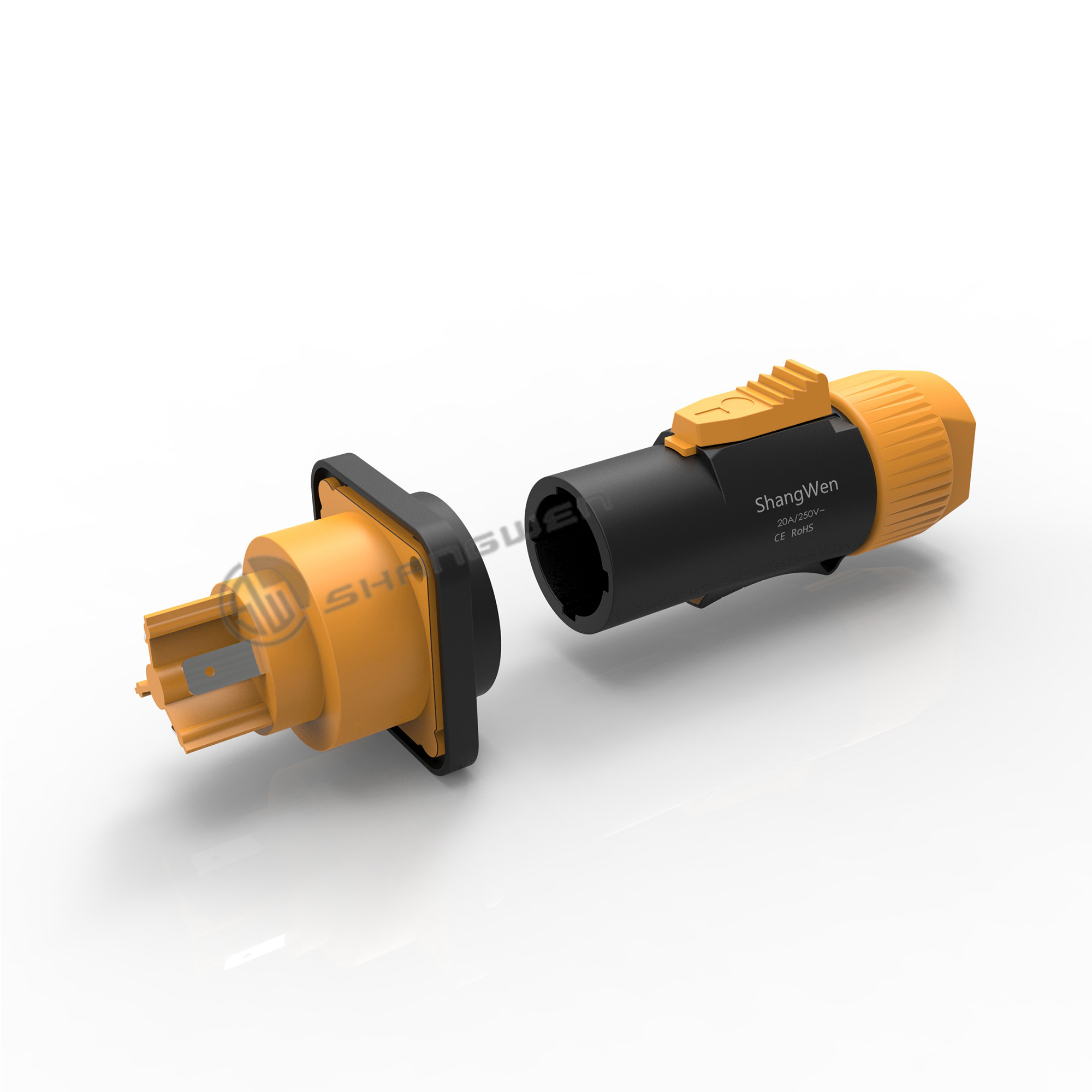

Sealed IP65 Waterproof Power Connector 3 Conductor Male Plug Powercon 2

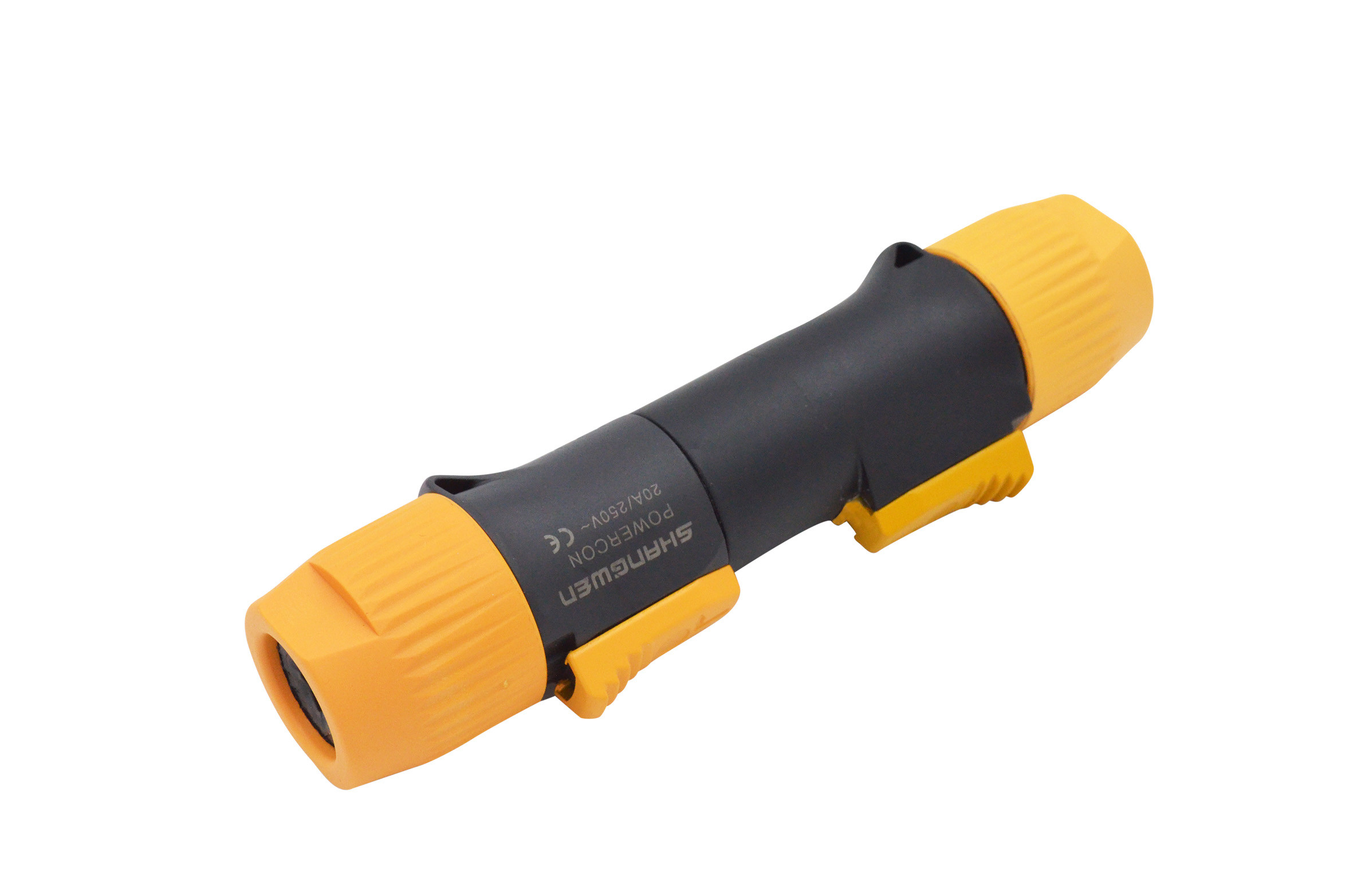

Sealed IP65 Waterproof Power Connector 3 Conductor Male Plug Powercon 3


Packing

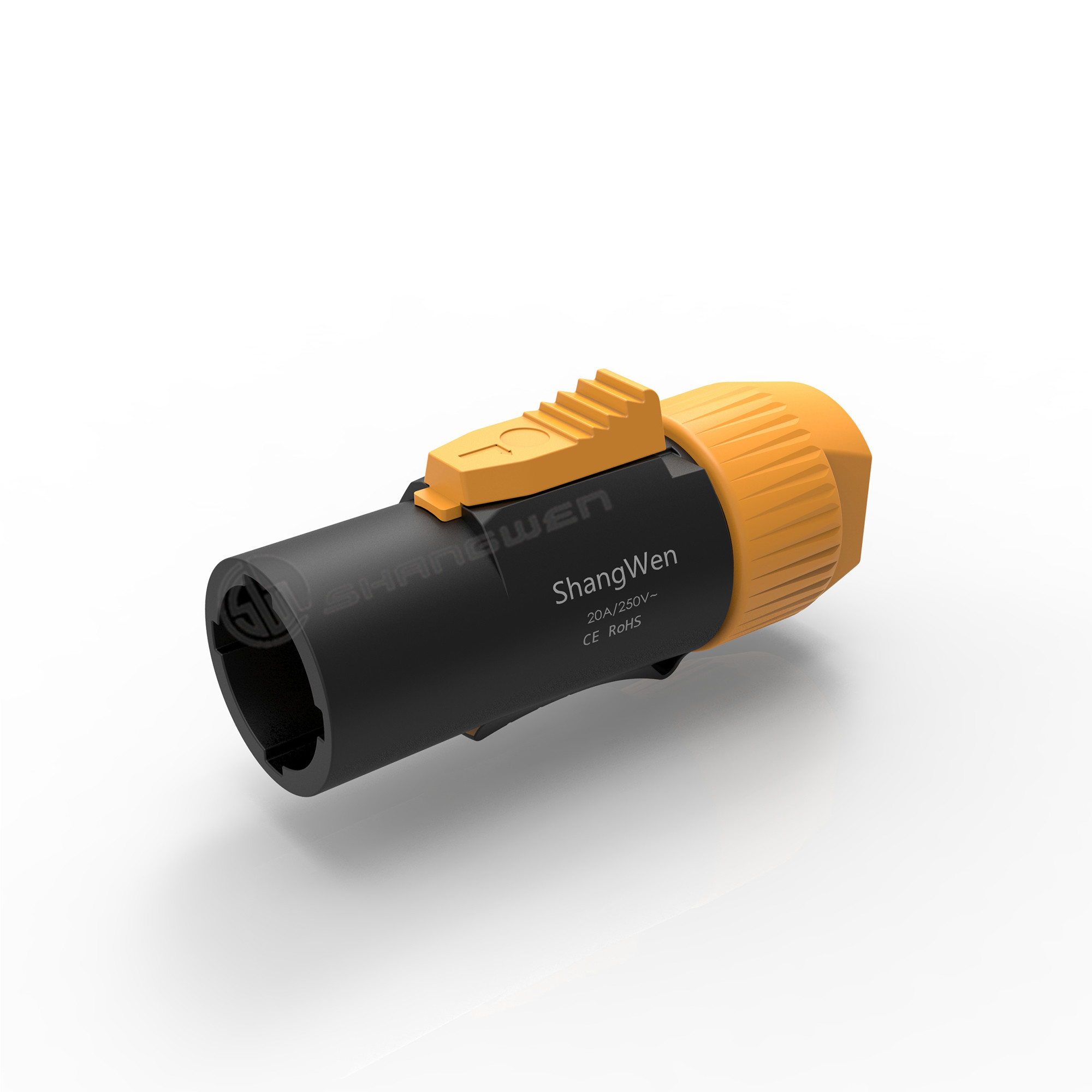

Sealed IP65 Waterproof Power Connector 3 Conductor Male Plug Powercon 4
