Audio Speakon Cable Connector 30A 8 Pin Speaker Connector Electrical

Place of Origin China
Brand Name Shang Wen
Certification Rohs
Model Number SWF8S-T
Minimum Order Quantity 100pcs
Price Negotiable
Packaging Details Internal blister box 23x23cm External carton 51x26x34cm
Delivery Time 5-8 working days
Payment Terms T/T
Supply Ability 100000+pcs+per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Loudspeaker Connector Application For Power Connection
Gender Female Shell Material Polyamide
Conductor Material Brass Insert PBTP 20%GR
Strain Relief Polyacetal(POM) Type Of Terminals Screw Type
Connecting Mode Fast Rotating Connection
Highlight

Audio Speakon Cable Connector

,

Speakon Cable Connector 30A

,

8 Pin Speaker Connector Electrical

Leave a Message
Product Description

8 pin Speakon Connector 30A Screw Terminals For Audio Applications Loudspeaker Cable Connectors



SWF8S-T is widely used in professional audio equipment field.

The speakon cable connectors are the industry-standard connectors for amplifier / loudspeaker connections.
The entire family of 4 and 8 pole cable connectors has been designed to operate in high current, inductive load environment of loudspeakers. The cable connectors feature a robust plastic housing, a unique locking principle and touch proof contacts. 8 pole cable connector, latch lock, chuck type strain relief for cables 8 - 20 mm diameter, 30 A continuous per contact.
The industry-standard for loudspeaker connections offer extremely reliable and robust cable connectors with a reliable locking system. They feature solid contacts with screw-type terminals including a stranded wire protection which offer also solder termination.

Audio Speakon Cable Connector 30A 8 Pin Speaker Connector Electrical 0



Product features



Up to 30A per contact rms current rating
Cable strain relief for 8-20mm cable O.D.
Glass reinforced material for insert and housing,long-lasting and dependable
Reliable and robust, easy and fast to assemble
Accurate and dependable twist lock latching system "Quick Lock"
User friendly latch design for easy handling







Technical parameters

-Electrical parameters




Contacts No.                8
Rated current 30A/per contact
Rated voltage 250V AC
Contact resistance ≤3mΩ
Dielectric strength

4000V DC

Insulation resistance

>1.0GΩ(initial)




-Mechanical parameters




Service life >5000 times
Cable retention ≥220N
Power line 8mm-20mm
Wire stripping length 7-8mm
Type of terminals Screw type terminals





-Material and environmental parameters




Shell  Polyamide(PA 6 30% GR)
Conductor Brass
Conductor surface Ag
Flame-retardant grade UL94-V0
Temperature range -30°C~80°C
Strain relief Polyacetal(POM)
Insert PBTP 20%GR







Product Profile

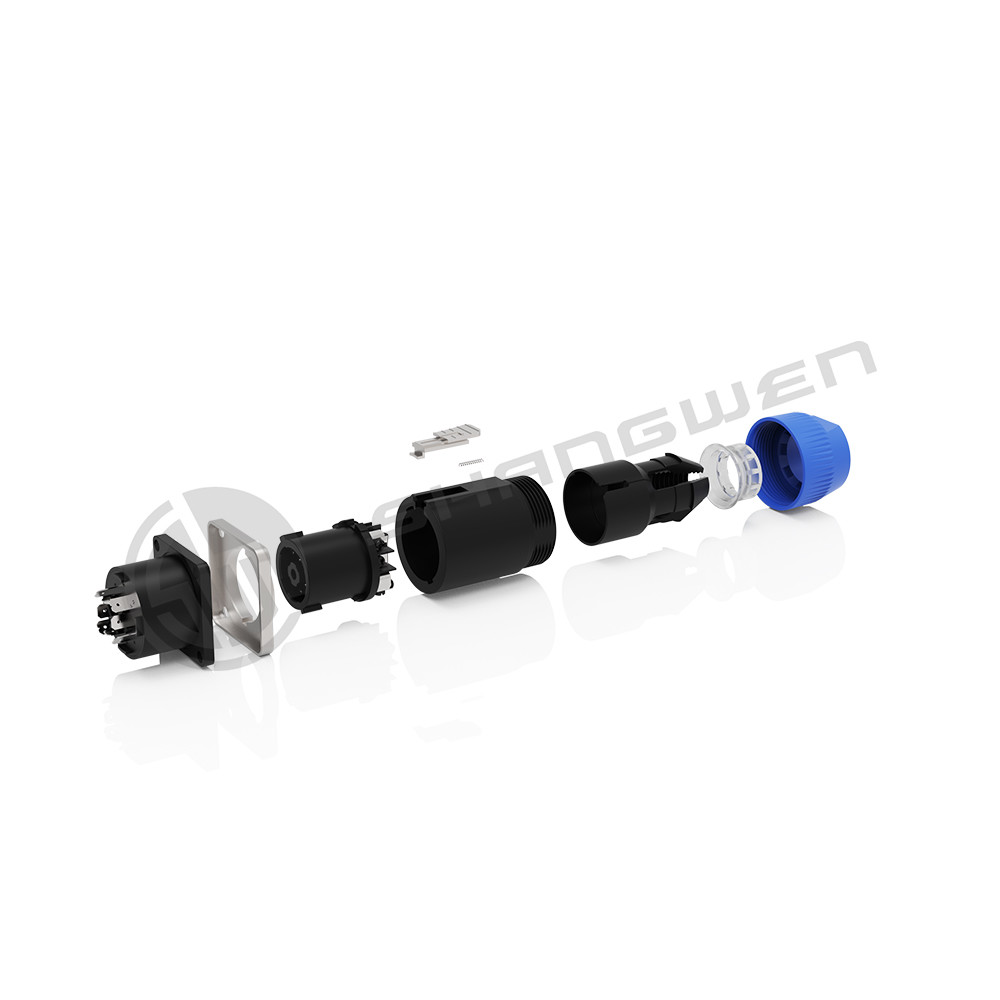

Audio Speakon Cable Connector 30A 8 Pin Speaker Connector Electrical 1

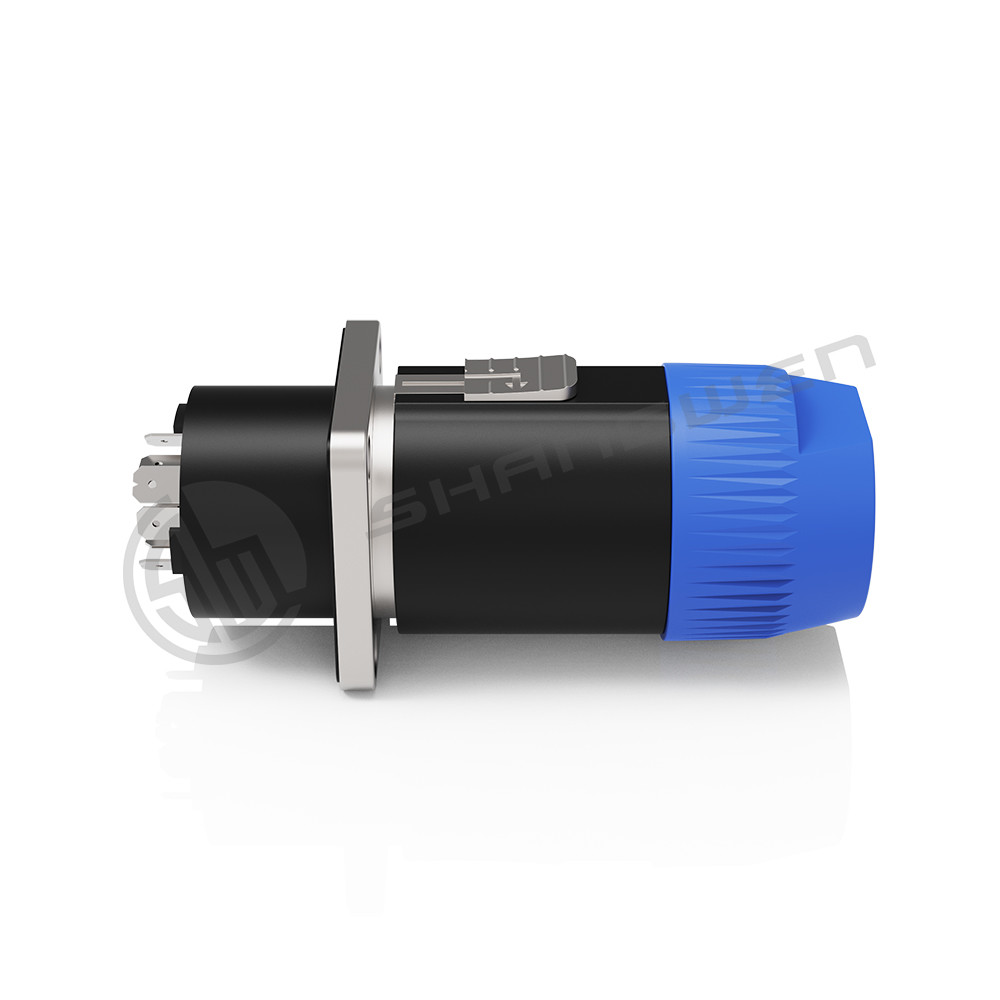

Audio Speakon Cable Connector 30A 8 Pin Speaker Connector Electrical 2

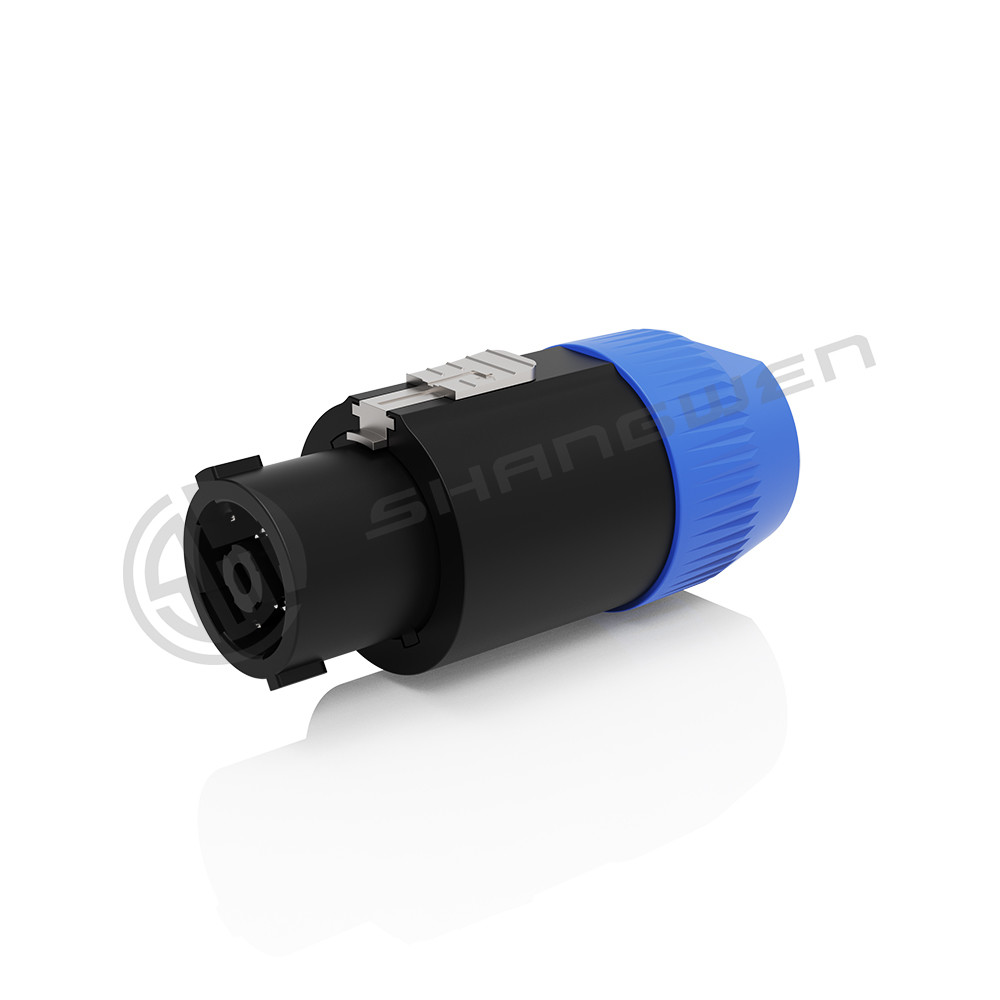

Audio Speakon Cable Connector 30A 8 Pin Speaker Connector Electrical 3

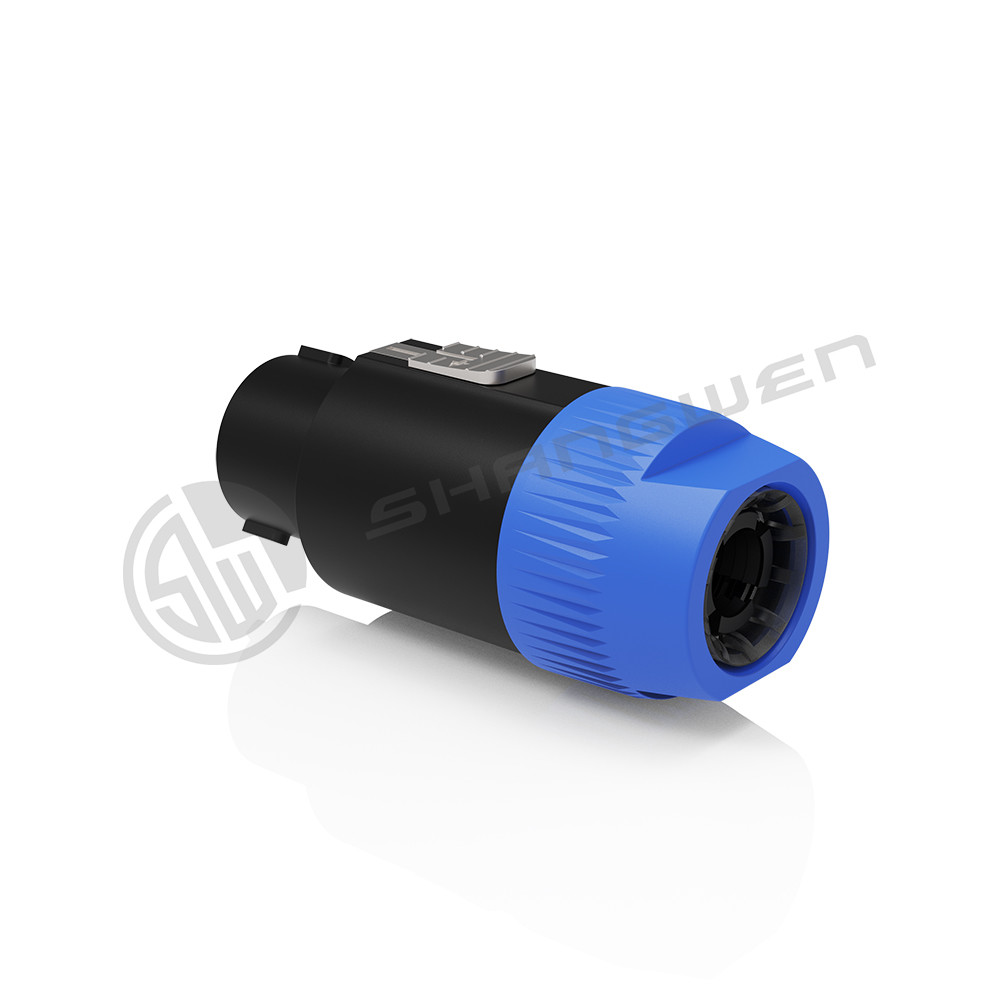

Audio Speakon Cable Connector 30A 8 Pin Speaker Connector Electrical 4

Packing
Audio Speakon Cable Connector 30A 8 Pin Speaker Connector Electrical 5
