M19 Power Circular Connector Outdoor IP67 2 Pin Waterproof Connector
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Quick, Simple Self Locking System | Name | M19 Power Circular Connector |
|---|---|---|---|
| Shell Material | High Performance Engineering Plastics | Conductor Material | Copper Alloy |
| Type Of Terminals | Soldering Type/External Injection Molding | Locking Mode | Push Locking |
| Color | Black | IP Grade | IP67 |
| Application | For Power Connection | Gender | Male |
| Multiple Cores | 2,3,4,5,6,9,3+9 Pin Support | ||
| Highlight | M19 Power Circular Connector,Power Circular Connector Outdoor,IP67 2 Pin Waterproof Connector |
||
Product Description

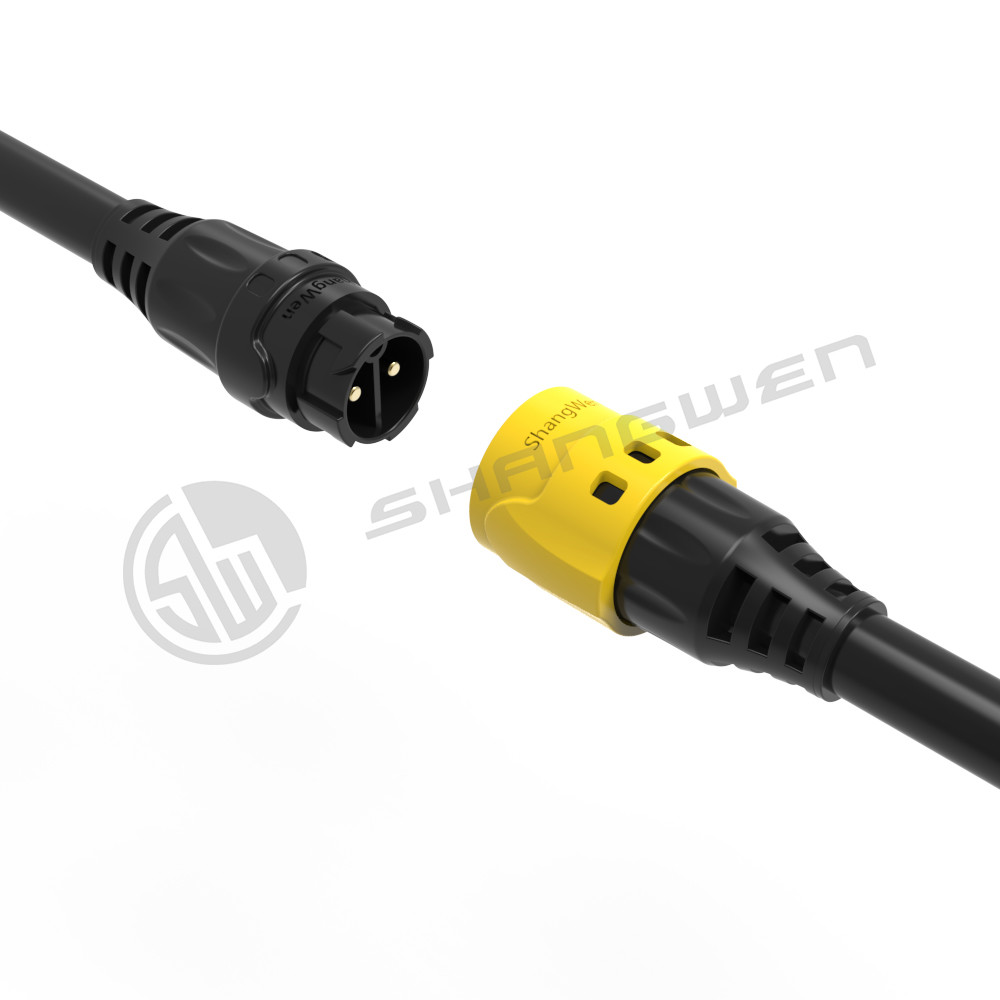

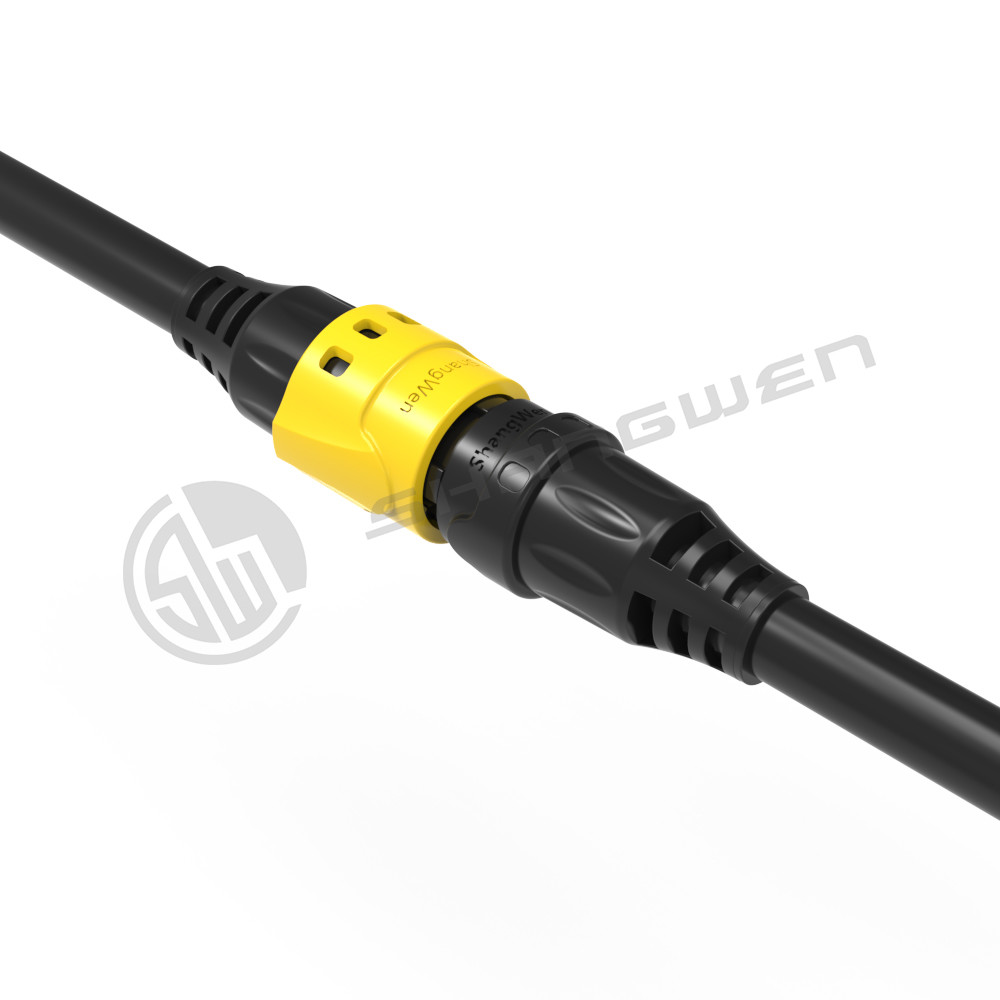

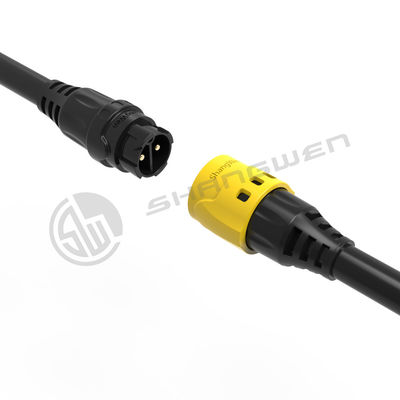

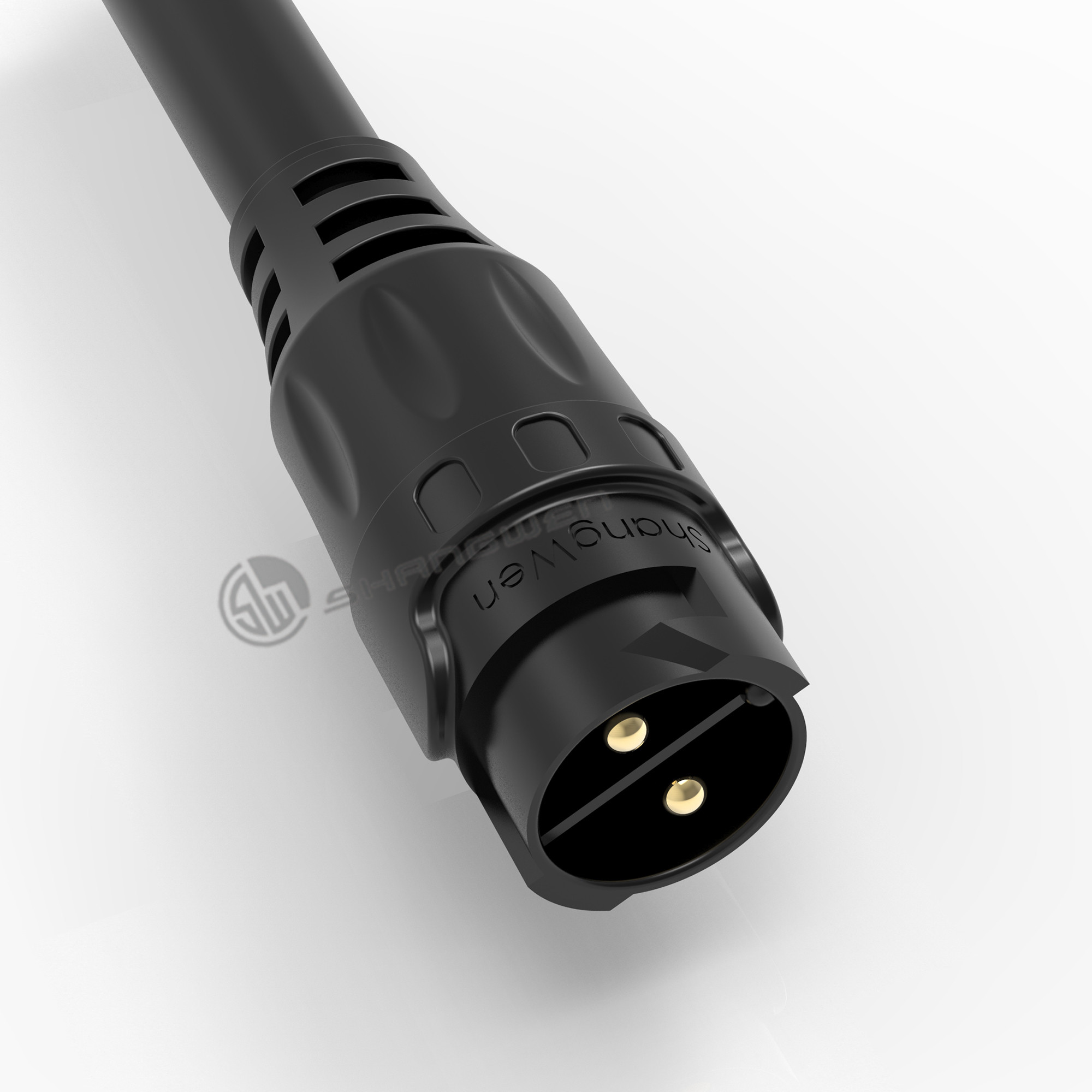

Outdoor IP67 Waterproof M19 Power Circular Connector Male Plug 2 Pin Conductor Push Locking Soldering Type
SWM19-2JS-T

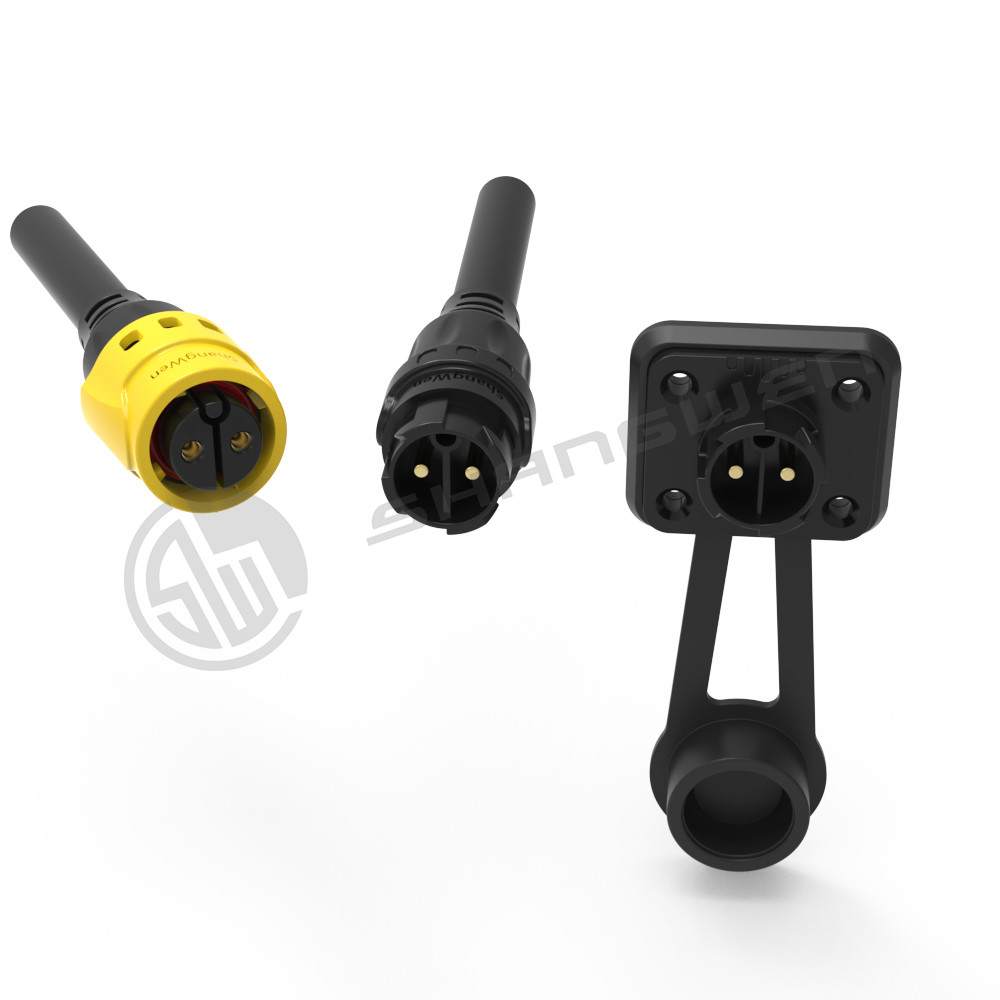

M19 series is an industrial connector, which includes male plug, female plug and male socket.
There are two locking methods:
1. Push-pull self-locking connection
2. Plastic screw connection, both locking design is very reliable.
The material selection of the inner core uses gold-plated pin, which is conducive to the stable passage of the current. A variety of cores can be selected, making its application field more extensive.
The cable skin is molded by a plastic wrap mold. All materials comply with environmental RoHS standards, and passed UL and other multinational certification. Used with waterproof rubber ring, the waterproof grade can reach IP67.
Technical parameters
-Electrical parameters
| Contacts No. | 2 |
| Rated current |
30A |
| Rated voltage | 250V AC |
| Contact resistance | ≤5mΩ |
| Dielectric strength |
3000V DC |
| Insulation resistance |
＞500MΩ |
-Mechanical parameters
| Contact diameter | 2.4mm |
| Service life | ＞1000 times |
| Power line | 4.5mm-11mm |
| Type of terminals | Soldering Type/External injection molding |
-Material and environmental parameters
| Shell | High performance engineering plastics |
| Conductor | Cu alloy |
| Conductor surface | Au |
| Flame-retardant grade | UL94-V0 |
| Temperature range | -40°C~105°C |
| IP grade | IP67 |
Application
• Used for LED Strips, LED Wall-washers, LED Underground Light, LED Rope Light, LED Belt Light, Curtain Light, Twinkle Light and so on.
• Protect from dust and water during immersion, resistant to many oils and chemicals.
• Easily connected to proximity switch, flow monitoring devices and field bus components sensor devices and actuator devices.
• Ip67 dc connector for led light meets all the requirements of sensor devices and actuator devices for automation
Product Profile
Packing
FAQ
1. Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.
2. What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.
3. Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CQC.
4. Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.
5. What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.
6. Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
