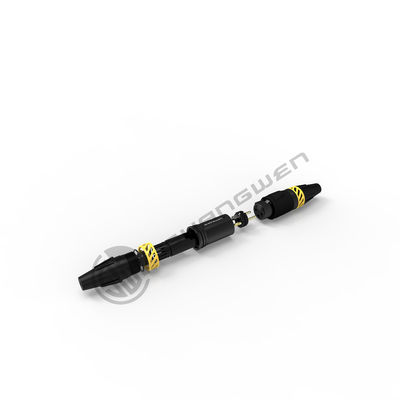

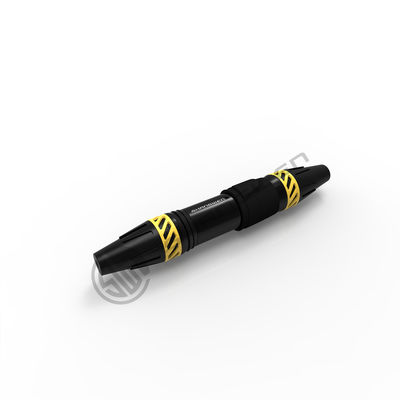

Black Small Power XLR Connector Waterproof IP65 Connector 3 Pin Male Plug
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Power | Gender | Male |
|---|---|---|---|
| Shell Material | Zinc Die-cast | Shell Plating | Chromium |
| Color | Black Shell/ Black Boot | IP Grade | IP65 |
| Feature | Waterproof IP65 | Wire Diameter Range | 5-8mm |
| Highlight | Small XLR Connector,Power XLR Connector,IP65 Connector 3 Pin |
||
Product Description
Small Ip65 Waterproof 3pin Xlr Male Plug Connector Black Metal Housing Gold Plated Core For Audio Application
SWM3X-TFB is widely used in outdoor Audio Transmission scenarios.
With the continuous development of the entertainment industry, the demand for products with connected systems is also increasing.
The sealed connector that can be adapted for outdoor use came into being.
To this end, Shangwen has developed a new series of outdoor connectors, which includes power connectors, signal connectors and audio connectors. These rugged, sealed connectors are IP65 rated for outdoor protection.

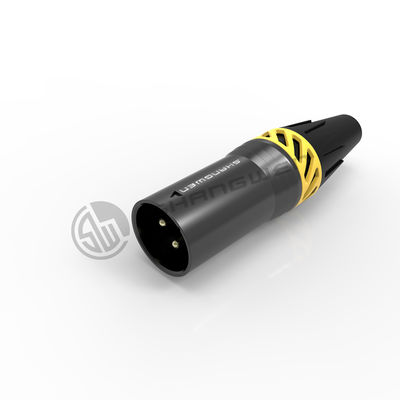

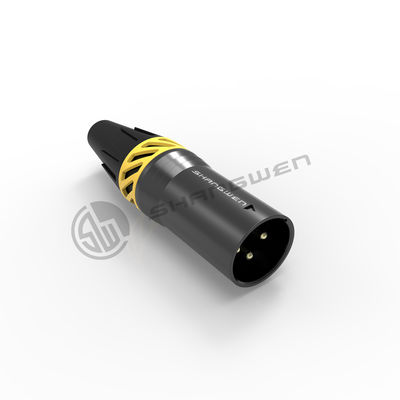

3 pole male cable connector with black metal housing and gold contacts.
The worldwide accepted standard of XLR cable connectors. This series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
Improved chuck strain relief,increased retention and easier and faster assembly and operation!
Technical parameters
-Electrical parameters
|
Capacitance between contacts |
≤4pF |
|
Contact resistance |
≤3mΩ |
|
Dielectric strength |
1.5kVdc |
|
Insulation resistance |
> 1.5GΩ (initial) |
|
Rated current per contact |
16A |
|
Rated voltage |
<50V |
-Mechanical parameters
| Service life | ＞1000 times |
|
Wire |
5-8mm |
| Insertion force | ≤20N |
|
Withdrawal force |
≤20N |
| Locking device | Latch lock |
-Material and environmental parameters
|
Contacts |
Cu alloy |
|
Contact plating |
Au |
|
Strain relief |
Polyacetal (POM) |
|
Insert |
Polyamide (PA 66 +30 % GF) |
| Shell | Zinc diecast |
| Boot | Polyurethan |
| Shell plating | Chromium |
| Temperature range | -30°C~+80°C |
|
Flame-retardant grade |
UL 94 HB |
| IP grade | IP65 |
Product features of the 3-pin male XLR connector plug are as follows:
1. Versatile Cable Clamps
2. High-Quality Contacts
3. Durable Stainless Steel Housing
4. Cable Protection
5. UV Resistant Materials
6. Protected Internal Thread
In summary, the 3-pin male XLR connector plug features versatile cable clamps, high-quality contacts, a durable stainless steel housing, cable protection, UV resistant materials, and a protected internal thread. These features collectively make it a reliable and durable choice for audio connections in various environments.
Product Profile
Packing
FAQ
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.
2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.
3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CQC.
4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.
5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.
6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
