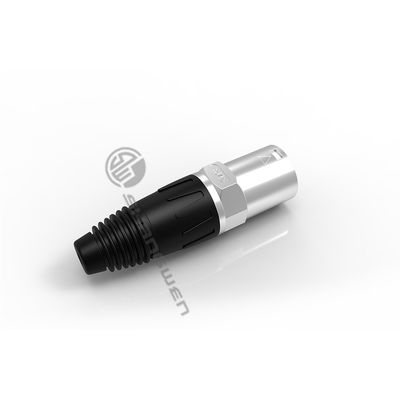

IP44 Waterproof RJ45 Power Connector Plug For Led Screen Audio Video
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Push-pull Self-locking Connection | Name | RJ45 Power Connector Plug |
|---|---|---|---|
| Gender | Male | Shell Material | Zinc Die-cast |
| Color | Silver Shell/Black Boot | IP Grade | IP44 |
| Multiple Cores | 2,3,4,5,6,9,3+9 Pin Support | Shell Plating | Pearl Chromium |
| Application | For Signal Connection | ||
| Highlight | RJ45 Power Connector Plug,RJ45 Power Connector,Waterproof RJ45 Connector |
||
Product Description
Indoor Use IP44 Ethercon Signal Plug RJ45 Port Black Boot For Led Screen Audio Video Lighting Network Applications
Technical parameters
Mechanical parameters
| Service life | ＞1000 times |
| Network line | 5-8mm |
| Insertion force | ≤20N |
| Locking device | Latch lock |
Material and environmental parameters
| Shell | Zinc diecast |
| Boot | Polyamide |
| Shell plating | Pearl chromium |
| Temperature range | -30°C~+80°C |
| IP grade | IP44 |
Product features
☑ Allows assembly of non pre-assembled conventional RJ45 cables
☑ The RJ45 system for harsh and demanding environment
☑ Cable connector carrier accepts the most common RJ45 plugs
☑ Protects Ethernet connections in a variety of commercial type applications and is designed to prevent breakage of the fragile components of standard RJ45 connectors
☑ Rugged diecast shell and unique chuck type strain relief
SW8MC-A-2 is widely used in indoor rental LED display/Audio/Video/Lighting signal connection.
The shell part is made of zinc alloy material,is a very ruggedized and lockable RJ45 connector system.This material can cope with a variety of harsh application environments.

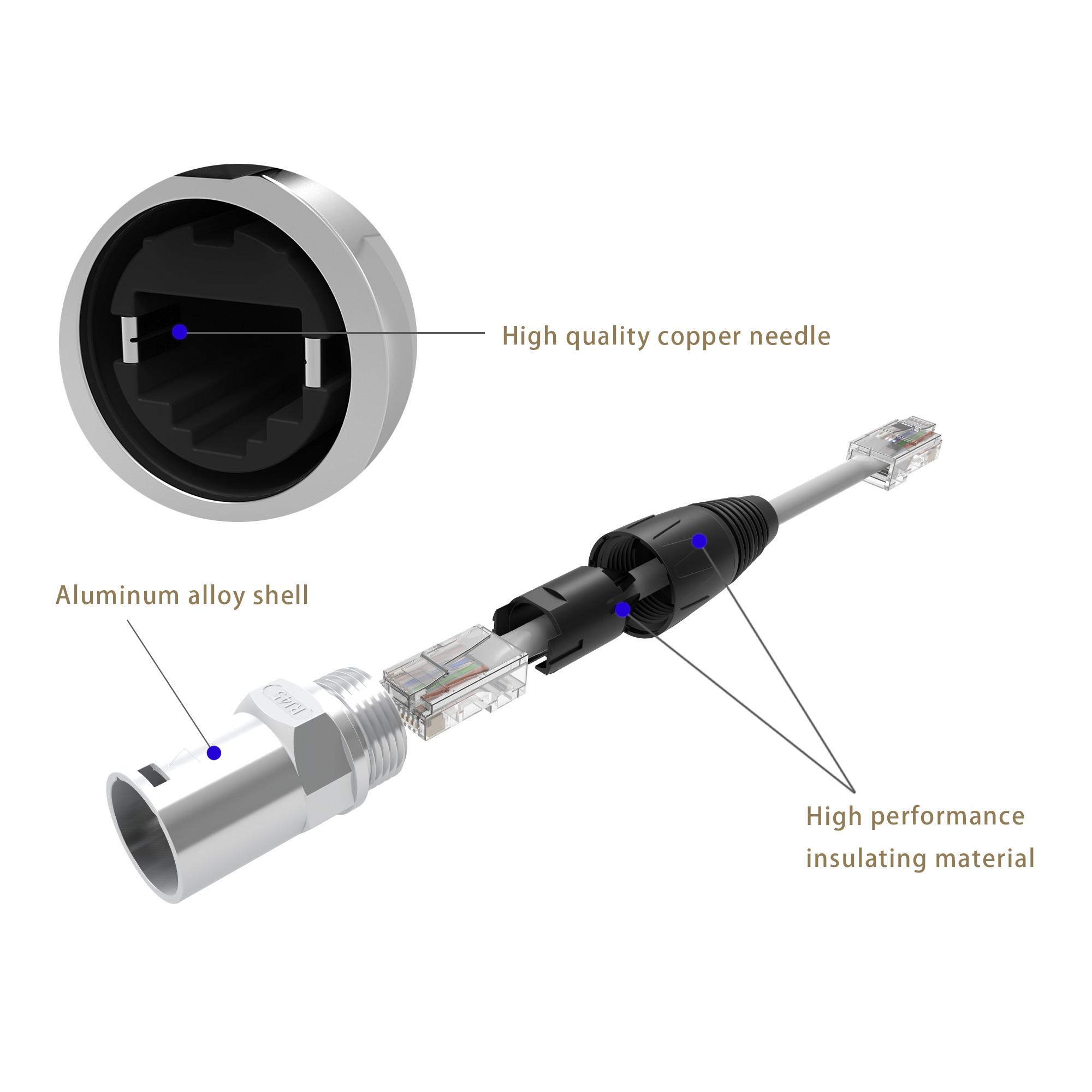

This connector is made up of a shell, clip and boot. The boot is suitable for cable diameters from 5-8mm network cables.It does not include a RJ45 plug.
The shell is plated of pearl cr, the exterior is matte in texture.
Using pull and out locking design, easy to operate, stable and reliable !
