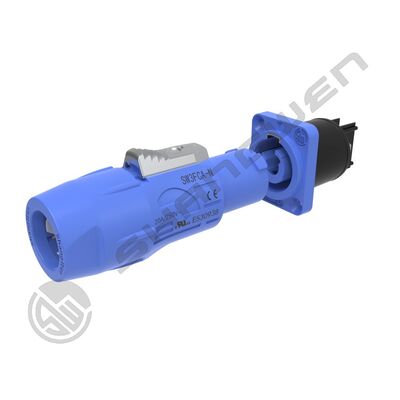

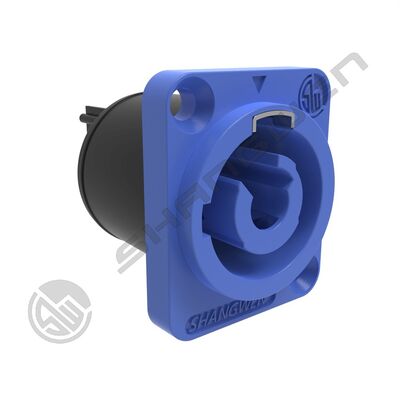

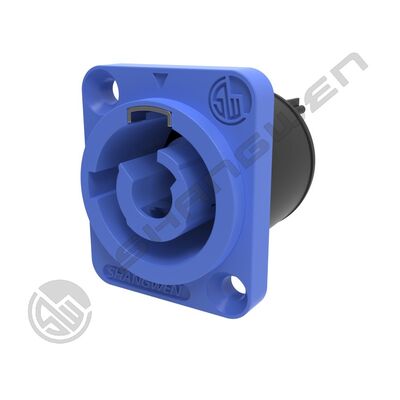

IP44 3pin indoor Circular powercon male socket Blue Connector for LED Screen
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | IP44 Small Circular Wire Connector | Shell Material | Polyamide |
|---|---|---|---|
| Type Of Terminals | 3/16" Flat Tab | Connecting Mode | Fast Rotating Connection |
| Color | Blue/Power-in | IP Grade | IP44 |
| Gender | Male | Application | For Power Connection |
| Conductor Material | Cu Alloy | ||
| Highlight | Small Circular Wire Connector,Circular Wire Connector Electrical,IP44 Small Circular Connector |
||
Product Description
IP44 Small Circular Wire Connector Electrical Fast Rotating Connection
Application range: Led display, Audio equipment, street lighting, electrical equipment, automation machine, electric vehicle.
SW3MPA is widely used in indoor rental LED display power connection.
The contact part is made of beryllium copper material imported from the US and plated with silver, which has strong contact stability and can strengthen the control of temperature rise.
The shell part is made of PA6 material, with stable electrical performance, good pressure resistance, high temperature resistance, explosion resistance and corrosion resistance.
Product features
☑ Lockable 3 conductor equipment(AC) connector with contacts for line,neutral and pre-mating ground
☑ Small size of product
☑ High current capacity,rated at 20A/250V AC
☑ Color coded for easy identification,powercon offers power-in(blue) and power-out(white) versions with different keying to avoid the possibility of intermating
☑ Secure,quick, simple locking system
☑ Connect reliably
Technical parameters
Electrical parameters
| Contacts No. | 3 |
| Rated current | 20A |
| Rated voltage | 250V AC |
| Contact resistance | ≤5mΩ |
| Dielectric strength |
4000V DC |
| Insulation resistance |
＞1000MΩ |
Mechanical parameters
| Service life | ＞1000 times |
| Power line | 2.5mm²(8mm-12mm) |
| Wire stripping length | 7-8mm |
| Type of terminals | 3/16'' flat tab/solder termination |
| Shell | PA |
| Conductor | Cu alloy |
| Conductor surface | Ag |
| Flame-retardant grade | UL94-V0 |
| Temperature range | -30°C~80°C |
| IP grade | IP44 |
