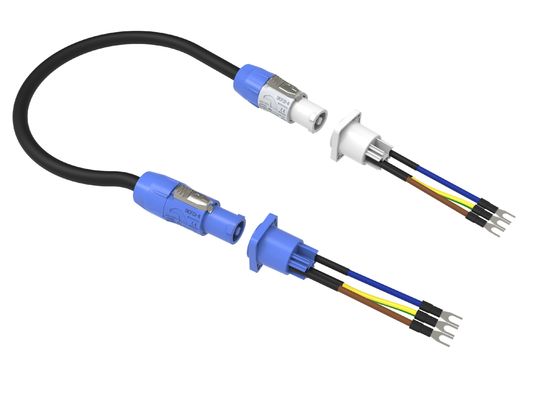

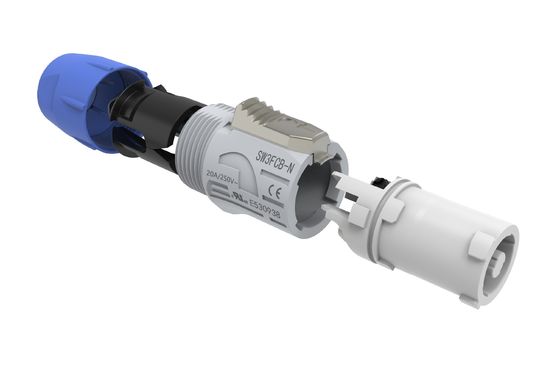

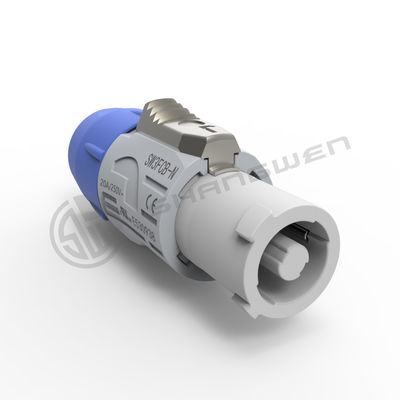

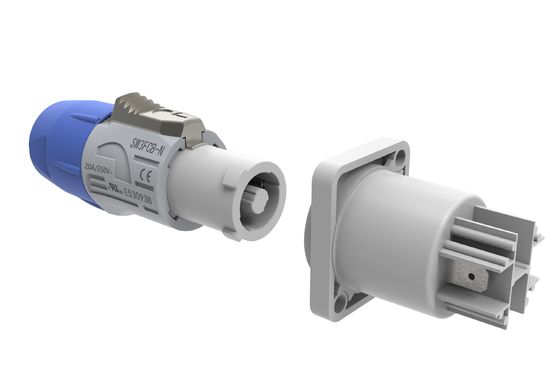

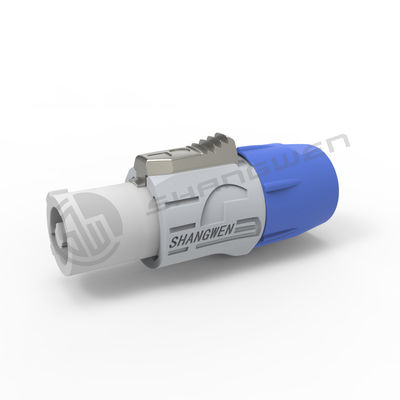

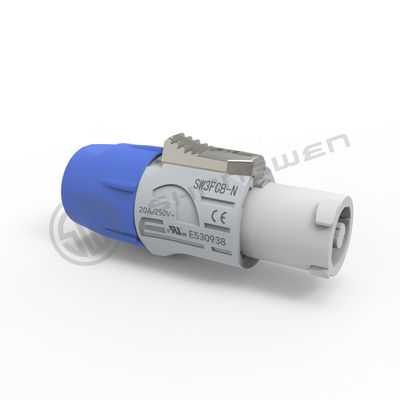

20A 250V Circular Power Connector Indoor 3 Conductor Connector Powercon
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | 20A 250V Circular Power Connector | Application | For Power Connection |
|---|---|---|---|
| Shell Material | Polyamide | Conductor Material | Cu Alloy |
| Type Of Terminals | Screw Type | Connecting Mode | Fast Rotating Connection |
| Color | White/Power-out | Gender | Female |
| IP Grade | IP44 | ||
| Highlight | 20A Circular Power Connector,250V Circular Power Connector,3 Conductor Connector Powercon |
||
Product Description
3. Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CQC.Indoor Use Powercon Plug 3 Conductor 20A 250V Power-Out Screw Terminals White Color For Led Screen Cabinet
Product features
☑ Secure,quick, simple locking system
☑ High current capacity,rated at 20A/250V AC
☑ Color coded for easy identification,powercon offers power-in(blue) and power-out(white) versions with different keying to avoid the possibility of intermating
☑ Connect reliably
☑ Small size of product
☑ Lockable 3 conductor equipment(AC) connector with contacts for line,neutral and pre-mating ground
Technical parameters
Electrical parameters
| Contacts No. | 3 |
| Rated current | 20A |
| Rated voltage | 250V AC |
| Contact resistance | ≤5mΩ |
| Dielectric strength |
4000V DC |
| Insulation resistance |
＞1000MΩ |
Mechanical parameters
| Service life | ＞1000 times |
| Power line | 2.5mm²(8mm-12mm) |
| Wire stripping length | 7-8mm |
| Type of terminals | Screw type terminals |
-Material and environmental parameters
| Shell | PA |
| Conductor | Cu alloy |
| Conductor surface | Ag |
| Flame-retardant grade | UL94-V0 |
| Temperature range | -30°C~80°C |
| IP grade | IP44 |
Product Profile
Packing
FAQ
1. Why do we choose SHANG WEN supply?
2. Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.
3. Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CQC.
4. Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
