xProduct Details
| Contact Material | Copper | IP Level | Ip65 |
|---|---|---|---|
| Type | XLR Connector | Application | Power |
| Gender | Male | Housing Material | Zinc Alloy |
| Industrial Electronics | Accessories | ||
| Highlight | Waterproof XLR Plug Female Socket,3 Pin Audio Wire Connector,Panel Mount Audio Wire Connector |
||
Product Description
High Power Waterproof 3 Pin XLR Plug Female Socket Adapter IP65 DMX Panel Mount Audio Wire Connector Zinc Alloy Material
Products Description

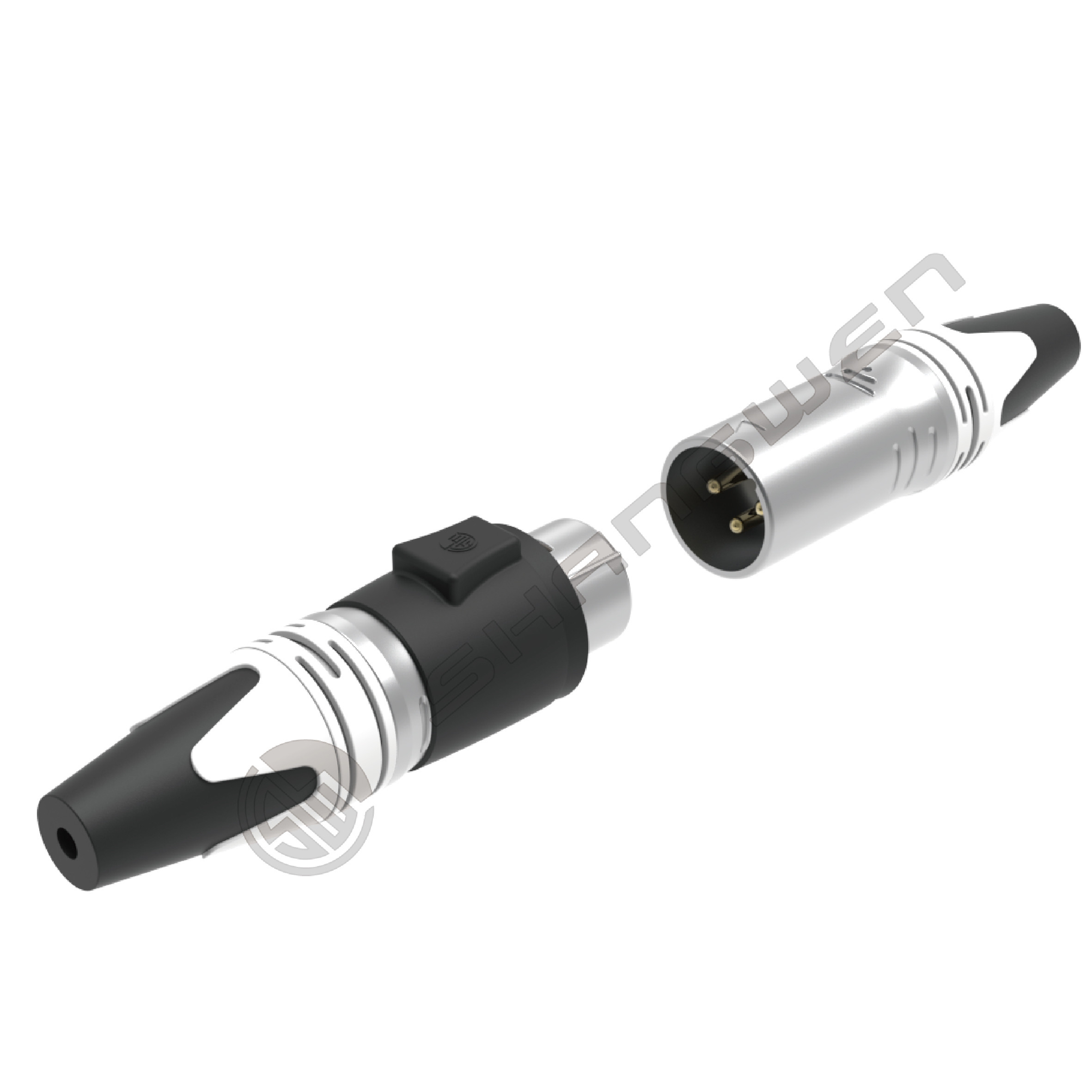

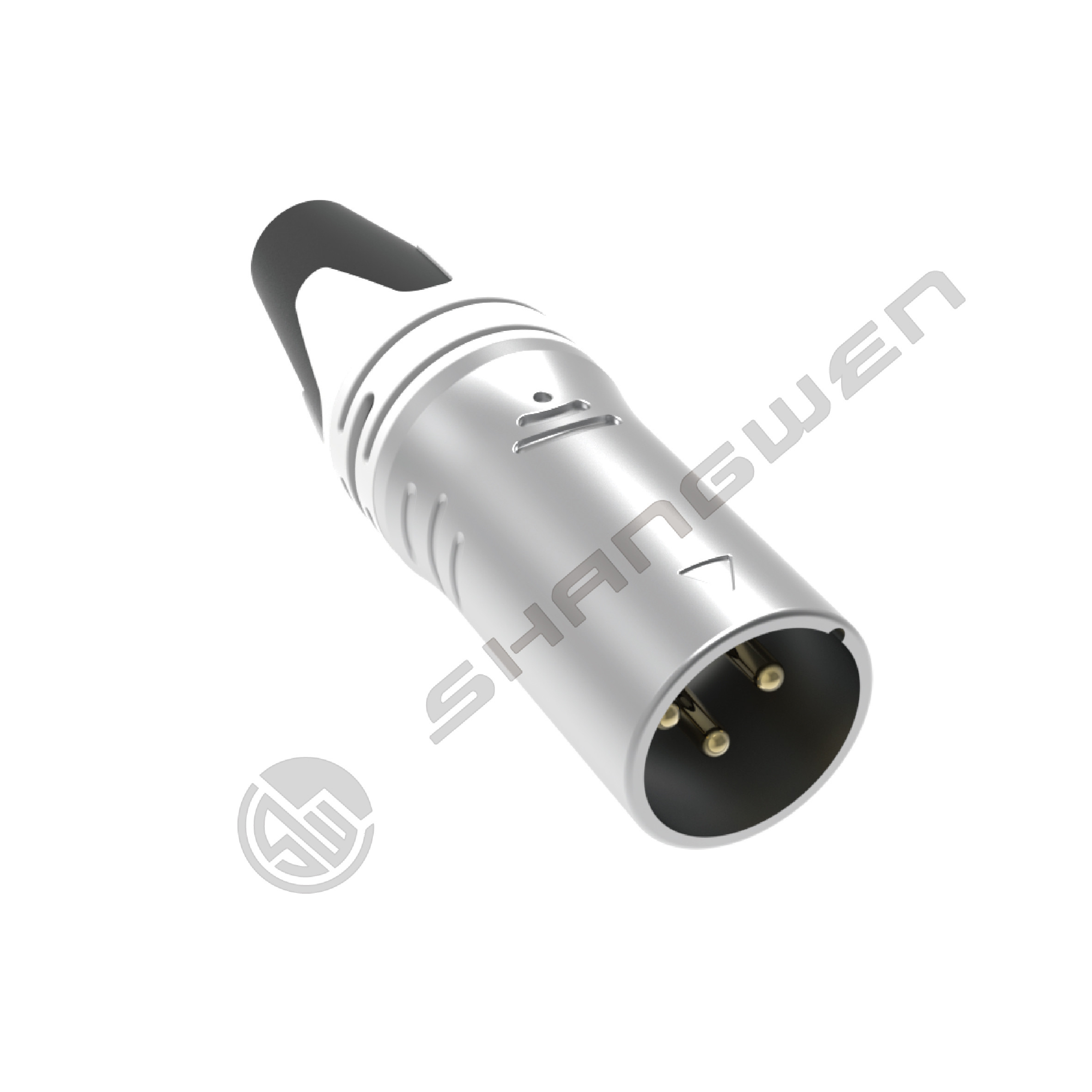

Waterproof XLR connector-3 pin male plug
Model:SWF3X-2TFS-KN
☑The contact pin is gold-plated
☑Zinc alloy shell to ensure that it can withstand gravity in any field of use
☑Waterproof IP65
☑Wire diameter range: 5-8mm

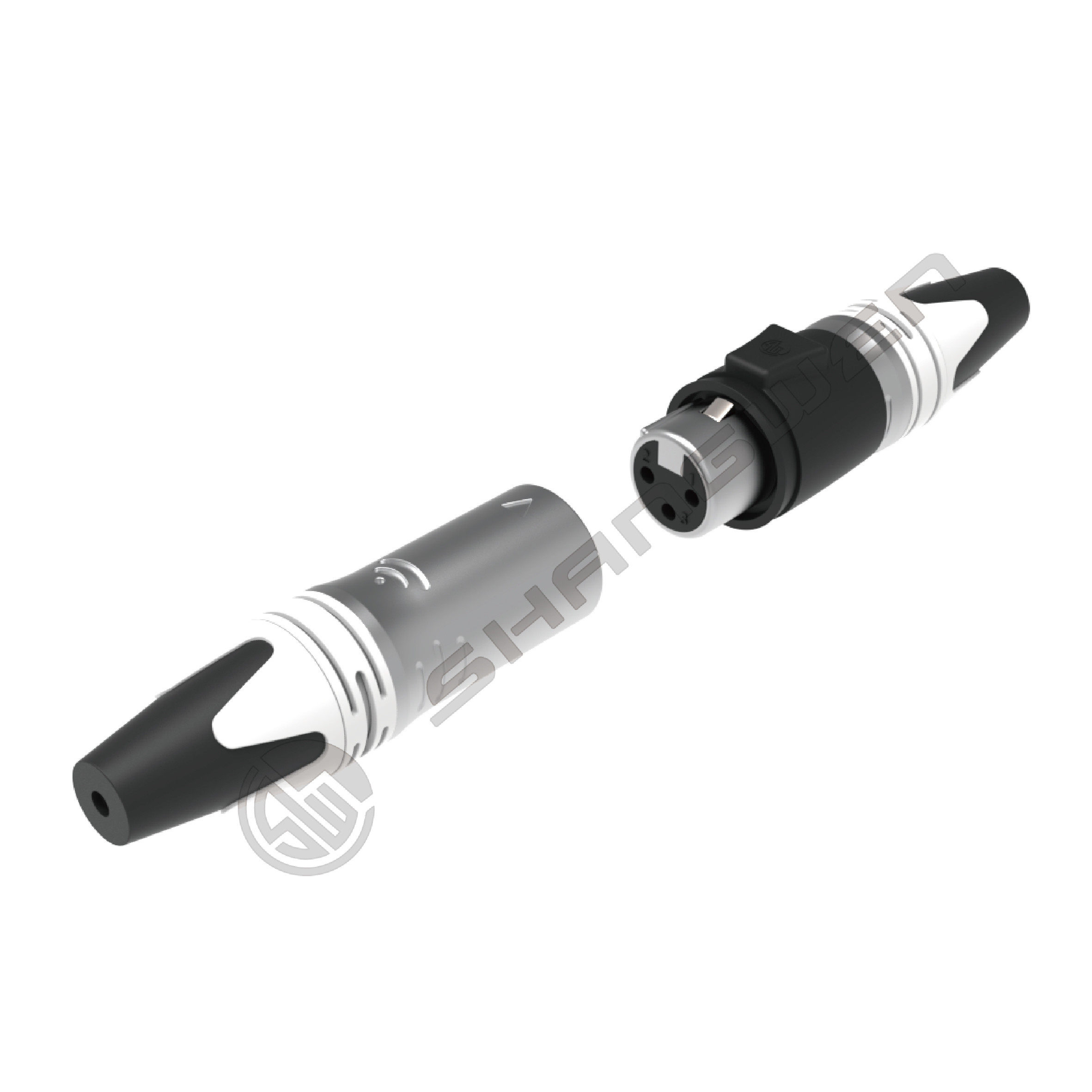

3 pin female socket

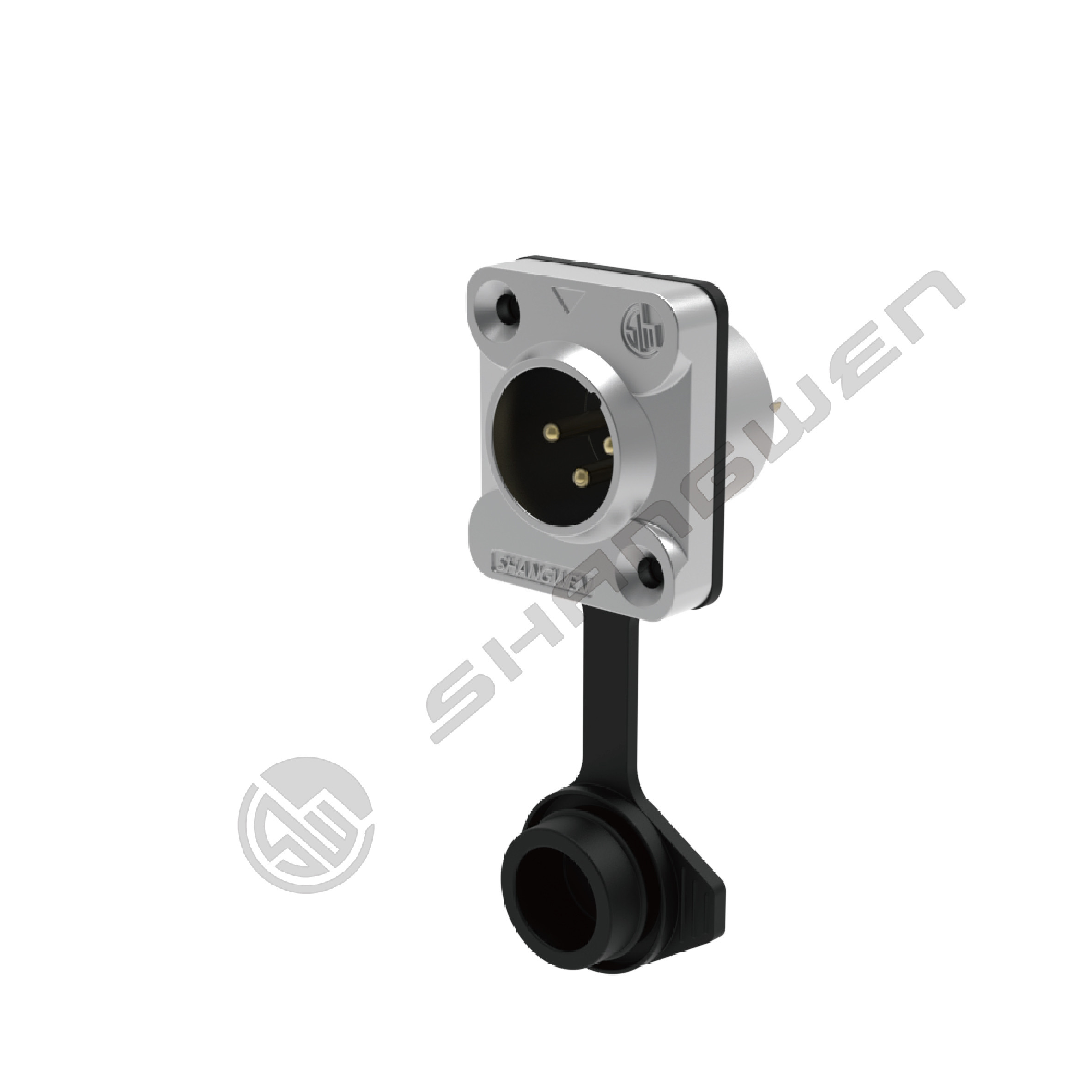

3 pin male socket
1.Product parameters
|
Connection Type
|
XLR
|
|
Gender
|
Male
|
2.Electrical parameters
|
Capacitance between contacts
|
≤4pF
|
|
Contact resistance
|
≤3mΩ
|
|
Dielectric strength
|
1.5kVdc
|
|
Insulation resistance
|
> 10GΩ (initial)
|
|
Rated current per contact
|
16A
|
|
Rated voltage
|
<50V
|
3.Mechanical parameters
|
Sign Cable O.D.
|
5-8mm
|
|
Insertion force
|
≤ 20N
|
|
Withdrawal force
|
≤ 20N
|
|
Service life
|
＞1000 mating cycles
|
|
Wire size
|
Max. 2.5 mm²
|
|
Wire size
|
Max. 14 AWG
|
|
Locking device
|
Latch lock
|
4.Material and environmental parameters
|
Boot
|
Polyurethan
|
|
Contacts
|
Cu alloy
|
|
Contact plating
|
Au
|
|
Insert
|
Polyamide (PA 66 +30 % GF)
|
|
Shell
|
Zinc diecast (ZnAl4Cu1)
|
|
Shell plating
|
Cr
|
|
Strain relief
|
Polyacetal (POM)
|
|
Flame-retardant grade
|
UL 94 HB
|
|
Protection class
|
IP65
|
|
Temperature range
|
-30℃to +80℃
|
5.Size reference (unit /mm)
