250v 3pin powercon indoor female socket plug for LED

Place of Origin Guangdong, China
Brand Name SHANGWEN
Model Number SW3MPB
Minimum Order Quantity 2 pieces
Price $0.90 - $2.00/pieces
Packaging Details 10pcs/sample bag<br>25pcs/Blister box(23cm x 23cm)<br>500pcs/carton (51cm x 26cm x 34cm)

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name PA6 Circular Power Connector Gender Female
Industrial Electronics Accessories Application Power
Type Led Display Connector
Highlight

PA6 Circular Power Connector

,

Circular Power Connector Female

,

Connector Powercon

Leave a Message
Product Description



Corrosion Resistance PA6 Material Audio Video Ip44 Female Powercon Connector For Led Display



Applications:

LED light

Industrial camera

Motor

Electrical bike, bike

Packaging, Labeling & Logistic

Factory automation

Electrical equipment



Products Description
Power connector series-female powercon(output port)

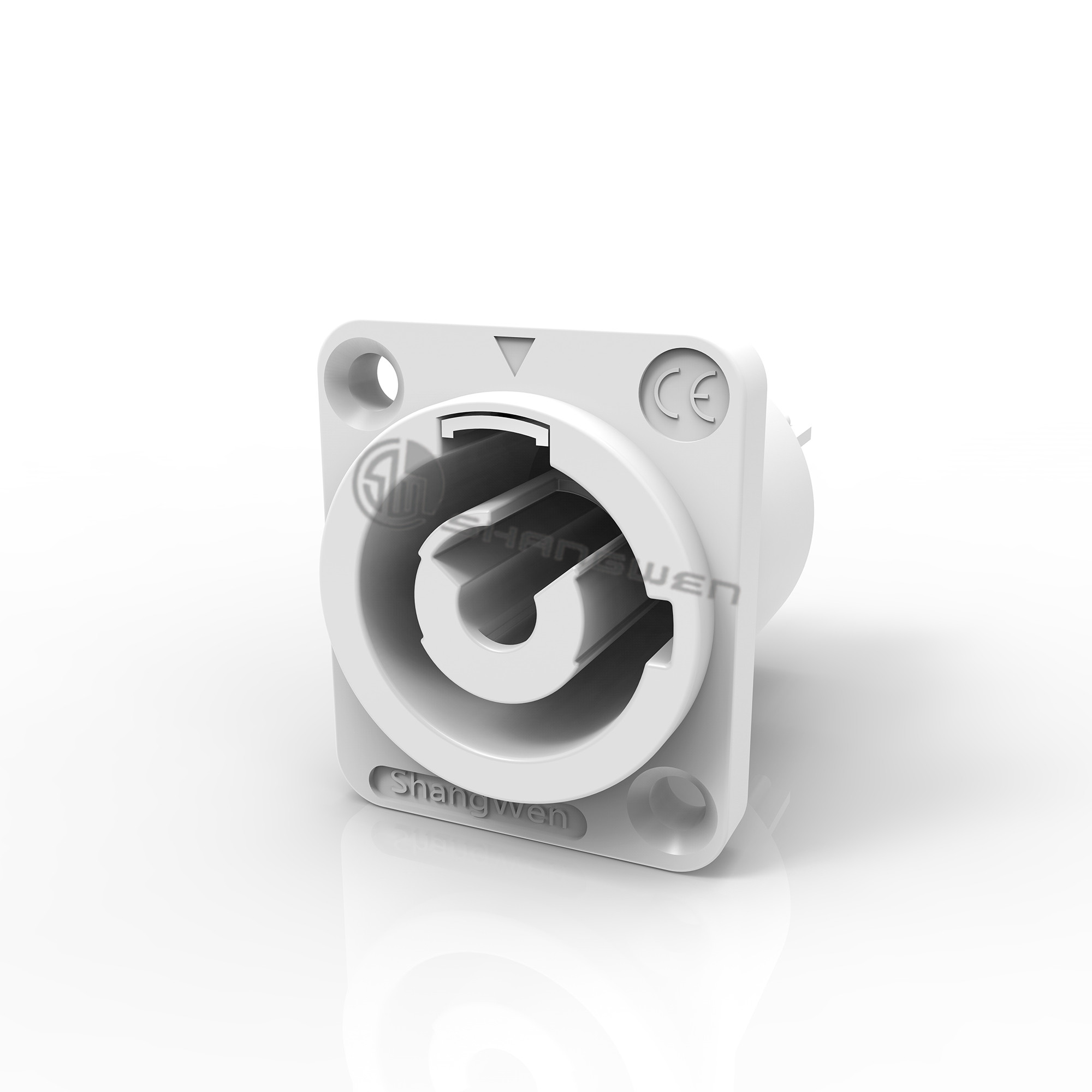

250v 3pin powercon indoor female socket plug for LED 0

Model: SW3MPB ( indoor use/white output )

☑Connection mode:

1. Screw clamping and welding
2. Lock the cable with screws
☑Quick, simple locking system

☑Lockable triple core equipment (AC) connectors with contacts for straight, neutral and pre-adapted safety grounding
☑high current capacity, rated at 20A/250V AC

☑Connect reliably
☑Quick and simple locking system, the keys are firm and do not fall off

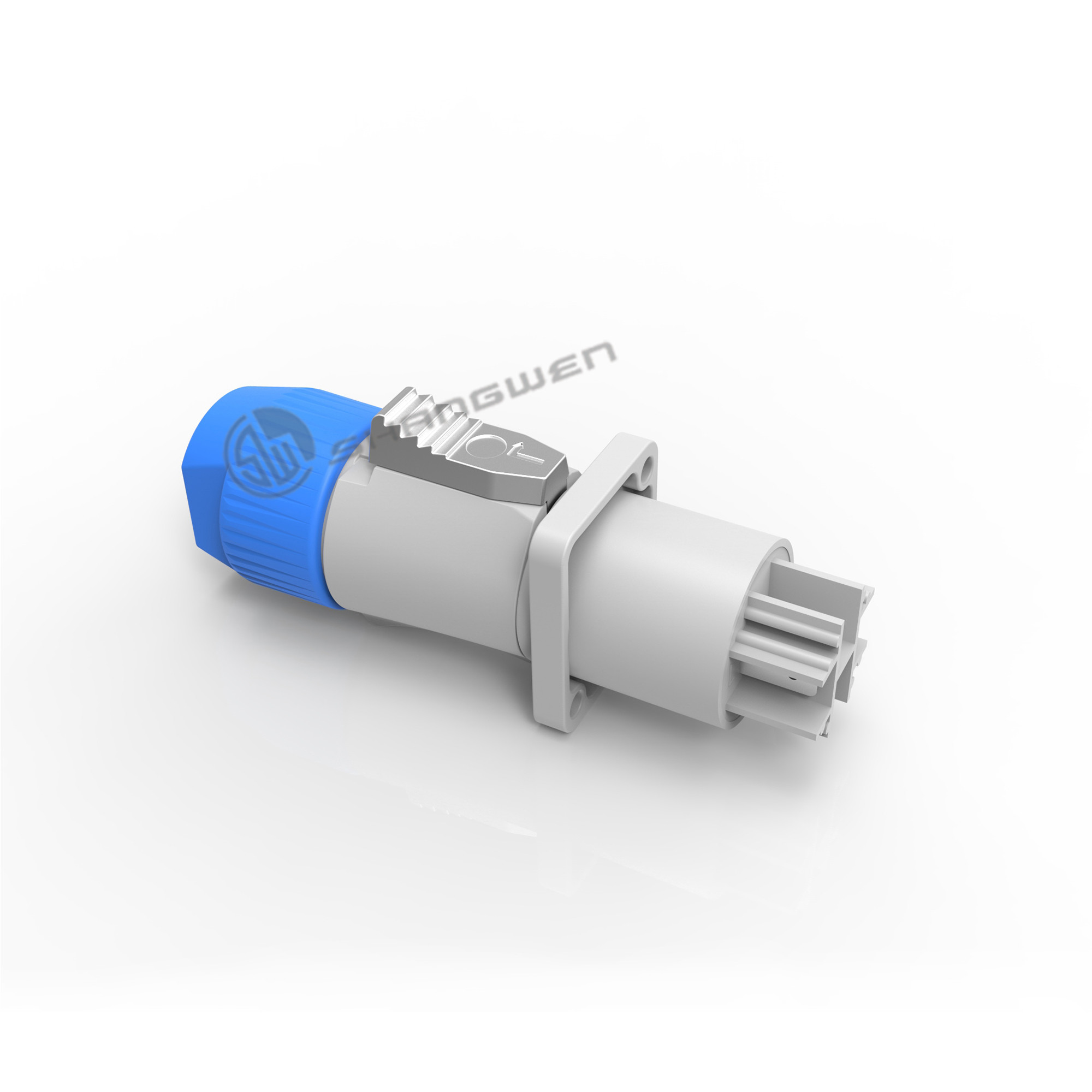

250v 3pin powercon indoor female socket plug for LED 1
1. Electrical parameters
Contacts NO.
2+PE
Rated current
20A
Rated voltage
250V AC
Contact resistance
≤5mΩ
Dielectric strength
4000V DC
Insulation resistance
>1000MΩ
2. Mechanical parameters
Service life
>1000 times
Power line
2.5mm²(8mm - 12mm)
Wire stripping length
7-8mm
Type of teminals
Screw type clamping units solder termination
3. Material and environmental parameters
Shell
PA
Contacts
Cu alloy
Contact surface
Ag
Flame-retardant grade
UL94-V0
Protection grade
IP44
Temperature range
-30°C to +80°C
4. Size reference (unit /mm)

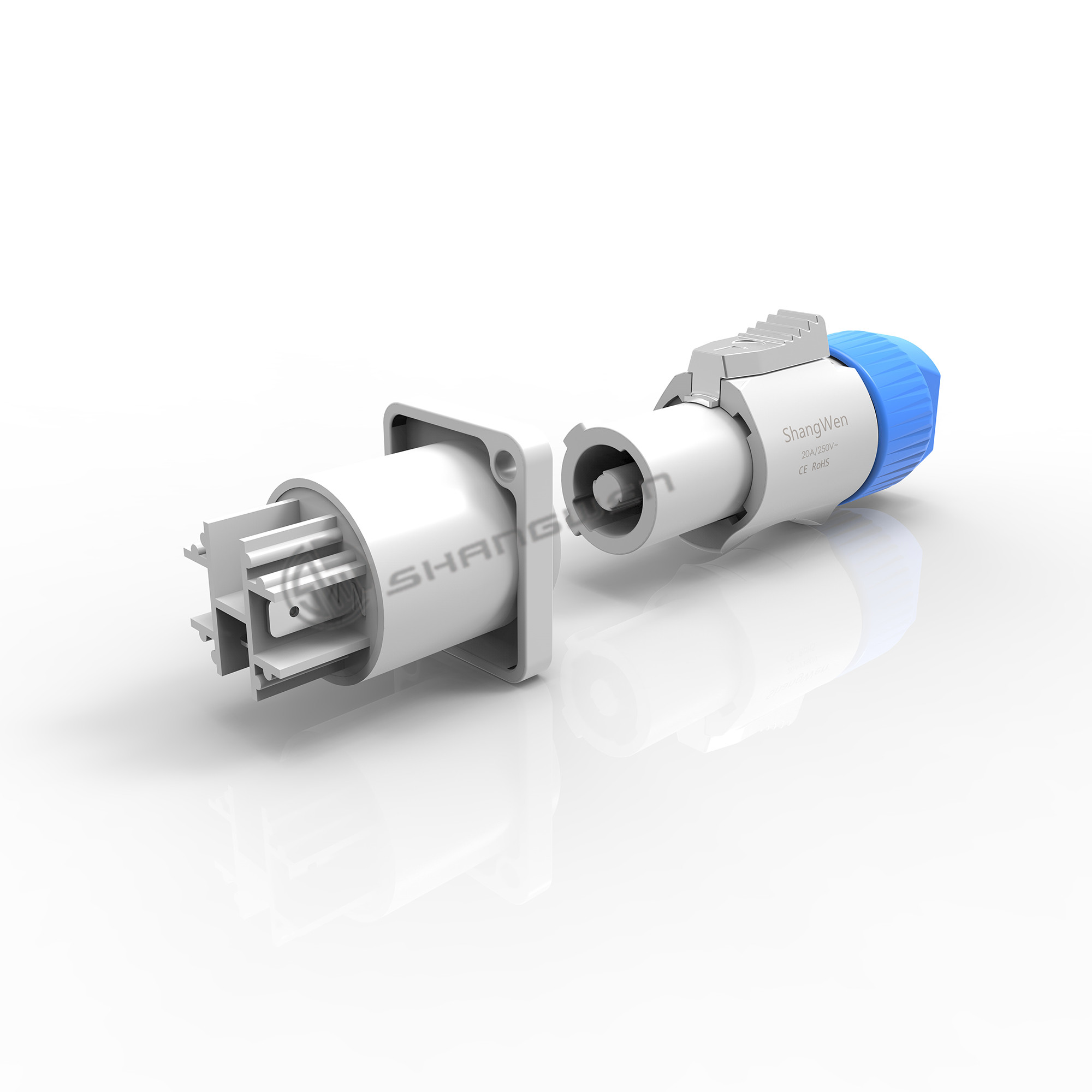

250v 3pin powercon indoor female socket plug for LED 2
5.Installation reference drawing

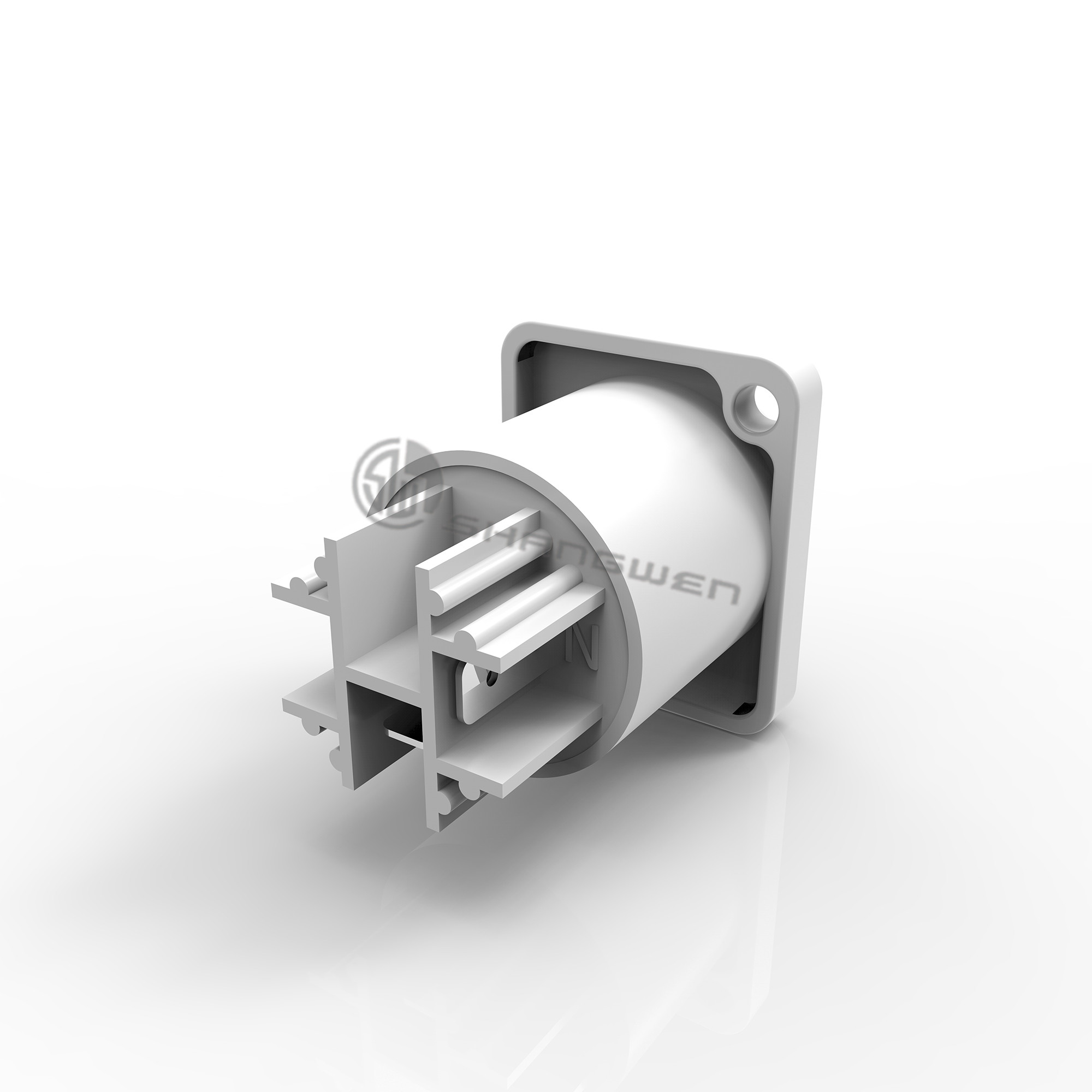

250v 3pin powercon indoor female socket plug for LED 3

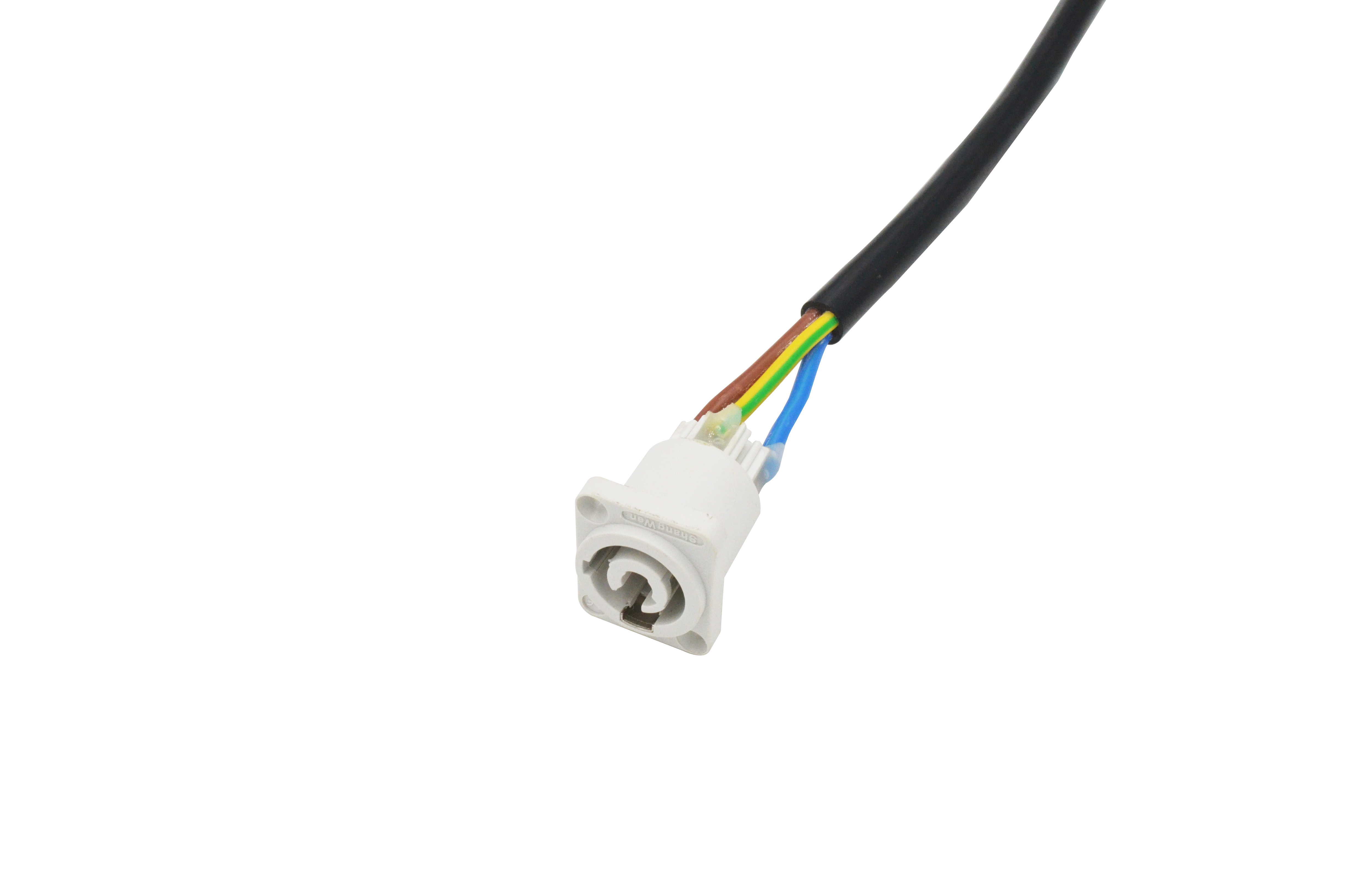

250v 3pin powercon indoor female socket plug for LED 4
