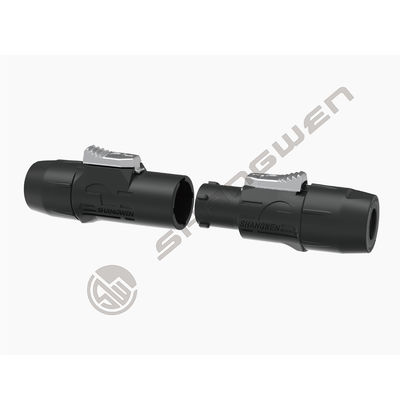

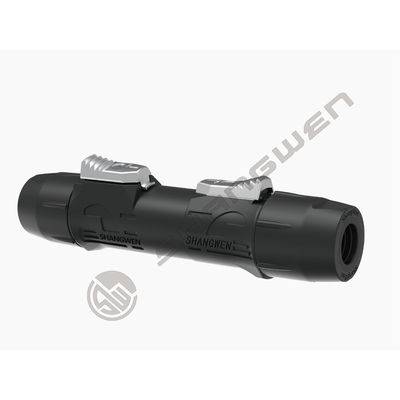

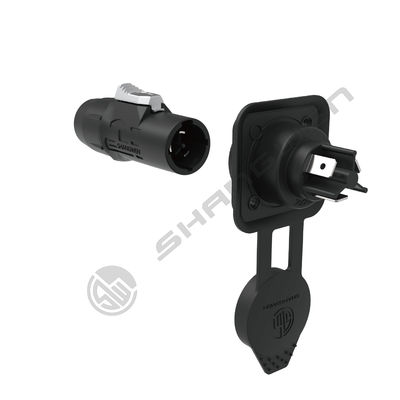

PA6 Plastic Male Waterproof Power Connector Corrosion Resistance For LED Display

Name: PA6 Plastic Male Waterproof Power Connector Corrosion Resistance For LED Display
Brand: SHANGWEN
SKU: SW3FX-W
Price: 1.40 USD
Availability: InStock
Rating: 4.9 (200 reviews)

Place of Origin	Guangdong, China
Brand Name	SHANGWEN
Model Number	SW3FX-W
Minimum Order Quantity	2 pieces
Price	$1.40 - $2.60/pieces
Packaging Details	10pcs/sample bag<br>25pcs/Blister box(23cm x 23cm)<br>500pcs/carton (51cm x 26cm x 34cm)

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Name	Waterproof Power Connector Corrosion Resistance	Type	Led Display Connector
Application	Power	Gender	Male
Industrial Electronics	Accessories
Highlight	Corrosion Resistance Waterproof Power Connector , LED Display Waterproof Power Connector , PA6 Waterproof Power Connector

Leave a Message

Product Description

China Manufacture Outdoor Use Led Display Power Connection Male Power Connector

Application industries

Electric vehicle charging

Hair trimmer

Cleaning machine

Electric vehicle charging

Fruit dryer

Products Description

Power connector series-male powercon(output port)

This series is widely used in outdoor rental LED display power connection.
The plastic part is made of PA6 material, with stable electrical performance, good pressure resistance, high temperature
resistance, explosion resistance and corrosion resistance.
Using rotary locking design, easy to operate, stable and reliable !The copper needle is made of beryllium copper material imported from the United States and plated with silver, which has strong contact stability and can strengthen the control of temperature rise.

The new upgraded model not only supports male and female inserts, but also supports male plug and male plug inserts

Model : SW3FX-W ( outdoor use/output port)

☑High current capacity, rated at 20A/250V AC
☑Quick and simple locking system, the keys are firm and do not fall off

☑The product is a new upgraded generation of power connectors, widely used in outdoor conditions for electrical connection
☑Lockable triple core equipment (AC) connectors with contacts for straight, neutral and pre-adapted safety grounding
☑Connection mode:

1. Screw clamping and welding
2. Lock the cable with screws

1. Electrical parameters

Contacts NO.	2+PE
Rated current	20A
Rated voltage	250V AC
Contact resistance	≤5mΩ
Dielectric strength	4000V DC
Insulation resistance	＞1000MΩ

2. Mechanical parameters

Service life	＞1000 times
Power line	2.5mm²(8mm - 12mm)
Wire stripping length	7-8mm
Type of teminals	Screw type clamping units solder termination

3. Material and environmental parameters

Shell	PA
Contacts	Cu alloy
Contact surface	Ag
Flame-retardant grade	UL94-V0
Protection grade	IP65
Temperature range	-30°C to +80°C

4. Size reference (unit /mm)

5. Installation reference drawing

Application area

Packaging reference

FAQ

1. Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2. What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3. Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

3. Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

4. What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

5. Do your products come with warranty?
A: 1-3 year warranty according to different model
