Outdoor Powercon Connector Coupler Male Adapter Power Connector For Linking Cables

Place of Origin Guangdong, China
Brand Name SHANGWEN
Model Number Outdoor power connector
Minimum Order Quantity 50 pieces
Price $1.90 - $3.20/pieces
Packaging Details 10pcs/sample bag<br>25pcs/Blister box(23cm x 23cm)<br>500pcs/carton (51cm x 26cm x 34cm)
Supply Ability 10000000 Piece/Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Powercon Connector Type ADAPTER
Gender Male Industrial Electronics Accessories
Port Shenzhen
Highlight

Outdoor Powercon Connector

,

Outdoor Powercon Coupler

,

Male Adapter Power Connector

Leave a Message
Product Description



Outdoor Powercon Connector Coupler Male Adapter Power Connector For Linking Cables



Outdoor power connector


Lockable 3 pole single phase equipment (AC) connector
High current capacity, rated at 20 A / 250 V ac
Colour coded for easy identification, powerCON offers power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
Fast and easy locking system Extremely robust and reliable Excellent cable retention UL, cUL recognized components (file no. E 135070) VDE certified (Reg. No. 6360) New latch design for easier handling and secure locking Coupler for linking cables (couples NAC3FCA to NAC3FCB)





1. Product parameters
Product
NAC3MM-1
Connection Type
Adapter
Gender
Male
2. Electrical parameters
Contact resistance
≤ 3 mΩ
Dielectric strength
4 kVdc
Insulation resistance
> 0.1 GΩ (IEC 68-2-30)
Rated current per contact
20 A rms
Rated voltage
250 V ac
3. Mechanical parameters
Service life
>1000 mating cycles
Locking device
Quick lock
4. Material and environmental parameters
Contact plating
2 µm Ag
Lock material
Steel Ck67
Shell
Polyamide(PA 6.6 30 % GR)
Contact
Bronze (CuNi1Si0.2)
Flame-retardant grade
UL 94 V-0
Protection class
IP 20(After connecting)
Safety requirements
EN/IEC 61984
Solderability
Complies with IEC 68-2-20
Temperature range
-30℃to +80℃



Products Description
powerCON – Locking 3 Pole Power Connectors

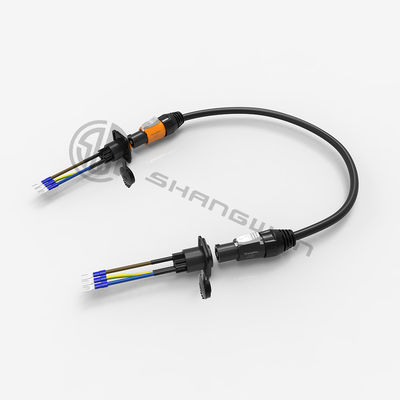

Outdoor Powercon Connector Coupler Male Adapter Power Connector For Linking Cables 0

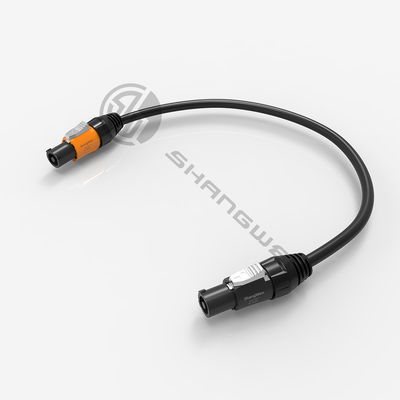

Outdoor Powercon Connector Coupler Male Adapter Power Connector For Linking Cables 1

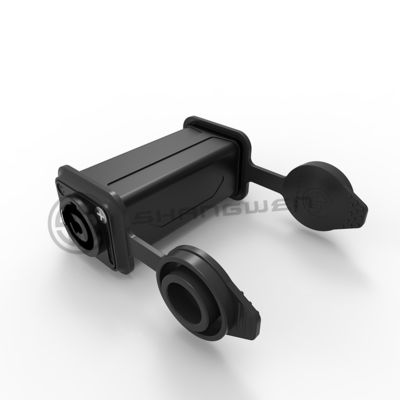

Outdoor Powercon Connector Coupler Male Adapter Power Connector For Linking Cables 2

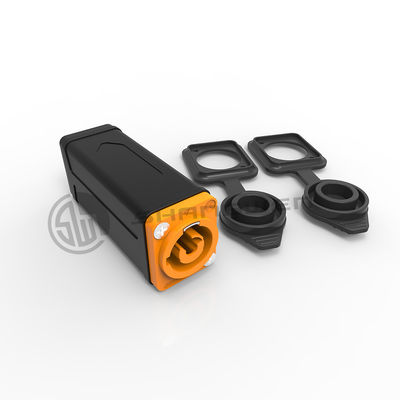

Outdoor Powercon Connector Coupler Male Adapter Power Connector For Linking Cables 3

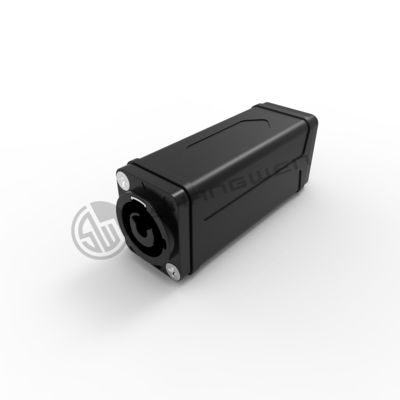

Outdoor Powercon Connector Coupler Male Adapter Power Connector For Linking Cables 4

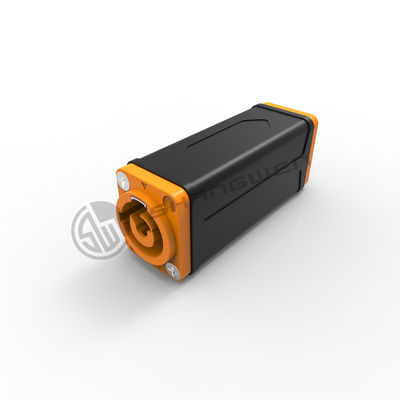

Outdoor Powercon Connector Coupler Male Adapter Power Connector For Linking Cables 5
Outdoor Powercon Connector Coupler Male Adapter Power Connector For Linking Cables 6
Outdoor Powercon Connector Coupler Male Adapter Power Connector For Linking Cables 7


5. Size reference (unit /mm)
Outdoor Powercon Connector Coupler Male Adapter Power Connector For Linking Cables 8
6.Assembly reference
Outdoor Powercon Connector Coupler Male Adapter Power Connector For Linking Cables 9
Outdoor Powercon Connector Coupler Male Adapter Power Connector For Linking Cables 10
Outdoor Powercon Connector Coupler Male Adapter Power Connector For Linking Cables 11
Outdoor Powercon Connector Coupler Male Adapter Power Connector For Linking Cables 12

Application area
Outdoor Powercon Connector Coupler Male Adapter Power Connector For Linking Cables 13
Company Information
Outdoor Powercon Connector Coupler Male Adapter Power Connector For Linking Cables 14
Patent & Certification
Outdoor Powercon Connector Coupler Male Adapter Power Connector For Linking Cables 15
Exhibition activities
Outdoor Powercon Connector Coupler Male Adapter Power Connector For Linking Cables 16
Packaging reference
Outdoor Powercon Connector Coupler Male Adapter Power Connector For Linking Cables 17
Payment and logistics
Outdoor Powercon Connector Coupler Male Adapter Power Connector For Linking Cables 18
FAQ
Outdoor Powercon Connector Coupler Male Adapter Power Connector For Linking Cables 19


1. What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

2. Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

3. Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

4. Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

5. What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6. Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
