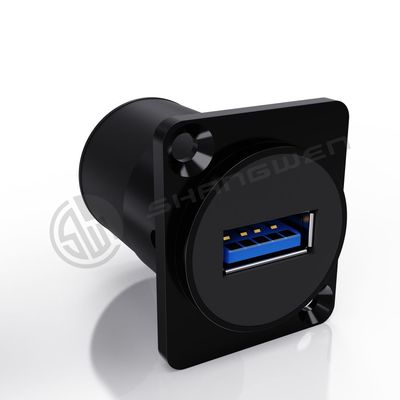

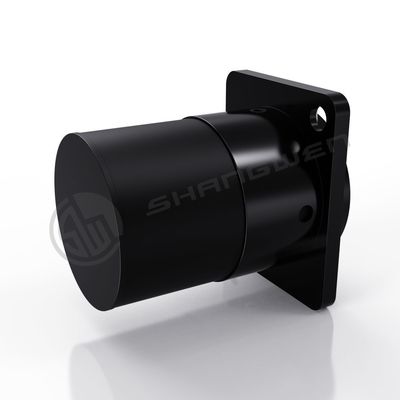

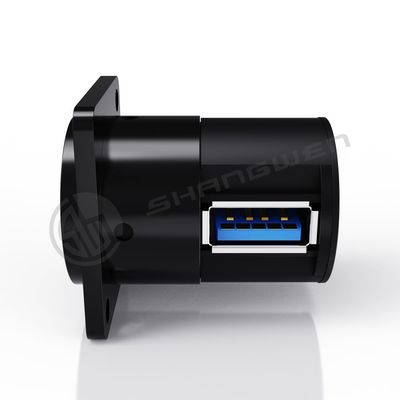

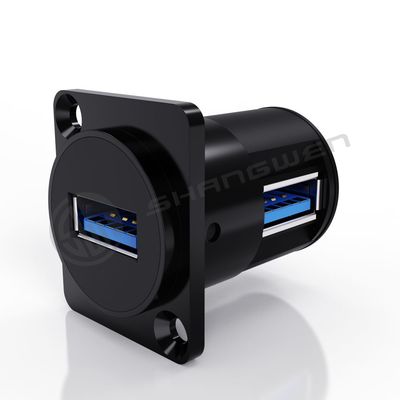

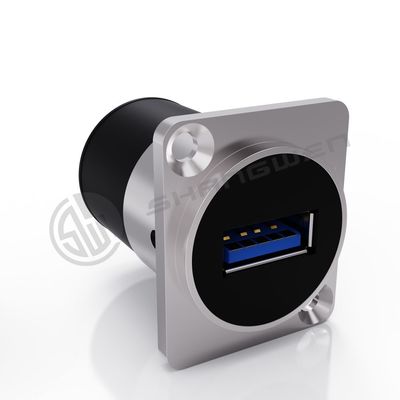

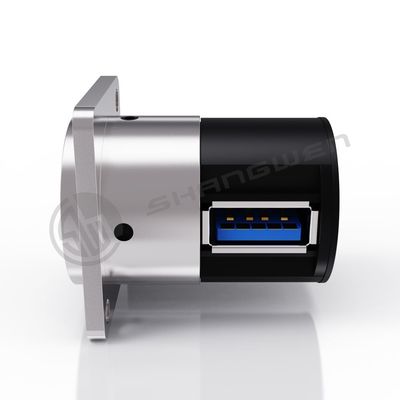

Black Shell Panel Mount Connector 9 Pin 90 Angle End Data Cable USB Connector

Place of Origin Guangdong, China
Brand Name SHANGWEN
Model Number SWDUW-3SB
Minimum Order Quantity 2 pieces
Price $2.20/pieces 2-99 pieces
Packaging Details 10pcs/sample bag<br>25pcs/Blister box(23cm x 23cm)<br>500pcs/carton (51cm x 26cm x 34cm)

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Data Cable USB Connector Type Usb
Industrial Electronics Accessories Waterproof Ip65
Application Data Shell Material Steel
Highlight

Black Shell Panel Mount Connector

,

Panel Mount Connector 9 Pin

,

Data Cable USB Connector

Leave a Message
Product Description

Black Shell 90 Angle End Audio Video Connectors 9 Pin Shielded Suitable Data Cable Usb Connector





Application

Shangwen electronics has excellent engineering creation team, market operation team, modem manufacturing workshop, strict quality supervision system and fast storage and logistics facilities. Over the years, the products have been widely used in LED display, lighting equipment, engineering machinery equipment and etc.We will continue to develop into a world-renowned brand in the connector industry.



1. Electrical parameters
No. of poles
4
Current rating
1A
Voltage rating
30Vac (RMS)
Contact resistance
30m Ω max.
Performance
 USB version 2.0
2. Materials - Re-wireable and Panel Connectors
Shell material
Steel
Shell plating
Nickel
Contact material
Copper Alloy
Contact plating
30 micro inch Gold
Connector body & locking ring
Glass Loaded Polyester
 Panel connector
 Nylon 6
 Flammability rating
 UL94V-0
‘O’rings
 Silicone
 Panel Gasket - round
 Silicone
Panel Gasket - square
 Neoprene
Mating cycles
 1,000
 RoHS
 Compliant
3. Size reference (unit /mm)
