Industrial Loudspeaker Connector D Shape 4 Pin Waterproof Connector Female Plug 4-Pole Female Speakon Cable Connector for Loudspeaker
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Loudspeaker | Application | Audio & Video |
|---|---|---|---|
| Gender | Female | Industrial Electronics | Accessories |
| Highlight | Industrial Loudspeaker Connector,Loudspeaker Connector D Shape,4 Pin Waterproof Connector Plug |
||
Product Description

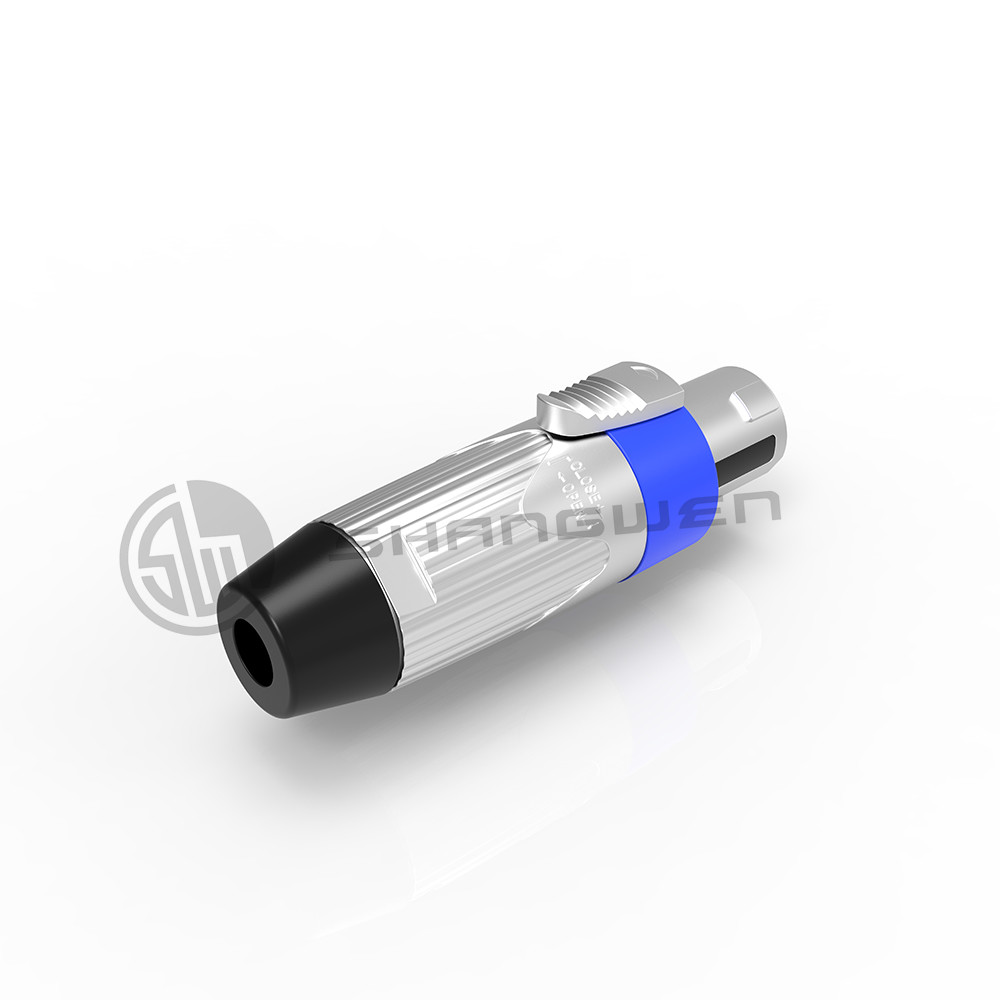

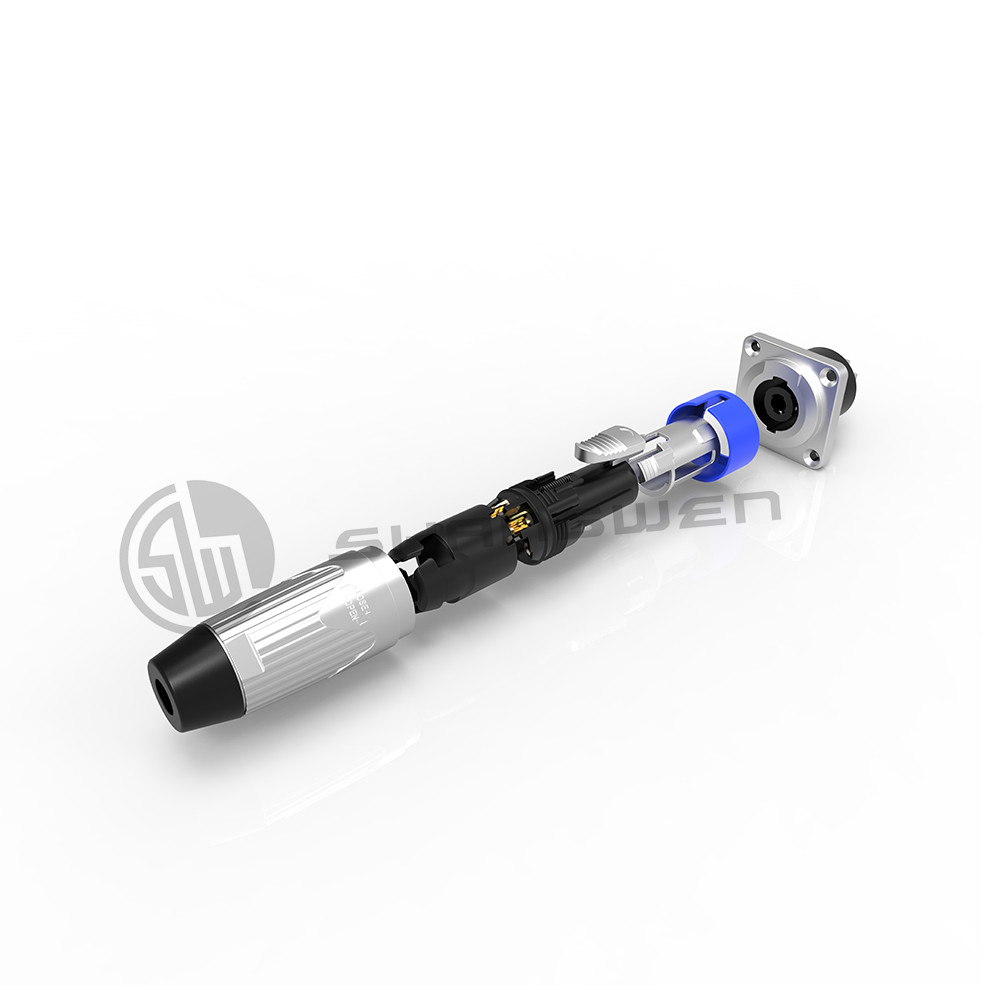

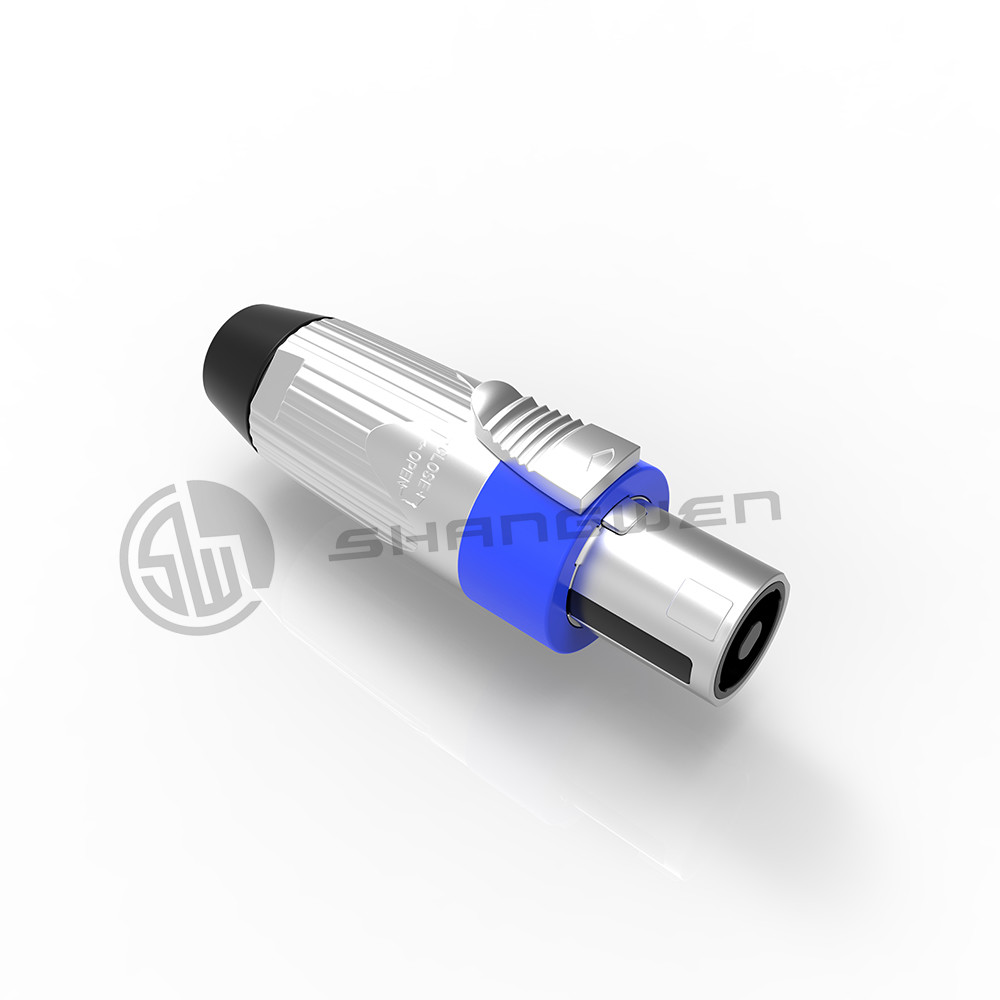

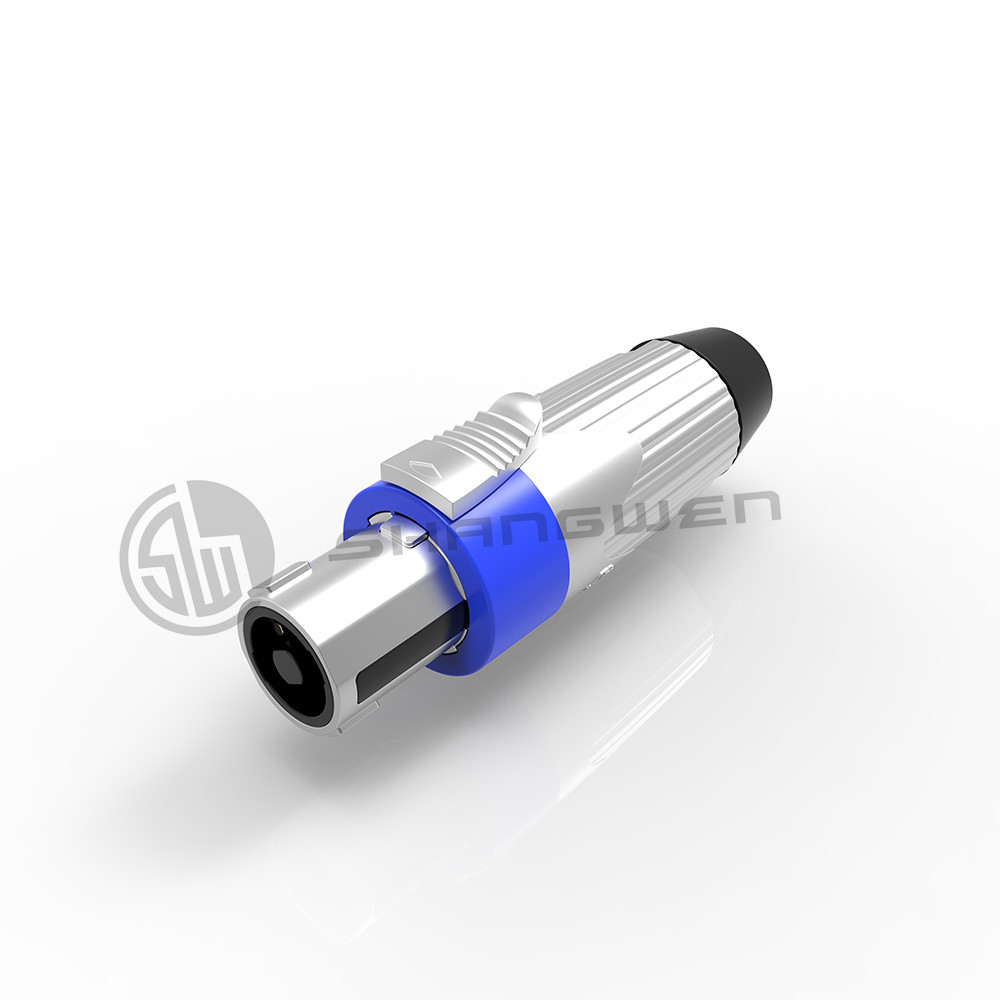

Waterproof D Shape Female Plug Male Socket Metal Shell 4 Pins Loudspeaker Connector
Products Description
4Pin Loudspeaker plug-Metal material
Model:SW4SFT
☑Sophisticated "quick lock" system
☑A large welding contact is attached, suitable for lines up to 6mm²(AWG10)
☑Equipped with internal gasket, protection class up to IP54 in connection state
1.Product parameters
|
Connection Type
|
Speaker
|
|
Gender
|
Female
|
2.Electrical parameters
|
Contact resistance
|
＜2mΩ
|
|
Dielectric strength
|
2.8kVac
|
|
Insulation resistance
|
> 1.0GΩ (initial)
|
|
Rated current per contact
|
30A
|
|
Rated voltage
|
250 V ac
|
3.Mechanical parameters
|
Sign Cable O.D.
|
9-16mm
|
|
Service life
|
＞5000 mating cycles
|
|
Wire size
|
6 mm²
|
|
Wire size
|
10AWG
|
|
Locking device
|
Latch lock
|
4.Material and environmental parameters
|
Contacts
|
Cu alloy
|
|
Contact plating
|
Ag
|
|
Insert
|
Polyamide (PA 66 )
|
|
Shell
|
Zinc diecast,Nickel plating
|
|
Strain relief
|
Polyacetal (POM)
|
|
Flame-retardant grade
|
UL 94 V-0
|
|
Protection class
|
IP54
|
|
Temperature range
|
-30℃to +80℃
|
Application area
Company Information
Patent & Certification
Exhibition activities
Packaging reference
Payment and logistics
FAQ
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.
2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.
3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.
4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.
5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.
6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
