Waterproof 5 Pin XLR Connector IP65 Male Female Socket Connector

Place of Origin Guangdong, China
Brand Name SHANGWEN
Model Number 5 pin male plug
Minimum Order Quantity 2 pieces
Price $1.84/pieces 2-99 pieces
Packaging Details 10pcs/sample bag<br>25pcs/Blister box(23cm x 23cm)<br>500pcs/carton (51cm x 26cm x 34cm)

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type 5 Pin XLR Connector Gender Male
Industrial Electronics Accessories Application Power
Feature Waterproof IP65 Wire Diameter Range 5-8mm
Highlight

5 Pin XLR Connector

,

Waterproof XLR Connector

,

IP65 Male Female Socket Connector

Leave a Message
Product Description



Zinc Alloy Shell Waterproof Ip65 Outdoor Female Male Plug Socket 5 Pin Xlr Connector

Products Description
Waterproof XLR connector-5 pin male plug




The 5-pin XLR connector is a versatile audio connector widely used in professional audio applications. It features five pins arranged in a circular configuration, allowing for the transmission of balanced audio signals and control data.



This connector is commonly found in audio equipment such as mixing consoles, microphones, amplifiers, and audio interfaces. It provides a reliable and secure connection, ensuring high-quality audio transmission with excellent noise rejection and interference resistance.



The 5-pin XLR connector is designed to handle both audio signals and control signals simultaneously. It is commonly used in applications where audio devices need to communicate with each other or exchange control information. The additional pins offer flexibility for transmitting data such as phantom power, DMX lighting control signals, intercom signals, or other digital control protocols.



With its sturdy construction and locking mechanism, the 5-pin XLR connector ensures a secure connection that withstands the rigors of professional use. It is known for its durability, longevity, and ability to maintain consistent audio performance even in demanding environments.



In summary, the 5-pin XLR connector is a reliable and versatile audio connector widely used in professional audio applications. Its balanced audio signal transmission, compatibility with control data, and robust construction make it an essential component in the audio industry.

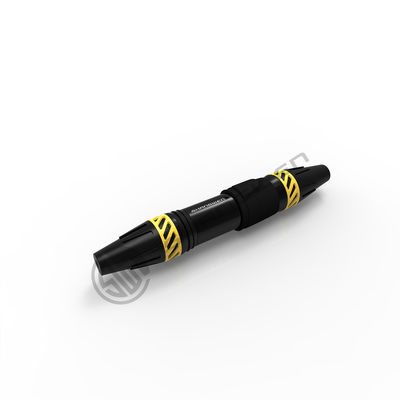

Waterproof 5 Pin XLR Connector IP65 Male Female Socket Connector 0

Model:SW5XMT-F-B (Black)

               SW5XMT-F(Silver)



☑One hand can operation, push the button to pull it out
☑The contact pin is gold-plated
☑Zinc alloy shell to ensure that it can withstand gravity in any field of use
☑Waterproof IP65
☑Wire diameter range: 5-8mm

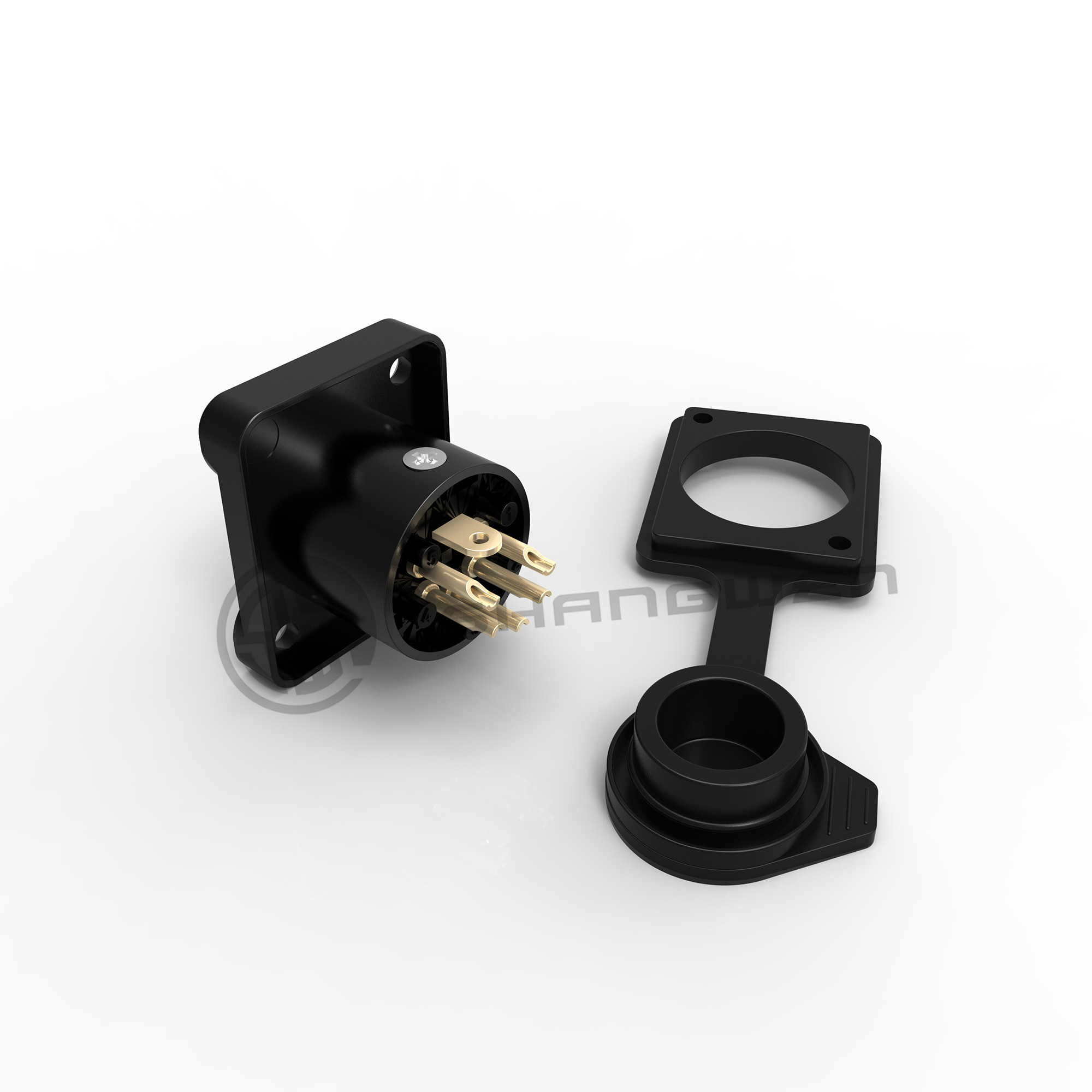

Waterproof 5 Pin XLR Connector IP65 Male Female Socket Connector 1

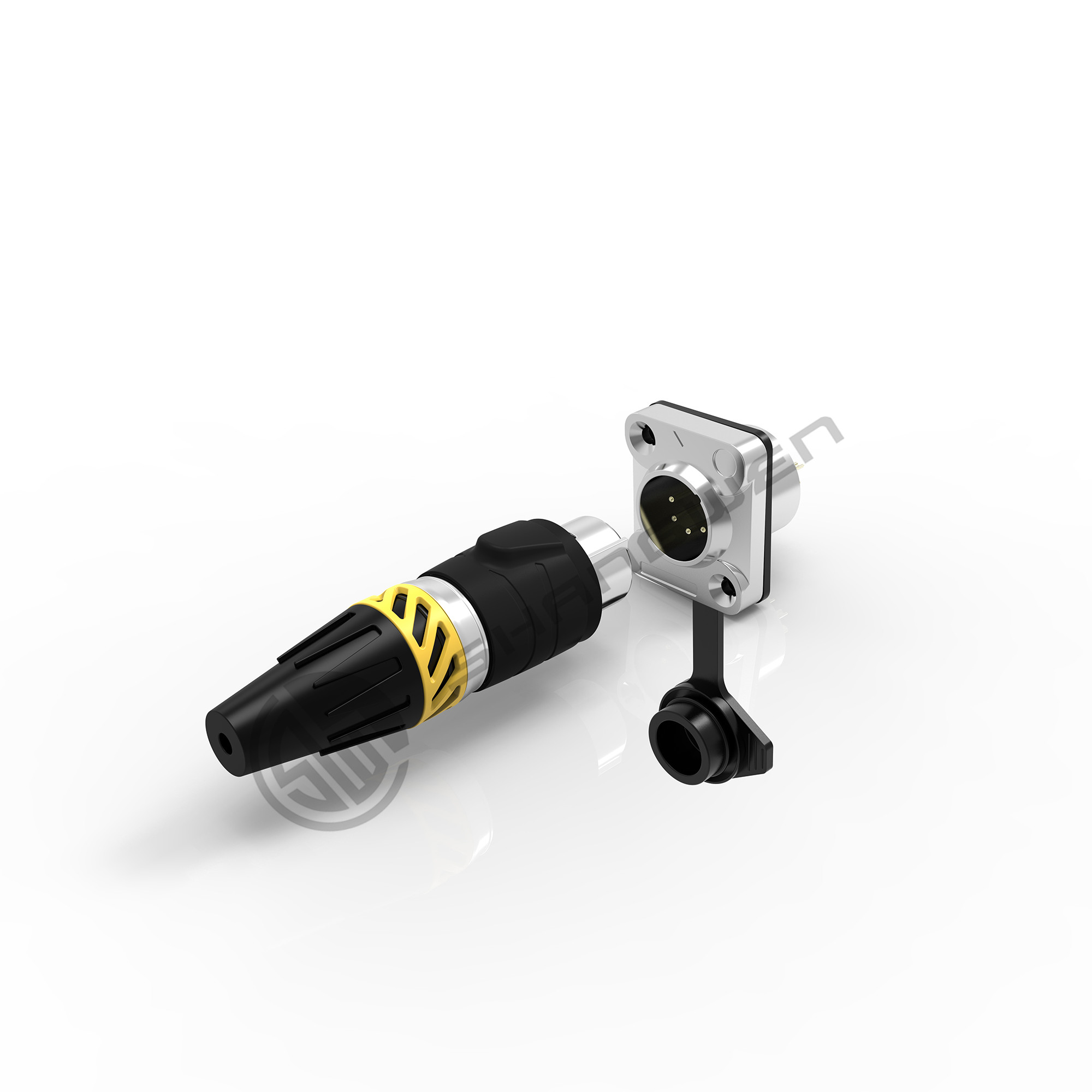

Waterproof 5 Pin XLR Connector IP65 Male Female Socket Connector 2

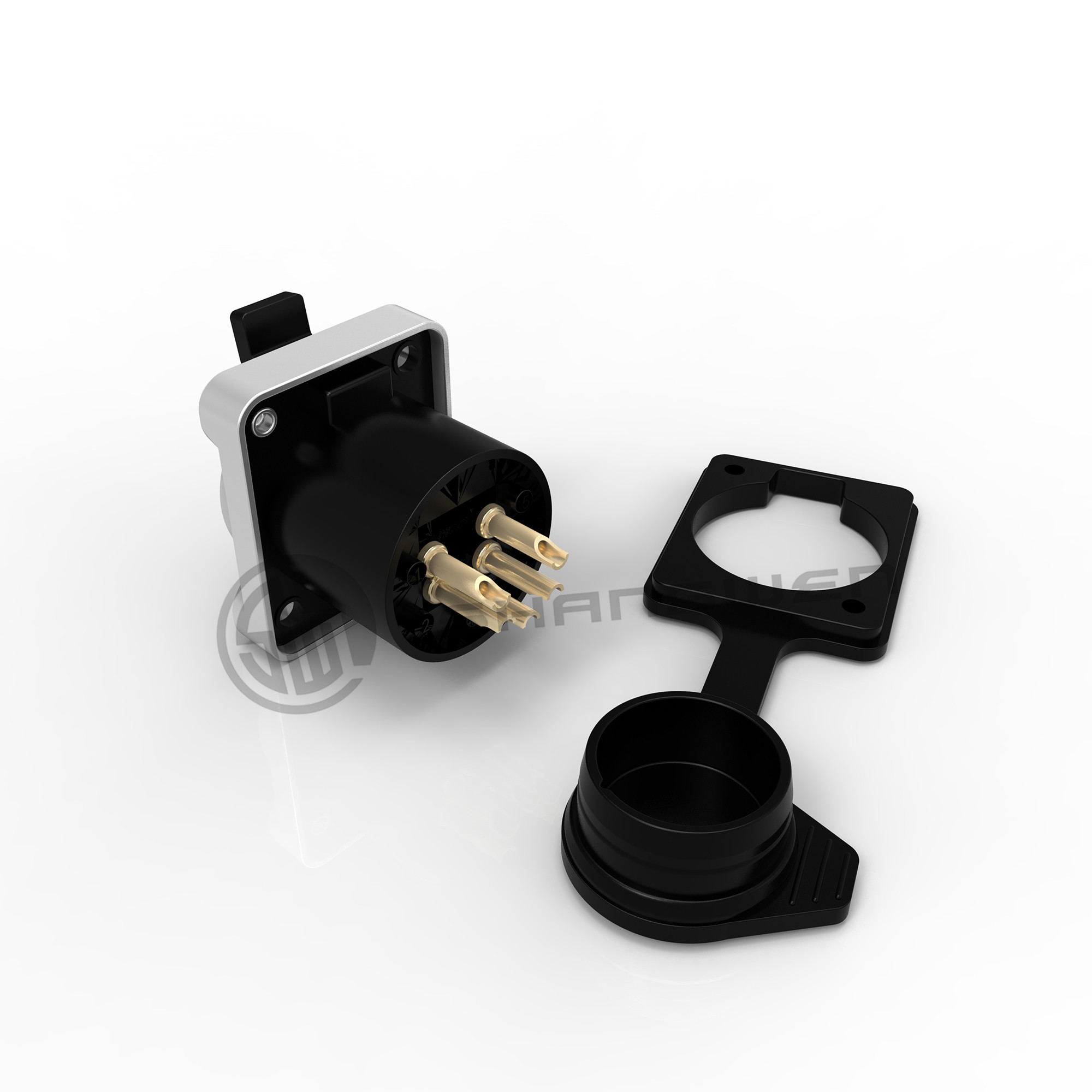

Waterproof 5 Pin XLR Connector IP65 Male Female Socket Connector 3

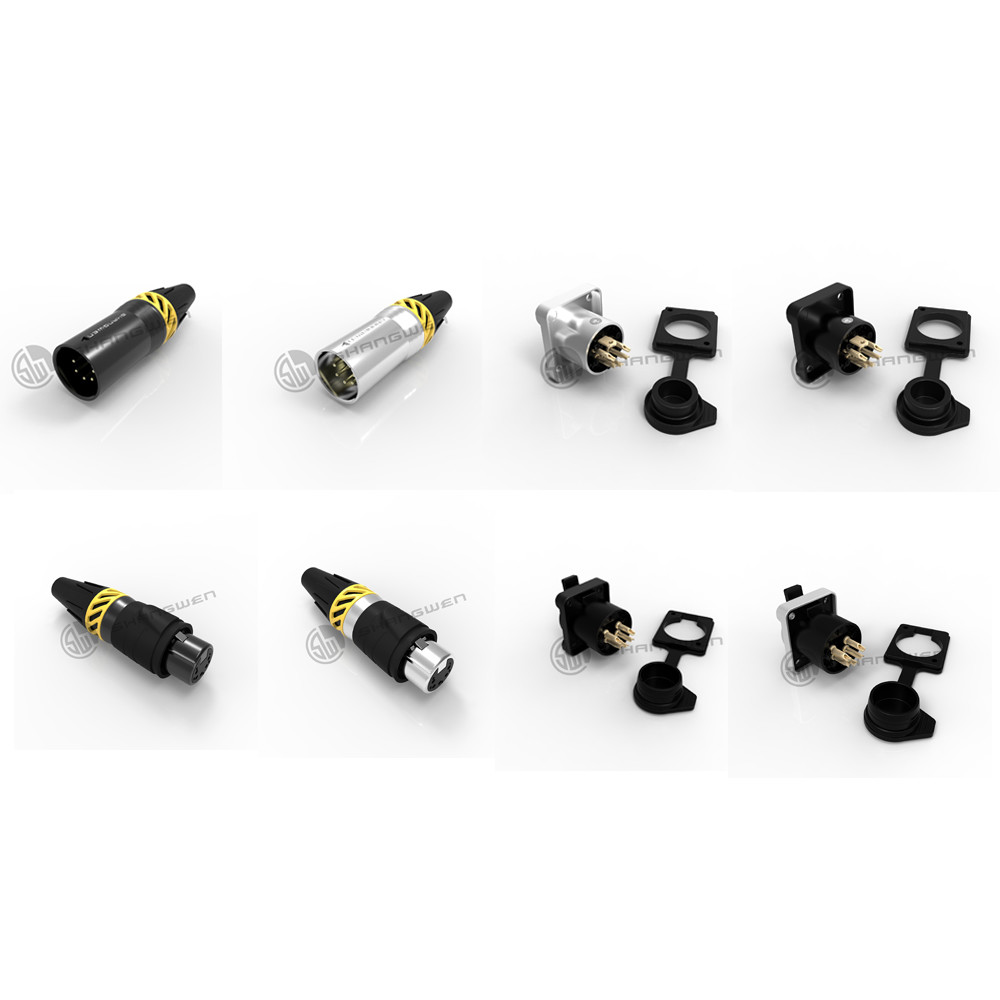

Waterproof 5 Pin XLR Connector IP65 Male Female Socket Connector 4
1.Product parameters
Connection Type
XLR
Gender
Male
2.Electrical parameters
Capacitance between contacts
≤7pF
Contact resistance
≤3mΩ
Dielectric strength
1.5kVdc
Insulation resistance
> 10GΩ (initial)
Rated current per contact
7.5A
Rated voltage
<50V
3.Mechanical parameters
Sign Cable O.D.
5-8mm
Insertion force
≤ 20N
Withdrawal force
≤ 20N
Service life
>1000 mating cycles
Wire size
Max. 1.0 mm²
Wire size
Max. 18 AWG
Locking device
Latch lock
4.Material and environmental parameters
Boot
Polyurethan
Contacts
Cu alloy
Contact plating
Au
Insert
Polyamide (PA 66 +30 % GF)
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Cr
Strain relief
Polyacetal (POM)
Flame-retardant grade
UL 94 HB
Protection class
IP65
Temperature range
-30℃to +80℃
5.Size reference (unit /mm)
Waterproof 5 Pin XLR Connector IP65 Male Female Socket Connector 5
6.Assembly reference
Waterproof 5 Pin XLR Connector IP65 Male Female Socket Connector 6
Waterproof 5 Pin XLR Connector IP65 Male Female Socket Connector 7
Waterproof 5 Pin XLR Connector IP65 Male Female Socket Connector 8
Waterproof 5 Pin XLR Connector IP65 Male Female Socket Connector 9
Waterproof 5 Pin XLR Connector IP65 Male Female Socket Connector 10
Waterproof 5 Pin XLR Connector IP65 Male Female Socket Connector 11

Application area
Waterproof 5 Pin XLR Connector IP65 Male Female Socket Connector 12
Company Information
Waterproof 5 Pin XLR Connector IP65 Male Female Socket Connector 13
Patent & Certification
Waterproof 5 Pin XLR Connector IP65 Male Female Socket Connector 14
Exhibition activities
Waterproof 5 Pin XLR Connector IP65 Male Female Socket Connector 15
Packaging reference
Waterproof 5 Pin XLR Connector IP65 Male Female Socket Connector 16
Payment and logistics
Waterproof 5 Pin XLR Connector IP65 Male Female Socket Connector 17
FAQ
Waterproof 5 Pin XLR Connector IP65 Male Female Socket Connector 18
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
