Audio XLR 3 Pin Male Female Plug Connector Electrical IP65 Waterproof
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | XLR Connector | Application | Power |
|---|---|---|---|
| Gender | Male | Industrial Electronics | Accessories |
| Feature | Waterproof IP65 | Wire Diameter Range | 5-8mm |
| Highlight | Audio Male Female Plug Connector Electrical,Male Female Plug Connector Electrical IP65,XLR 3 Pin Male Female Connector |
||
Product Description
China Manufacture Outdoor Waterproof Male Female Plug 3 Pin 5 Pin Xlr Connector For Audio
Products Description
Waterproof XLR connector-3 pin male plug
The 3-pin male XLR connector plug offers a dependable and versatile solution for audio connections in professional audio setups. Its durable construction, balanced audio transmission, secure connection, and compatibility make it an essential component in the audio industry, ensuring high-quality and reliable audio signal transmission.
Durable Construction: The connector plug is built with high-quality materials, typically featuring a robust metal or high-grade plastic housing that ensures durability and longevity, even in demanding environments.
Balanced Audio Transmission: The 3-pin XLR connector plug supports balanced audio signals, allowing for efficient and reliable transmission with reduced noise and interference. It ensures high-quality audio reproduction.
Secure Connection: It incorporates a reliable locking mechanism that securely fastens the plug to the corresponding female socket, providing a stable and secure connection that prevents accidental disconnections during use.

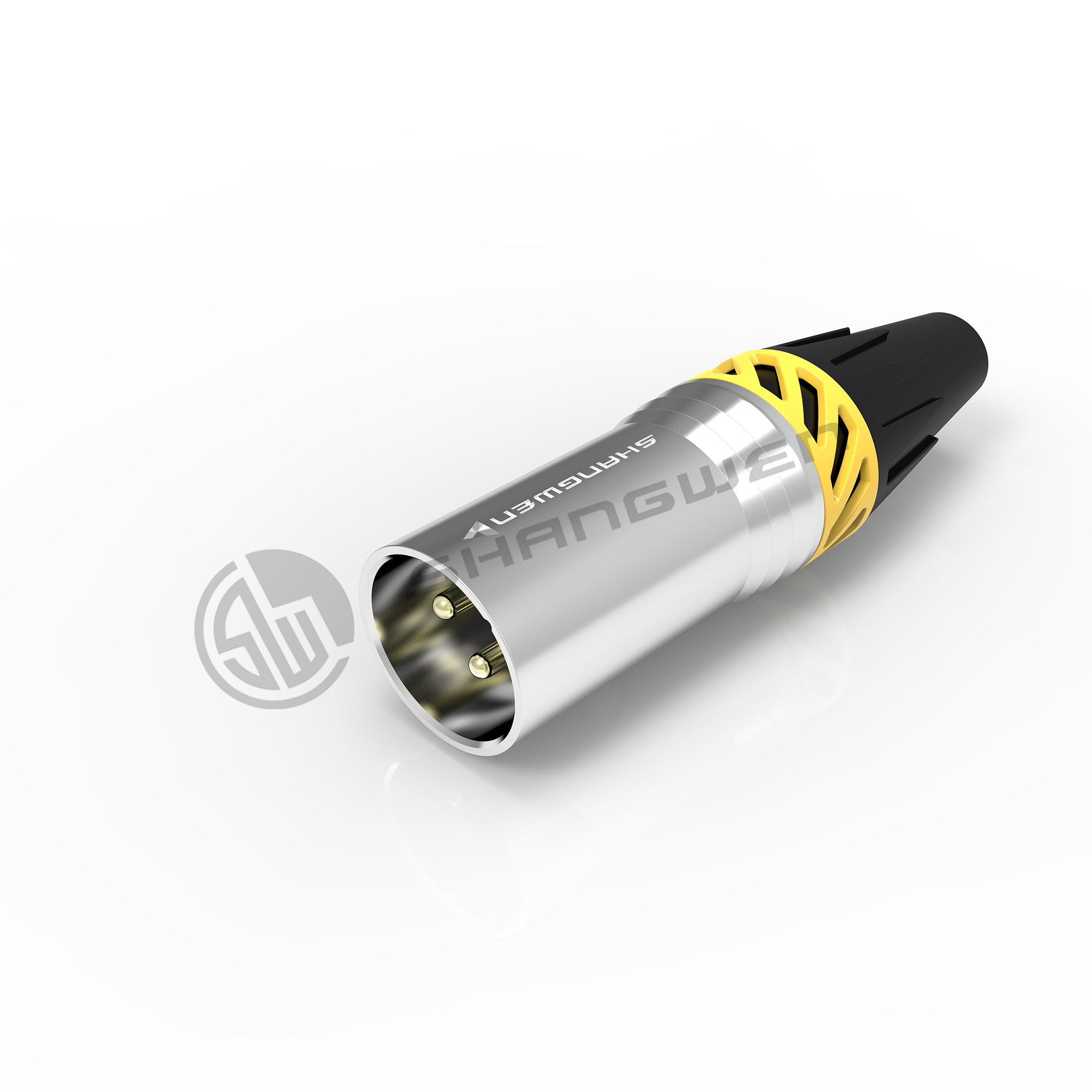

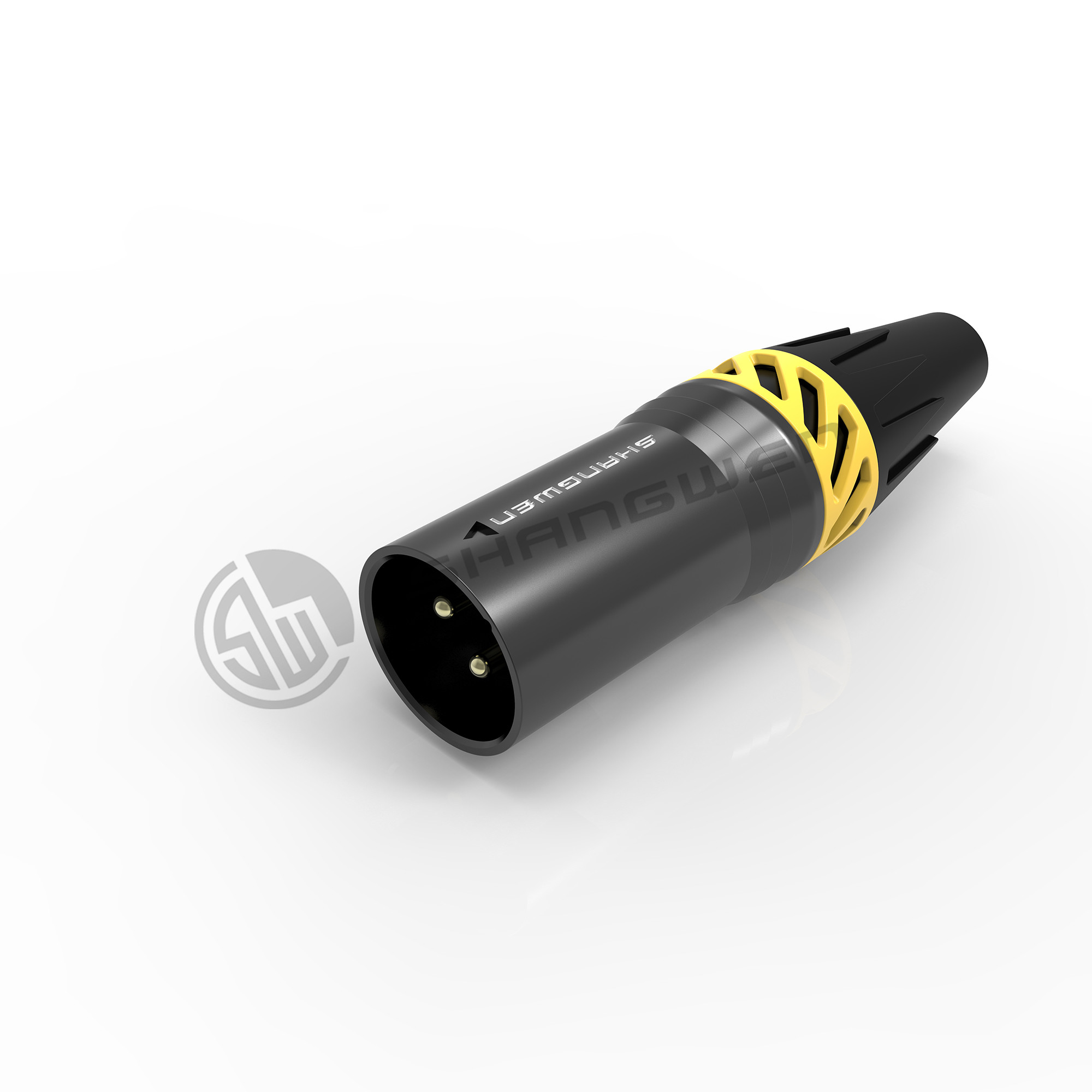

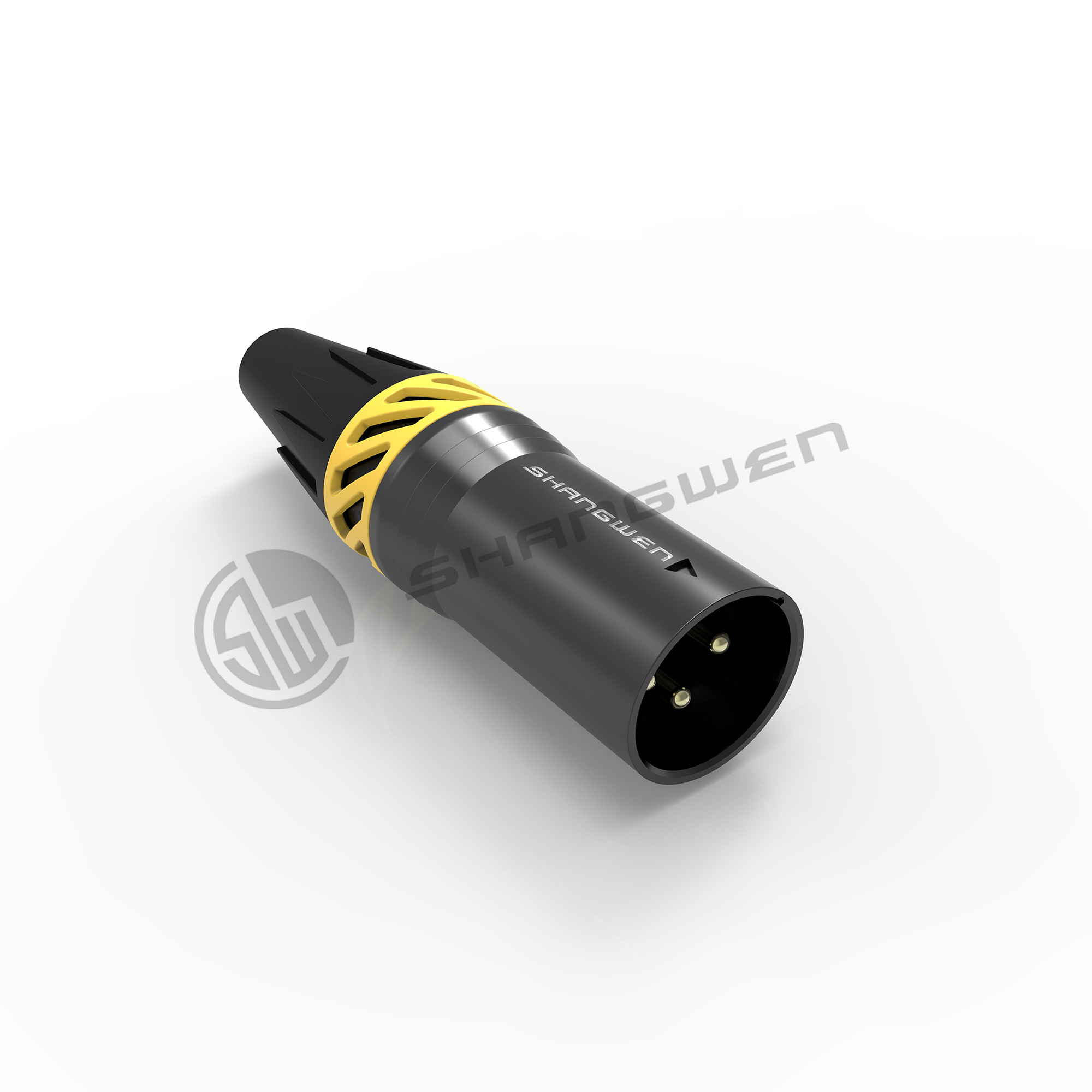

Model:SW3XMT-F-B (Black)
SW3XMT-F(Silver)
☑The contact pin is gold-plated
☑Zinc alloy shell to ensure that it can withstand gravity in any field of use
☑Waterproof IP65
☑Wire diameter range: 5-8mm
3 pin male plug
3 pin male plug
3 pin male socket
3 pin male socket
3 pin female plug
3 pin female plug
3 pin female socket
3 pin female socket
5 pin male plug
5 pin male plug
5 pin male socket
5 pin male socket
5 pin female plug
5 pin female plug
5 pin female socket
5 pin female socket
1.Product parameters
|
Connection Type
|
XLR
|
|
Gender
|
Male
|
2.Electrical parameters
|
Capacitance between contacts
|
≤4pF
|
|
Contact resistance
|
≤3mΩ
|
|
Dielectric strength
|
1.5kVdc
|
|
Insulation resistance
|
> 10GΩ (initial)
|
|
Rated current per contact
|
16A
|
|
Rated voltage
|
<50V
|
3.Mechanical parameters
|
Sign Cable O.D.
|
5-8mm
|
|
Insertion force
|
≤ 20N
|
|
Withdrawal force
|
≤ 20N
|
|
Service life
|
＞1000 mating cycles
|
|
Wire size
|
Max. 2.5 mm²
|
|
Wire size
|
Max. 14 AWG
|
|
Locking device
|
Latch lock
|
4.Material and environmental parameters
|
Boot
|
Polyurethan
|
|
Contacts
|
Cu alloy
|
|
Contact plating
|
Au
|
|
Insert
|
Polyamide (PA 66 +30 % GF)
|
|
Shell
|
Zinc diecast (ZnAl4Cu1)
|
|
Shell plating
|
Cr
|
|
Strain relief
|
Polyacetal (POM)
|
|
Flame-retardant grade
|
UL 94 HB
|
|
Protection class
|
IP65
|
|
Temperature range
|
-30℃to +80℃
|
5.Size reference (unit /mm)
6.Assembly reference
