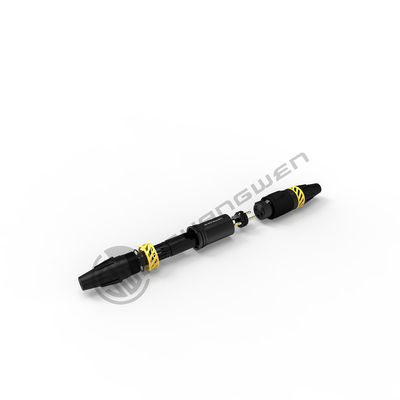

Small XLR Power Connector Outdoor Waterproof 3 Pin Male Plug Connector

Place of Origin	Guangdong, China
Brand Name	SHANGWEN
Model Number	3 pin male plug
Minimum Order Quantity	2 pieces
Price	$1.51/pieces 2-99 pieces
Packaging Details	10pcs/sample bag<br>25pcs/Blister box(23cm x 23cm)<br>500pcs/carton (51cm x 26cm x 34cm)

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Type	XLR Connector-3 Pin Male Plug	Application	Power
Gender	Male	Industrial Electronics	Accessories
Size	Small	Feature	Waterproof IP65
Wire Diameter Range	5-8mm
Highlight	Small XLR Power Connector , XLR Power Connector Outdoor , Waterproof 3 Pin Male Plug Connector

Leave a Message

Product Description

5-8mm Wire Diameter Cu Alloy Contacts Outdoor Ip65 Waterproof XLR Connector 3 Pin Male Plug

Products Description

Waterproof XLR connector-3 pin male plug

The 3-pin male XLR connector plug is a versatile audio connector widely used in professional audio applications. Here is a description of its key features:

1. Durable Construction: The connector plug is built with high-quality materials, typically featuring a robust metal or high-grade plastic housing that ensures durability and longevity, even in demanding environments.

2. Balanced Audio Transmission: The 3-pin XLR connector plug supports balanced audio signals, allowing for efficient and reliable transmission with reduced noise and interference. It ensures high-quality audio reproduction.

3. Secure Connection: It incorporates a reliable locking mechanism that securely fastens the plug to the corresponding female socket, providing a stable and secure connection that prevents accidental disconnections during use.

4. Versatile Application: This XLR connector plug is widely used in professional audio setups, including microphones, mixers, amplifiers, and audio interfaces. It is a standard connector in the audio industry, ensuring compatibility across various equipment.

5. Pin Configuration: The 3-pin male XLR connector plug features three pins arranged in a circular pattern within the plug body. These pins allow for the transmission of balanced audio signals, typically including a positive signal, a negative signal, and a ground connection.

6. Easy Integration: The plug is designed for easy integration into audio systems, with standard dimensions that facilitate seamless installation and connection. It is widely recognized and accepted as a standard connector in the audio industry.

7. Reliable Signal Transfer: The precise contacts and shielding of the 3-pin XLR connector plug ensure reliable signal transfer, minimizing signal loss and maintaining audio integrity even over long cable runs. It provides consistent and clear audio transmission.

8. Professional-Grade Performance: This connector plug is engineered to meet the demands of professional audio applications, delivering exceptional audio quality, reliability, and durability. It is trusted by audio professionals worldwide.

In summary, the 3-pin male XLR connector plug offers a dependable and versatile solution for audio connections in professional audio setups. Its durable construction, balanced audio transmission, secure connection, and compatibility make it an essential component in the audio industry, ensuring high-quality and reliable audio signal transmission.

Model:SW3XMT-F-B (Black)

SW3XMT-F(Silver)

☑One hand can operation, push the button to pull it out
☑The contact pin is gold-plated
☑Zinc alloy shell to ensure that it can withstand gravity in any field of use
☑Waterproof IP65
☑Wire diameter range: 5-8mm

1.Product parameters

Connection Type	XLR
Gender	Male

2.Electrical parameters

Capacitance between contacts	≤4pF
Contact resistance	≤3mΩ
Dielectric strength	1.5kVdc
Insulation resistance	> 10GΩ (initial)
Rated current per contact	16A
Rated voltage	<50V

3.Mechanical parameters

Sign Cable O.D.	5-8mm
Insertion force	≤ 20N
Withdrawal force	≤ 20N
Service life	＞1000 mating cycles
Wire size	Max. 2.5 mm²
Wire size	Max. 14 AWG
Locking device	Latch lock

4.Material and environmental parameters

Boot	Polyurethan
Contacts	Cu alloy
Contact plating	Au
Insert	Polyamide (PA 66 +30 % GF)
Shell	Zinc diecast (ZnAl4Cu1)
Shell plating	Cr
Strain relief	Polyacetal (POM)
Flame-retardant grade	UL 94 HB
Protection class	IP65
Temperature range	-30℃to +80℃

5.Size reference (unit /mm)

6.Assembly reference

Application area
