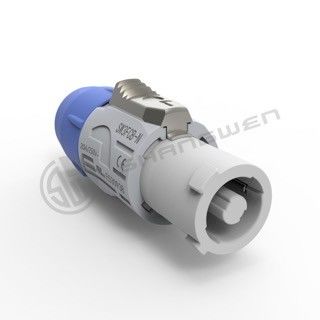

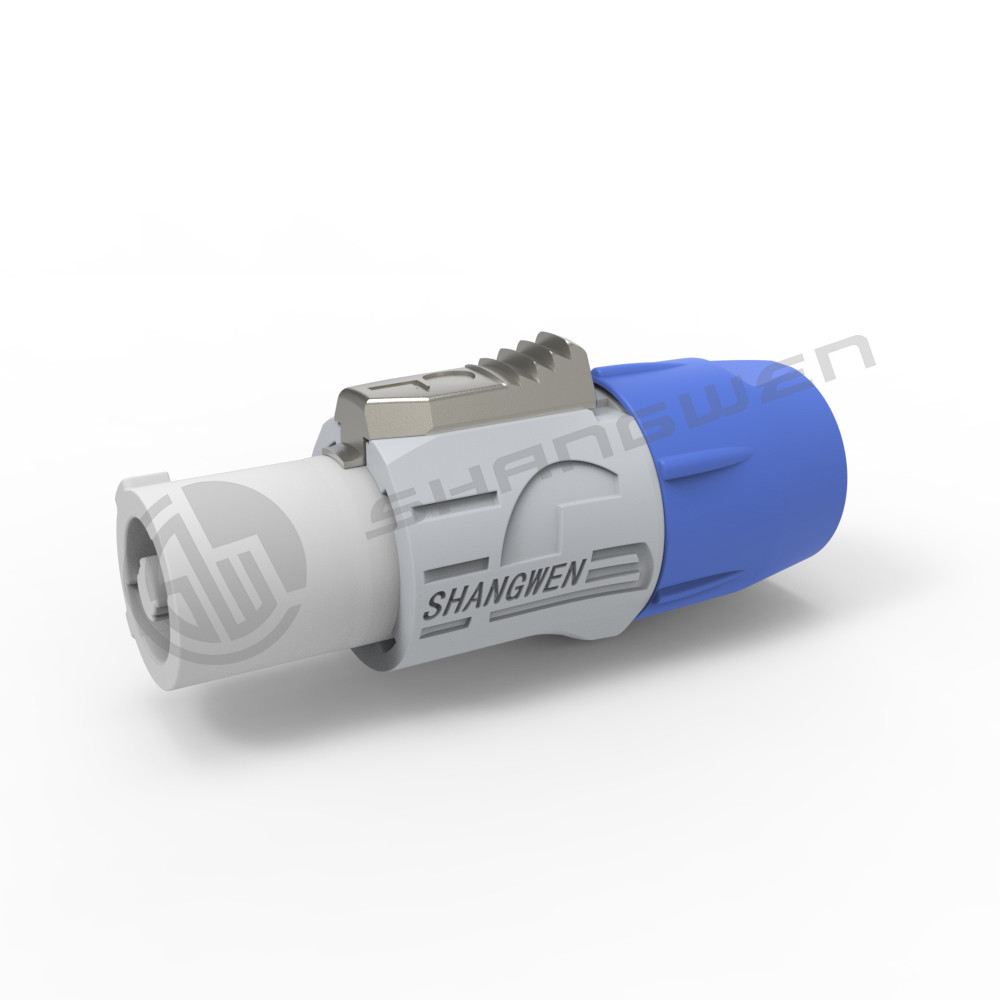

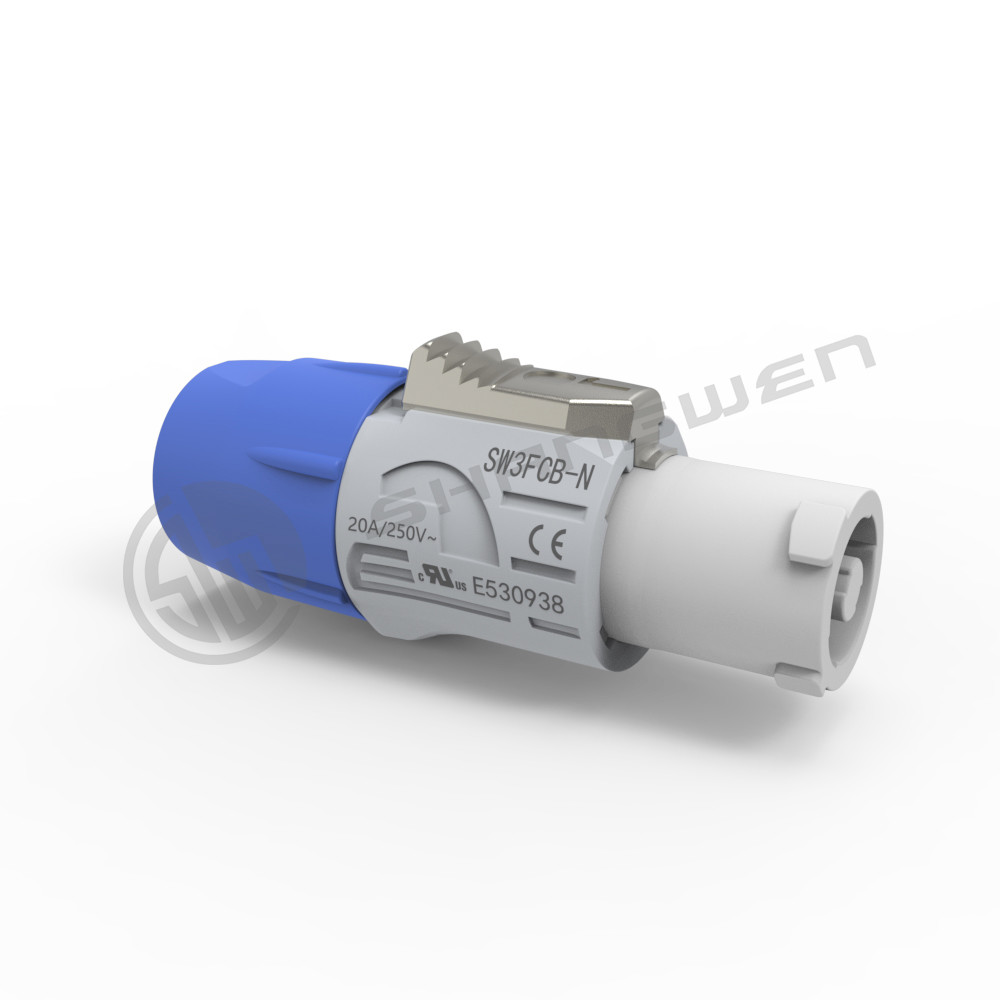

White Cu Power Connector Plug / Circular Plug Socket Female IP44 Screw Type 3 Contact

Place of Origin China
Brand Name Shang Wen
Certification CQC Rohs UL CE
Model Number SW3FCB-N
Minimum Order Quantity 100pcs
Price Negotiable
Packaging Details Internal blister box 23x23cm External carton 51x26x34cm
Delivery Time 5-8 working days
Payment Terms T/T
Supply Ability 100000+pcs+per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name 20A 250V Circular Power Connector Application For Power Connection
Shell Material Polyamide Conductor Material Cu Alloy
Type Of Terminals Screw Type Connecting Mode Fast Rotating Connection
Color White/Power-out Gender Female
IP Grade IP44
Highlight

IP44 Circular Power Connector

,

Screw Type Circular Power Connector

,

3 Contact Circular Power Connector

Leave a Message
Product Description



Product features
 Secure,quick, simple locking system

High current capacity,rated at 20A/250V AC
Color coded for easy identification,powercon offers power-in(blue) and power-out(white) versions with different keying to avoid the possibility of intermating
☑ Connect reliably
 Small size of product
 Lockable 3 conductor equipment(AC) connector with contacts for line,neutral and pre-mating ground




Technical parameters

Electrical parameters

Contacts No.                3
Rated current 20A
Rated voltage 250V AC
Contact resistance ≤5mΩ
Dielectric strength

4000V DC

Insulation resistance

>1000MΩ

Mechanical parameters

Service life >1000 times
Power line 2.5mm²(8mm-12mm)
Wire stripping length 7-8mm
Type of terminals Screw type terminals




-Material and environmental parameters




Shell  PA
Conductor Cu alloy
Conductor surface Ag
Flame-retardant grade UL94-V0
Temperature range -30°C~80°C
IP grade IP44



Product Profile

White Cu Power Connector Plug  / Circular Plug Socket Female IP44 Screw Type 3 Contact 0
White Cu Power Connector Plug  / Circular Plug Socket Female IP44 Screw Type 3 Contact 1
White Cu Power Connector Plug  / Circular Plug Socket Female IP44 Screw Type 3 Contact 2
White Cu Power Connector Plug  / Circular Plug Socket Female IP44 Screw Type 3 Contact 3
White Cu Power Connector Plug  / Circular Plug Socket Female IP44 Screw Type 3 Contact 4



Application area
White Cu Power Connector Plug  / Circular Plug Socket Female IP44 Screw Type 3 Contact 5
Packaging reference

White Cu Power Connector Plug  / Circular Plug Socket Female IP44 Screw Type 3 Contact 6

FAQ
White Cu Power Connector Plug  / Circular Plug Socket Female IP44 Screw Type 3 Contact 7
1. Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2. What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3. Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.


4. Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5. What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6. Do your products come with warranty?
A: 1-3 year warranty according to different model
