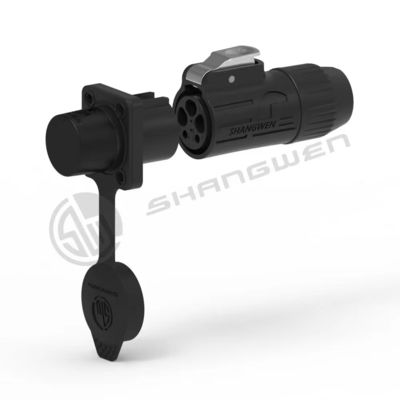

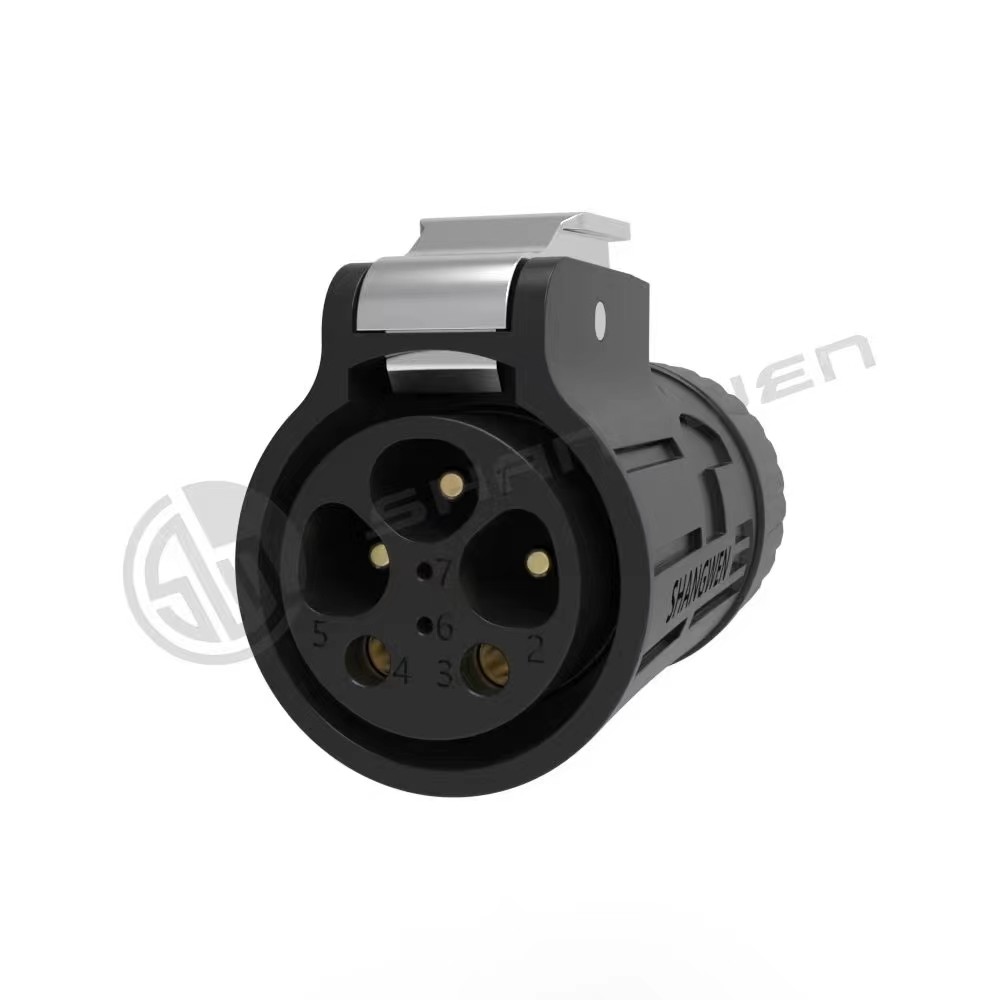

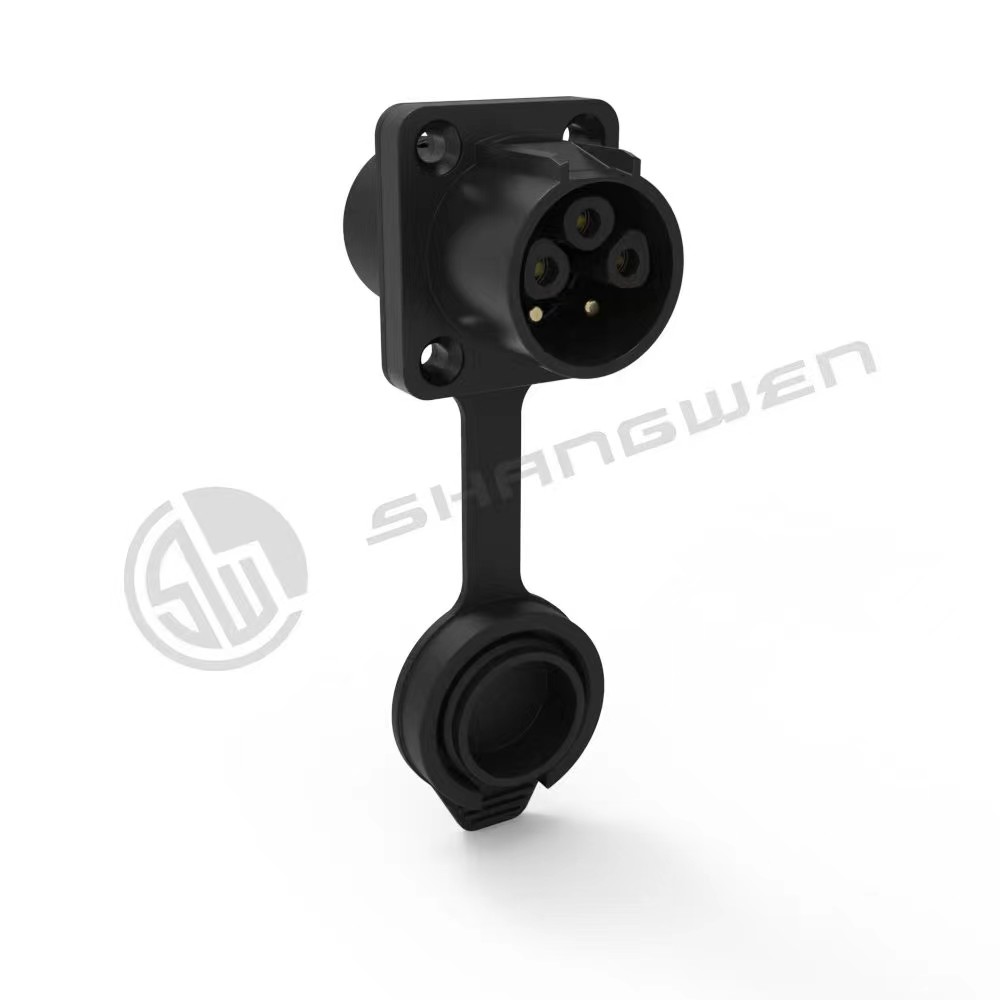

Outdoor 6 Pin IP67 Power Connector Dustproof Waterproof Powercon

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xFeatures | Quick, Simple Self Locking System | Name | IP67 Power Connector Waterproof |
---|---|---|---|
Type | Led Display Connector | Gender | Male |
Industrial Electronics | Accessories | Multiple Cores | 2,3,4,5,6,9,3+9 Pin Support |
Application | Power | ||
Highlight | Outdoor IP67 Power Connector,IP67 Power Connector Dustproof,6 Pin Power Connector Waterproof |
Outdoor Dustproof Waterproof 6 Pin Power Connector For Audio And Video Connection
The enclosure is made of industrial PBT insulation material, which is resistant to pressure, high temperature, corrosion and flame retardant up to UL94-V0.
The inner core is made of copper alloy, which has strong contact stability and can strengthen the control of temperature rise.
The materials used in this series are extremely elegant, and the design of many inner cores meets the diversified industrial needs. Not afraid to apply in all kinds of bad conditions!
☑Adopt one key press button locking method,plug and play,fast and convenient;
☑Adopt high-strength structural materials, pressure-resistant structure design,can
withstand greater vibration and shock.
☑High-power industrial waterproof connector - waterproof, moisture-proof and dust proof
☑The insulating parts of the shell are high-performance engineering plastics, and the flame retardant grade reaches UL94-V0
☑The connector is plated with gold/silver beryllium copper, which is oxidation and corrosion resistant to ensure fast signal
transmission and electrical conductivity
☑Multi-style inner core design to meet the needs of various industries
☑Precision waterproof design,with high waterproof level,no fear of wading environment;
☑Connection mode:
2. Lock the cable with screws
☑Protection level: used in outdoor scenes, protection level up to IP65/IP67


Contacts NO.
|
Φ1.0* 6 pin
|
Rated current
|
10A
|
Rated voltage
|
250V AC
|
Contact resistance
|
≤4mΩ
|
Dielectric strength
|
1500V AC
|
Insulation resistance
|
>1000MΩ
|
Service life
|
>1000 times
|
Power line
|
0.5mm²
|
Wire stripping length
|
5-7mm
|
Type of teminals
|
Soldering
|
Shell&insulated parts
|
PBT
|
Contacts
|
Brass with gold-plated
|
Sealing
|
Silicone/rubber
|
Flame-retardant grade
|
UL94-V0
|
Temperature range
|
-25°C to +85°C
|
Temperature rise
|
Temperature rise < 30º at 20A, < 40º at 25A, < 50º at 30A
|
Protection level
|
IP65
|









A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.
2. What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.
3. Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.
4. Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.
5. What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.
6. Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
