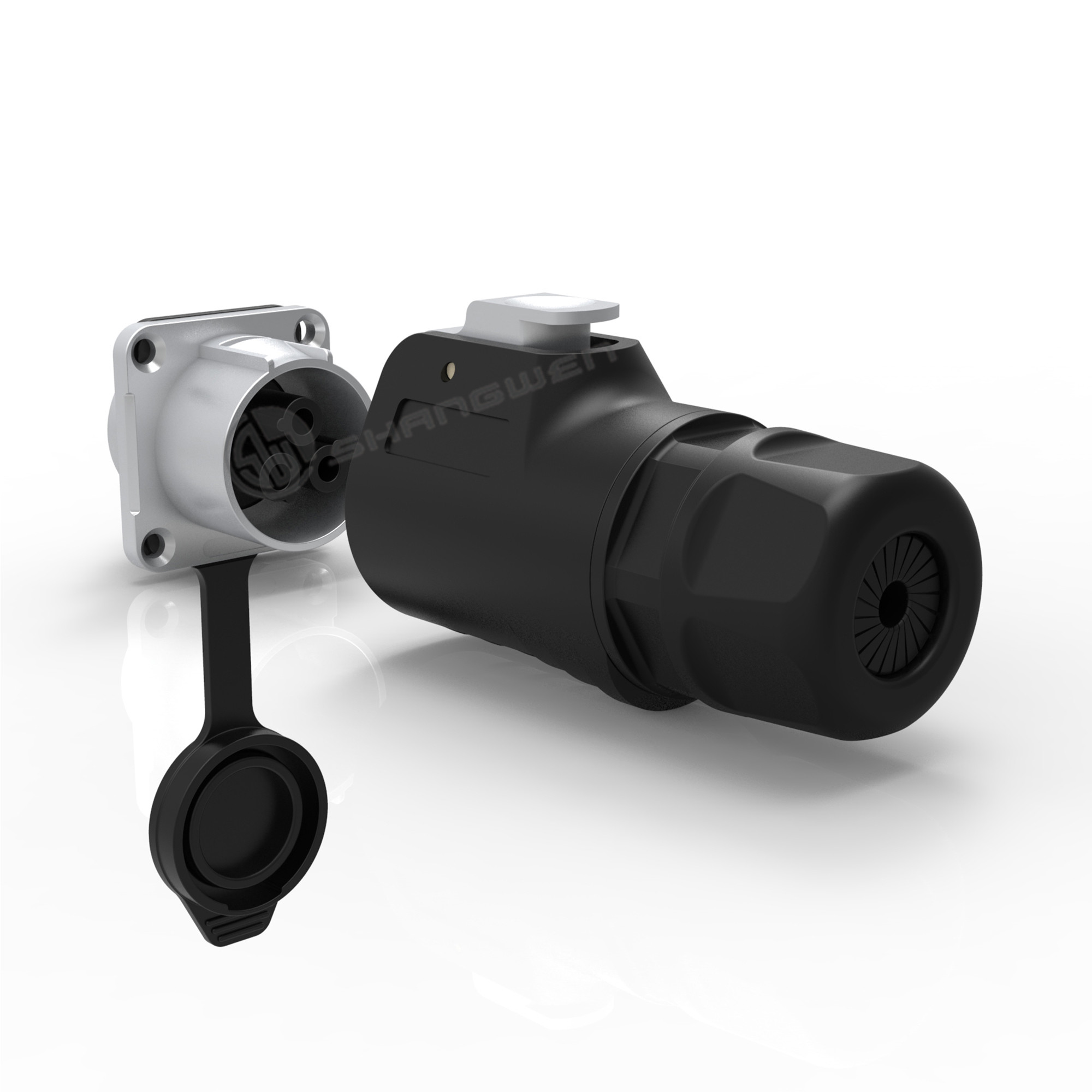

IP67 PBT Material 3pin Male Female power Waterproof Connector

Place of Origin Guangdong, China
Brand Name SHANGWEN
Model Number SW3AM-T
Minimum Order Quantity 2 pieces
Price $2.00 - $3.60/pieces
Packaging Details 10pcs/sample bag<br>25pcs/Blister box(23cm x 23cm)<br>500pcs/carton (51cm x 26cm x 34cm)

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Quick, Simple Self Locking System Name Male Female Waterproof Connector
Gender Male Industrial Electronics Accessories
Application Power Multiple Cores 2,3,4,5,6,9,3+9 Pin Support
Type LED Display Connector
Highlight

Precision Male Female Waterproof Connector

,

Male Female Waterproof Connector IP67

,

AC Male Female Connector PBT

Leave a Message
Product Description



Precision Waterproof Design Metal 3 Core Powercon Connector Ac Led Female Male Connectors

Products Description
Power connector series-3 core male powercon(Metal material ,card buckle type)

This series is widely used in audio and video connection, lighting, LED display, industrial equipment and other industries.

The materials used in this series are extremely elegant, and the design of many inner cores meets the diversified industrial needs. Not afraid to apply in all kinds of bad conditions!

The inner core is made of copper alloy, which has strong contact stability and can strengthen the control of temperature rise.
The socket is made of zinc alloy with complete electromagnetic and radio frequency interference protection.
The enclosure is made of industrial PBT insulation material, which is resistant to pressure, high temperature, corrosion and flame retardant up to UL94-V0.



Model : SW3AM-T ( outdoor use )
☑The connector is plated with gold/silver beryllium copper, which is oxidation and corrosion resistant to ensure fast signal
transmission and electrical conductivity
☑Adopt one key press button locking method,plug and play,fast and convenient;
☑Precision waterproof design,with high waterproof level,no fear of wading environment;
☑Adopt high-strength structural materials, pressure-resistant structure design,can withstand greater vibration and shock;
☑High-power industrial waterproof connector - waterproof, moisture-proof and dust proof
☑Protection level: used in outdoor scenes, protection level up to IP65/IP67
☑Semi-metallic style,which can meet the demands of anti-interference,high strength
and high corrosion resistance;
☑The insulating parts of the shell are high-performance engineering plastics, and the flame retardant grade reaches UL94-V0

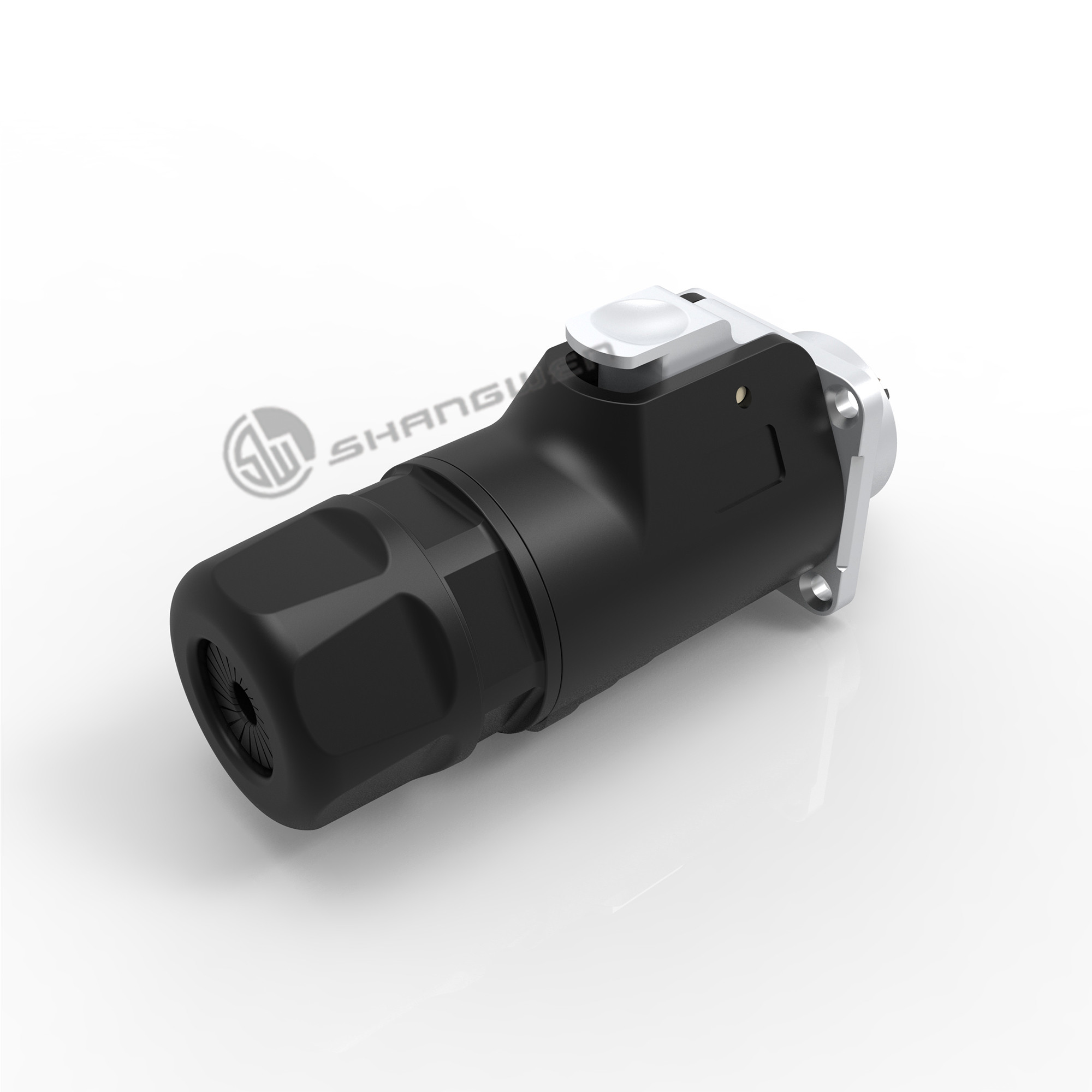

IP67 PBT Material 3pin  Male Female power Waterproof Connector 0

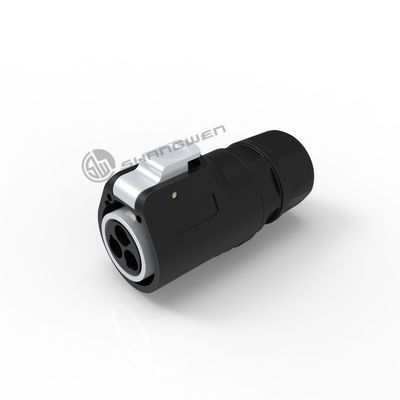

IP67 PBT Material 3pin  Male Female power Waterproof Connector 1

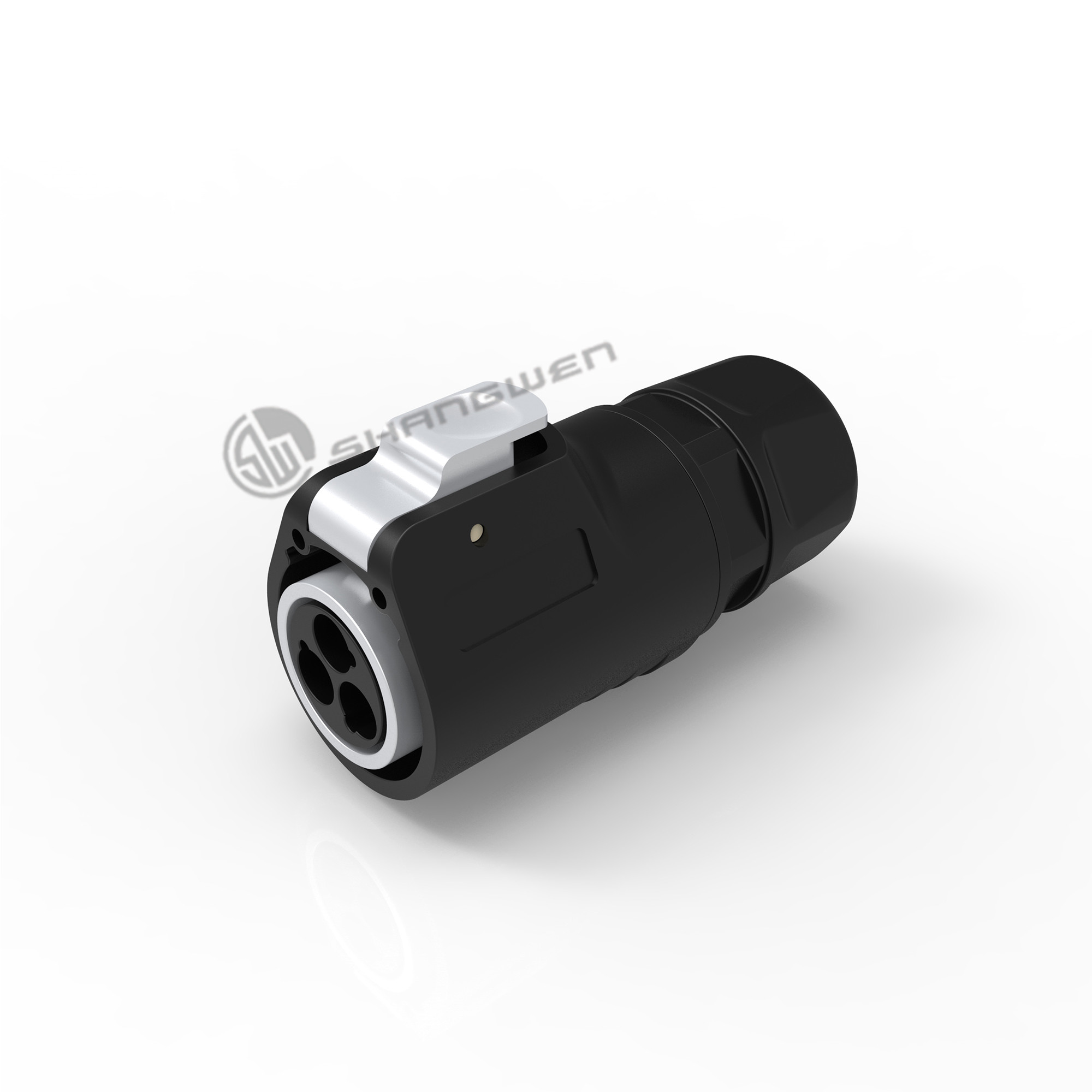

IP67 PBT Material 3pin  Male Female power Waterproof Connector 2
1. Electrical parameters
Contacts NO.
Φ2.0* 3 pin
Rated current
20A
Rated voltage
250V AC
Contact resistance
≤4mΩ
Withstand voltage
2500V AC
Insulation resistance
>1000MΩ
2. Mechanical parameters
Service life
>1000 times
Power line
4mm²
Wire stripping length
φ9-12mm
Type of terminals
Soldering
3. Material and environmental parameters
Shell&insulated parts
PBT
Hardware metal
Zinc alloy
Contacts
Brass with gold-plated
Sealing
Silicone/rubber
Flame-retardant grade
UL94-V0
Temperature range
-30°C to +80°C
Temperature rise
Temperature rise < 30º at 20A, < 40º at 25A, < 50º at 30A
Protection level
IP65
4. Size reference (unit /mm)
IP67 PBT Material 3pin  Male Female power Waterproof Connector 3
5. Installation reference drawing
IP67 PBT Material 3pin  Male Female power Waterproof Connector 4

Application area
IP67 PBT Material 3pin  Male Female power Waterproof Connector 5
Company Information
IP67 PBT Material 3pin  Male Female power Waterproof Connector 6
Patent & Certification
IP67 PBT Material 3pin  Male Female power Waterproof Connector 7
Exhibition activities
IP67 PBT Material 3pin  Male Female power Waterproof Connector 8

Packaging reference

IP67 PBT Material 3pin  Male Female power Waterproof Connector 9

FAQ

1. Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2. What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3. Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4. Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5. What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6. Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
