Black 3 Pin IP67 Power Connector 3 Core Audio Video Connectors

Place of Origin Guangdong, China
Brand Name SHANGWEN
Model Number SW3AJ-TB
Minimum Order Quantity 2 pieces
Price $1.60 - $2.80/pieces
Packaging Details 10pcs/sample bag<br>25pcs/Blister box(23cm x 23cm)<br>500pcs/carton (51cm x 26cm x 34cm)

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Quick, Simple Self Locking System Name 3 Pin IP67 Power Connector
Type Led Display Connector Gender Male
Industrial Electronics Accessories Multiple Cores 2,3,4,5,6,9,3+9 Pin Support
Application Power
Highlight

Black IP67 Power Connector

,

IP67 Power Connector 3 Core

,

3 Pin IP67 Connector

Leave a Message
Product Description



Waterproof Black Plastic Outdoor 3 Core Male Powercon 3 Pin Audio Video Connectors



1: With multi-core(2-9 core) design to fit with different industrial needs.

2: Design snap lock ensures stable and security firm.

3: Humanization design achieved blind operation.

4: Both soldering and crimping are available.

5:Socket and internal made of zinc alloy,with well protected electromagnetic and radio frequency interference.

6: Gold-plating;high strength corrosion resistance and electrical conductivity.

7: Shell made of material PBT,stable electrical performance,high strength and resistance to pressure,high temperature resistance,anti-explosion,anti-corrosive.

8: Both cable connector to cable connector and cable connector to panel mounting are available.

9: IP65 to IP67 when mated.

Products Description
Power connector series-3 core male powercon(card buckle type)
This series is widely used in audio and video connection, lighting, LED display, industrial equipment and other industries.
The enclosure is made of industrial PBT insulation material, which is resistant to pressure, high temperature, corrosion and flame retardant up to UL94-V0.
The inner core is made of copper alloy, which has strong contact stability and can strengthen the control of temperature rise.
The materials used in this series are extremely elegant, and the design of many inner cores meets the diversified industrial needs. Not afraid to apply in all kinds of bad conditions!

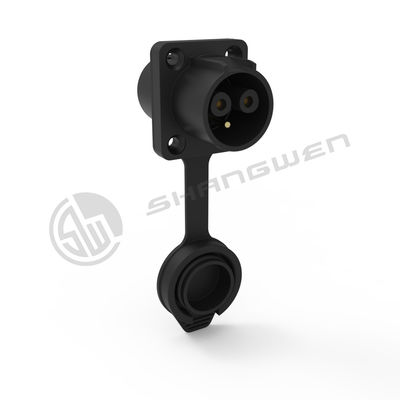

Black 3 Pin IP67 Power Connector 3 Core Audio Video Connectors 0

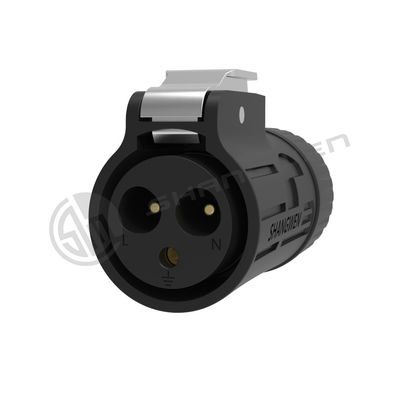

Black 3 Pin IP67 Power Connector 3 Core Audio Video Connectors 1

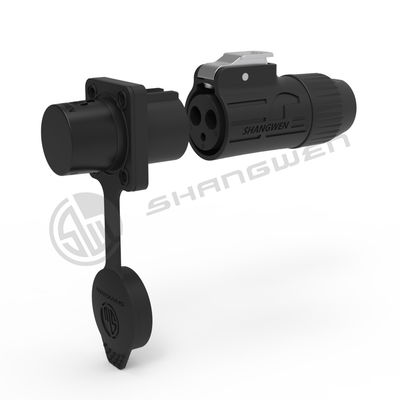

Black 3 Pin IP67 Power Connector 3 Core Audio Video Connectors 2
1. Electrical parameters
Contacts NO.
Φ2.0* 3 pin
Rated current
20A
Rated voltage
250V AC
Contact resistance
≤4mΩ
Withstand voltage
2500V AC
Insulation resistance
>1000MΩ
2. Mechanical parameters
Service life
>1000 times
Power line
2.5mm²-4mm²
Wire stripping length
7-8mm
Type of terminals
Soldering
3.Material and environmental parameters
Shell&insulated parts
PBT
Contacts
Brass with gold-plated
Sealing
Silicone/rubber
Flame-retardant grade
UL94-V0
Temperature range
-30°C to +80°C
Temperature rise
Temperature rise < 30º at 20A, < 40º at 25A, < 50º at 30A
Protection level
IP65
4. Size reference (unit /mm)
Black 3 Pin IP67 Power Connector 3 Core Audio Video Connectors 3
5.Installation reference drawing
Black 3 Pin IP67 Power Connector 3 Core Audio Video Connectors 4

Application area
Black 3 Pin IP67 Power Connector 3 Core Audio Video Connectors 5
Company Information
Black 3 Pin IP67 Power Connector 3 Core Audio Video Connectors 6
Patent & Certification
Black 3 Pin IP67 Power Connector 3 Core Audio Video Connectors 7
Exhibition activities
Black 3 Pin IP67 Power Connector 3 Core Audio Video Connectors 8
Packaging reference
Black 3 Pin IP67 Power Connector 3 Core Audio Video Connectors 9
Payment and logistics
Black 3 Pin IP67 Power Connector 3 Core Audio Video Connectors 10
FAQ
Black 3 Pin IP67 Power Connector 3 Core Audio Video Connectors 11
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
